Peerless MOD-FCSKIT300-B Modular Series Floor To Ceiling Kit

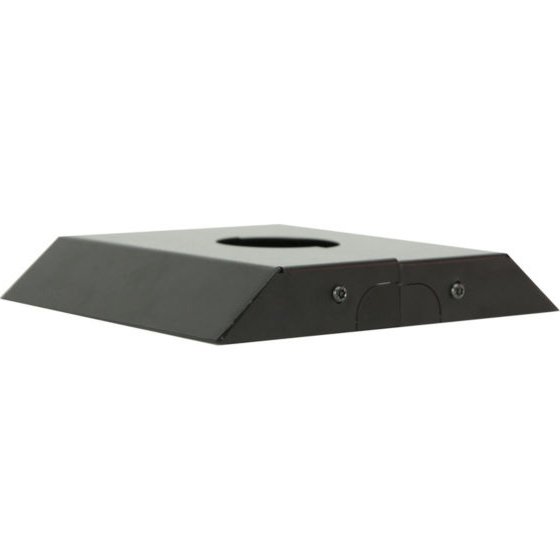

Package contents: 2 x MOD-CPF heavy duty flat ceiling plate, MOD-P300 118" (3m) extension pole, MOD-ASC display stacking clamp, MOD-FPMS single screen mount, MOD-UNL large universal adaptor. Display size: Up to 75". Max load: 132 lbs (60kg) per display.
Description
Peerless-AV Modular Mount Line includes a small and easily manageable number of components to fulfill a vast majority of end-user requirements. Designed around a 2" (50mm) diameter pole, the line is ideal for new projects as well as upgrading existing installations. As part of the Peerless-AV Modular Series, the MOD-FCSKIT300-B includes all components required to mount your display. This kit can be expanded with Modular accessories to accommodate additional displays or alternative configurations to achieve the perfect custom mounting solution.
Technical Drawing
Specifications
| Color | Black |
| Display Size | Up to 75" |
| Weight Capacity | 132 lbs (60kg) Per Display |
| Finish | Powder Coat |
| Increlock Increments | 0, 5, 10, 15, 20/-5 degree |
| Mounting Pattern | VESA up to 600 x 400mm |
| Security Features | Security Hardware |
| Swivel Yaw | 360 degree |
| Tilt | +20 / -5 degree |
| Dimensions (W x H x D) | 4.38" x 120.11" x 7.48" (619 x 3051 x 190mm) |
| Product Weight | 26.05 lbs (11.8kg) |
| Shipping Dimensions (W x H x D) |
|
| Shipping Weight |
|
| UPC Code | 735029290162 |
| Package Contents |
|
| Warranty |
Limited 5-year |

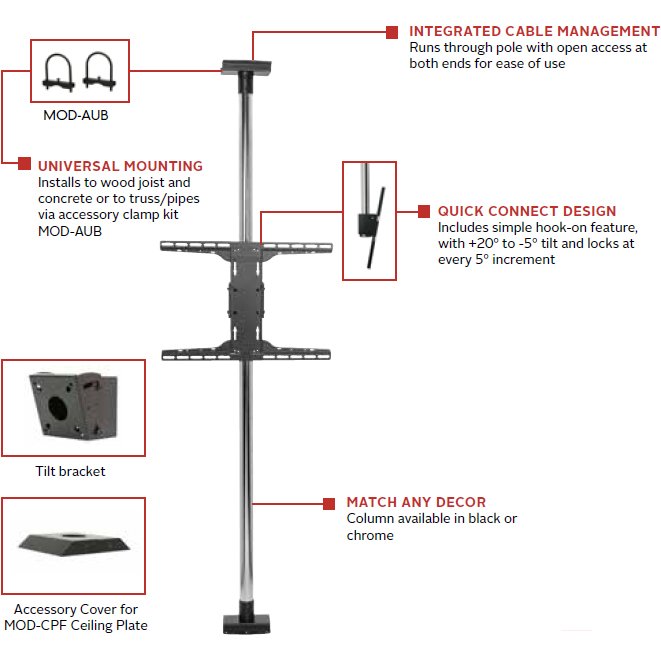

Features
Quick Connect Design: Includes simple hook-on feature, with +20° to -5° tilt and locks at every 5° increment
Versatile display positioning at any point along the height of the 2" (50mm) diameter column
Universal display adaptor for 39" to 75" displays with VESA mounting patterns up to 600 x 400mm
Kit includes: Flat ceiling/floor plates, 118" (3m) chrome or black extension column, Single display flat panel mount, Display stacking clamp, Large universal adaptor
Heavy duty flat plate mounts to wood or concrete ceiling and floor
Product Options/Accessories
Frequently Asked Questions
The above product is specifically designed only to hold TV/Monitor mounts. But here is an LCD TV Stand that comes with shelves.
You will need to go with the 118” length pole that comes standard. You’ll need to cut the pole to the length needed for your installation.
| Model | MOD-FCSKIT300-B |
| Manufacturer | Peerless Mounts |
| Part Number | MOD-FCSKIT300-B |
| UPC | 735029290162 |
| Color | Black |
| Dimensions | 4.38" x 120.11" x 7.48" (619 x 3051 x 190mm) |
| Weight | 26.05 lbs (11.8kg) |
| Weight Capacity | 132 lbs (60kg) per display |
| Finish | Powder coat |
| Shipping Dimensions | Box1: 31.75" x 12.26" x 4.13" (807 x 311 x 105mm), Box2: 120.00" x 2.50" (3048 x 64mm) |
| Shipping Weight | Box1: 16.1 lbs (7.3kg), Box2: 15.5 lbs (7.0kg) |
| Monitor Size | Up to 75" |
| Mounting Pattern | VESA up to 600 x 400mm |
| Tilt | +20 to -5 degree |
| Pole Diameter | 2" (50mm) |
| Pole Length | 9' 8" (3m) |
| Swivel | 360 degree |
| Warranty | Limited 5-year |
