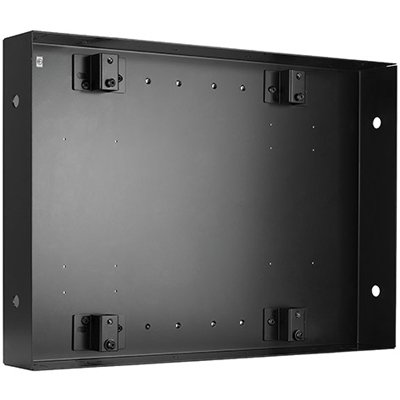

Chief TA501 Medium Thinstall In-Wall Swing Arm Accessory
Description

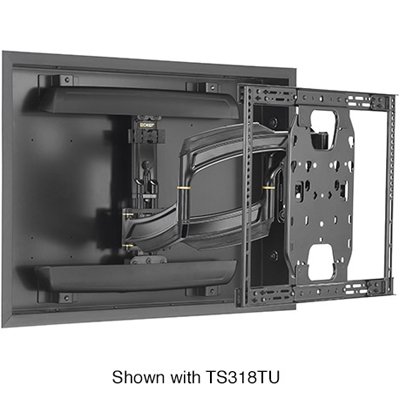

Chief TA501 is designed to take an already thin swing arm to a zero depth design. Compatible with TS318TU

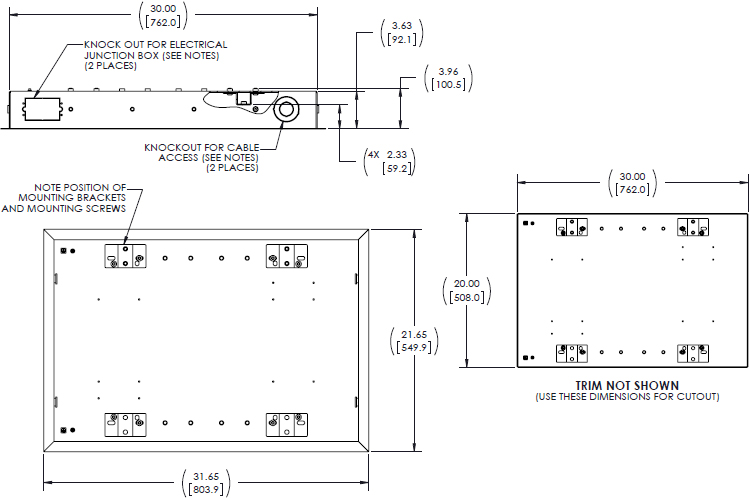

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
75 lbs (34 kg) |
|
Notes |
TAA Compliant |
|
Overall Dimensions (H x W x D) |
20" x 30" x 3.96" (508mm x 762mm x 101mm) |
|
Shipping Weight |
35.50 lbs |
|
Typical Screen Sizes |
26 - 52" |
Features
- Large conduit and gang knock-outs for easier cable integration compatible with metal single gang boxes
- Takes the already ultra-thin THINSTALL swing arms and gives a flush appearance while still allowing great mobility of the swing arm
- Includes black trim kit to create clean design
- TAA compliant
Product Options/Accessories
| Model | TA501 |
| Manufacturer | Chief Mounts |
| Part Number | TA501 |
| UPC | 841872156156 |
| Color | Black |
| Weight Capacity | 75 lbs (34 kg) |
| Overall Dimensions | 20" x 30" x 3.96" (508mm x 762mm x 101mm) |
| Shipping Weight | 35.50 lbs |
| Monitor Size | 26 - 52" |
