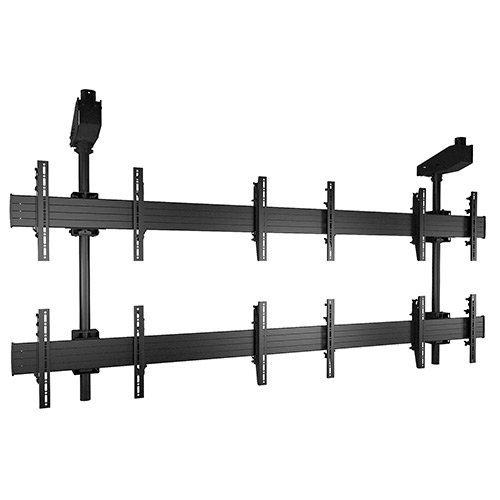

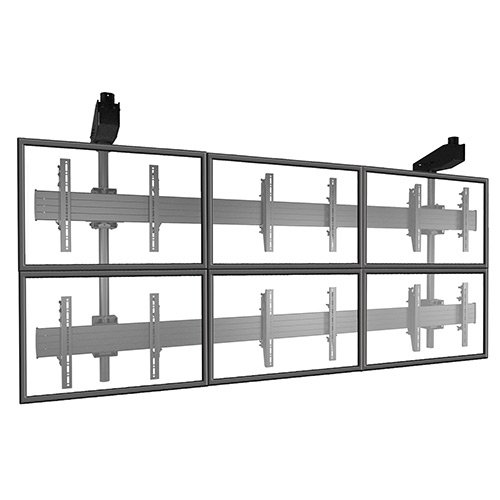

Chief LCM3X2U Fusion Large Ceiling Mounted 3x2 Video Wall
Please make sure that the combined weight of all components attached to the ceiling plates do not exceed the sum of the ceiling plate weight ratings
More shipping >
Description
Chief's LCM3X2U FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Comes in 2 x 2, 3 x 2 and 3 x 3 arrangements. Great for digital signage installations.
Screen array configuration: screens wide x screens high
Confirm screen compatibility with MountFinder
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

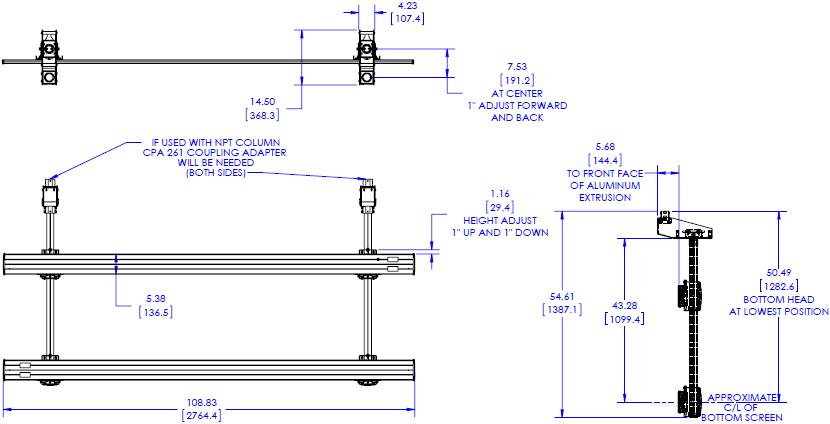

Technical Drawing
Specifications
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Manual height Adjustment | 1" (25 mm) increments at structural intersections |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 400 mm |
| Notes | Weight capacity is per display |
| Number of Monitors | 6 |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 3 x 2 |
| Shipping Weight | 188 lbs (85.28 kg) |
| Typical Screen Sizes | 42" - 50" (107 - 127 cm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
Precise Screen Alignment - Easily align displays with independent knobs for height and plumb adjustments, no tools required.
Controlzone Leveling - Micro-height and leveling adjustment at all column intersection points.
Infinite Screen Positioning - Infinite vertical and lateral adjustments provide tight display rows and columns.
Heavy-Duty Construction - Solid construction supports displays up to 55" and 125 lbs (56.7 kg) per screen.
Configurable - Add configurations side by side to create any video wall arrangements up to 3 screens tall.

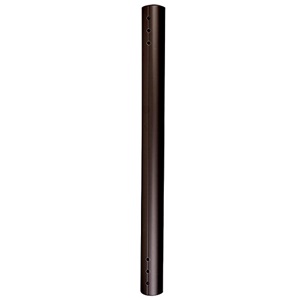

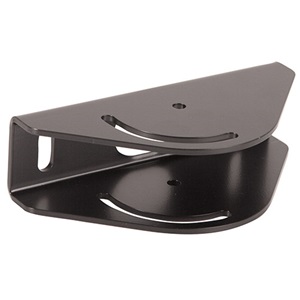

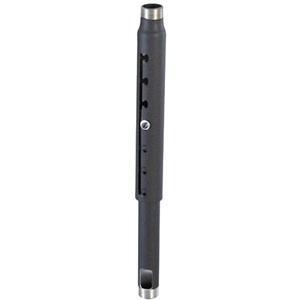

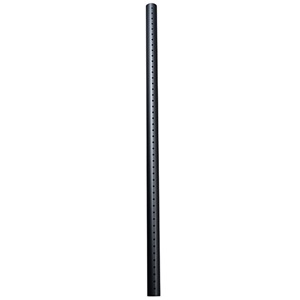

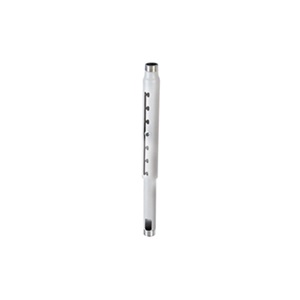

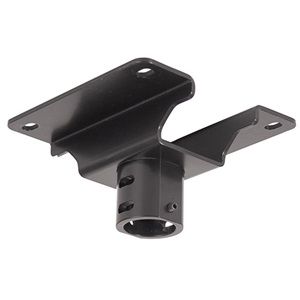

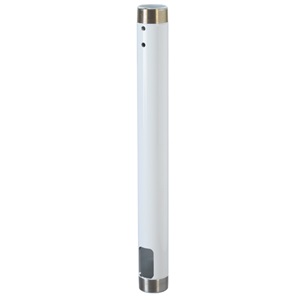

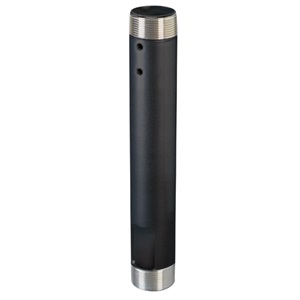

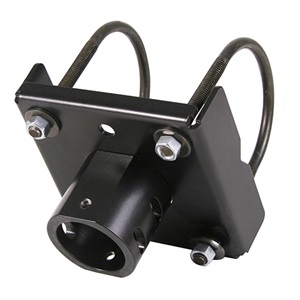

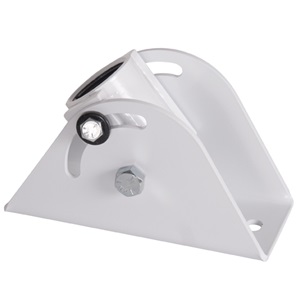

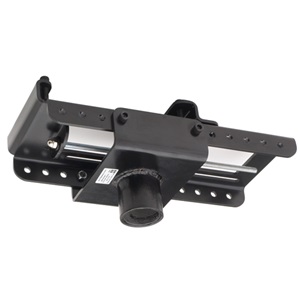

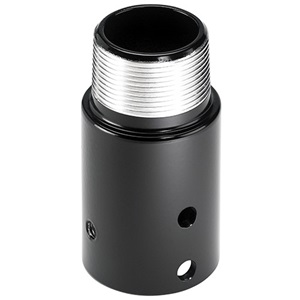

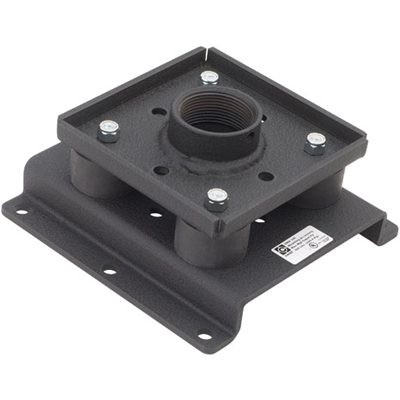

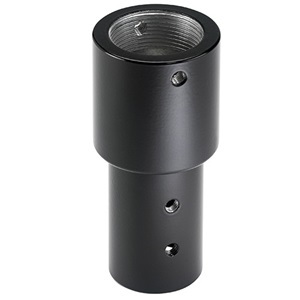

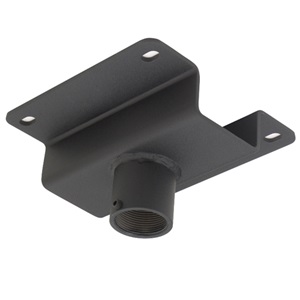

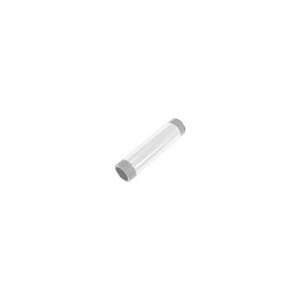

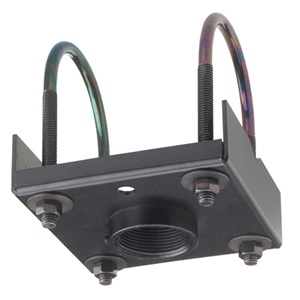

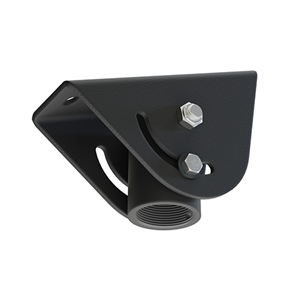

Ceiling Plate and Extension Column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility
Product Options/Accessories
Frequently Asked Questions
| Model | LCM3X2U |
| Manufacturer | Chief Mounts |
| Part Number | LCM3X2U |
| UPC | 841872157146 |
| Color | Black |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Manual Height Adjustment | 1" (25 mm) increments at structural intersections |
| Mounting Pattern | Any width x 100 mm - 400 mm |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Monitor Size | 42" - 50" (107 - 127 cm) |
| Weight Capacity | Each 125 lbs (56.7 kg). Total 750 lbs (340.2 kg) |
| Shipping Weight | 188 lbs (85.28 kg) |
| Number of Monitors | 6 Monitors |
| Orientation | Landscape |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
