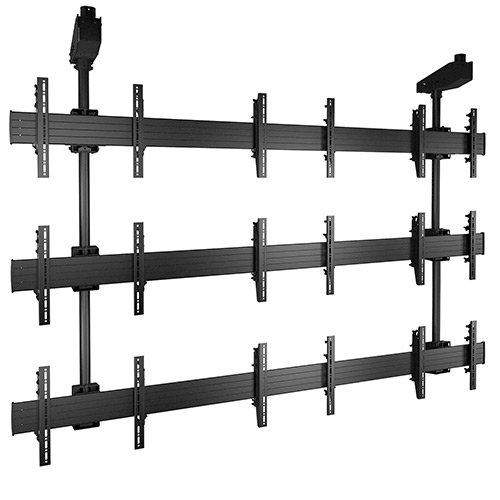

Chief LCM3X3U Fusion Large Ceiling Mounted 3x3 Video Wall
Please make sure that the combined weight of all components attached to the ceiling plates do not exceed the sum of the ceiling plate weight ratings
Description

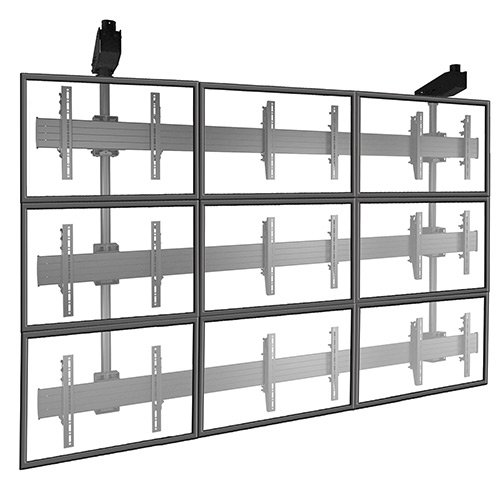

Chief's LCM3X3U FUSION ceiling mounted solutions make it possible to construct video walls in prominent locations where walls aren't available. Great for digital signage installations.
Screen array configuration: screens wide x screens high
Confirm screen compatibility with MountFinder
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

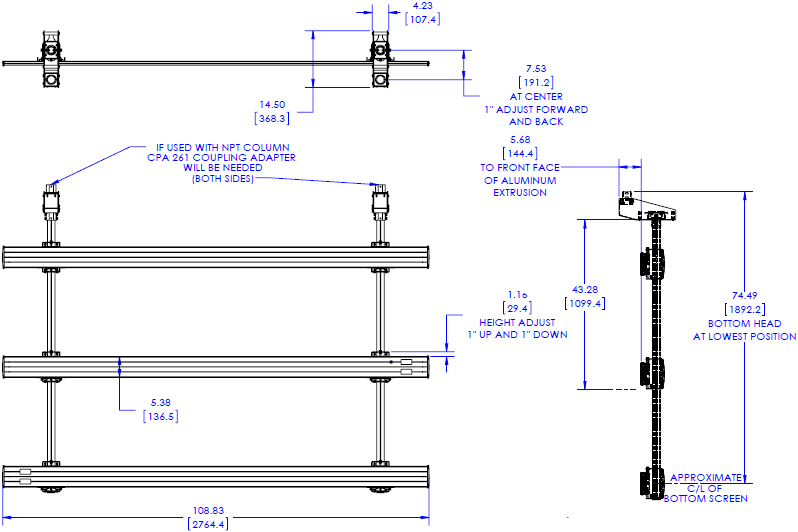

Technical Drawing
Specifications
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Manual height Adjustment | 1" (25.4 mm) increments at structural intersections |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 400 mm |
| Notes | Weight capacity is per display |
| Number of Monitors | 9 |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 3 x 3 |
| Shipping Weight | 235 lbs (106.59 kg) |
| TV Height Range | Max Screen Height is 27" (686mm) |
| Typical Screen Sizes | 42" - 46" (107 - 117 cm) |
| Weight Capacity | 85 lbs (38.6 kg) |
| Orientation | Landscape |
Features
Precise Screen Alignment - Easily align displays with independent knobs for height and plumb adjustments, no tools required
Controlzone Leveling - Micro-height and leveling adjustment at all column intersection points
Infinite Screen Positioning - Infinite vertical and lateral adjustments provide tight display rows and columns
Heavy-Duty Construction - Solid construction supports displays up to 55" and 85 lbs (38.5 kg) per screen
Configurable - Add configurations side by side to create any video wall arrangements up to 3 screens tall
Ceiling Plate and Extension Column are required and must be ordered separately. Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems. Ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility. CPA ceiling plates and CPA columns for pin connection compatibility
Product Options/Accessories
| Model | LCM3X3U |
| Manufacturer | Chief Mounts |
| Part Number | LCM3X3U |
| UPC | 841872155005 |
| Color | Black |
| Adjustments | Micro-Adjustments of 2" at structural intersection points |
| Manual Height Adjustment | 1" (25.4 mm) increments at structural intersections |
| Mounting Pattern | Any width x 100 mm - 400 mm |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Monitor Size | 42" - 46" (107 - 117 cm) |
| Weight Capacity | Each 85 lbs (38.6 kg). Total 765 lbs (347.0 kg) |
| Shipping Weight | 235 lbs (106.59 kg) |
| Maximum Screen Height | 27" (686mm) |
| Number of Monitors | 9 Monitors |
| Orientation | Landscape |
