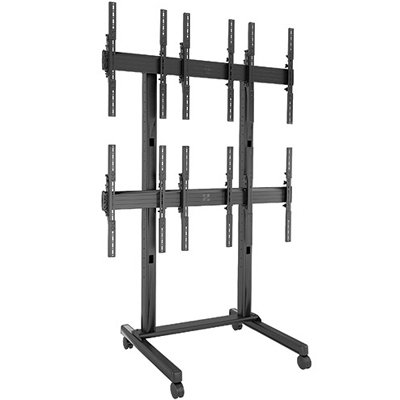

Chief LVM3X2UP FUSION 3x2 Portrait Freestanding Video Wall Cart
Description
Chief's LVM3X2UP FUSION cart freestanding solution makes it possible to construct video walls in prominent locations for temporary situations.
- Screen array configuration: 3 screens wide x 2 screens high in portrait

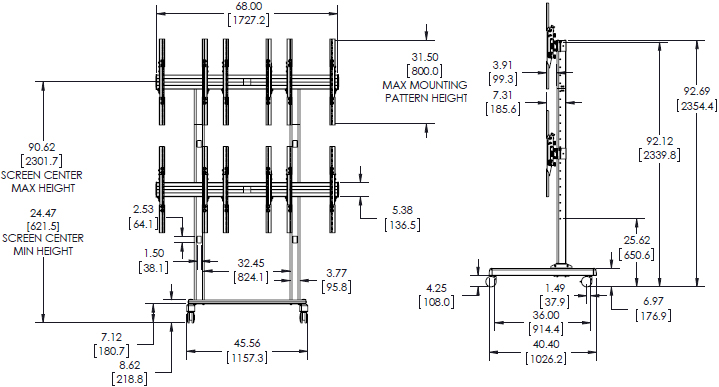

Technical Drawing
Specifications
| Center of Display to Floor Table Range | 24.47" (622 mm) (minimum bottom row) - 90.6" (2302 mm) (maximum top row) |
| Certifications | UL Listed |
| Color | Black |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 800 mm |
| Number of Monitors | 6 |
| Overall Dimensions (H x W x D) | 106.7" x 68.0" x 40.4" (2710 x 1727 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 3 x 2 |
| Shipping Weight | 269 lbs (122.02 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 42 - 46" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Portrait |
Features
3 x 2 portrait screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Smooth rolling casters for effortless positioning (1 locking caster per leg )
Integrated cable management for a clean installation
Available leveling feet (FCA776) for more permanent installations
Product Options/Accessories
| Model | LVM3X2UP |
| Manufacturer | Chief Mounts |
| Part Number | LVM3X2UP |
| UPC | 841872157740 |
| Color | Black |
| Center of Display to Floor/Table Range | 24.47" (622 mm) (minimum bottom row) - 90.6" (2302 mm) (maximum top row) |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern | Any width x 100 mm - 800 mm |
| Overall Dimensions | 106.7" x 68.0" x 40.4" (2710 x 1727 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Monitor Size | 42 - 46" |
| Weight Capacity | 100 lbs (45.4 kg) |
| Shipping Weight | 269 lbs (122.02 kg) |
| Mounting Options | Cart |
| Lateral Shift | Yes |
| Orientation | Portrait |
| Number of Monitors | 6 Monitors |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
