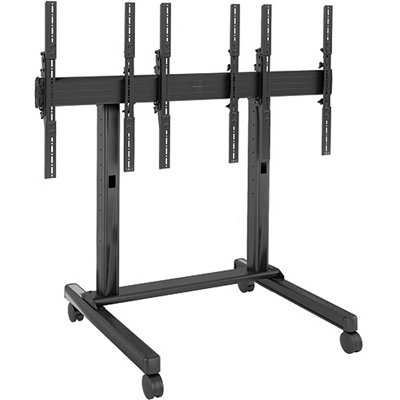

Chief LVM3X1UP FUSION 3x1 Portrait Freestanding Video Wall Cart
Description
Chief's LVM3X1UP FUSION cart freestanding solution makes it possible to construct video walls in prominent locations for temporary situations.
Screen array configuration: 3 screens wide x 1 screen high in portrait

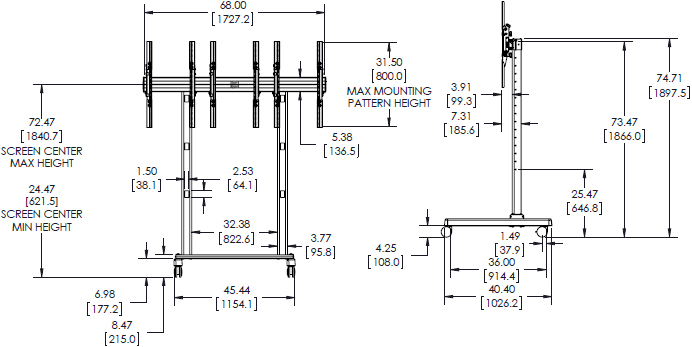

Technical Drawing
Specifications
|
Center of Display to Floor/Table Range |
24.47" (622 mm) (minimum bottom row) - 72.5" (1841 mm) (maximum top row) |
|
Certifications |
UL Listed |
|
Color |
Black |
|
Lateral Shift |
Yes |
|
Manual Height Adjustment |
Micro-adjustment up to 0.75" (19 mm) per screen |
|
Mounting Pattern Compatibility (Universal Versions) |
Any width x 100 mm - 800 mm |
|
Notes |
TAA Compliant |
|
Orientation |
Portrait |
|
Overall Dimensions (H x W x D) |
88.7" x 68.0" x 40.4" (2253 x 1727 x 1026 mm) |
|
Plumb Adjustment |
Micro-adjustment up to 0.75" (19 mm) |
|
Screen Array Configuration |
3 x 1 |
|
Shipping Weight |
179.00 lbs |
|
Solution Type |
Universal |
|
Typical Screen Sizes |
42 - 46" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) |
|
Weight Capacity |
125 lbs. (56.7 kg) per screen. 375 lbs total capacity |
Features
- 3 x 1 portrait screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Smooth rolling casters for effortless positioning (1 locking caster per leg )
- Integrated cable management for a clean installation
- Available leveling feet (FCA776) for more permanent installations
- TAA Compliant
Product Options/Accessories
| Model | LVM3X1UP |
| Manufacturer | Chief Mounts |
| Part Number | LVM3X1UP |
| UPC | 841872157733 |
| Color | Black |
| Center of Display to Floor/Table Range | 24.47" (622 mm) (minimum bottom row) - 72.5" (1841 mm) (maximum top row) |
| Manual Height Adjustment | Micro adjustment per screen up to (19 mm) 0.75" |
| Mounting Pattern | Any width x 100 mm - 400 mm |
| Overall Dimensions | 88.7" x 68.0" x 40.4" (2253 x 1727 x 1026 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Monitor Size | 42 - 46" |
| Weight Capacity | 125 lbs. (56.7 kg) per screen. 375 lbs total capacity. |
| Shipping Weight | 179.00 lbs |
| Mounting Options | Cart |
