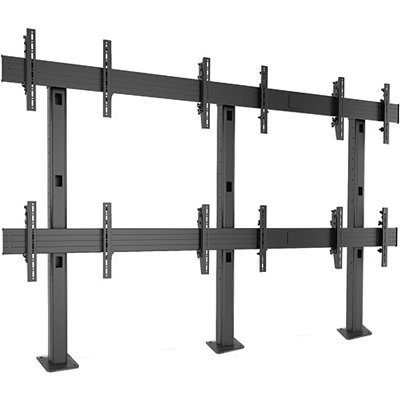

Chief LBM3X2U FUSION 3x2 Large Bolt Down Freestanding Video Wall
Description
Chief's LBM3X2U FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 2 screens high.
Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

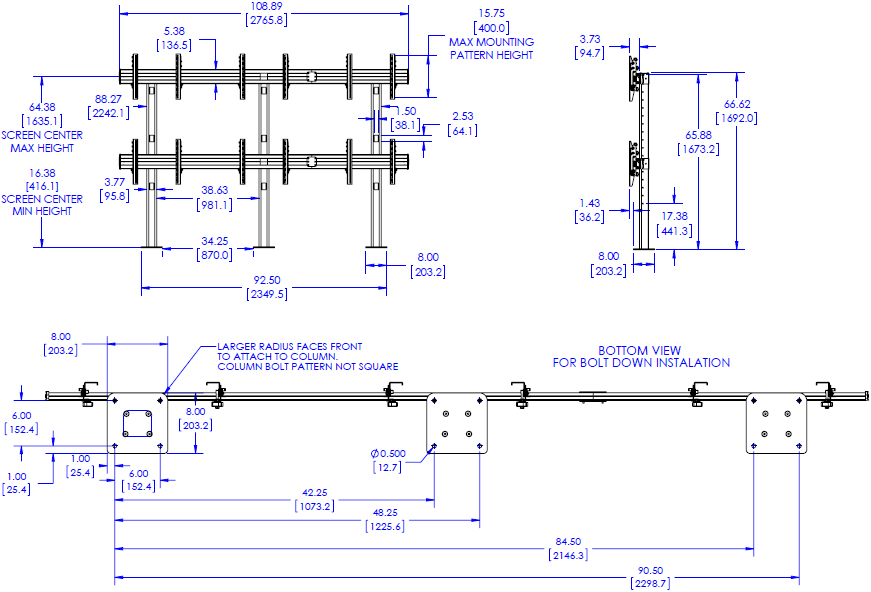

Technical Drawing
Specifications
| Center of Display to Floor Table Range | 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row) |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern Compatibility (Universal Versions) | Any width x 100 mm - 400 mm |
| Number of Monitors | 6 |
| Overall Dimensions (H x W x D) | 72.9" x 108.9" x 9.43" (1852 x 2766 x 239 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 3 x 2 |
| Shipping Weight | 232 lbs (105.23 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 42 - 46" (Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
3 x 2 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
Easily align displays with independent height, plumb and lateral shift adjustment
Bolt-down solution allows for a permanent solution
Integrated cable management for a clean installation
TAA Compliant
Product Options/Accessories
| Model | LBM3x2U |
| Manufacturer | Chief Mounts |
| Part Number | LBM3x2U |
| UPC | 841872157528 |
| Color | Black |
| Center of Display to Floor/Table Range | 16.38" (416 mm) (minimum bottom row) - 64.38" (1635 mm) (maximum top row) |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern | Any width x 100 mm - 400 mm |
| Overall Dimensions | 72.9" x 108.9" x 9.43" (1852 x 2766 x 239 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Monitor Size | 42 - 46" |
| Weight Capacity | 125 lbs (56.7 kg) |
| Shipping Weight | 232 lbs (105.23 kg) |
| Orientation | Landscape |
| Lateral Shift | Yes |
| Number of Monitors | 6 |
