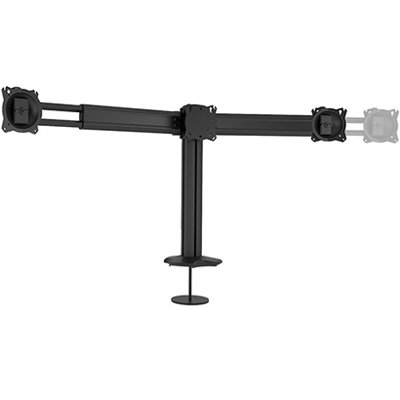

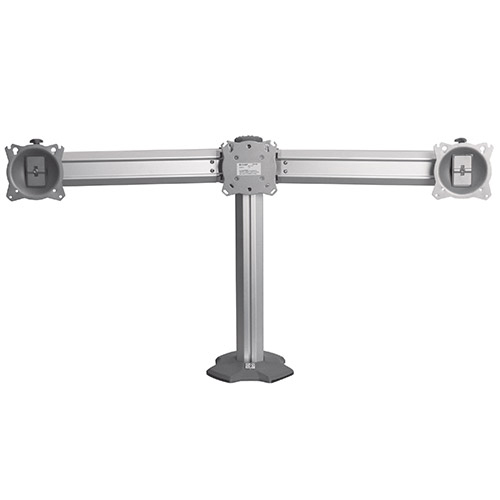

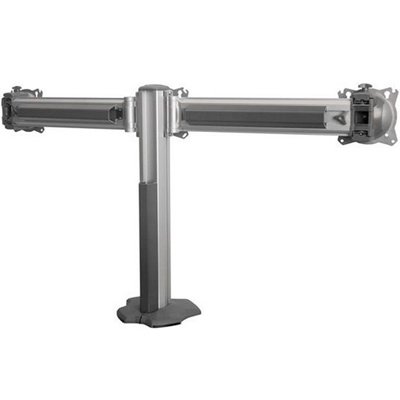

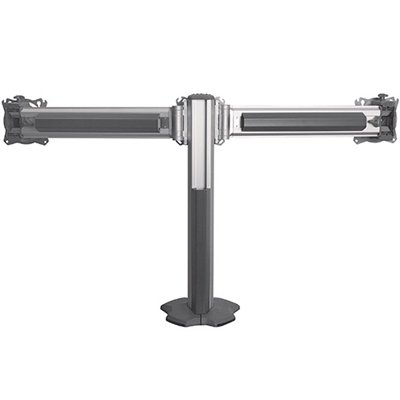

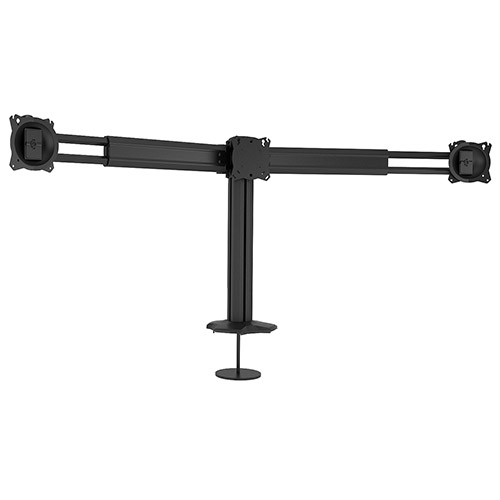

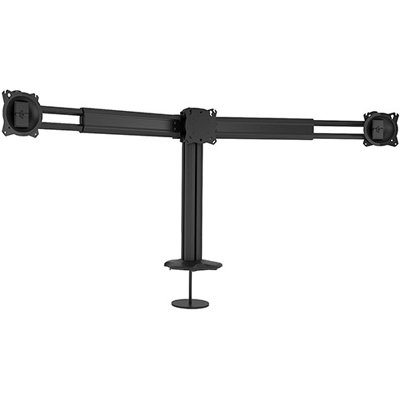

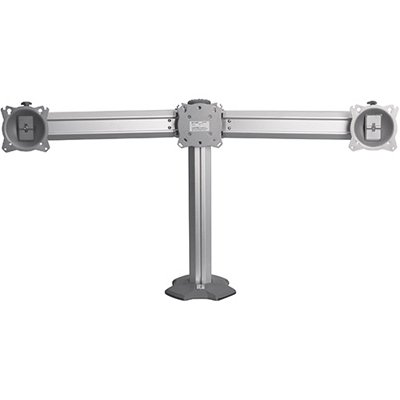

Chief KONTOUR K3 Grommet Mounted 3x1/2x1 Array K3G310B or K3G310S
Description
Flexibility meets form and function with the Kontour K3 Series of
elegantly designed static array mounts from Chief. Chief K3G310, with
its extendable array arms, can accommodate up to two 30"+ monitors. With
included center monitor head, it can even accommodate up to three 27"
monitors.
The K3G310 provides an aesthetic & stable solution for designers, call
centers, security desks, IT, health care, control rooms and other
multiple monitor settings.
Technical Drawing
Specifications
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5" (13 - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10 - 89mm) |
| Mounting Method | Grommet-mount |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 or 3 |
| Overall Dimensions (H x W x D) | 20.87" x 40.17" x 7.03" (530mm x 102mm x 178.5mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 2x1 or 3x1 |
| Shipping Weight | 25.72 lbs (11.67 kg) |
| Solution Type | Universal |
| Tilt | Heads on rails: 12-degrees; Head on column: 10-degrees |
| TV Width Range | 2x1: 51.2" (1301 mm) max width; 3x1: 25.6" (650 mm) max width |
| Typical Screen Sizes | 2x1: up to 30" diagonal; 3x1: up to 27" diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Telescoping Arm rails add 8" (20.3 cm) per Arm of lateral adjustment for larger monitors
Centris heads can easily be moved from the telescoping rails to the array arms for nearly unlimited lateral adjustment, so aligning monitors horizontally is a breeze
Patented Centris technology in heads provides smooth, fingertip tilt 12° in all directions
Center column heads feature 10° of vertical tilt
Independent height adjustment of each Arm and each Center Head along the column provides easy fine-tuning of vertical screen alignment
Array arms can be adjusted from flat up to a 15° angle toward the user for optimization of viewing angles
Easy Installation
Product comes pre-assembled for fast & easy installation
Teardrop hole pattern simplifies monitor mounting
VESA 75 x 75 mm and 100 x 100 mm compatible
Tool-free integrated cable management
Product Options/Accessories
Frequently Asked Questions
This mount does support 27” monitors in landscape x3 or portrait x3 orientation. The height to the monitor bracket is 18.29” (middle of mounted monitor). If your monitors dimensions are 27” wide, there will be clearance of 4.79” below the monitors in portrait orientation.
| Model | K3G310B, K3G310S |
| Manufacturer | Chief Mounts |
| Part Number | K3G310B, K3G310S |
| UPC | 841872157047 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 |
| Grommet Hole Size Range | 0.38 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 20.87 |
| Shipping Weight | 25.72 lbs (11.67 kg) |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
| Number of Monitors | 3 Monitors |
| Tilt | Heads on rails 12 degree and head on column 10 degree |
| TV Width Range | 2x1: 51.2 |
| Monitor Size | 2x1: up to 30 |
| Weight Capacity | 15 lb (6.8 kg) per monitor |
| Orientation | Landscape, Portrait |
| Maximum Monitor Size | 30 |
| Monitor Placement | Side-by-Side |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
