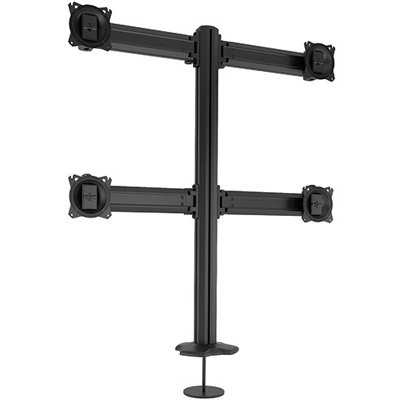

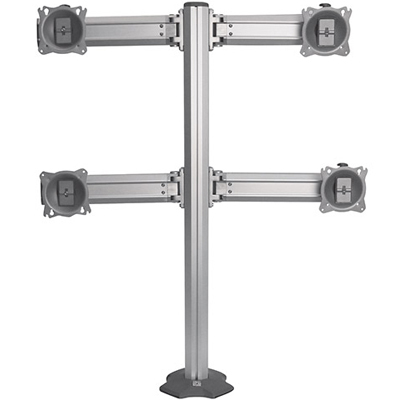

Chief K3G220B or K3G220S KONTOUR K3 Grommet Mounted 2x2 Array
Description
Flexibility meets form and function with the Kontour K3 Series of elegantly designed static array mounts from Chief. Chief K3G220 provides an aesthetic, stable solution for call centers, security desks, IT, health care, control rooms and other multiple monitor settings. KRA500 Desk Clamp accessory available is for all K3 Series array mounts.

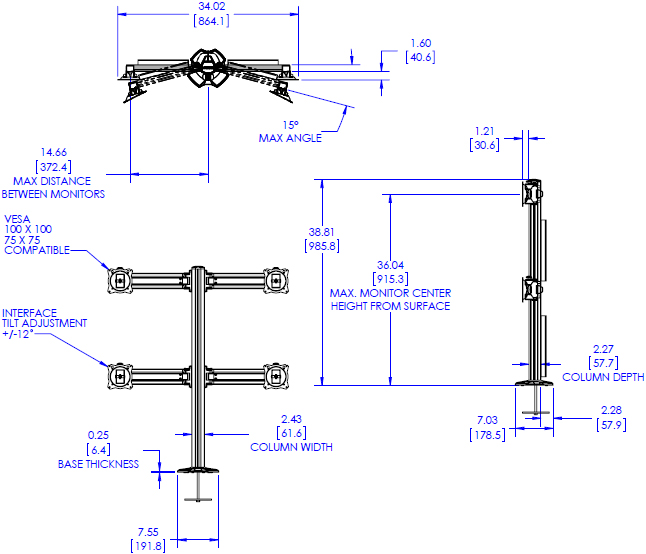

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5" (13 - 127mm) |
| Grommet Hole Size Range | 0.38" - 3.5" (10 - 89mm) |
| Mounting Method | Grommet-mount |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 4 |
| Overall Dimensions (H x W x D) | 38.81" x 34.02" x 7.03" (985.8 x 864.1 x 178.5mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 2 x 2 |
| Shipping Weight | 30 lbs (13.61 kg) |
| Solution Type | Universal |
| Tilt | 12-degrees |
| TV Width Range | 29.3" (744 mm) max |
| Typical Screen Sizes | Up to 27" diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Monitor heads can easily be moved along the array arm for lateral adjustment, for easy screen alignment
Centris technology in heads provides smooth, fingertip 12-degree tilt in all directions
Accommodates monitors up to 29" max width, with 15 lbs. per monitor max weight
Independent height adjustment of each arm
Array arms can be adjusted from flat up to a 15-degree angle toward the user
Simple installation
Teardrop hole pattern makes mounting monitors quick and easy
VESA 75 x 75 mm and 100 x 100 mm compatible
Tool-free, integrated cable management
Product Options/Accessories
| Model | K3G220B or K3G220S |
| Manufacturer | Chief Mounts |
| Part Number | K3G220B or K3G220S |
| UPC | 841872157030 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5 |
| Grommet Hole Size Range | 0.38 |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 38.81 |
| Tilt | 12 degree |
| Monitor Size | Up to 27 |
| Mounting Options | Desk |
| Number of Monitors | 4 Monitors |
| Weight Capacity | 15 lbs (6.8 kg) per monitor |
| TV Width Range | 29.3 |
| Orientation | Landscape, Portrait |
| Shipping Weight | 30 lbs (13.61 kg) |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
