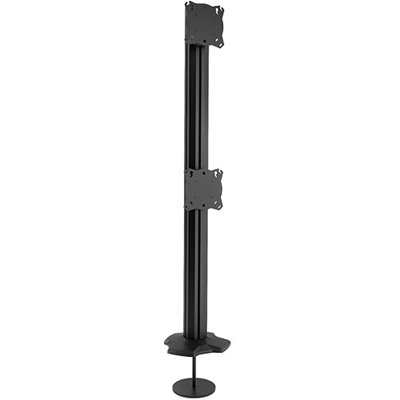

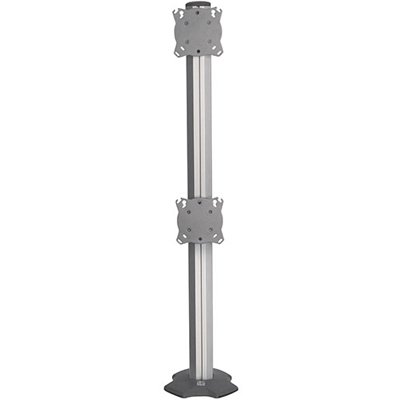

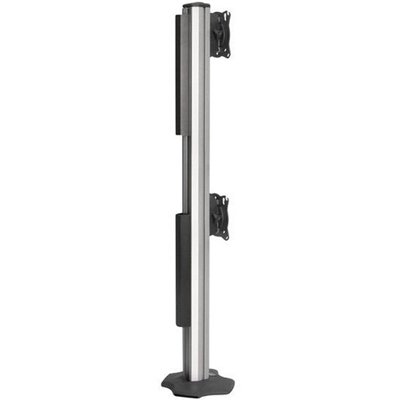

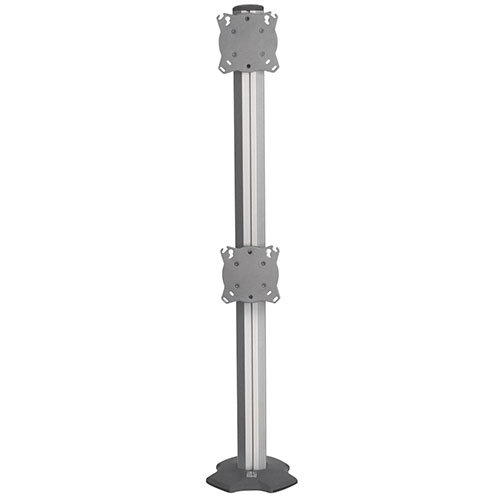

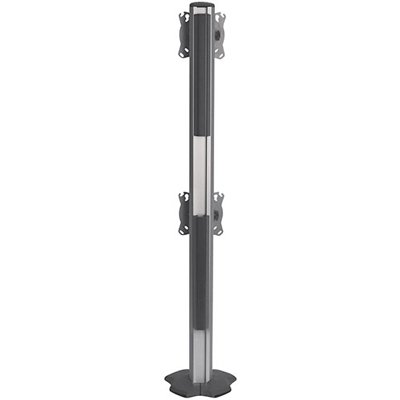

Chief KONTOUR K3 Grommet Mounted 1x2 Array K3G120B or K3G120S
Description
Flexibility meets form and function with the K3 Series of elegantly designed, solid array mounts from Chief. Chief K3G120 provides an aesthetic, stable solution for call centers, security desks, IT, health care, control rooms and other multiple monitor settings. Desk Clamp accessory available for all K3 Series array mounts.

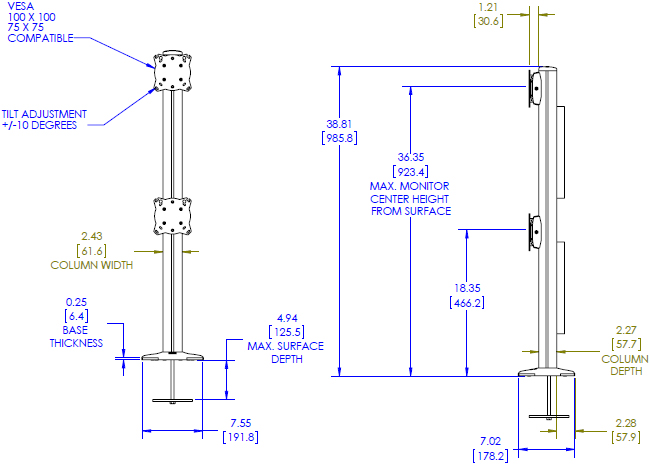

Technical Drawing
Specifications
| Certifications | TAA Compliant |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5" (13 - 127mm) |
| Grommet Hole Size Range | 0.38 - 3.5" (10 - 89mm) |
| Mounting Method | Grommet-mount |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 |
| Overall Dimensions (H x W x D) | 38.81" x 7.55" x 7.02" (985.8 x 191.8 x 178.2mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 1 x 2 |
| Shipping Weight | 19 lbs (8.62 kg) |
| Solution Type | Universal |
| Tilt | +/- 10° vertical |
| Typical Screen Sizes | Up to 30" |
| Weight Capacity | 25 lbs (11.34 kg) |
| Orientation | Landscape, Portrait |
Features
Accommodates monitors up to 30"
Heads feature Centris Vertical Tilt of +/- 10°
Easy independent height adjustment of the column-mounted heads
Simple installation
Teardrop hole pattern makes mounting monitors quick and easy
VESA 75 x 75 mm and 100 x 100 mm compatible
Tool-free, integrated cable management
Product Options/Accessories
Frequently Asked Questions
You can adjust the center head but not the top one.
| Model | K3G120B, K3G120S |
| Manufacturer | Chief Mounts |
| Part Number | K3G120B, K3G120S |
| UPC | 841872157023 |
| Color | Black and Silver |
| Desktop Thickness Range | 0.5 - 5" (13 - 127mm) |
| Grommet Hole Size Range | 0.38 - 3.5" (10 - 89mm) |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 38.81" x 7.55" x 7.02" (985.8 x 191.8 x 178.2mm) |
| Tilt | Vertical +/- 10 degree |
| Monitor Size | Up to 30" |
| Weight Capacity | 25 lbs (11.34 kg) |
| Shipping Weight | 19 lbs (8.62 kg) |
| Orientation | Landscape, Portrait |
| Mounting Options | Desk |
| Maximum Monitor Size | 30" |
| Monitor Placement | Stacked One Over the Other |
