Chief KONTOUR K3 Free Standing 3x1/2x1 Array K3F310B or K3F310S
Description
Flexibility meets form and function with the Kontour K3 Series of
elegantly designed static array mounts from Chief. Chief K3F310, with
its extendable array arms, can accommodate up to two 30"+ monitors. With
included center monitor head, it can even accommodate up to three 27"
monitors.
The K3F310 provides an aesthetic & stable solution for designers, call
centers, security desks, IT, health care, control rooms and other
multiple monitor settings.

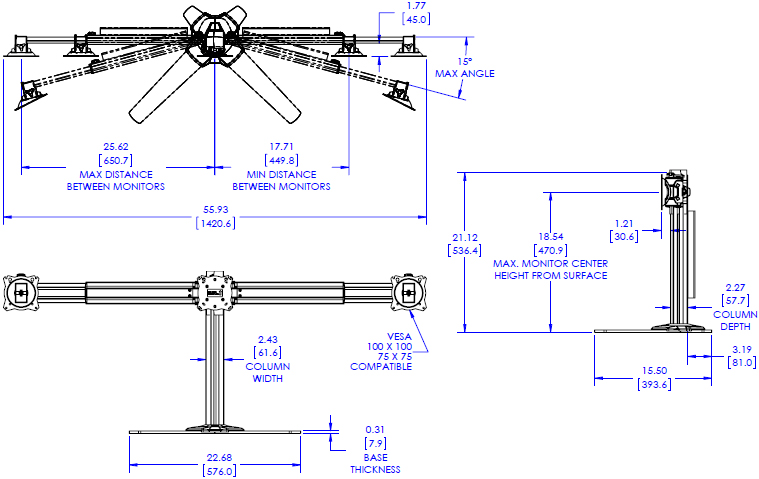

Technical Drawing
Specifications
| Color | Black and Silver |
| Mounting Pattern Compatibility (Universal Versions) | 75 x 75mm, 100 x 100mm |
| Notes | Weight capacity is per monitor |
| Number of Monitors | 2 or 3 |
| Overall Dimensions (H x W x D) | 21.12" x 40.17" x 15.5" (536.4 x 102 x 393.6mm) |
| Post-Installation Leveling Roll | Yes |
| Screen Array Configuration | 2x1 or 3x1 |
| Shipping Weight | 32 lbs (14.51 kg) |
| Solution Type | Universal |
| Tilt | Heads on rails: 12-degrees; Head on column: 10-degrees |
| TV Width Range | 2x1: 51.2" (1301 mm) max width; 3x1: 25.6" (650 mm) max width |
| Typical Screen Sizes | 2x1: up to 30" diagonal ; 3x1: up to 27" diagonal |
| Weight Capacity | 15 lbs (6.8 kg) |
| Orientation | Landscape, Portrait |
Features
Telescoping Arm rails add 8" (20.3 cm) per Arm of lateral adjustment for larger monitors
Centris heads can easily be moved from the telescoping rails to the array arms for nearly unlimited lateral adjustment, so aligning monitors horizontally is a breeze
Patented Centris technology in heads provides smooth, fingertip tilt 12° in all directions
Center column heads feature 10° of vertical tilt
Independent height adjustment of each Arm and each Center Head along the column provides easy fine-tuning of vertical screen alignment
Array arms can be adjusted from flat up to a 15° angle toward the user for optimization of viewing angles
Easy Installation Features:
Product comes pre-assembled for fast & easy installation
Teardrop hole pattern simplifies monitor mounting
VESA 75 x 75 mm and 100 x 100 mm compatible
Tool-free integrated cable management
Product Options/Accessories
| Model | K3F310B, K3F310S |
| Manufacturer | Chief Mounts |
| Part Number | K3F310B, K3F310S |
| UPC | 841872156460 |
| Color | Black and Silver |
| Mounting Pattern | 75 x 75mm, 100 x 100mm |
| Overall Dimensions | 21.12" x 40.17" x 15.5" (536.4 x 102 x 393.6mm) |
| Tilt | Heads on rails 12 degree and head on column 10 degree |
| Monitor Size | 2x1: up to 30" diagonal ; 3x1: up to 27" diagonal |
| Weight Capacity | 15 lb (6.8kg) per monitor |
| Shipping Weight | 32 lbs (14.51 kg) |
| Mounting Options | Desk Stand |
| Orientation | Landscape, Portrait |
| TV Width Range | 2x1: 51.2" (1301 mm) max width; 3x1: 25.6" (650 mm) max width |
| Maximum Monitor Size | 27" |
| Monitor Placement | Side-by-Side |
