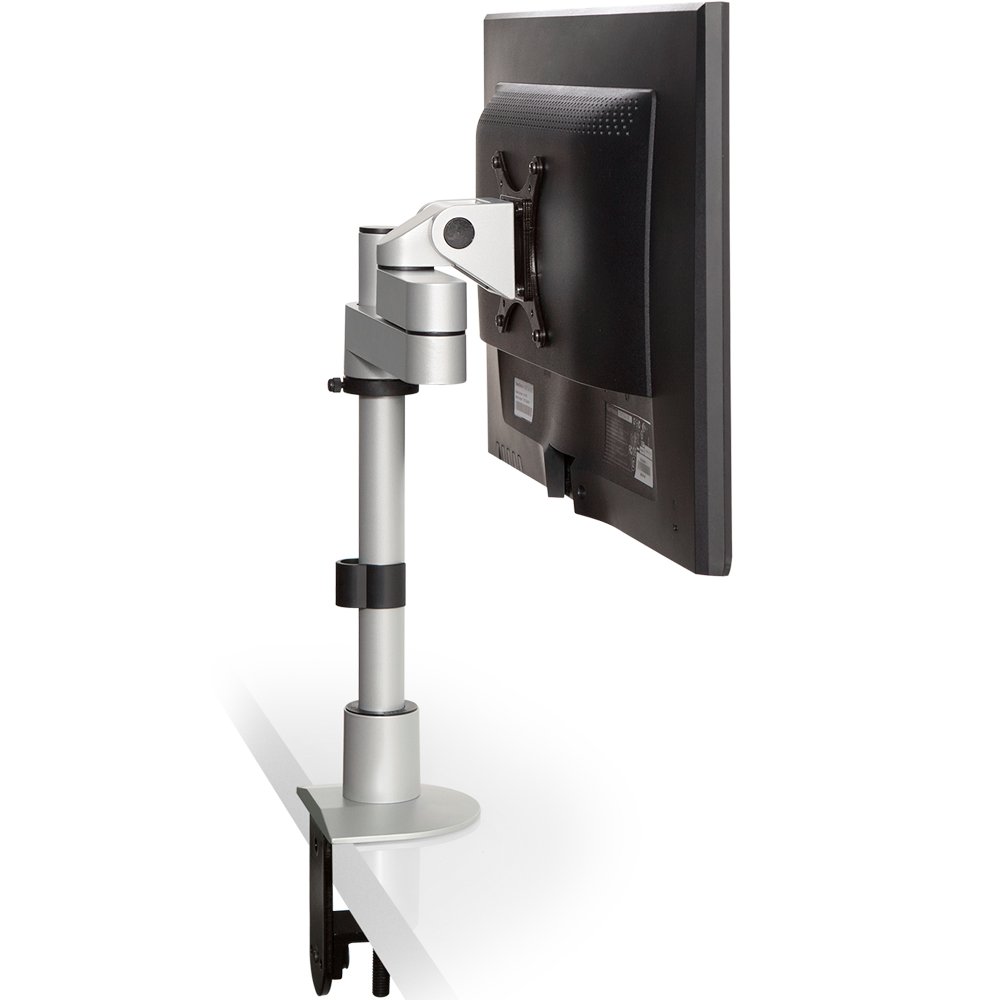

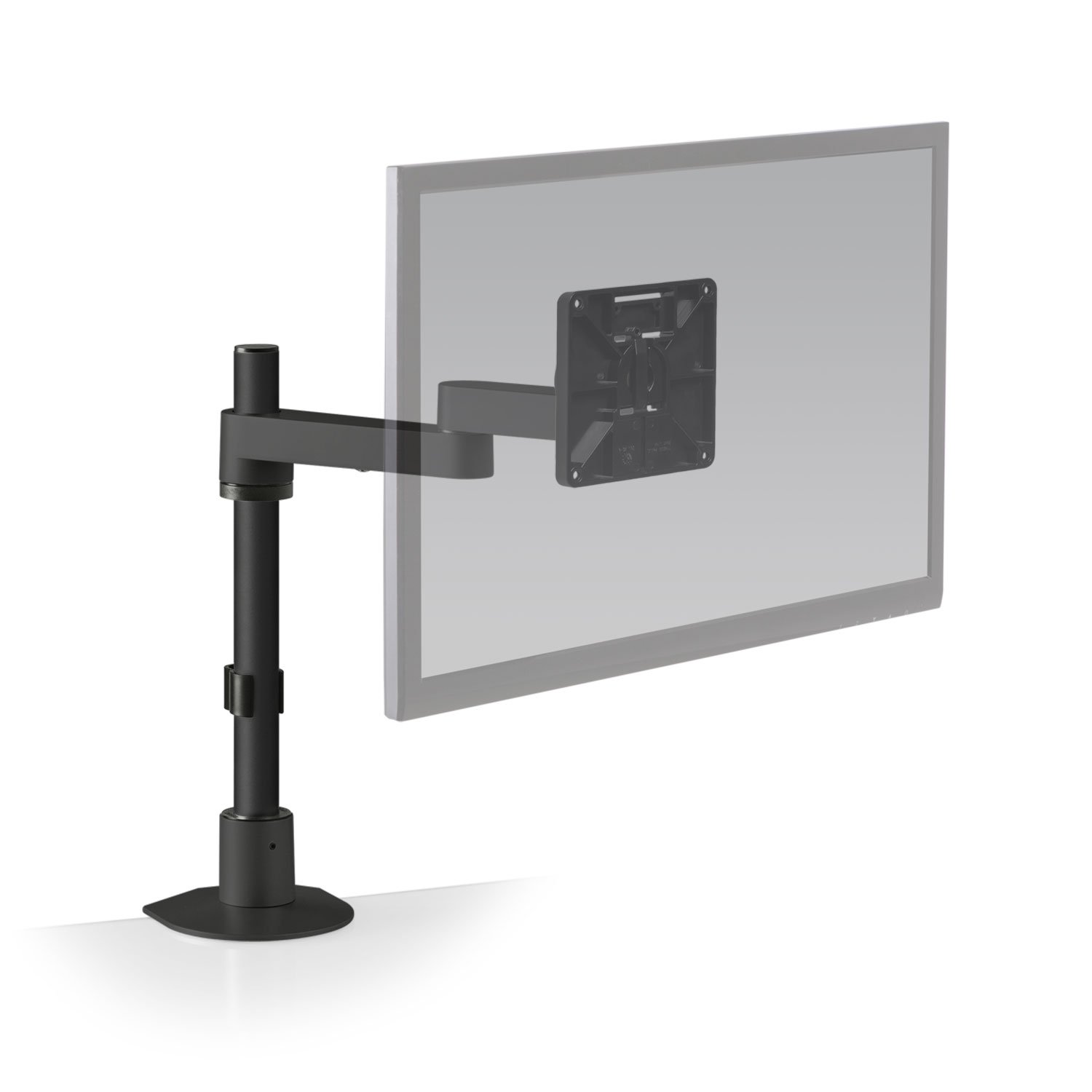

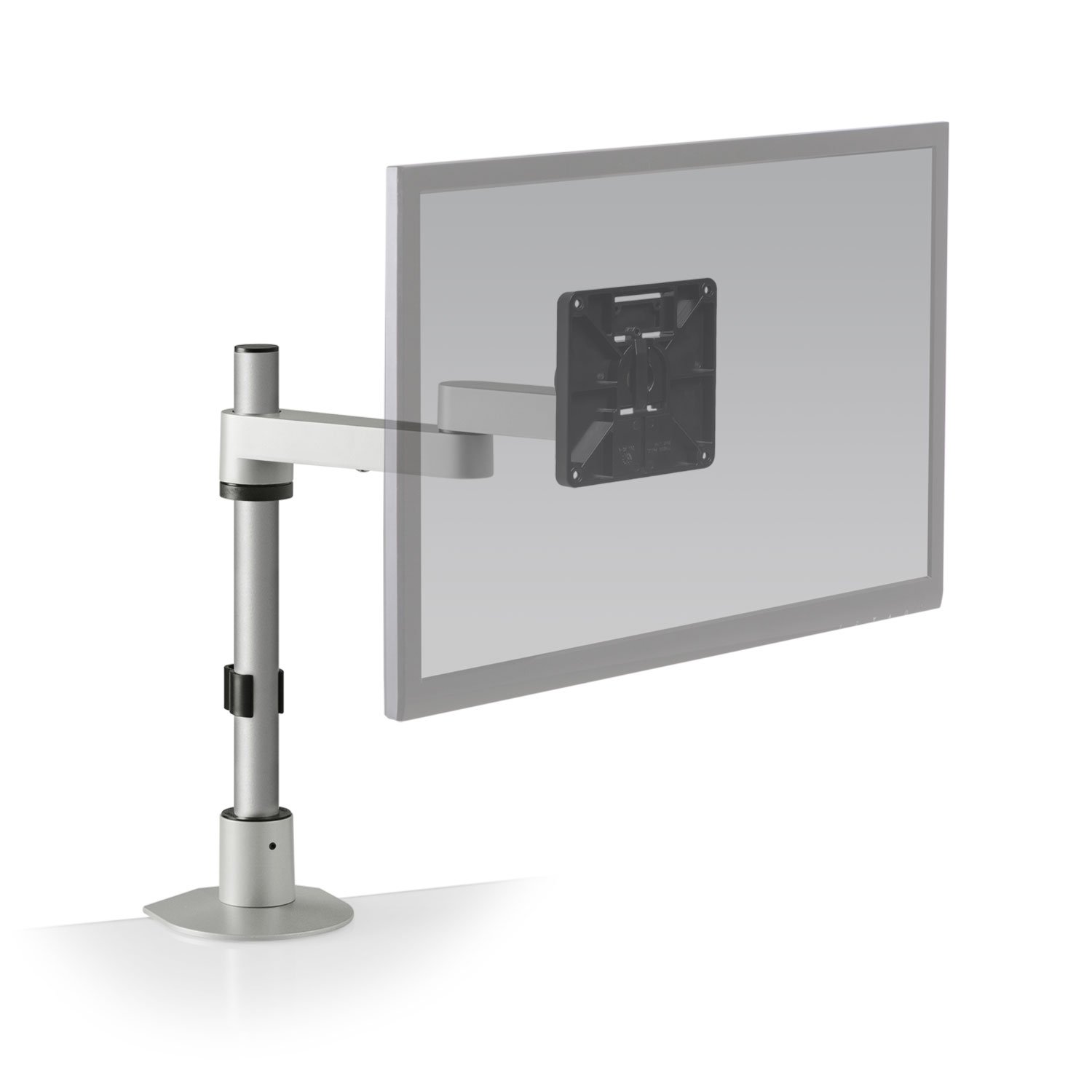

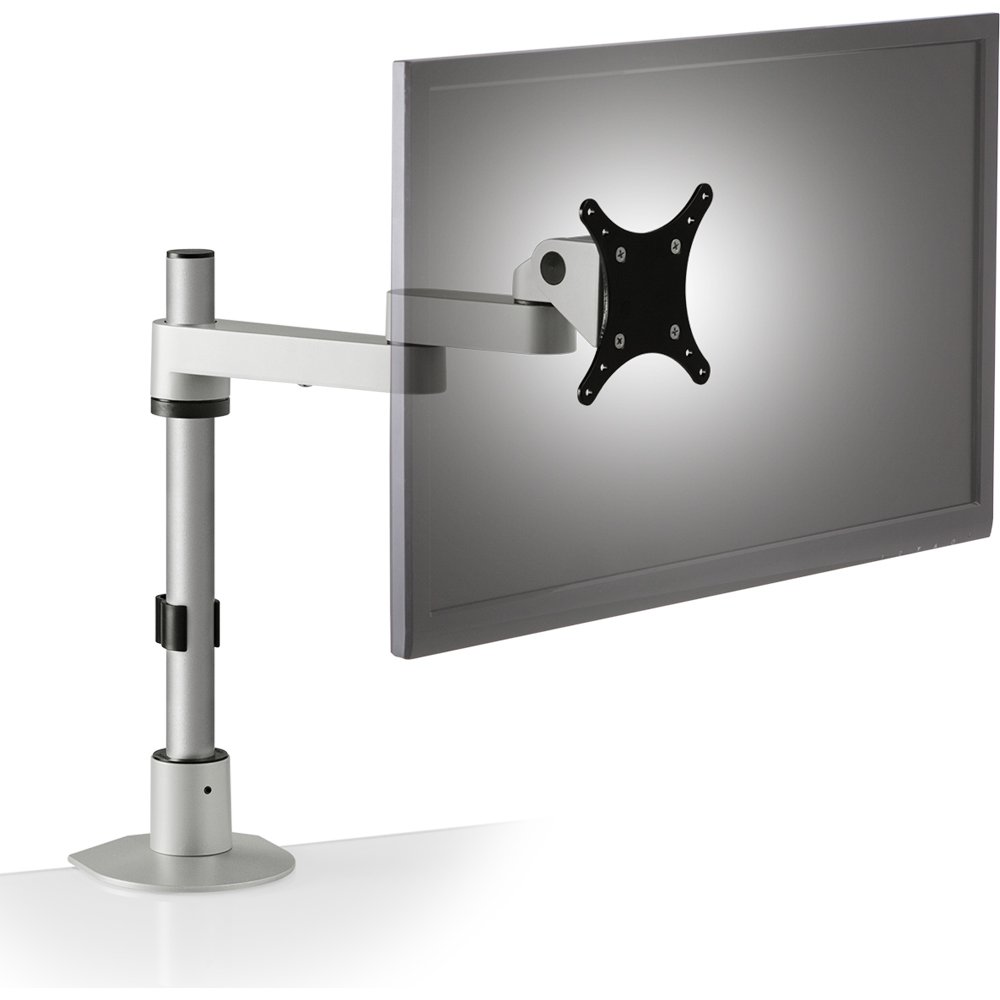

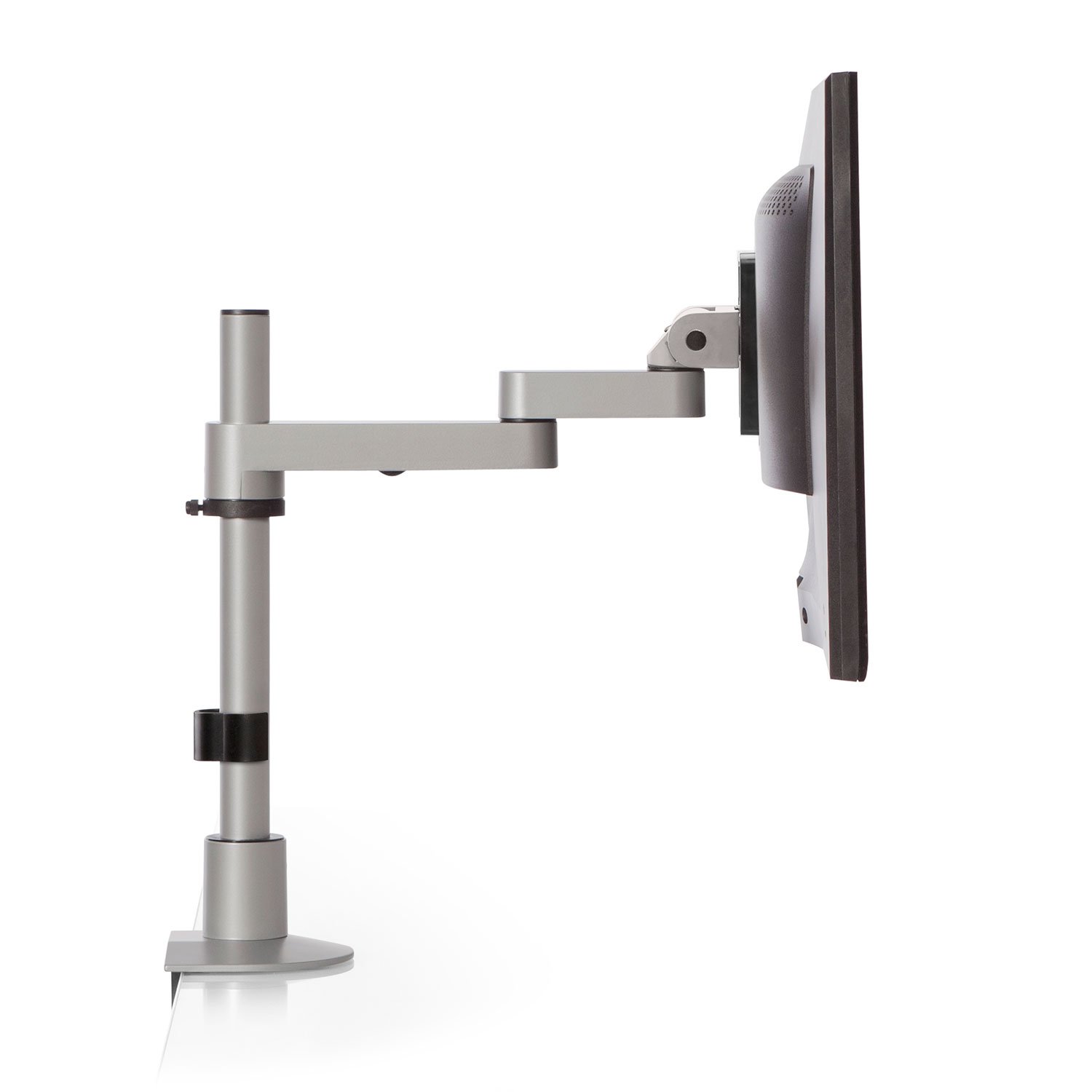

Innovative 9112-S-14 Articulating LCD Mount- 14" Pole, 14" Reach
The useable Pole length is 14" and Pole diameter is 1-3/16".
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description

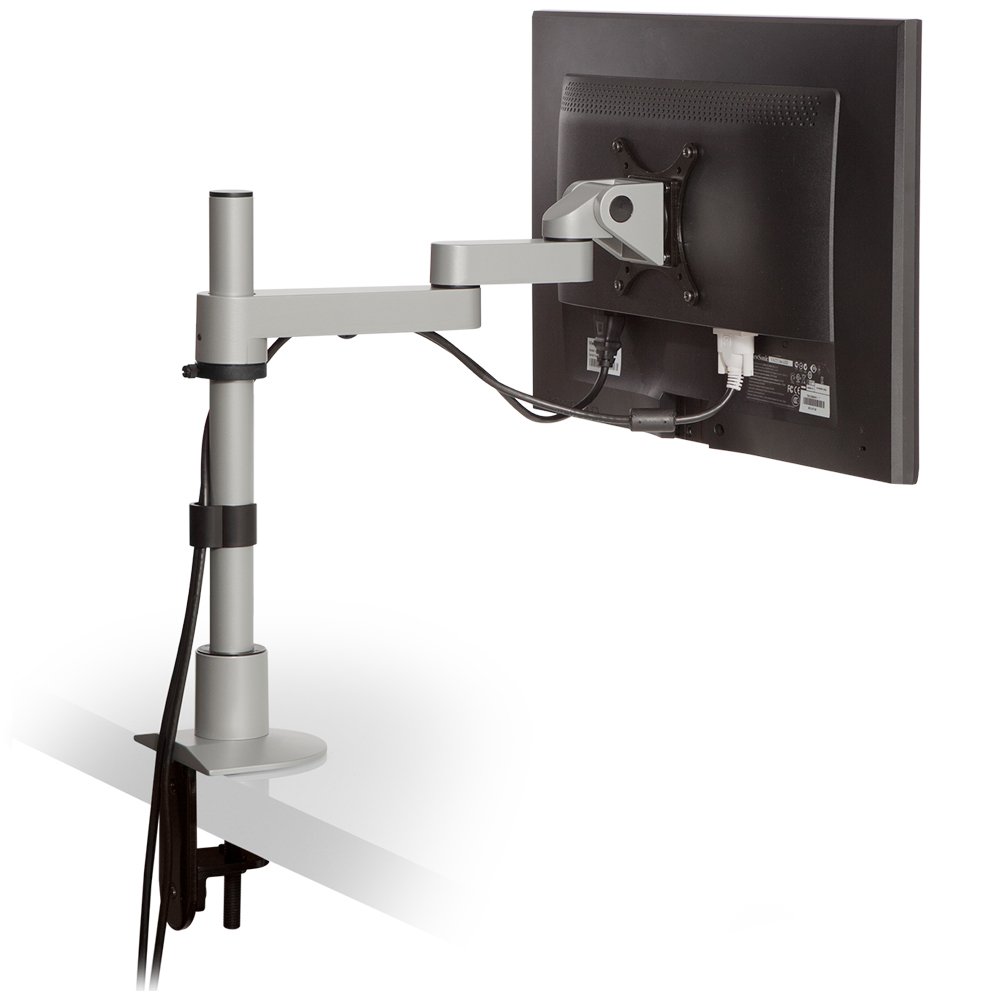

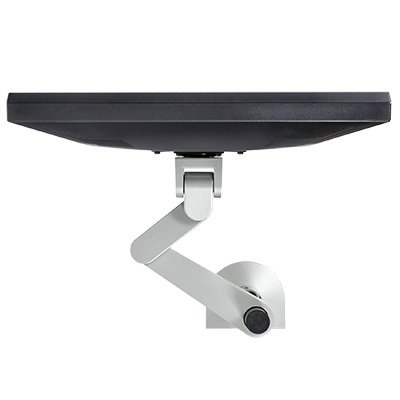

Innovative 9112-S-14 features foldable arms which adjust vertically up and down a 14" pole. The arms can fold up to fit in about 3" of space and extend out 14". Various pole lengths and extensions are available or can be designed to fit any application you may be looking for. Unique cable management allows cables to tucked under the forearm extensions.
The 9112-S-14 articulating monitor arm mounts directly to the desktop for space-saving ergonomic comfort. Easily adjust the monitor arm vertically along the 14" pole mount.
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |
Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Screen Size | Up to 32" |
| Extension Range | 14" |
| Pivot | Landscape / Portrait |
| Rotation | Three rotation joints |
| Pole Height | 14" (36 cm) |
| Monitor Tilt | 200 degrees |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 75mm, 100mm adapters included |
| Weight Capacity | Up to 30 lbs (18.1) per monitor |
| Warranty | 10 years |
Features
Monitor tilter mechanism can tilt over 200 degrees

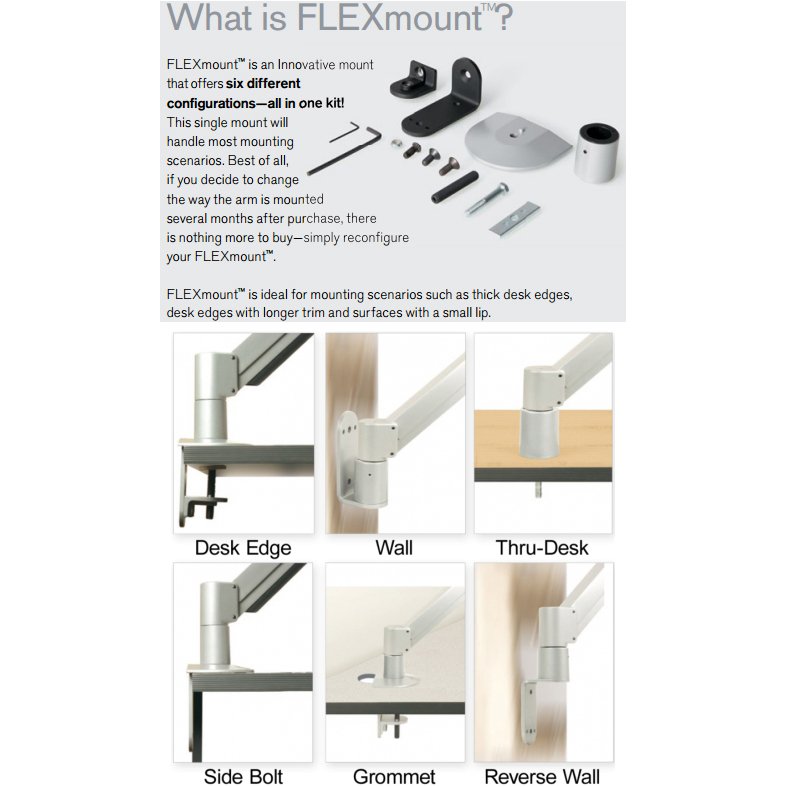

FLEXmount with six mounting options is available
Features a 14" standard pole mount; custom pole lengths are available
Mount rotates 360 degrees at three joints
Features adjustable tension at joints, ideal for touch-screen applications
Monitor arm is ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)
VESA-monitor compatible - 75mm, 100mm VESA adapters included; please call for non-VESA options
Optional upgrade to quick install/release monitor bracket; consult your sales rep for details
Product Options/Accessories
| Model | 9112-S-14 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9112-S-14 |
| Color | 104 - Vista Black, 124 - Silver |
| Pole Length | 14 |
| Rotation | 360 degree |
| Tilt | 200 degree |
| Pivot | Landscape to portrait |
| Mounting Pattern | VESA 75mm, 100mm |
| Mounting Options | FLEXmount, Slatwall, Wall, Through Desk |
| Monitor Weight | Up to 30 lbs (18.1 kg) |
| Number of Monitors | 1 Monitor |
| Monitor Size | Up to 32 |
| Extension | 14 |
| Warranty | 10 Years |
