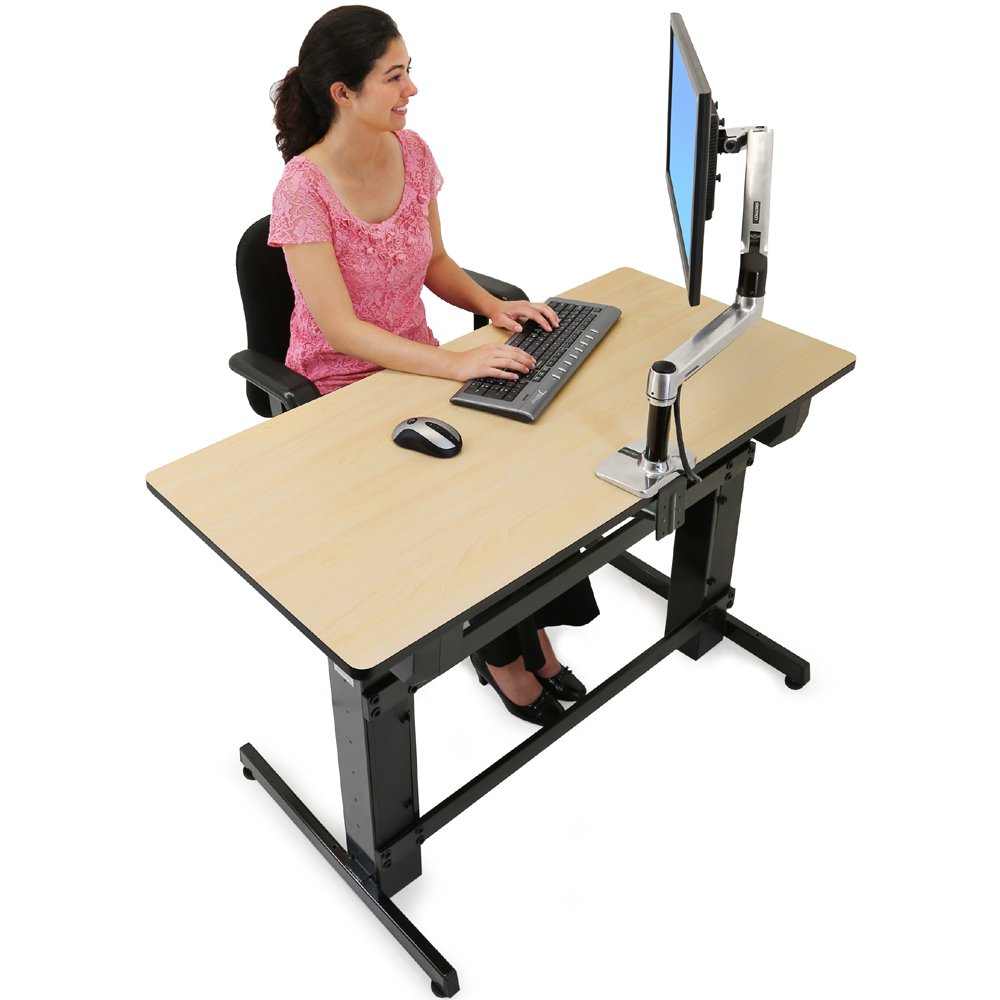

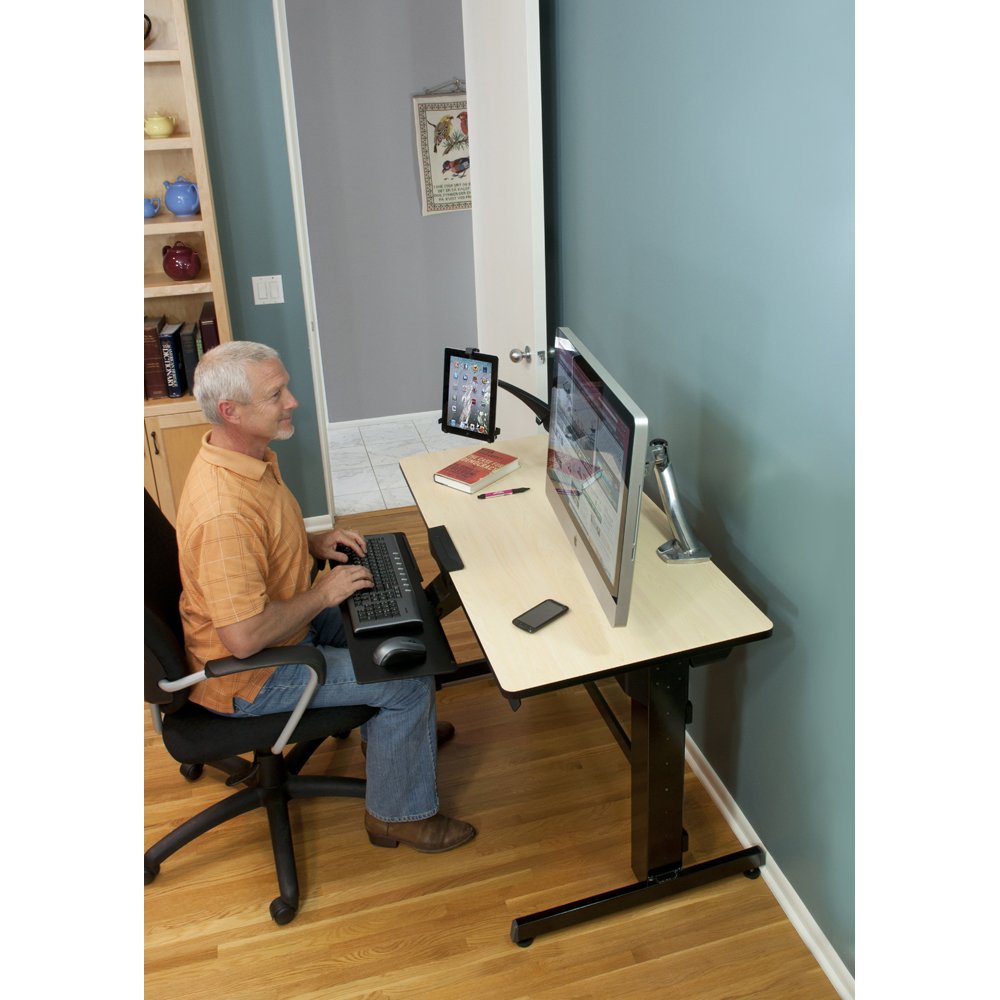

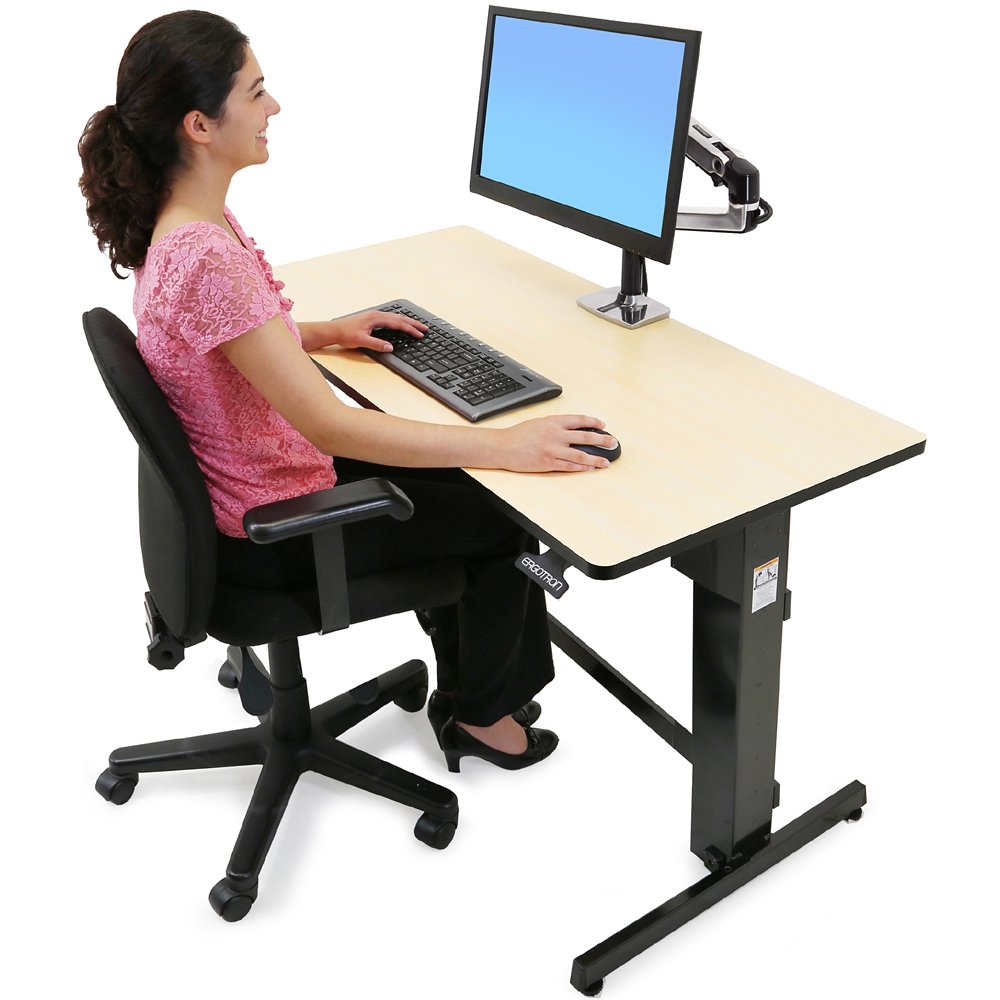

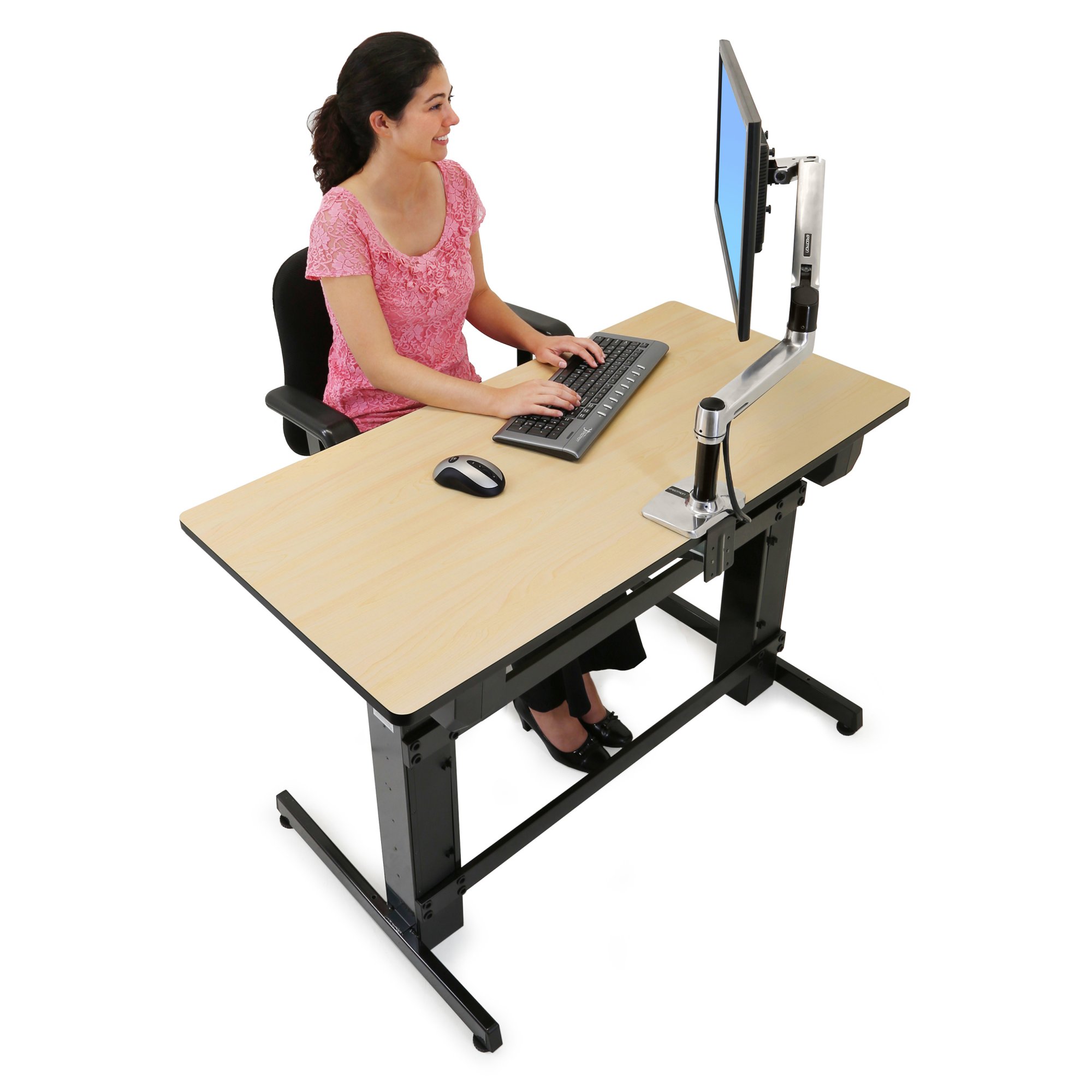

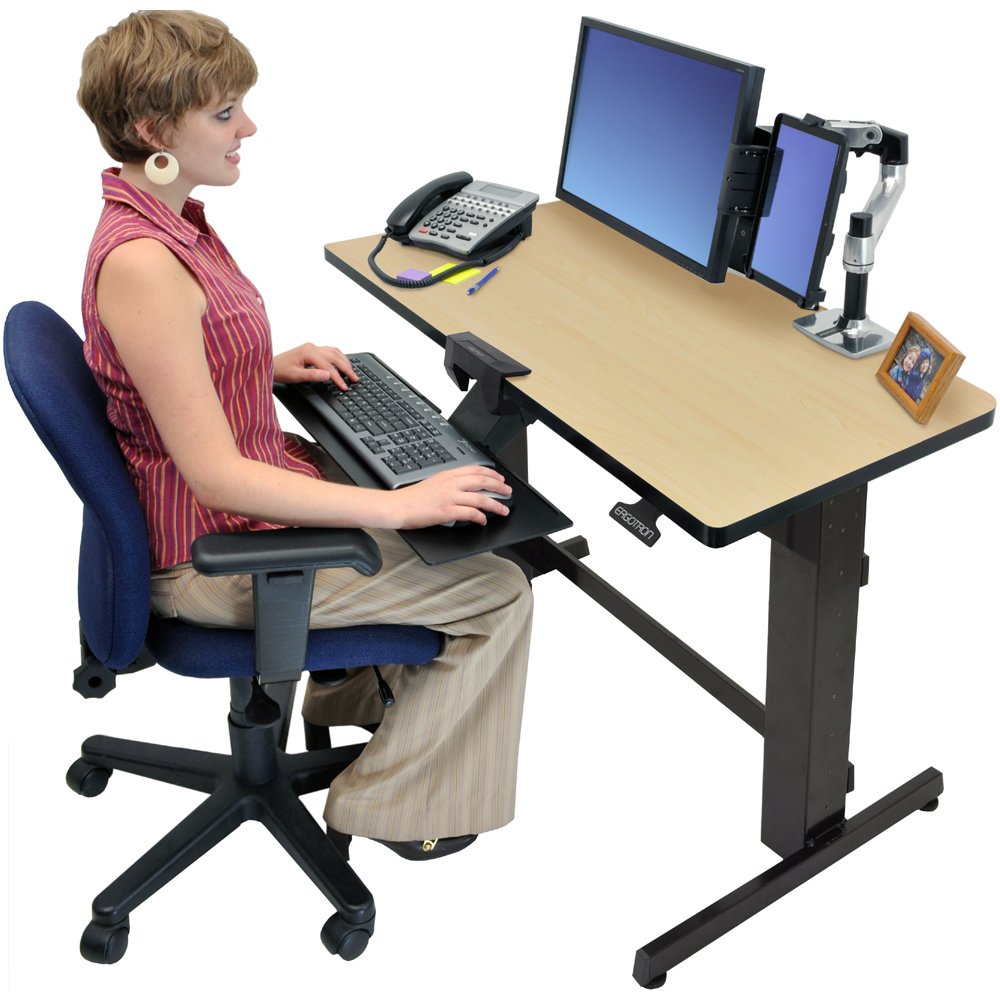

Sit and work with ergotron 24-271-928

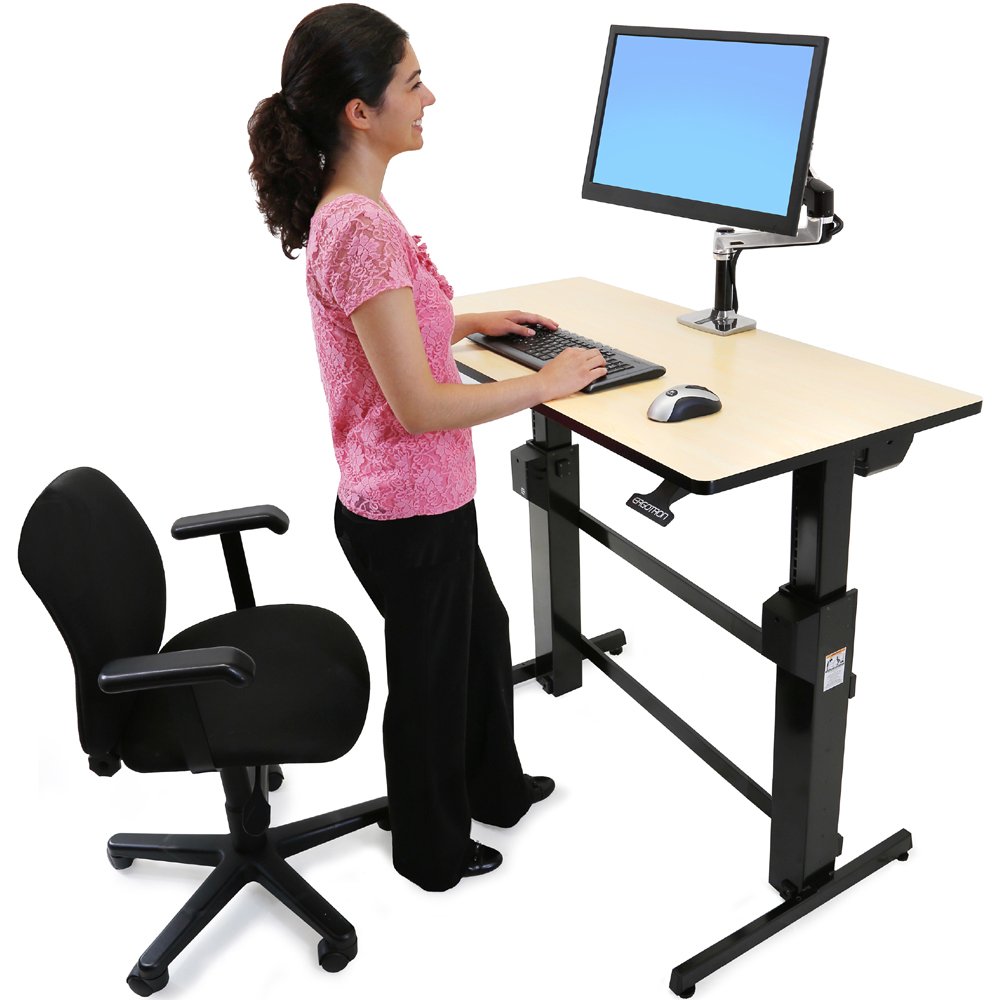

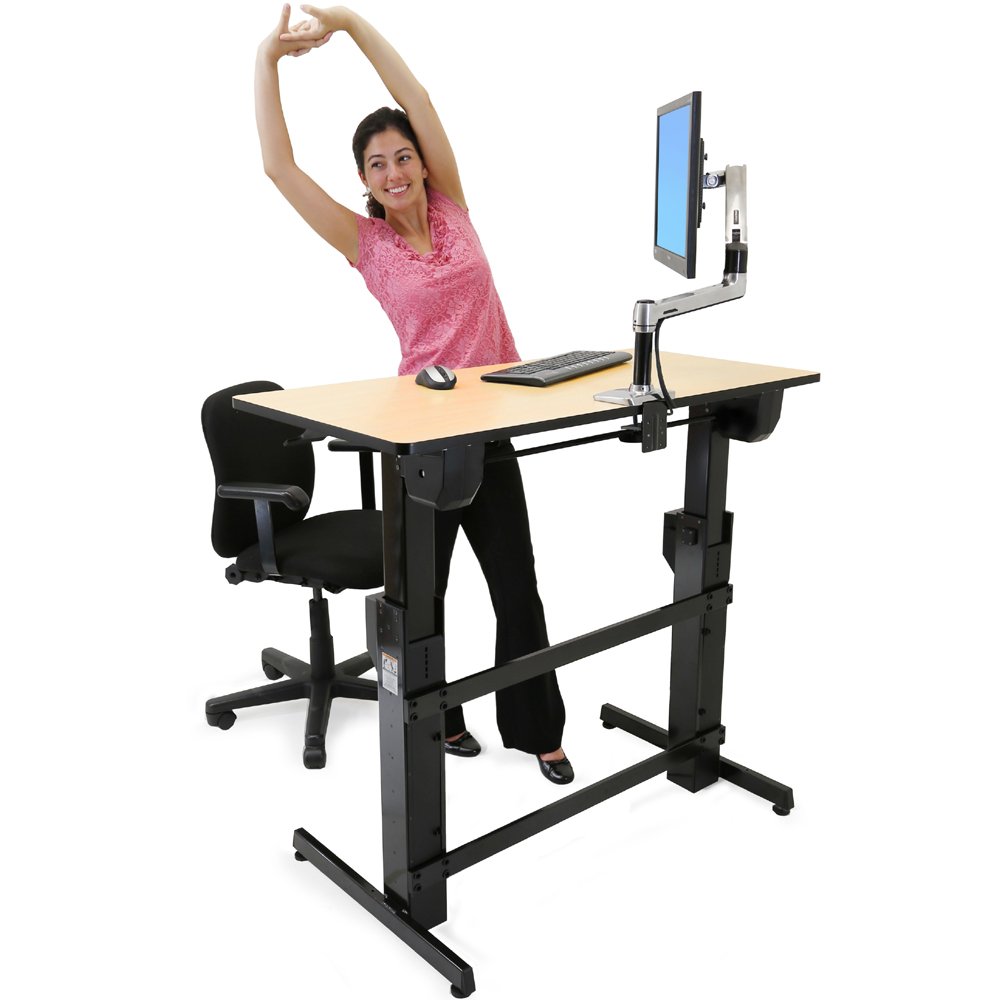

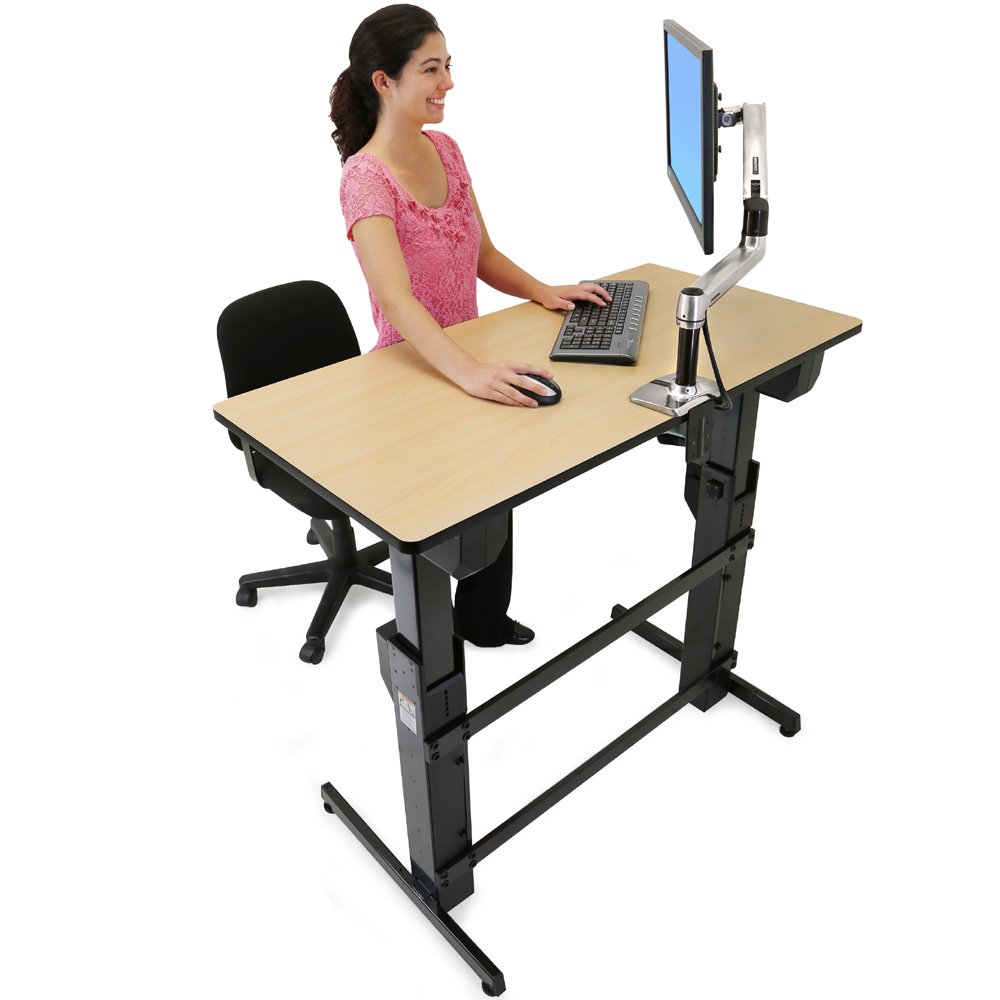

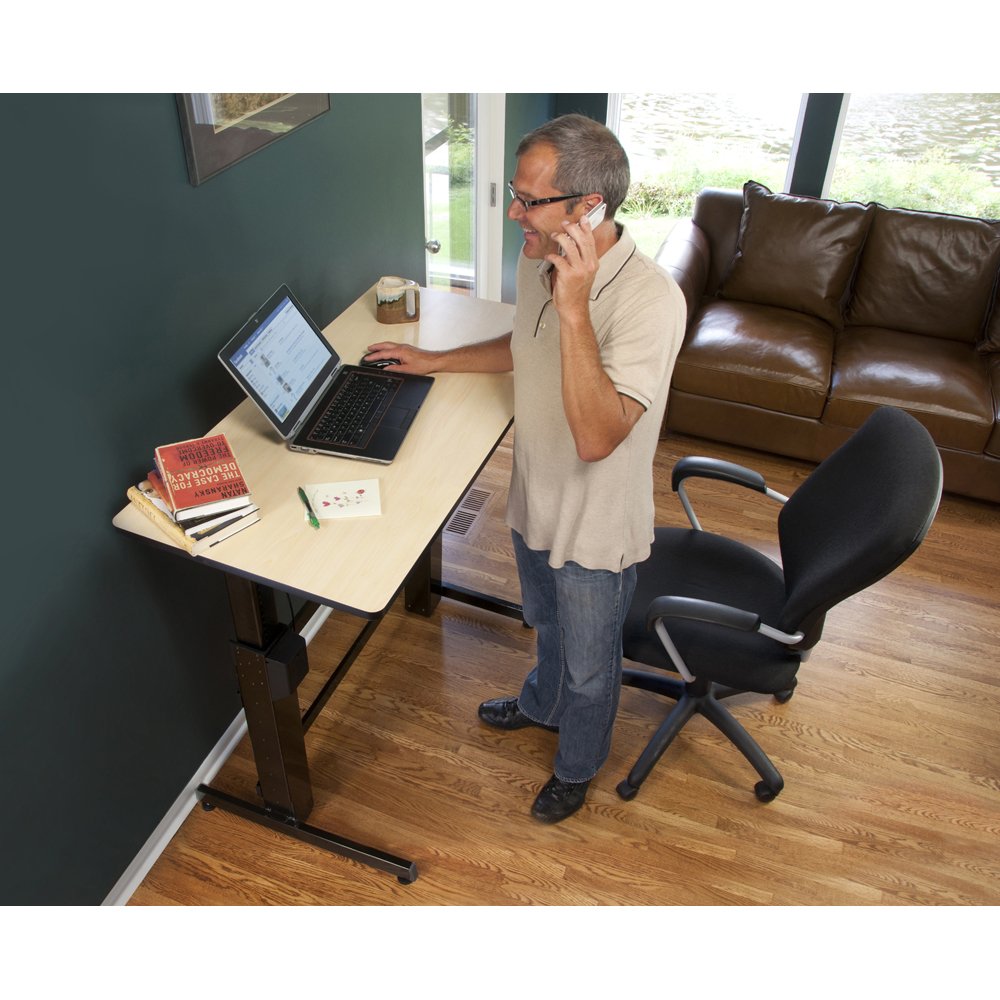

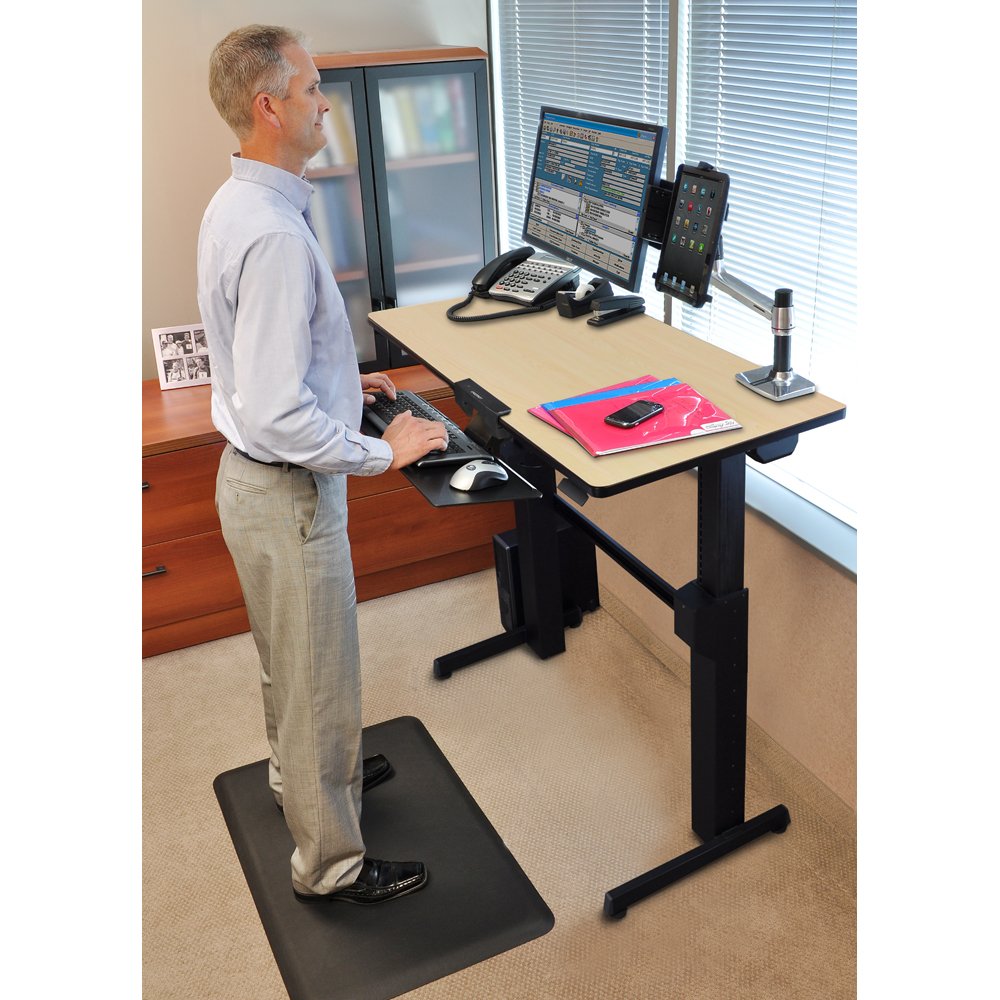

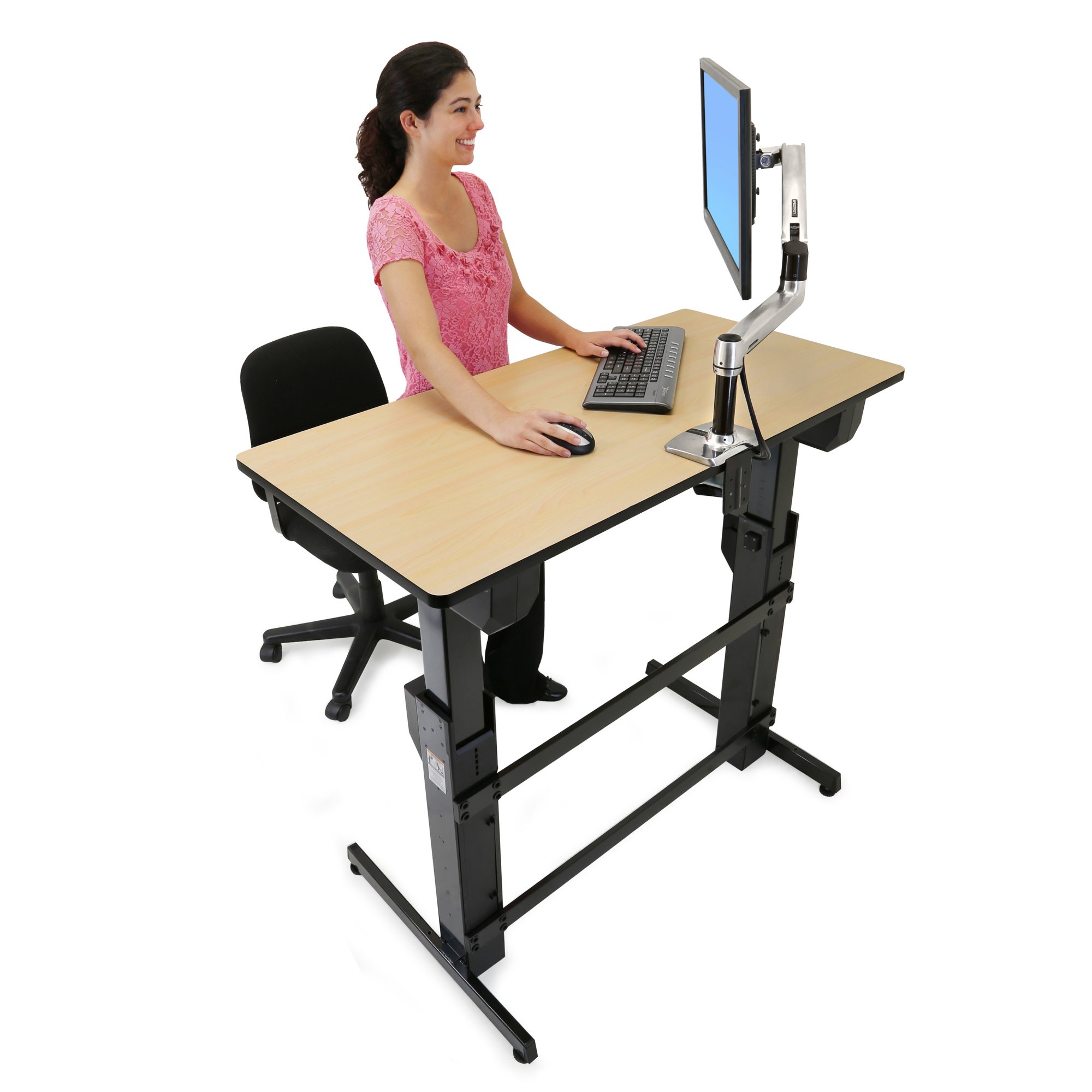

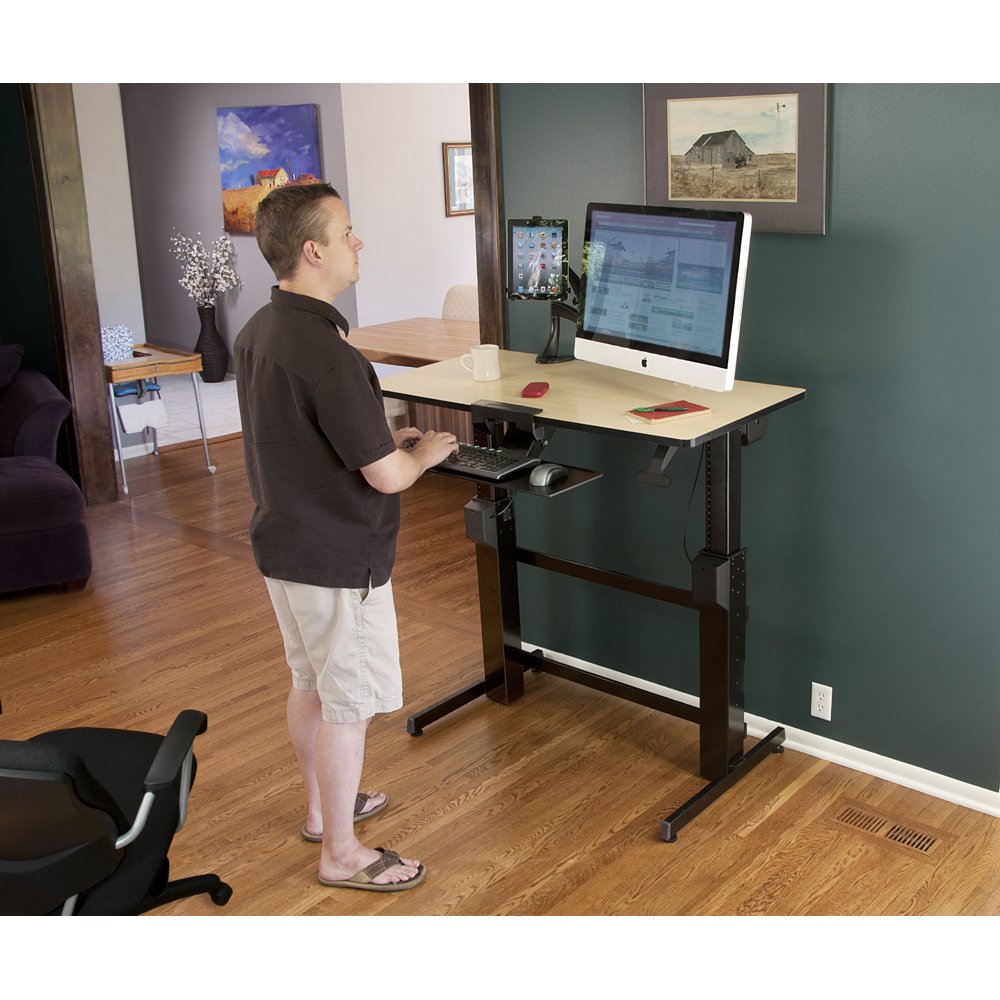

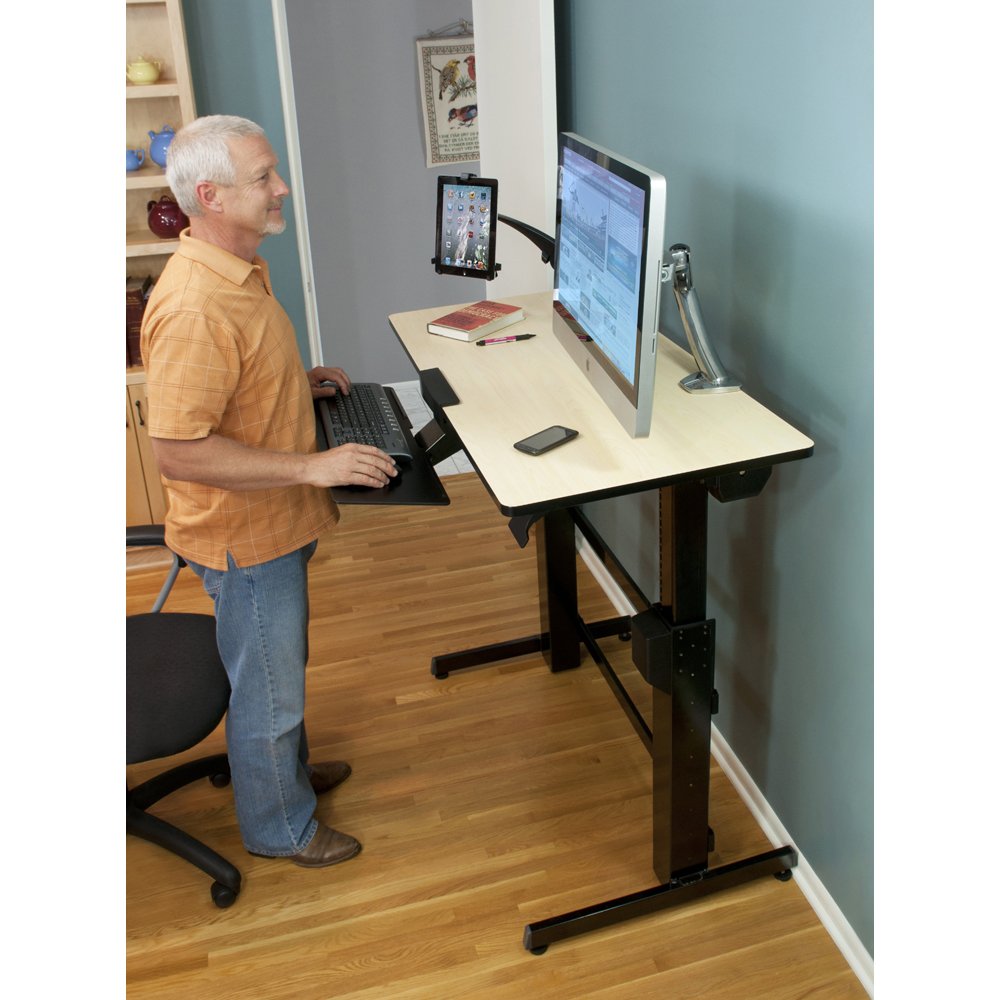

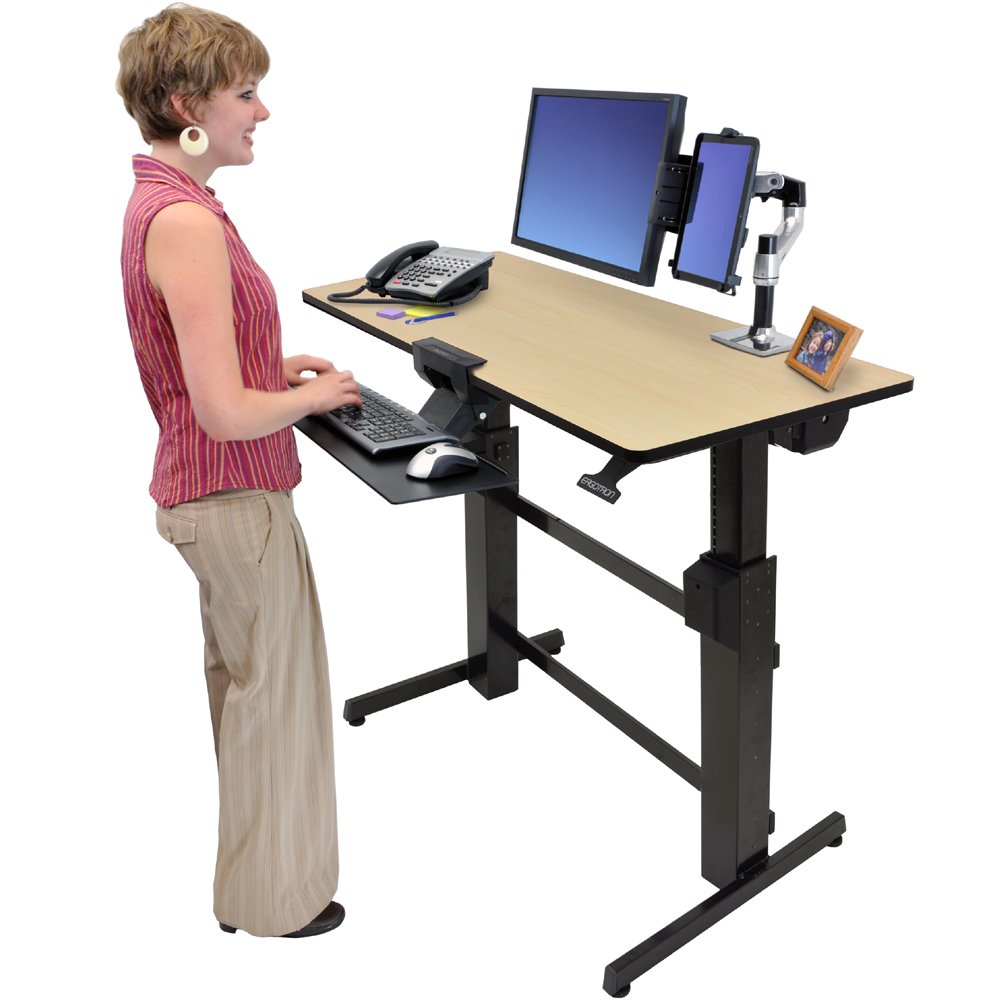

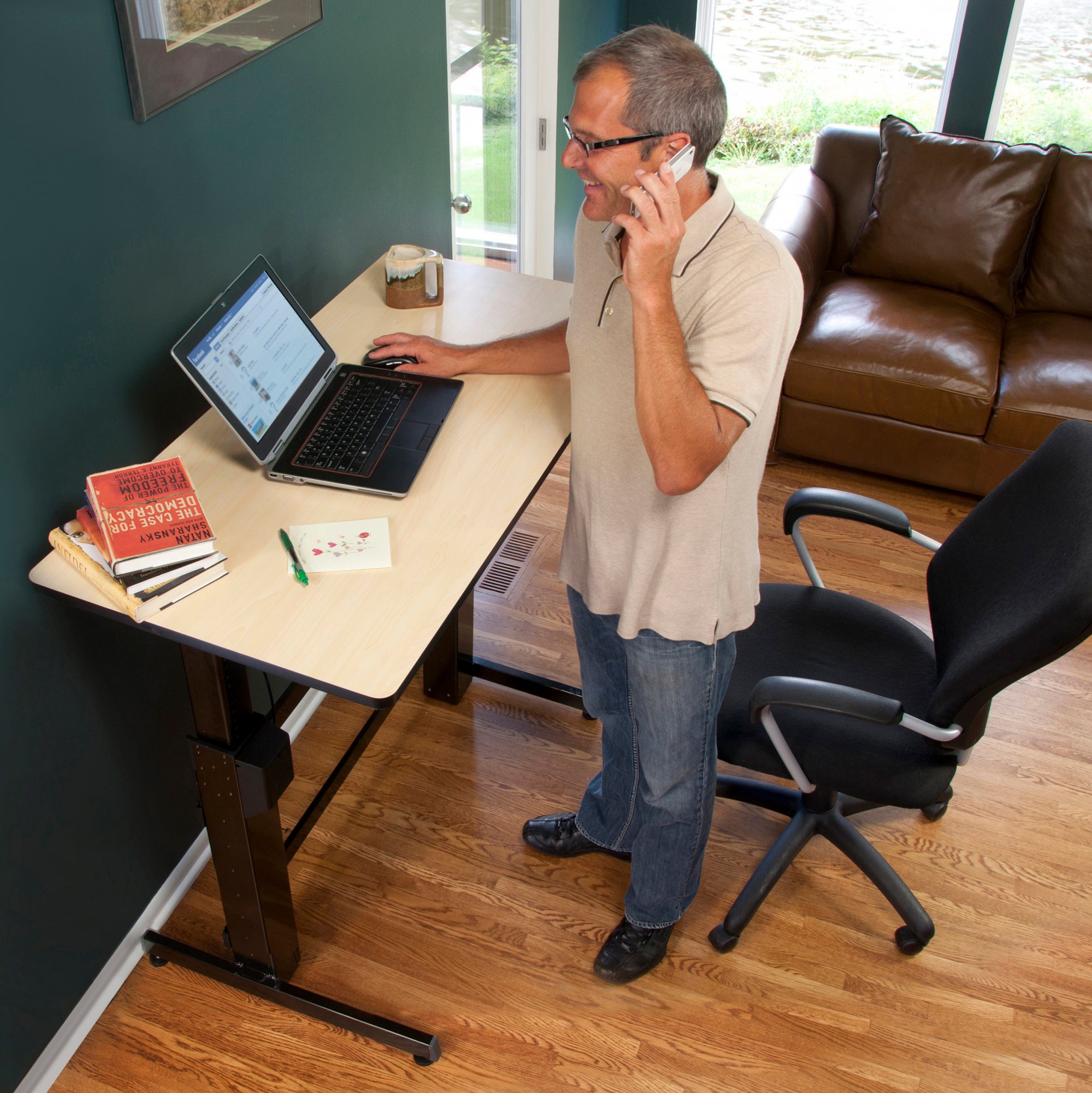

Stand and work with ergotron 24-271-928

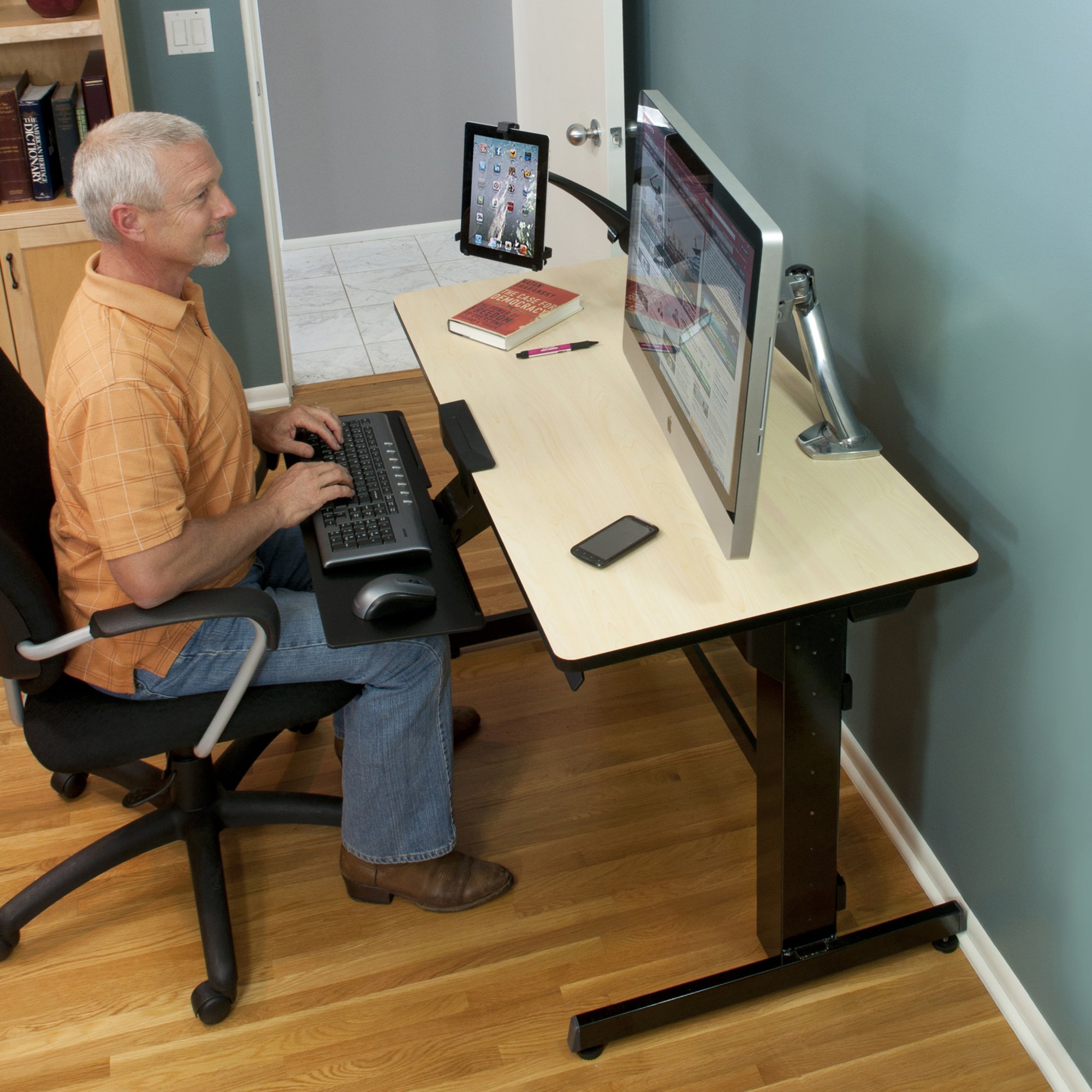

Sit and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928

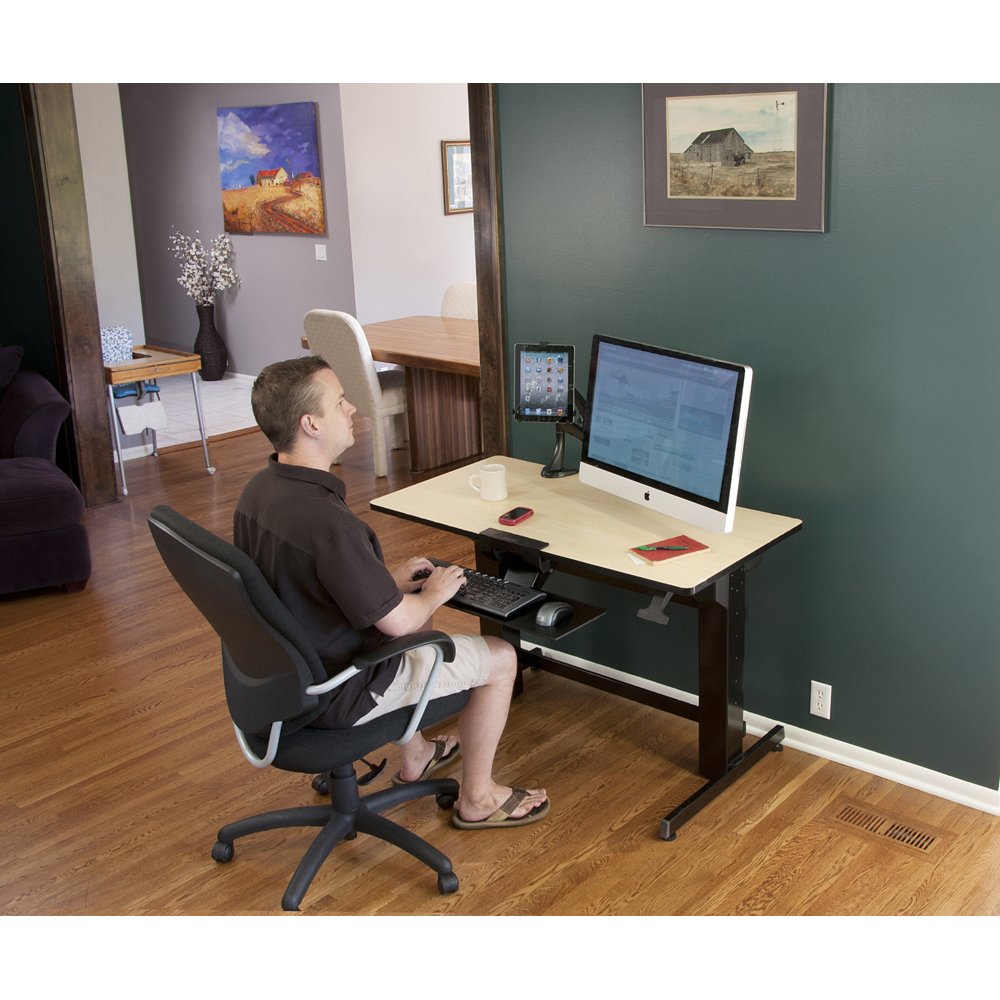

Sit and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk
Technical drawing
Sit and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Sit and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928
Sit and work with ergotron 24-271-928
Stand and work with ergotron 24-271-928

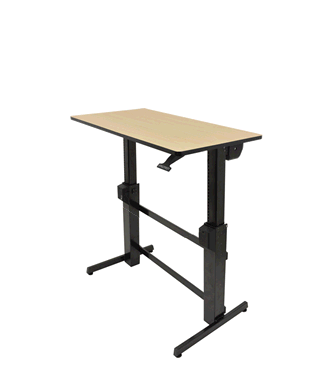

Animation of Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk

Description

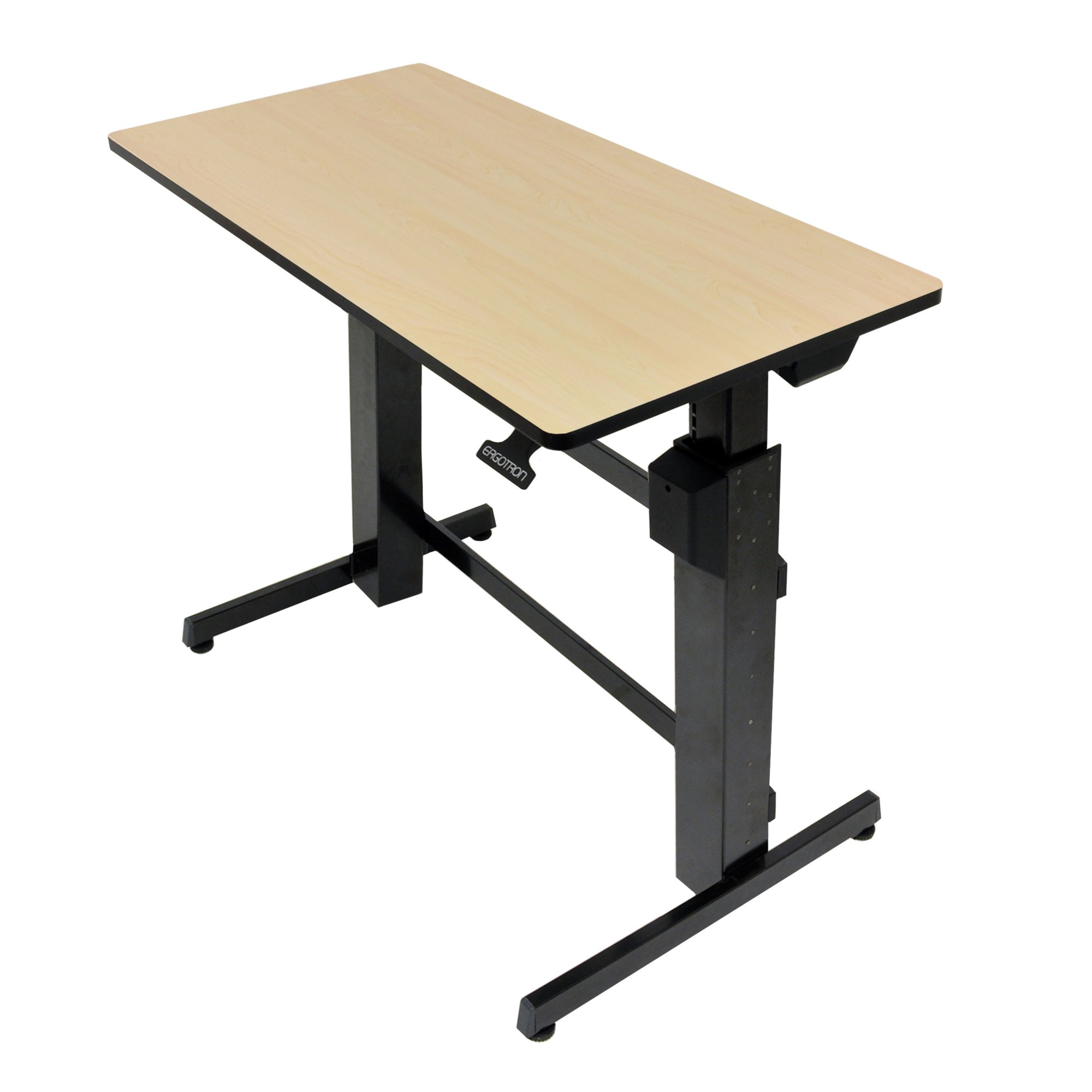

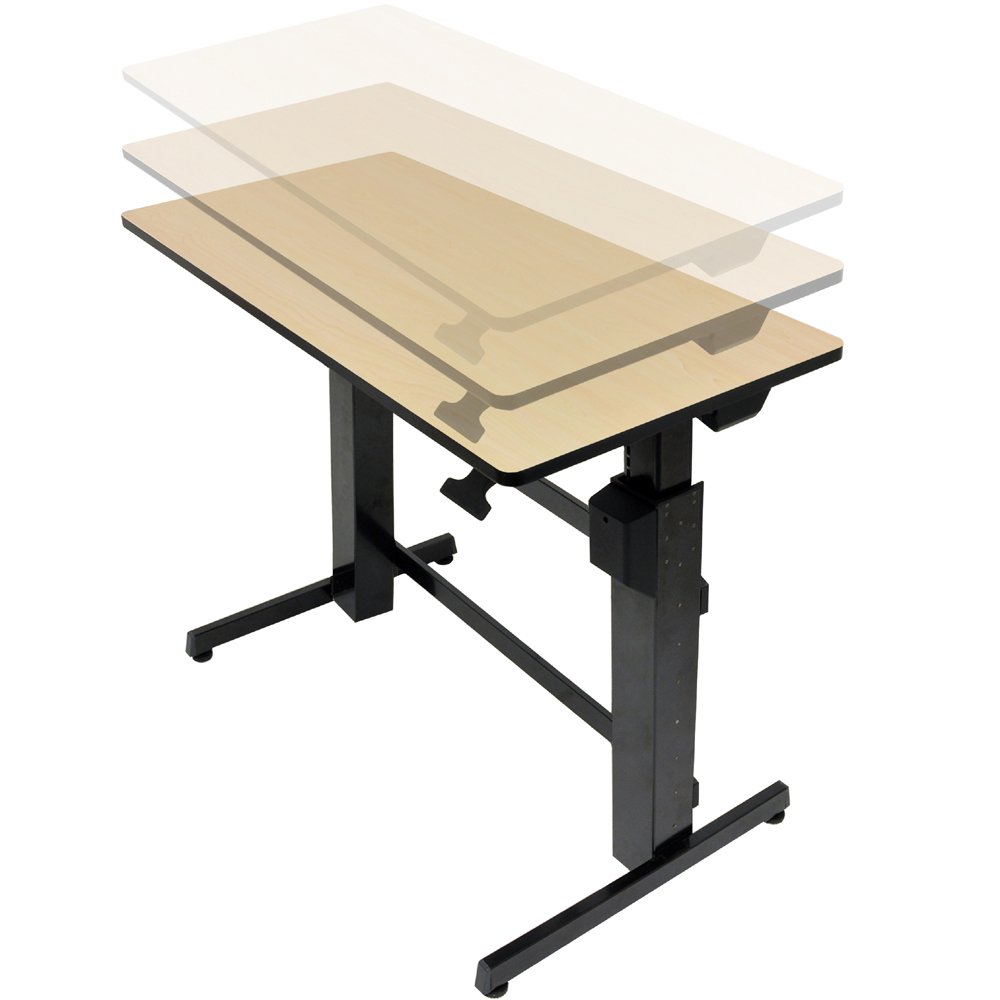

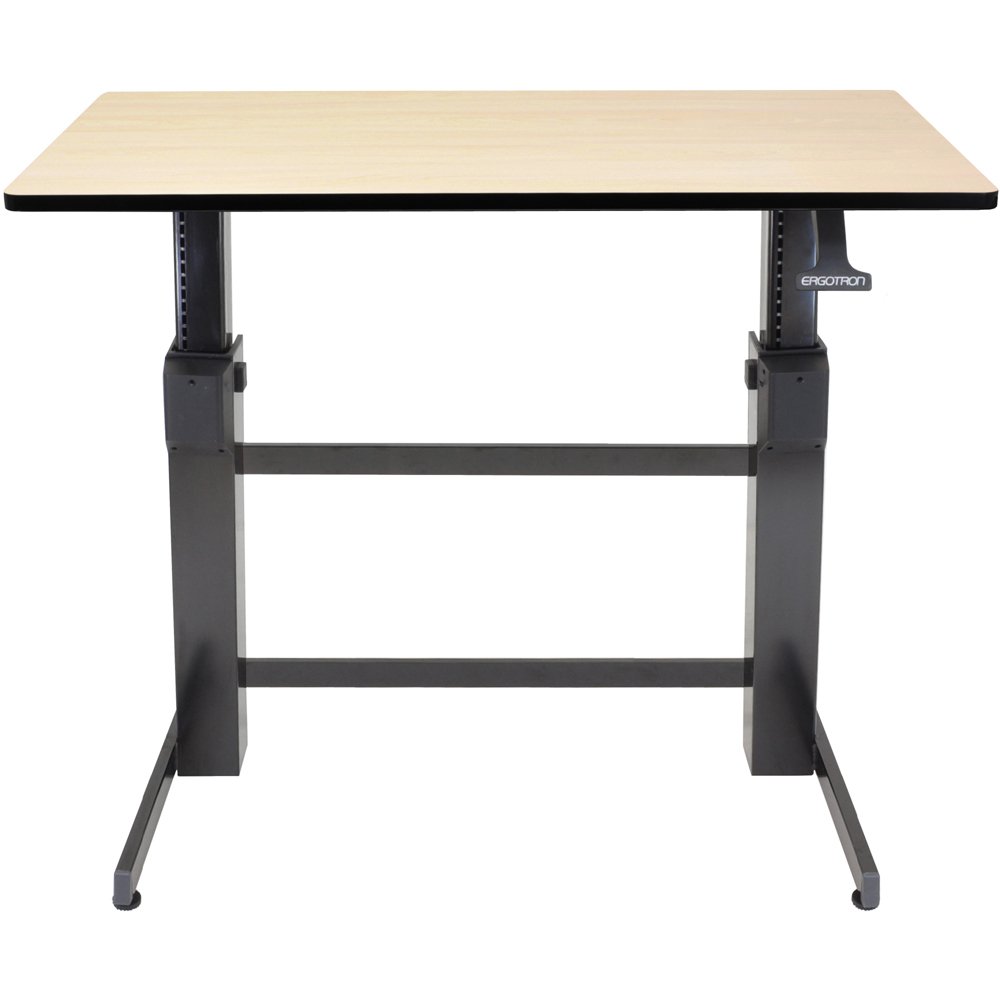

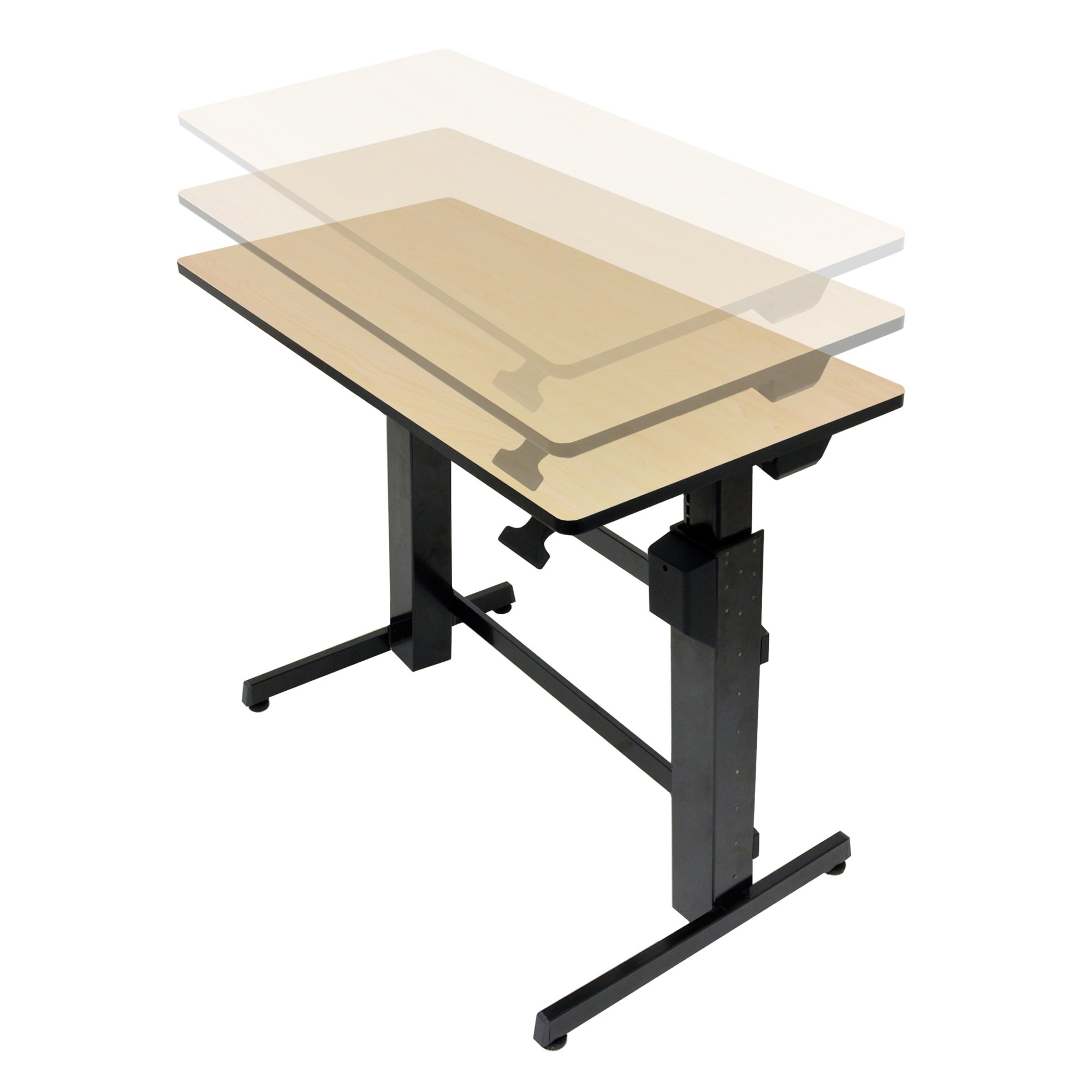

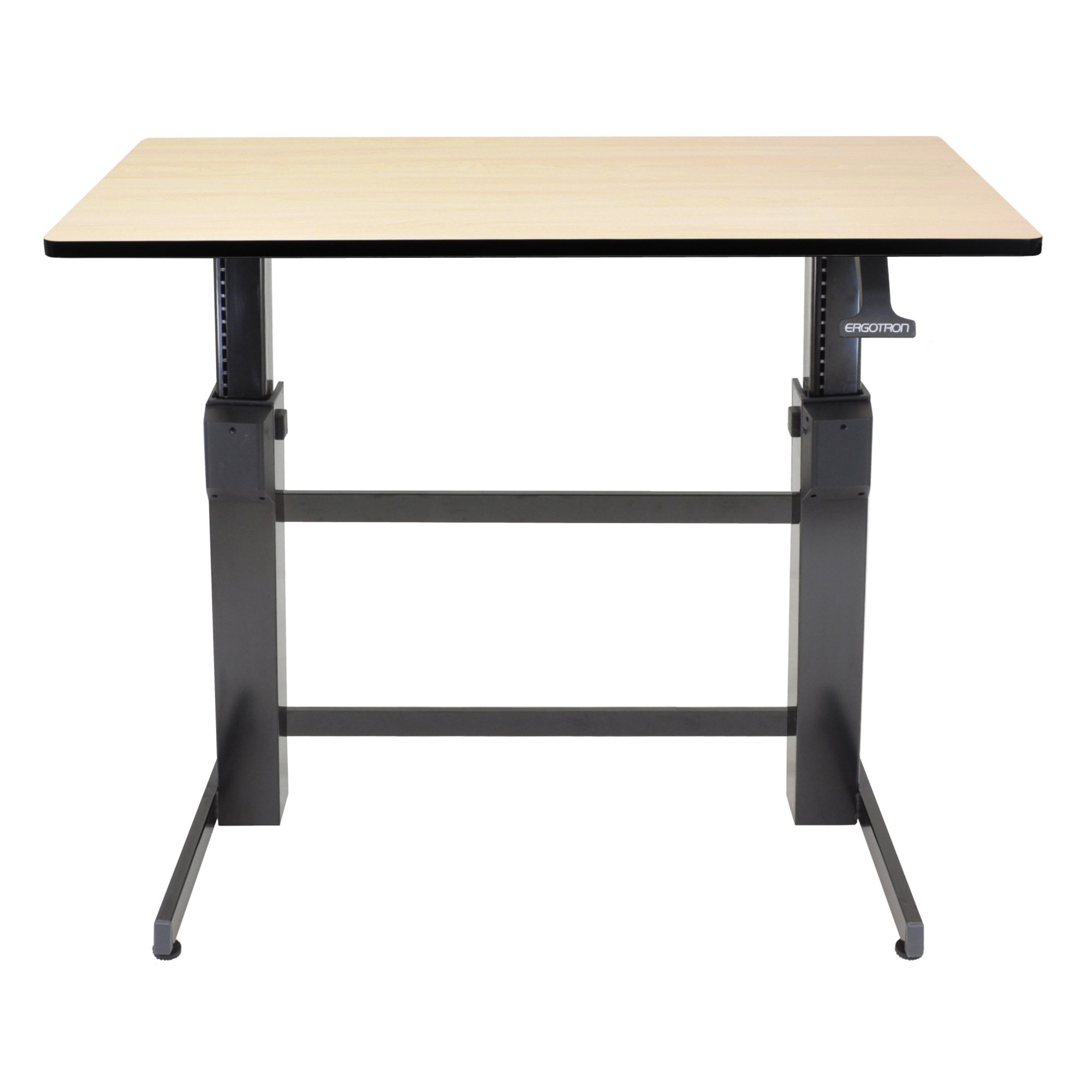

Ergotron 24-271-928 is a height adjustable desk that moves from a minimum height of 30.6" to a maximum height of 50.6" with slight push of a lever. With a large worksurface that can hold weight of up to 65 lbs, this desk provides ample flexibility to add other ergonomic equipment like monitor arms, keyboard trays and tablet holders. The integrated brake system holds the desk securely in place and releases easily for height adjustment.

Ergotron WorkFit-D is a height-adjustable standing desk that’s both rugged and easy to use. Stand up or sit down as you work. Patented CF technology allows instantaneous, non-motorized re-positioning. The integrated brake secures table height to provide an ultra-stable desktop.
Features a spacious 47.6" x 23.5" (121 cm x 60 cm) worksurface. Customize with accessories to fit individual user’s needs and workflow.

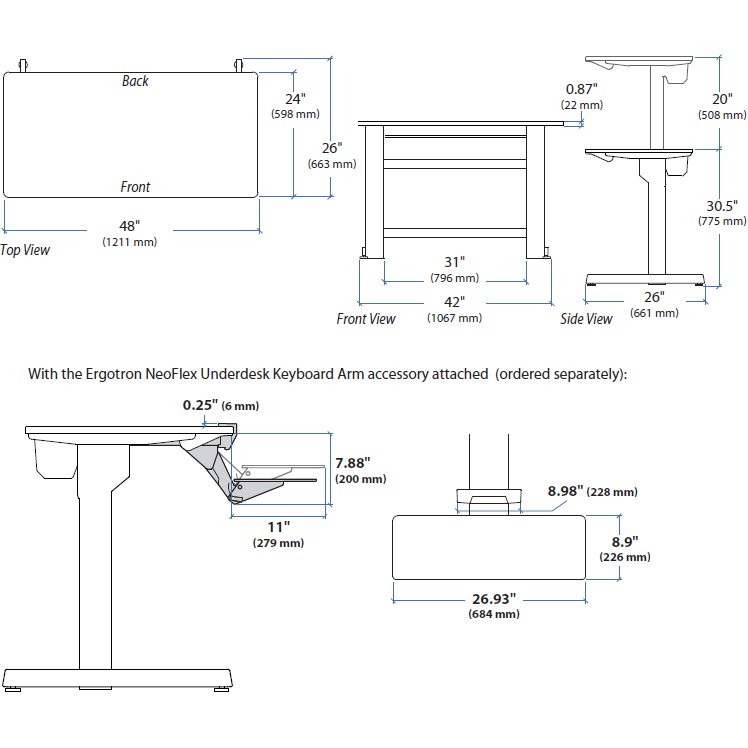

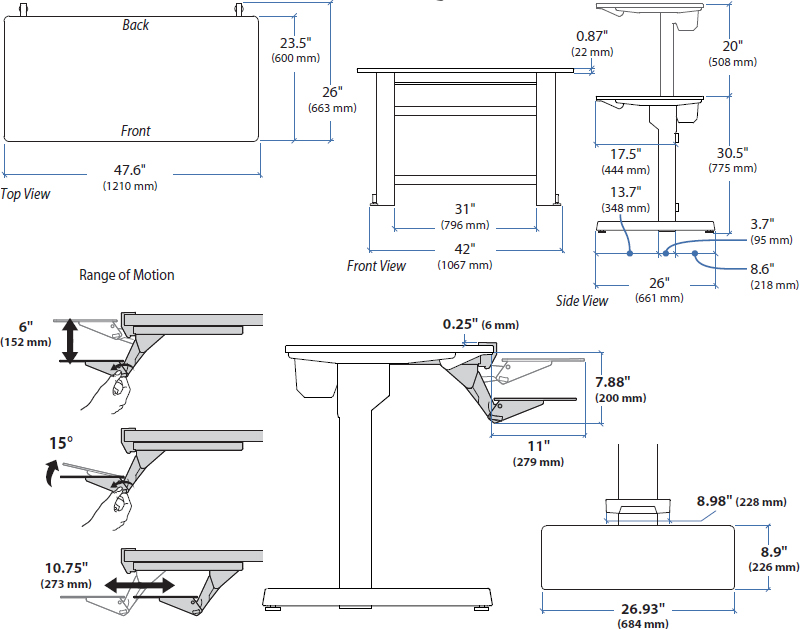

Technical Drawing

Technical Drawing for Ergotron 24-271-928 WorkFit-D, Sit-Stand Desk

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 165 lbs

74.8 kg

20"

50.8 cm

- - - -

Product Information

Part Number 24-271-928 (birch)
Description WorkFit-D, Sit-Stand Desk
Includes
  • Height-adjustable platform

  • MDF worksurface with Melamine surface

  • Steel base

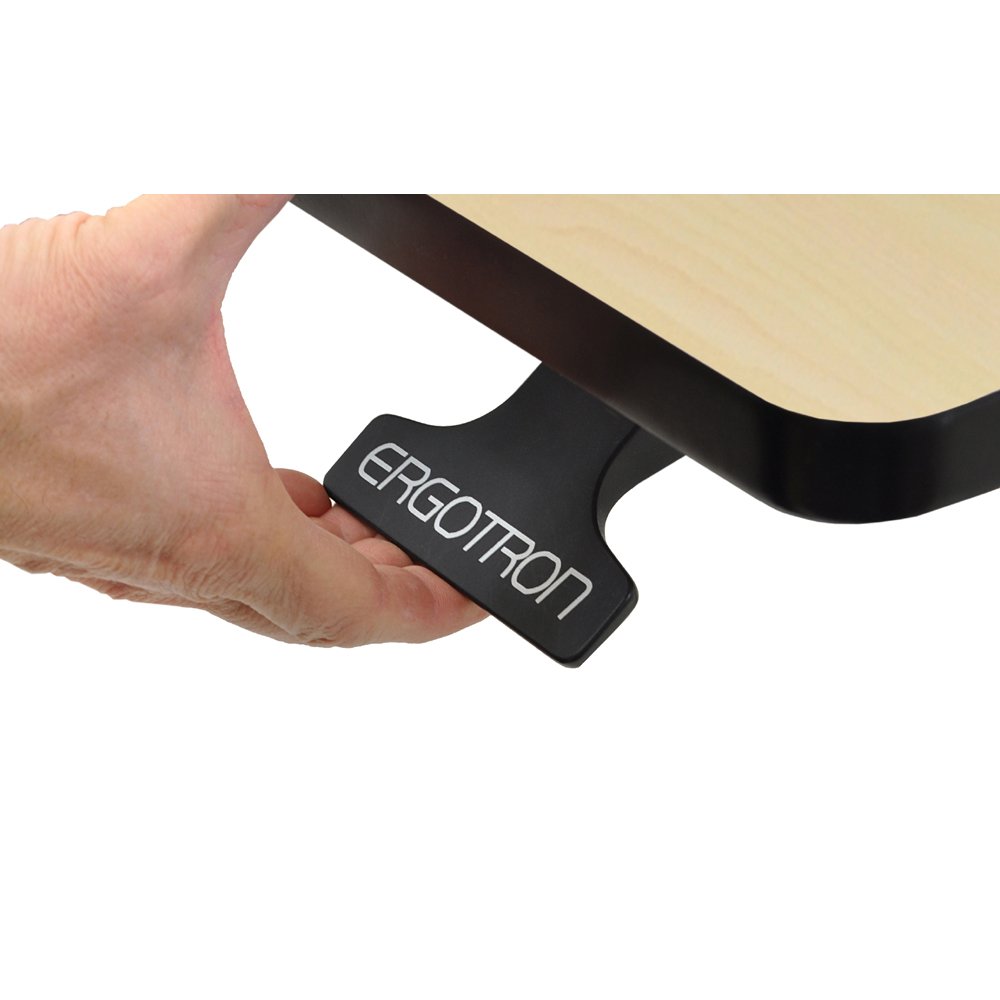

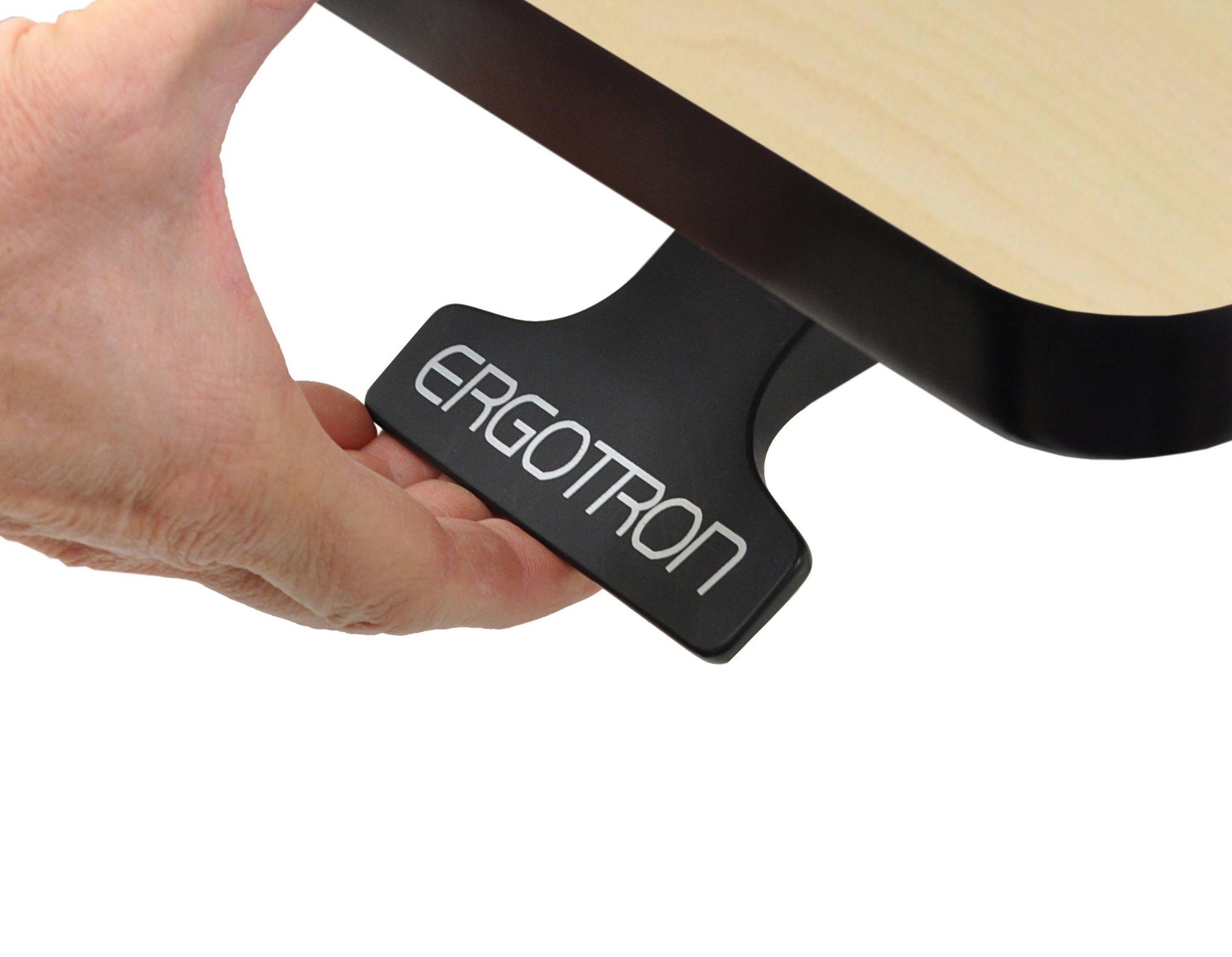

  • Hand-brake system

  • Four (4) glides

Weight Capacity Up to 165 lbs (74.8 kg). Listed weight capacity represents total load applied to worksurface. When calculating load, include weights of accessory mounts for keyboard and display(s)
Height Minimum height = 30.6" (78 cm); maximum height = 50.6" (129 cm)
Worksurface Dimensions 47.6" x 23.5" x .87" (121 x 60 x 2.2 cm)
CF Technology Patented CF motion technology
Glides Four leveling glides establish a firm footing and adjust to install the unit on uneven floors

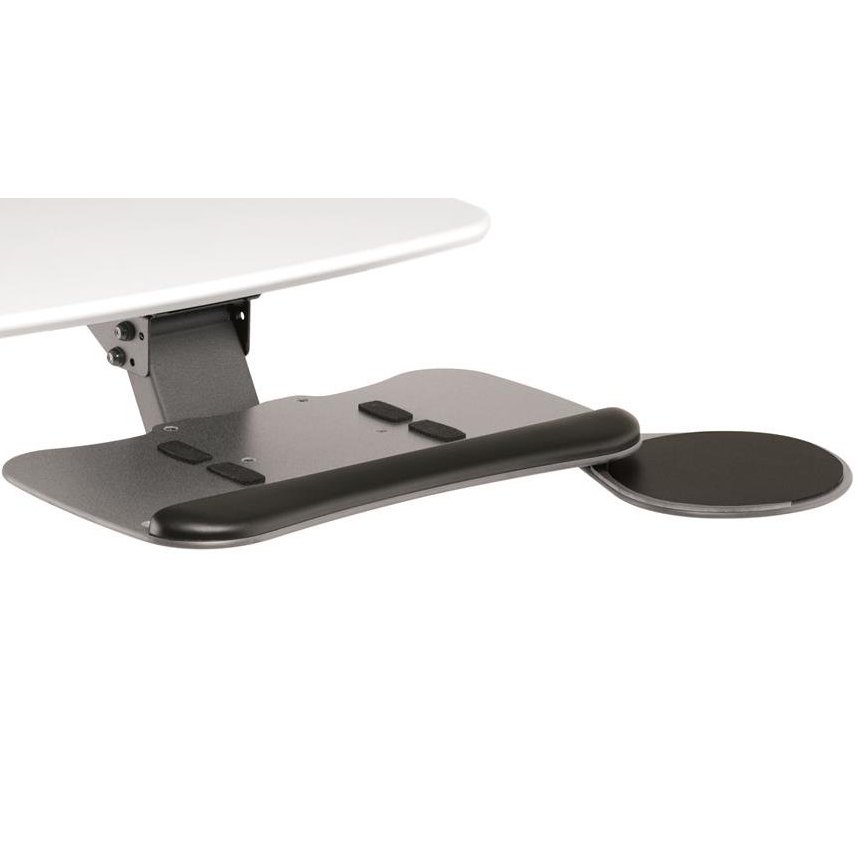

Keyboard Arm For proper ergonomic keyboard placement, Ergotron’s Neo-Flex Underdesk Keyboard Arm, 97-582-009, is recommended

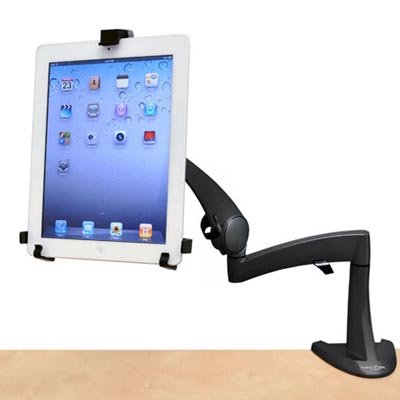

LCD and Laptop Display Add Ergotron LCD and laptop display mounts as needed to accommodate individual workflows
Complies With all international environmental regulations related to its design, manufacture and packaging
Designed and Tested To ANSI/BIFMA X5.5-2008 standards
Washington State Analysis A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
Shipping Dimensions 51" x 30" x 17" (129 x 75 x 43 cm)
Shipping Weight 108 lbs (48.9 kg); actual product weight: 85 lbs (38.6 kg)
Warranty Five (5) years

Benefits

For Computer Users

  • Enjoy standing and sitting as you work, switching positions whenever you choose. Patented CF technology allows instantaneous, tool-free, non-motorized re-positioning while you work. This work style encourages healthy movement throughout the day

  • Safe and easy-to-use

  • Designed to meet North American and European ergonomic standards

  • Robust weight capacity holds multiple displays, keyboards, books, phones ... whatever you need in your workflow


For IT and Facilities Staff

  • Flexible, open-architecture design is scalable for future computer equipment

  • Durable, robust structure, designed to ANSI/BIFMA X5.5-2008 standards


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • Standing supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases of 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Frequently Asked Questions

q I am looking for a desk no wider than 48 inches. With the legs (the base, that is, outside of each leg), how wide does that make this WorkFit-D desk? It has to fit in a tight spot, so I need to know the widest part, including the legs/base of the desk.
a

The Ergotron WorkFit-D 24-271-928 would be cutting it very close, since the worksurface is 47.6” wide. Please see the dimensional illustration, that shows the base of the desk being 42” wide. If you feel as though that will not work for you, I would suggest taking a look at our Workrite brand! You will see that on their sit-stand desks, you can choose the size of the worksurface.

Model 24-271-928
Manufacturer Ergotron
Part Number 24-271-928
UPC 698833031850
Color Black with faux-birch-grain surface
Weight Capacity Up to 165 lbs (74.8 kg). Listed weight capacity represents total load applied to worksurface. When calculating load, include weights of accessory mounts for keyboard and display(s)
Lift (50.8 cm) 20 in
Worksurface Dimensions 47.6" x 23.5" x .87" (121 x 60 x 2.2 cm)
Height Adjustment Minimum 30.6" (78 cm) and maximum 50.6" (129 cm)
Shipping Dimensions 51" x 30" x 17" (129 x 75 x 43 cm)
Shipping Weight 108 lbs (48.9 kg); actual product weight: 85 lbs (38.6 kg)
Warranty Five (5) years
Desk Type Spring
Desktop Shape Rectangular Top
