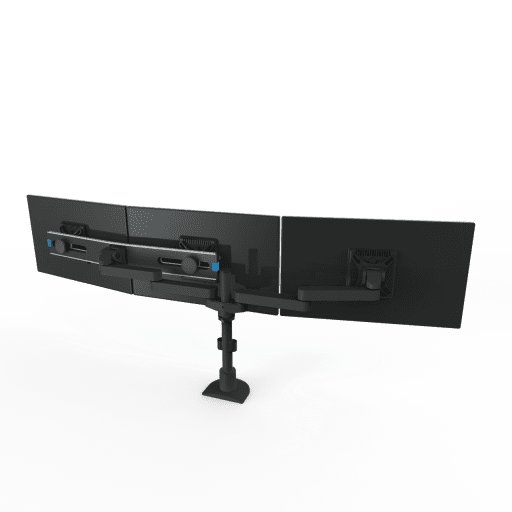

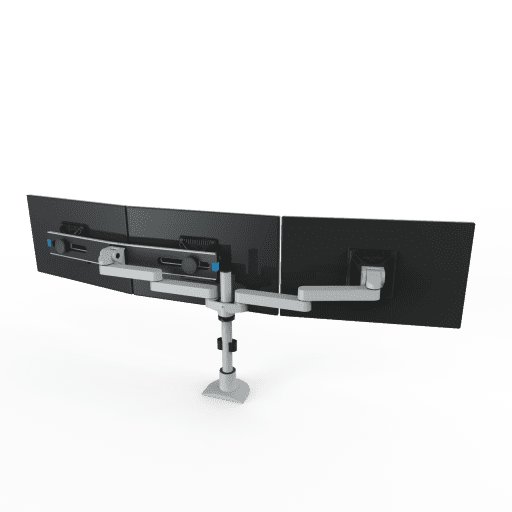

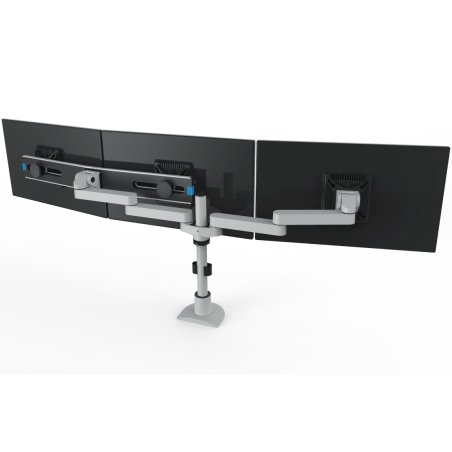

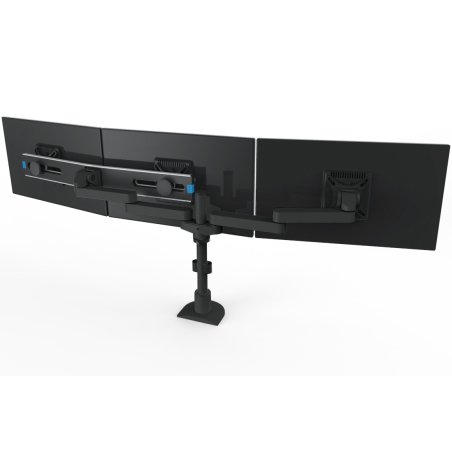

Innovative 9163-SWITCH-S-14 Triple LCD Monitor Arm with 14" Pole
This Innovative product can mount 3 monitors with screen size up to 24" and weight up to 15 lbs each.
Now includes Next Generation Tilter 8500 (not shown in the image). Please see Description for more details.
Description
Innovative 9163-Switch-S-14 suspends 3 flat panels above your work
surface with the Switch Multi-Monitor Mounting System. Save valuable
workspace and reduce desktop clutter. Unique cable management allows
cables to be tucked under the forearm extensions.
Our adjustable Switch bracket allows you to adjust monitors and also
allows rotation. Includes our spring-assist monitor tilter for
effortless motion. Switch works with all VESA 100 mm VESA monitors.
Switch is a configurable multi-monitor mounting system by Innovative.
Switch meets your current mounting requirements, but also easily adapts
to meet your future requirements! You can convert your monitor
configurations with little time or effort, often without even having to
purchase additional components.
Suspend three flat panel monitors above the work surface with the
9163-Switch-S-14 multiple monitor mount. This three monitor setup
includes a 14" pole mount for easy height adjustment.
Introducing Switch - One Switch, many possibilities
A highly configurable solution for multi-monitor applications. Switch
meets your current mounting requirements, but also easily adapts to meet
your future requirements. You can convert your monitor configurations
with little time or effort, often without even having to purchase
additional components.
Workplace configurations are continually changing and evolving. That’s
why you need a monitor mounting system that can quickly adapt.
Configurable solutions for a range of applications. Switch multi-monitor
mounting system is ideal in any of these environments:
Financial trading
Command & control
A/V & multimedia
Call centers
Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded this part.
Tilter - A tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.
 8500 Quick Release Monitor Tilter |  8336 Standard Monitor Tilter |

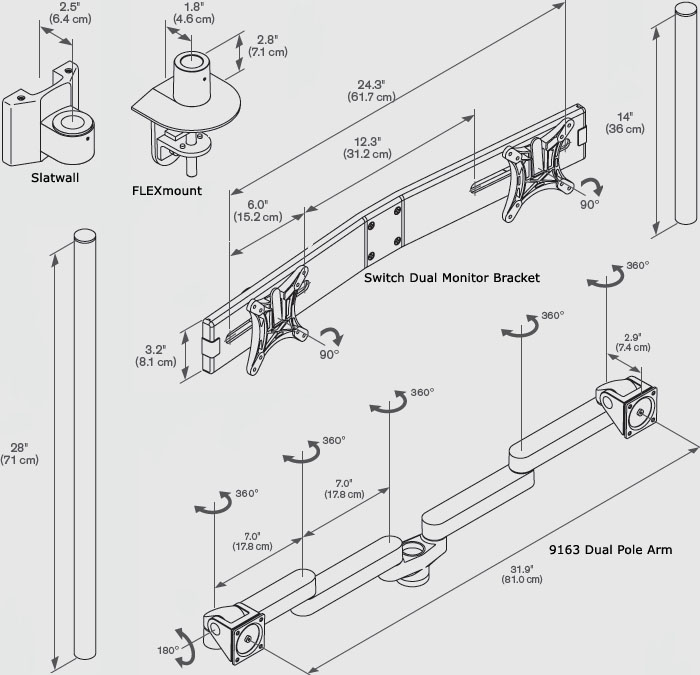

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black, 124 - Silver |
| Number of Monitors | 3 |
| Monitor Size | Up to 22" (61 cm) widescreen |
| Monitor Weight | Up to 15 lbs (6.8 kg) per monitor |
| Monitor Tilt | Up to 180 degrees |
| Pole Size | 14" (36 cm) |
| Pivot | 90 degree |
| Rotation | 360 degrees at three joints |
| Mount Configurations | Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt |
| VESA Compatibility | 75mm, 100mm quick-release adapters included |
| Warranty | 10 years |
| Cable Management | Cables to be tucked under the forearm extensions |
Features
Triple monitor mount positions monitors in either portrait or landscape
Set height at any desired position along the included 14" pole
Quick-install VESA adapter saves time at setup
Monitor stand is VESA-monitor compatible - 75mm, 100 mm VESA adapters included
Tilt monitors up to 180 degrees

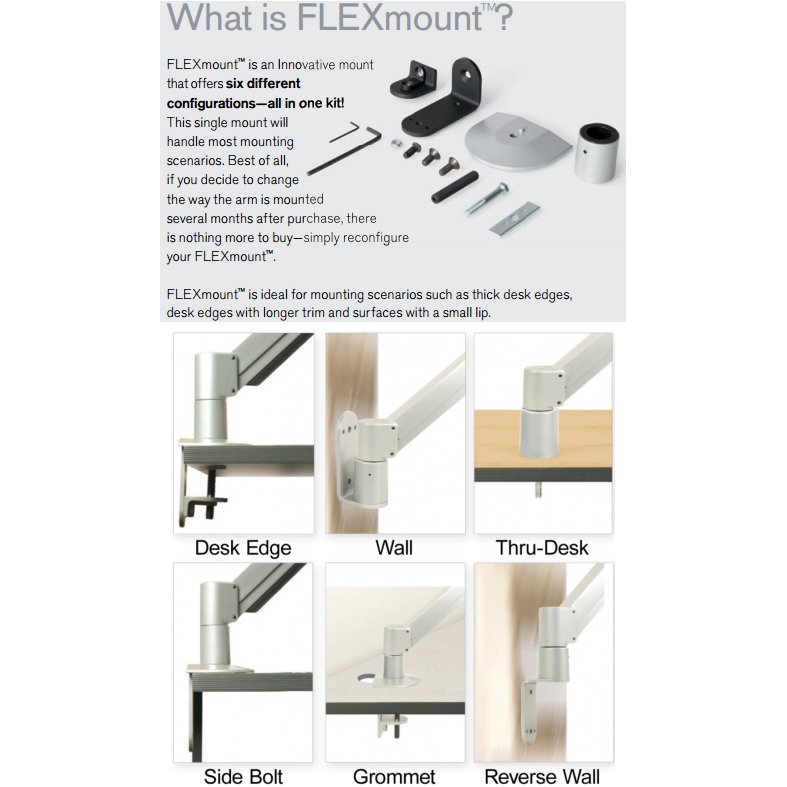

FLEXmount with six mounting options is available
Ideal for slatwall mounting; can be combined with all Innovative mount options (sold separately)
| Model | 9163-SWITCH-S-14 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9163-SWITCH-S-14 |
| Color | 104 - Vista Black, 124 - Silver |
| Tilt | Up to 180 degree |
| Monitor Size | Up to 22 |
| Monitor Weight | Up to 15 lbs (6.8 kg) per monitor |
| Pole Length | 14 |
| Mounting Options | All-in-one |
| Mounting Pattern | VESA 75mm, 100 mm |
| Mounting Options | Slatwall |
| Number of Monitors | 3 Monitors |
| Rotation | At three joints 360 degree |
| Pivot | 90 degree |
| Warranty | 10 years |
