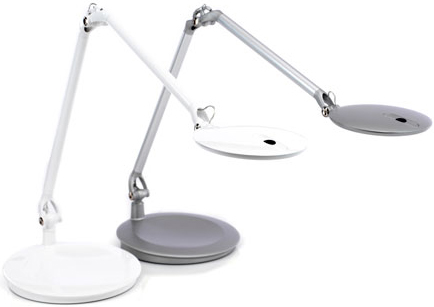

Humanscale Element Disc LED Task Light
Element Disc: 7-Watt Thin Film LED Technology with Dimmer and Occupancy Sensor
Description
Humanscale’s Element Disc task light brings together advanced technology and
optimal functionality. An innovative and adjustable LED desk lamp, Element Disc
complements any work space, home office or hospitality environment. Using Thin
Film LED Technology, Element Disc offers seven levels of brightness with just an
effortless pinch of the light head. It also features a PIR occupancy sensor that
turns the unit on or off when the user enters or leaves the area.
Element Disc packages advanced technology into a minimal light engine to deliver
330 lumens while using only 7 watts of power. With a CRI of 80 and a CCT of
3000K, Disc provides brilliant, uniform light for up to 50,000 hours - or the
equivalent of 25 years in an average work environment. And with a clever folding
mechanism, Disc is as convenient as it is beautiful.
Design Story - Created in the Humanscale Design Studio, Element Disc was
designed for maximum adjustability in a reduced light engine package. Disc
delivers an unparalleled ergonomic lighting solution by providing efficient high
light levels in a functional, minimal design.
From its chic, futuristic looks to its next-generation technology, Element Disc
is ahead of its time and ahead of its class. Utilising innovative Thin Film LED
Technology, Disc offers seven levels of dimmability with just an effortless "pinch" of the light head. And taking advanced LED technology
to a new level of sustainability, Disc features an occupancy sensor that turns
the unit on or off when the user enters or leaves the area. When not in use,
Disc folds into a compact nesting position, with the form of the lamp head
gracefully echoing that of the base.
The industry called for a future-forward light; we saw an opportunity to marry
high-performance LED lighting with ultimate simplicity." - Kelly Ann Rockwell
Design Engineer

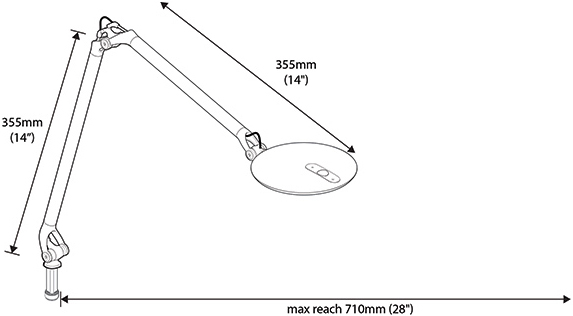

Technical Drawing
Features
Latest LED Technology - Through the use of revolutionary Thin Film LED Technology, Element Disc produces a consistent ultra-wide light footprint. This new technology not only provides ample amounts of bright 3000K light that helps reduce eye strain, but also increases the lamp’s usable life.
Smart Dimming - Element Disc’s smart dimming feature provides seven adjustable illumination levels for energy-efficiency and ergonomic function. Intelligent and intuitive, Element Disc features an built-in PIR occupancy sensor that automatically turns the unit off when the user is not in the area.
One-Touch Adjustability - Disc’s internal counterbalance system provides effortless, one-touch positioning and it folds away into a compact nesting position for easy storage. Available in one of 20 mounting options to suit any work environment, Element Disc is an incredibly versatile adjustable LED desk lamp.
Unique design maximizes light output and increases the light’s usable life
Smart dimming memory saves the last selected lighting level, even after the light has been shut off
Even plane of illumination casts just one shadow
Slender, futuristic form folds into a compact nesting position
Replaceable head assembly allows for in-field repairs
Universal power supply and interchangeable plug options accommodate global power outlets
Sustainable design can contribute to the achievement of valuable LEED credits
Specifications
Finish |
Arctic White (high gloss) and Silver (semi-matte) |
Lumen Output |
330 lumens |
Power Consumption |
7 watts |
Color Temperature |
3000K |
Color Rendering Index |
80 |
Lifespan |
Up to 50,000 hours |
Certification |
ETL/cETL certified and CE pending |
Compliant |
RoHS/WEEE compliant |
Maximum Reach |
710 mm (28") |
Working Height |
455 mm (18") |
Recycle |
56% post-consumer recycled content |
Warranty |
5 Year, 24/7 Warranty |
Option 1: Color
Intelligent and flexible, Humanscale Element Disc is available in Silver and White to match any office environment.
Option 2: Mount Style
C Clamp - For grommet or edge mount. Fits surfaces up to 2" thick and grommet holes 2" or more in diameter |
G Clamp with Grommet Cover - For grommet holes 2"-3.25" in diameter |
K 2-Piece Clamp - Requires minimum 1/4" clearance between desk and wall or panel |
Element Desktop Base - 8" diameter |
Humanscale LED Task Light Comparison
Element 790 |
Element Vision |
Element Disc |
Horizon |
|
Light Output (Lumens) |
250 |
215 |
315 |
320 |
Light Quality (CRI) |
85 |
88 |
83 |
80 |
Energy Consumption (Watts) |
5 |
7 |
7 |
9 |
Efficiency (Lumens/Watt) |
50 |
31 |
45 |
36 |
Color Temperature |
3500K |
3000K |
3000K |
3000K |
Dimming |
Yes |
Yes |
Yes |
Yes |
PIR Motion Detector |
No |
Yes |
Yes |
No |
Colors |
S, B, W |
S, B, W |
S, W |
S, B, W |
Mount Options |
20 |
20 |
20 Preliminary Data |
Base Only |
Product Options/Accessories
Model | EC Element Disc |
Manufacturer | Humanscale |
Part Number | EC |
Color | Silver and White with Silver accents |
Lumen Output | 330 lumens |
Power Consumption | 7 watts |
Color Temperature | 3000K |
Color Rendering Index | 80 |
Lifespan | Up to 50,000 hours |
Maximum Reach | 28" |
Height | Working Height: 18 |
Mounting Options | Desk Mounts |
Mounting Options | Slatwall Mounts |
Mounting Options | Wall Mounts |
Warranty | 5 Year, 24/7 Warranty |
