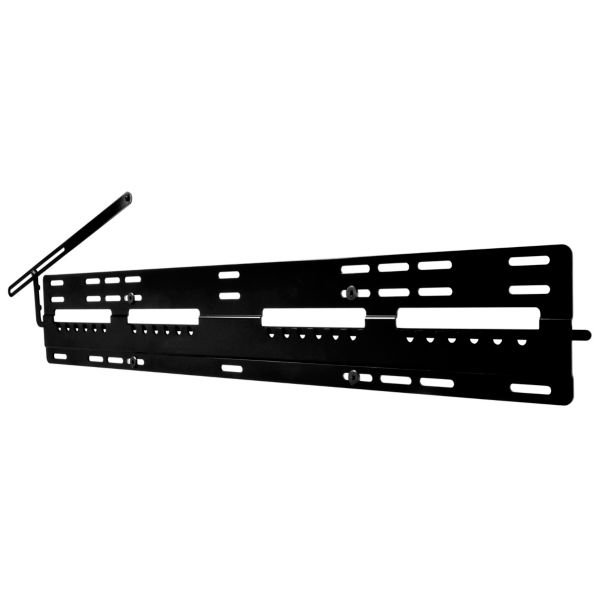

Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays

Product ID 17151
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Application
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Peerless SUF661 Universal Ultra Slim Flat Wall Mount for 40" to 80" Displays
Application
Shipping:
$12.98

More shipping >

Our Price:
Qty:

Description

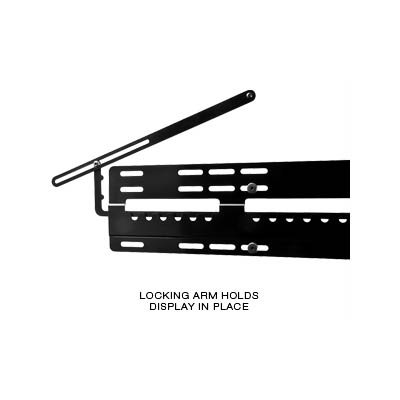

One of the world’s slimmest mounts, at only 0.19" (5mm) thin, peerless SUF661 brings displays closer to the wall than most other products in the industry. This near-invisible mount is the beauty that supports the modern style of the latest ultra-thin displays while the locking arm ensures a secure installation. This unmatched solution delivers space-saving, ultra-sleek looks and brings the display ultra-close to the wall.

Helpful Hints: Designed exclusively for use with ultra-thin displays 2" (50.8mm) deep or less

Technical Drawing

Technical drawing for
Peerless SUF661 Universal Ultra Slim Flat Wall Mount, 40

Specifications

Color Black
Finish High Gloss
Minimum to Maximum Screen Size

40" to 80"

VESA Pattern 200, 400, 600, 800
Weight Capacity 150 lbs (68.0kg)

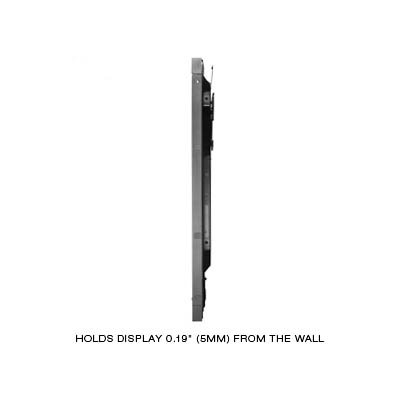

Distance from Wall

0.19" (5mm)

Mounting Pattern

800mm (31.50")

Security Features Security Hardware
Package Contents
  • Wall Mount
  • Locking Arm
  • Mounting and display attachment hardware
Product Dimensions

35.25" x 5.50" x 0.19" (895 x 140 x 5mm)

Product Weight

4.56 lbs (2.05kg)

Shipping Dimensions

6" x 1.375" x 39.75" (152.4 x 34.925 x 1009.65mm)

Shipping Weight

6.1 lbs (2.75kg)

UPC Code

735029278382

Frequently Asked Questions

Model SUF661
Manufacturer Peerless Mounts
Part Number SUF661
UPC 735029278382
Color Black
Dimensions (W x H x D) 35.25" x 5.50" x 0.19" (895 x 140 x 5mm)
Weight 4.56 lbs (2.05kg)
Weight Capacity 150 lbs (68kg)
Shipping Dimensions 6" x 1.375" x 39.75" (152.4 x 34.925 x 1009.65mm)
Shipping Weight 6.1 lbs (2.75kg)
Monitor Size 40" to 80"
Distance From Wall 0.19" (5mm)
Mounting Pattern 800mm (31.50")
Warranty Limited 5 year
Finish High Gloss
Number of Monitors 1 Monitor
Mounting Options Wall

Customer reviews

  • 1 stars 0
  • 2 stars 0
  • 3 stars 0
  • 4 stars 0
  • 5 stars 0
(0 out of 0)

Warranties and Returns

Limited Warranty

Peerless Industries, Inc. (Peerless-AV) warrants to original end-users of Peerless-AV products that Peerless-AV products will be free from defects in material and workmanship, under normal use, for the periods listed below, from the date of purchase by the original end-user. At its option, Peerless-AV will repair or replace with new or refurbished products or parts, or refund the purchase price of, any Peerless-AV product which fails to conform with this warranty.

In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless-AV, (b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless-AV’s instructions or warnings when installing, using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third-party actions and force majeure. This warranty also does not cover corrosion or rust resulting from damaged, scratched or chipped paint or other surfaces.

In no event shall Peerless-AV be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured by a security device which may be included with the Peerless-AV product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty is in lieu of all other warranties, express or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless-AV in connection with the sale of any Peerless-AV product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.


Product Warranty Period
Mounts 5 years
Kiosk Enclosures 5 years
Furniture 1 year
Cables 25 years
Cleaning Products 1 year
Power Products 1 year
Electronic Products and Components 1 year
Xtreme Displays, Ultra View TVs 2 years
Interactive 1 year
