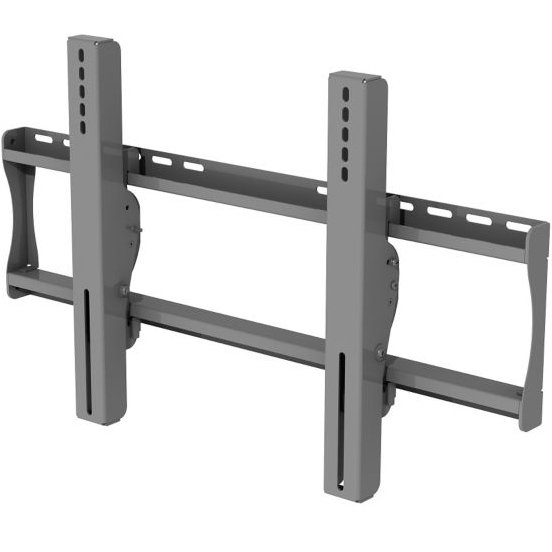

Peerless EWMU Wind Rated Universal Tilt Wall Mount
Description
Peerless EWMU Wind Rated Outdoor TV Mount is tough enough to handle rough weather, but it’s still remarkably quick to install with its Hook-and-Hang design. Wind rated up to 110mph, it’s constructed from heavy gauge steel, and sealed with corrosion resistant E-Coat. Complete with stainless steel tamper resistant hardware that is Sorted-For-You for simplified installation to wood studs, concrete or cinder block. It’s the mount designed to hold an outdoor TV in any environment.

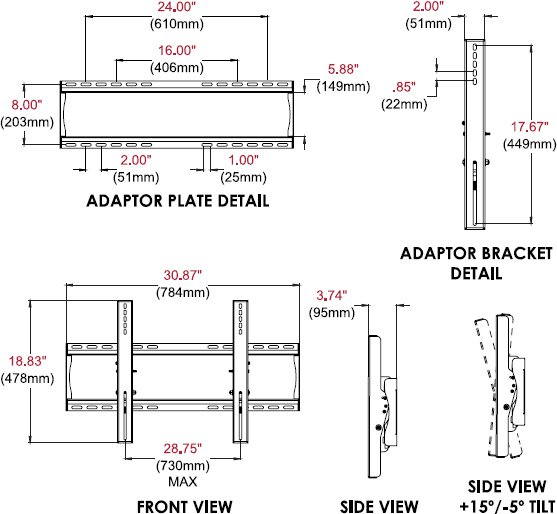

Technical Drawing
Specifications
Color | Black and Stone Grey |
Finish | Powder Coat |
Screen Size | 32" to 65" |
VESA Pattern | Up to 600 x 400 |
Weight Capacity | 200 lbs (91kg) |
Distance from Wall | 3.75" (95mm) |
Increlock Increments | 0, 2, 5, 10, 15 degree |
Mounting Pattern | 721 X 449mm (28.39 X 17.67") |
Security Features | Security Hardware |
Tilt | +15 / -5 degree |
Package Contents |
|
Product Dimensions | 30.87" x 18.83" x 3.74" (784 x 478 x 95mm) |
Product Weight | 17 lbs (8kg) |
Shipping Dimensions | 34.25" x 10.18" x 3.12" (870 x 258 x 79mm) |
Shipping Weight | 20 lbs (9kg) |
UPC Code |
EWMU: 735029272335 EWMU-S: 735029272342 |
Features
Up to 8" of horizontal positioning
Hook-and-Hang design for simplified installation
Fixed incremental tilt with angle settings at 0°, 2°, 5°, 10° or 15°
Wind rated up to 110 mph, elevation 200ft (60m), Category "D"
Universal mounting pattern - 28.39"W x 17.67"H (721 x 449mm) VESA up to 600 x 400mm
Product Options/Accessories
Model | EWMU |
Manufacturer | Peerless Mounts |
Part Number | EWMU |
UPC | 735029272335 |
Color | Black, Stone Gray |
Dimensions (W x H x D) | 30.87" x 18.83" x 3.74" (784 x 478 x 95mm) |
Weight | 17 lbs (8kg) |
Weight Capacity | 200 lbs (90.7kg) |
Shipping Dimensions | 34.25" x 10.18" x 3.12" (870 x 258 x 79mm) |
Shipping Weight | 20 lbs (10kg) |
Monitor Size | 32" to 65" |
Mounting Pattern | 721 X 449mm (28.39 X 17.67") |
Tilt | +15 / -5 degree |
Wind Rated | up to 110 mph, elevation 200ft (60m), Category “D”. |
Warranty | Limited 5 year on mount. Limited 1 Year Warranty on corrosion. |
Distance From Wall | 3.75" (95mm) |
Mounting Options | Wall |
VESA | Up to 600 x 400 |
Finish | Powder Coat |
