$401.00

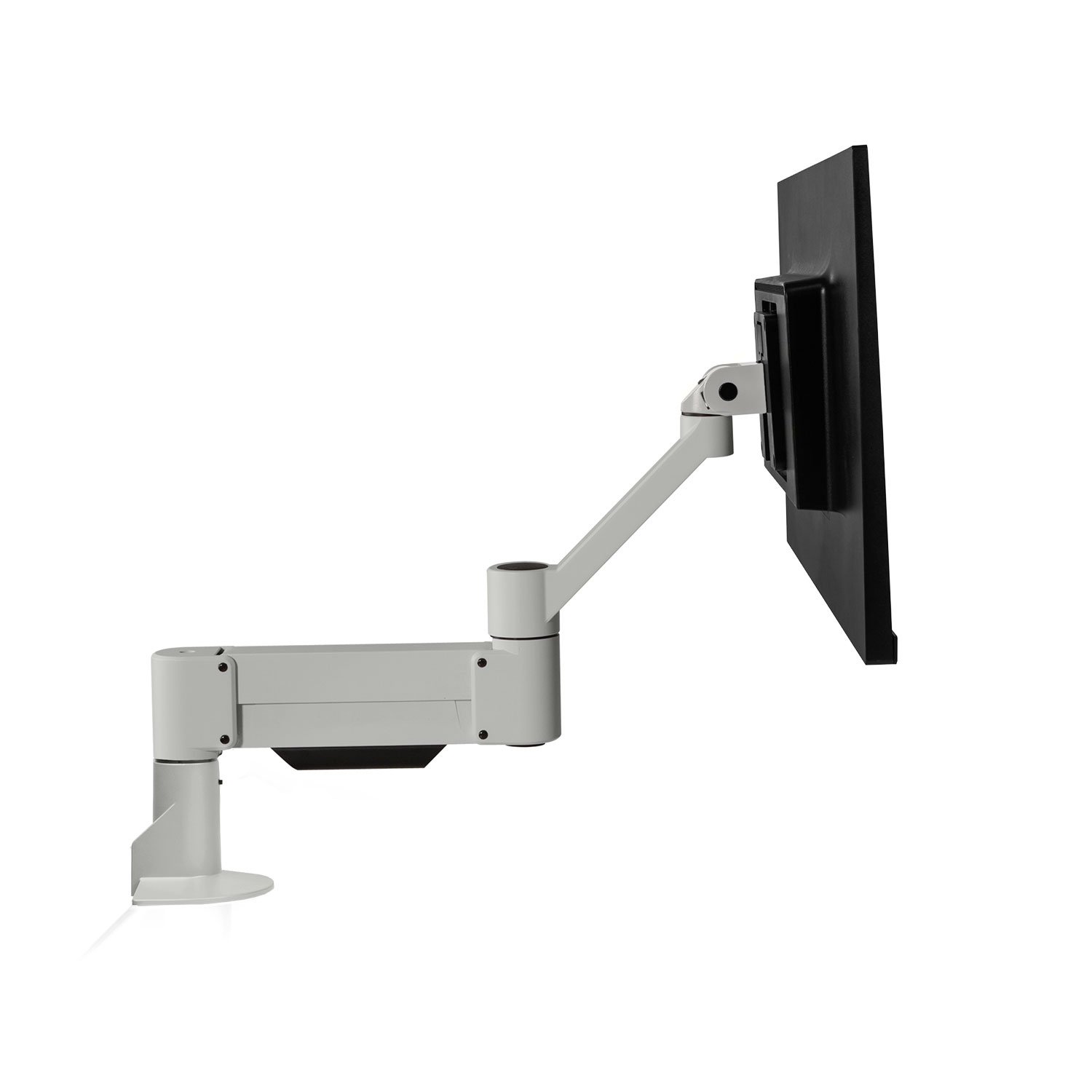

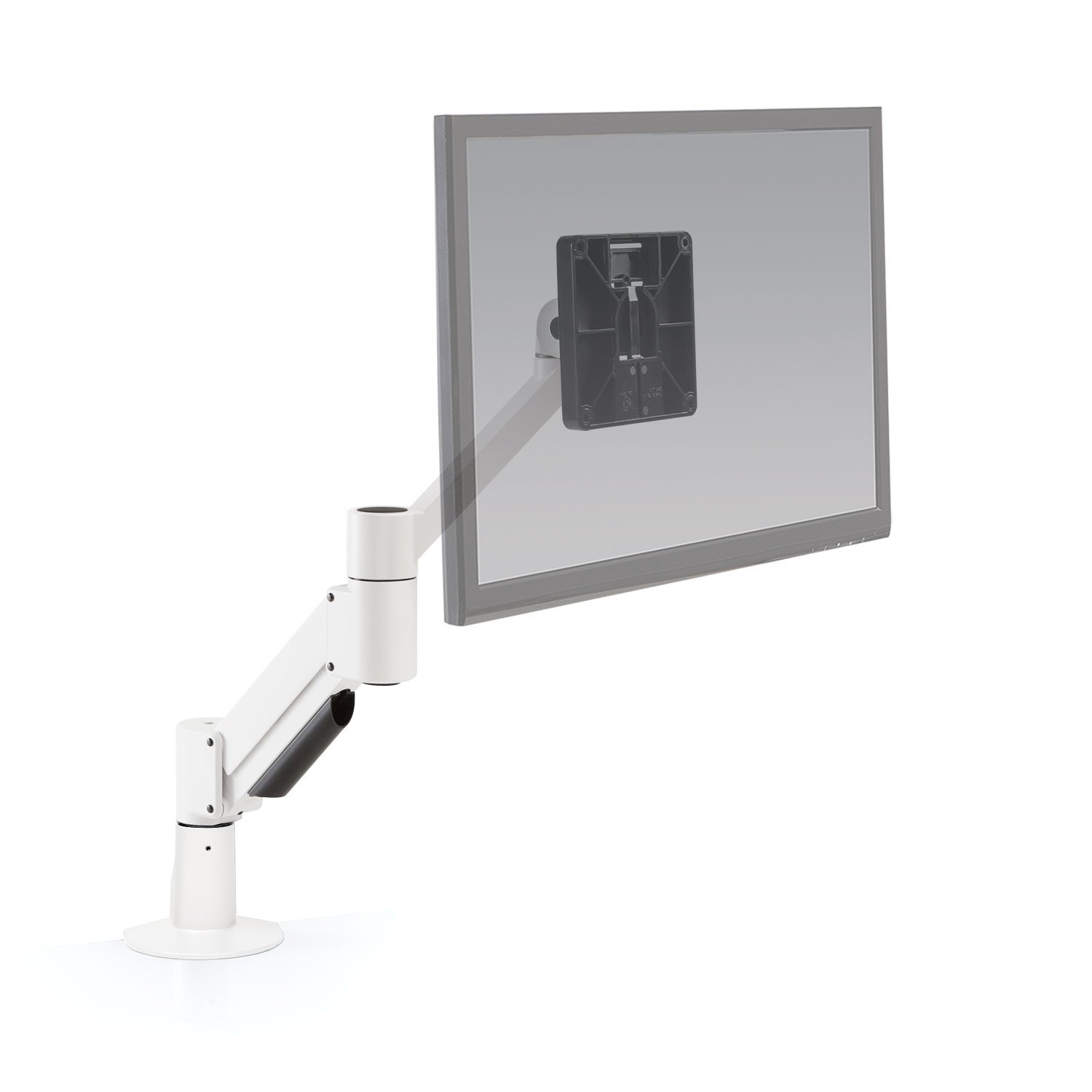

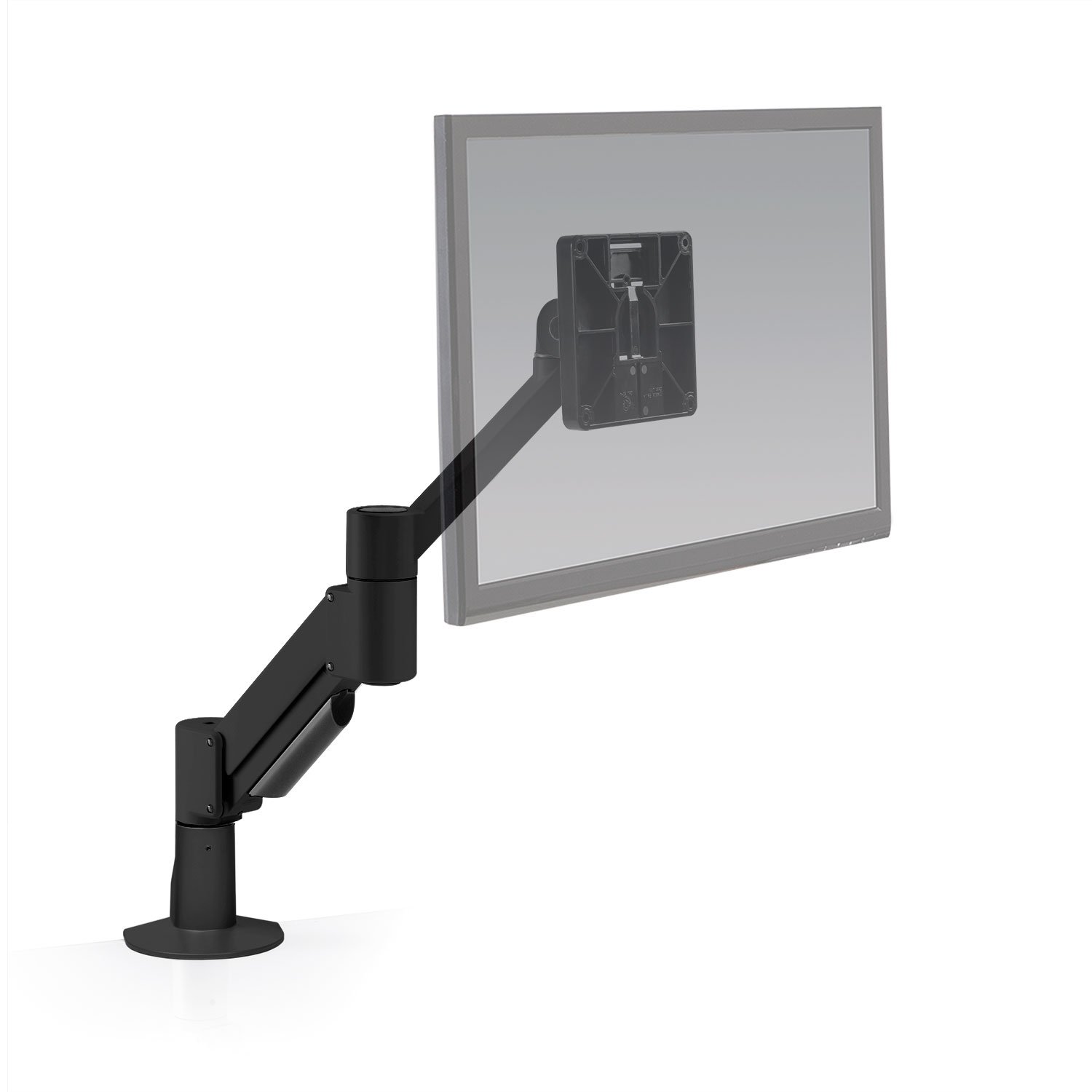

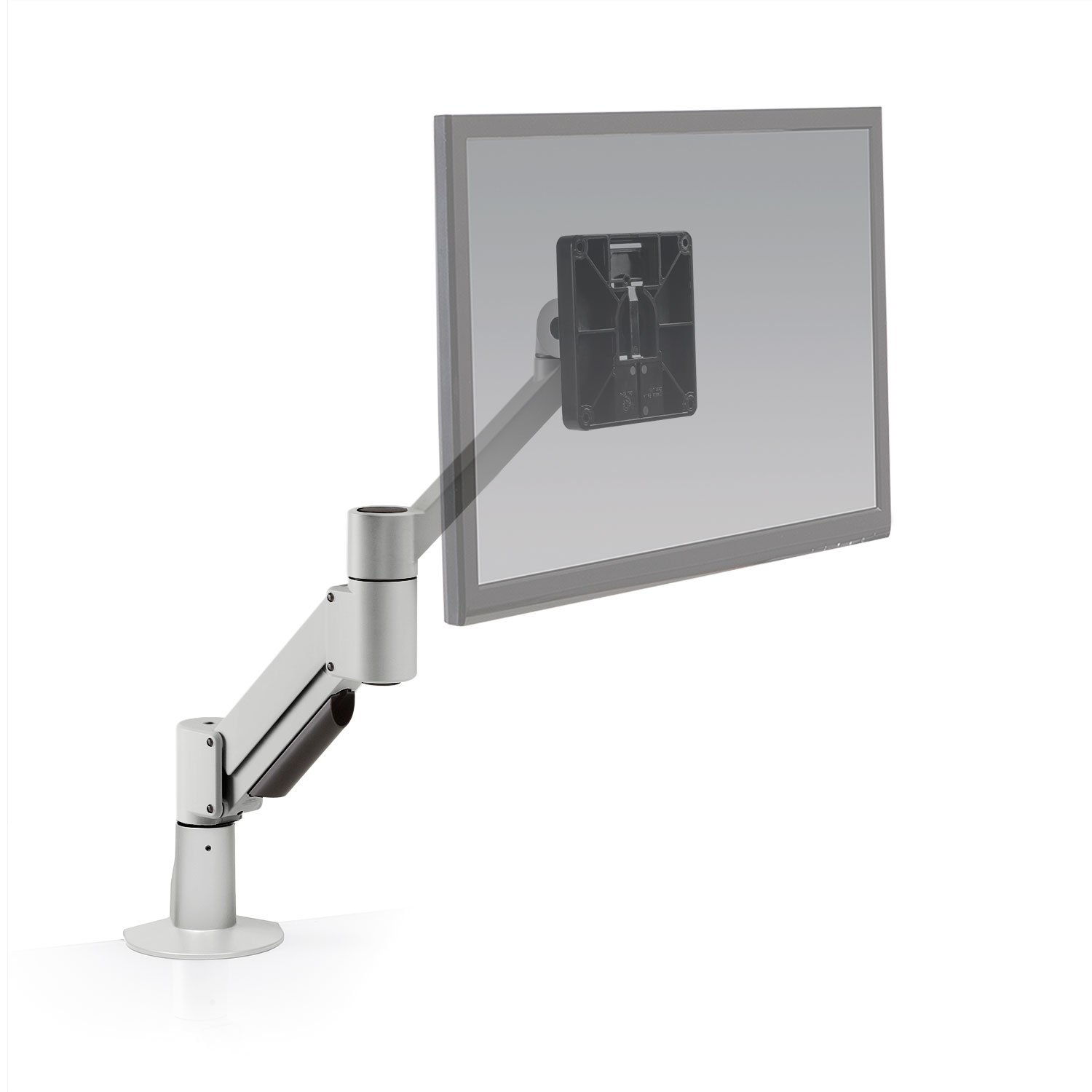

Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm

Now includes Next Generation Tilter 8500. Please see Description for more details.

Product ID 17104
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm
Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm

Description

Comparable to the 3500 monitor mount, Innovative 3545 short-reach radial monitor arm offers a compact, space-saving design. The mount features a fixed 45-degree forearm that provides additional vertical reach. Users are able to quickly fold the monitor mount back and out of the way when not in use.

Float your 20"+ flat panel monitor above the desk with this short-reach radial monitor arm. Ideal for use in compact spaces while maintaining ergonomic comfort.

Please note this monitor arm was updated in January 2022. The manufacturer, Innovative Design Works, has upgraded two separate parts.

TilterA tilter is part of the adjustable monitor arm that attaches to the back of your monitor and allows the monitor to rotate, pivot, and tilt to the desired position. The standard tilter 8336 has been replaced with Next Gen Tilter 8500 in this monitor arm. The new tilter is slim, sleek, and easy to install and release, thanks to its quick-release bracket. It has a weight capacity of 30 lbs and is offered with both 75mm and 100 mm VESA patterns.

Innovative 8500 Quick Release Monitor Tilter
8500 Quick Release Monitor Tilter
Innovative 8336 Standard Monitor Tilter Head
8336 Standard Monitor Tilter

Mount – Mount is the part that attaches the monitor arm to the desk or wall. The new mount, is called Top Down mount, Innovative 8524. It functions as a clamp or grommet mount for desk installation and allows you to install the arm from above the desk without having to crawl underneath the desk. The FLEXmount, shown below, offers 6 mounting options including desk edge, wall mount, thru-desk, side bolt, grommet and reverse wall mount. Please see Mounting Options.

8524 Top Down Mount

Innovative 8524 Top Down Mount



Innovative FLEXmount

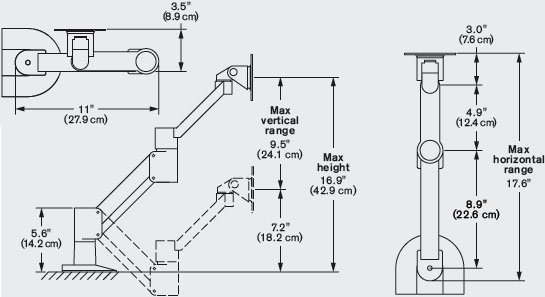

Technical Drawing

Technical Drawing for Innovative 3545 Short Reach Monitor Arm with Fixed 45° Forearm

Technical Specifications

Color 104 - Vista Black, 124 - Silver, 248 - Flat White
Screen Size Up to 30"
Height Adjustment 9.5"
Extension Range 17"
Pivot Landscape / Portrait
Rotation 360 degrees at three joints
Tilt Up to 190 degrees
VESA Compatibility 75mm, 100mm adapters included
Mount Configurations C-Clamp, Grommet
Warranty 10 Years
Weight Capacity
  • 3545-250 - 1.5 - 12 lbs. (0.5 - 5.4 kg)

  • 3545-350 - 3 - 16 lbs. (1.4 - 7.3 kg)

  • 3545-450 - 10 - 23 lbs. (4.5 - 10.4 kg)

  • 3545-600 - 13 - 28 lbs. (5.9 - 12.7 kg)

Features

  • FLEXmount with six mounting options is available

  • The height-adjustable mount has a vertical adjustment range of 9.5", a horizontal range of 17", and folds to occupy just 3" of space

  • Monitor tilter mechanism can tilt the flat panel monitor up to 190 degrees

  • Flexible monitor arm rotates 360 degrees at three joints

  • VESA-monitor compatible - 75mm, 100mm VESA adapters included; please call for non-VESA options

  • Optional upgrade to quick install/release monitor bracket; consult your sales rep for details

  • Optional 6″ extender tube available to raise the monitor (see Extender Tubes under Accessories).

Model 3545
Manufacturer Innovative LCD Arms
Part Number 3545
Color 104 - Vista Black, 124 - Silver and 248 - Flat White
Rotation At three joints 360 degree
Tilt Up to 190 degree
Pivot Landscape to portrait
Mounting Pattern VESA 75mm, 100mm
Mounting Options Desk
Mounting Options Wall
Mounting Options Pole
Mounting Options Slatwall
Monitor Arm Types 1 Monitor
Number of Monitors 1 Monitor
Warranty 10 Years
Mounting Options Desk Edge, Thru-Desk, Grommet, Wall, Reverse Wall, Side Bolt
Monitor Size Up to 30
Height Adjustment 9.5
Extension 17
Weight Capacity 1.5 to 28 lbs (0.5 to 12.7 kg)
