Innovative 7020 Long Reach Under Cabinet/Table Monitor Mount Arm
Description
Innovative works with leading casino operators to develop mounting
solutions for technology devices in the gaming environment. Table-top
kiosks and touch screens need not occupy valuable floor or gaming table
space - Innovative’s floating mounting arm mounts to the underside of
the table. The screen may quickly be moved to a comfortable viewing
height and angle, and then stowed when not in use. Consult with
Innovative for space-saving solutions to your mounting challenges.

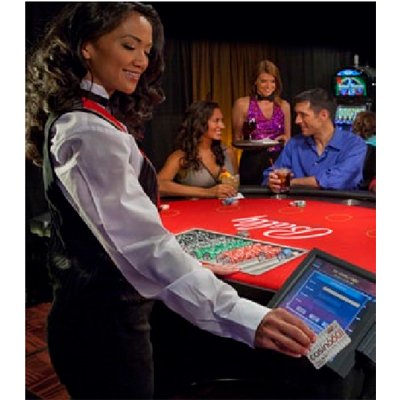

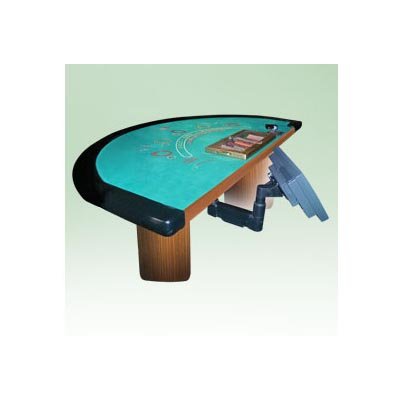

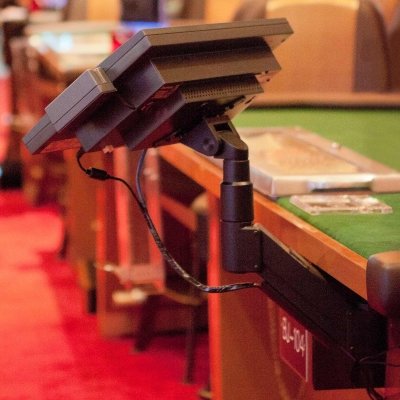

Mount a kiosk or monitor to the underside of a gaming table or counter.
Perfect for providing dealers and pit bosses with an easily accessible
computer which can be moved out of the way when not in use.

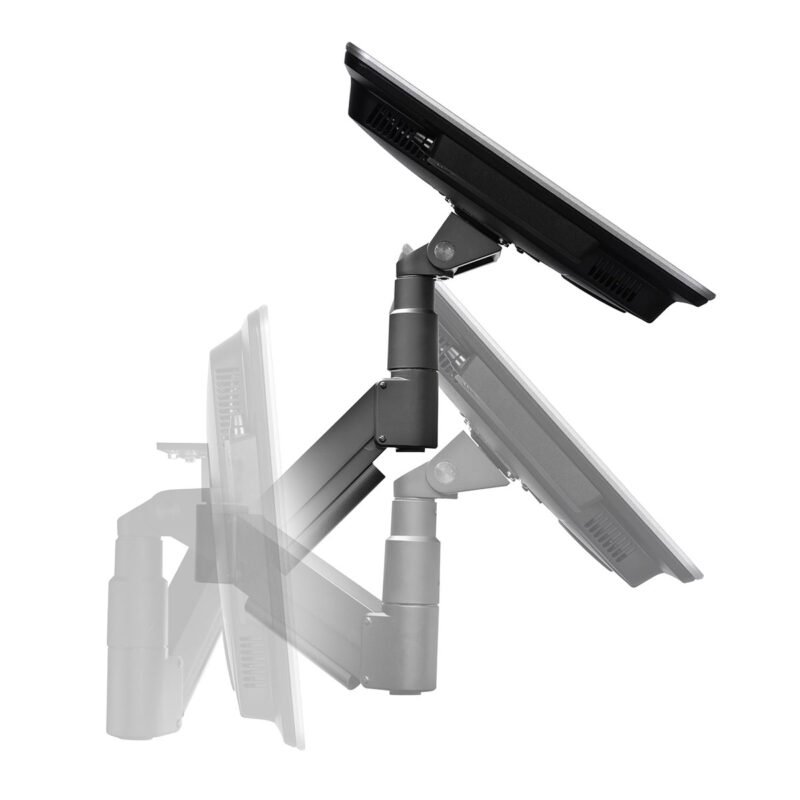

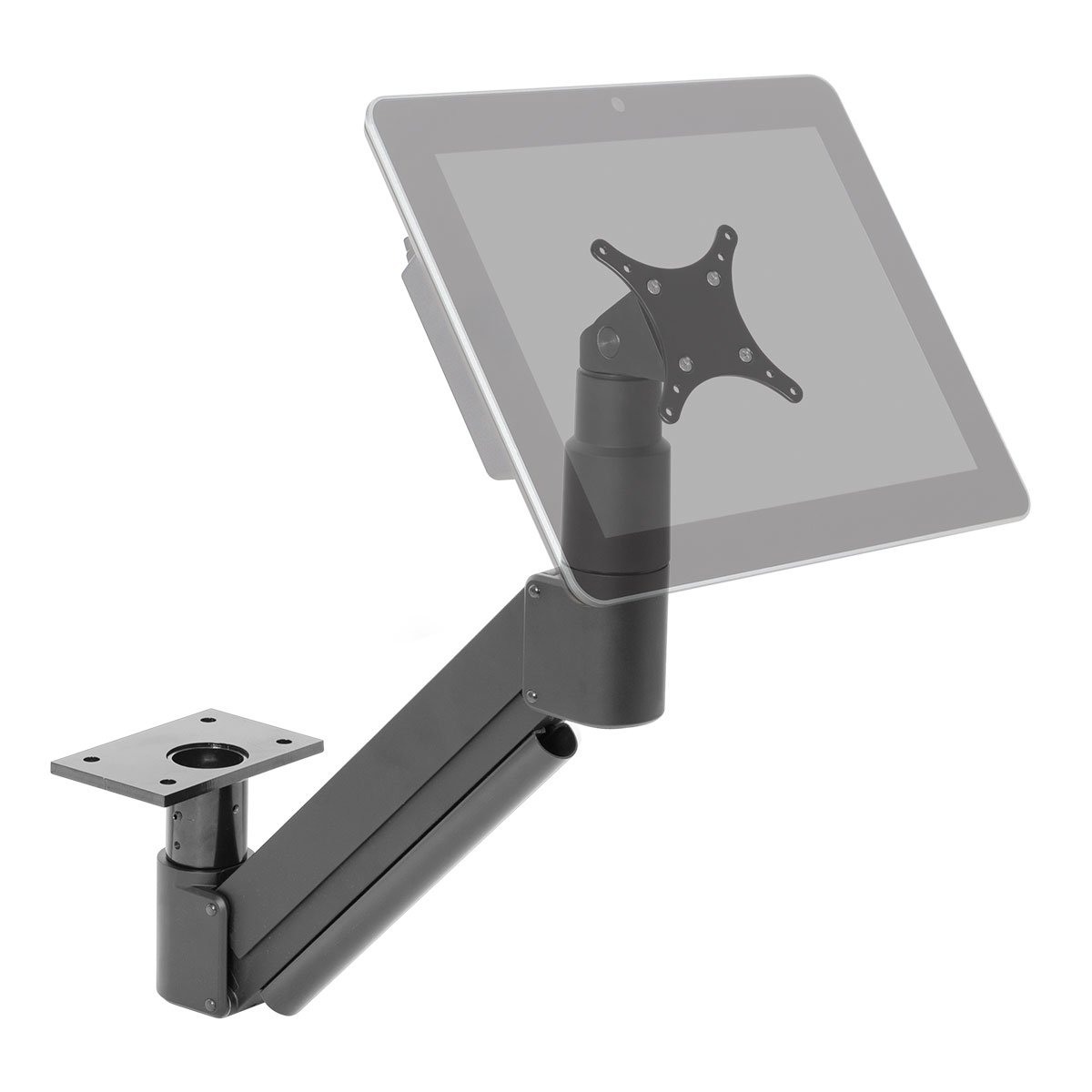

Similar to model 3520, but with a longer reach, innovative 7020 arm
enables the screen to quickly be moved to a comfortable viewing height
and angle, and then stowed when not in use. Perfectly accommodates users
of various sizes.

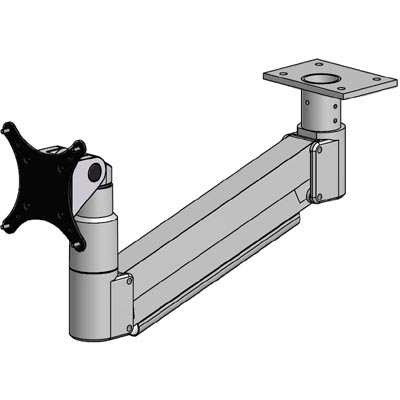

Comparable to the 3520 under-table monitor arm, the 7020 under-table monitor mount secures the flat panel monitor to the underside of the table and stows away when not in use. Innovative’s floating mounting arm mounts to the underside of the table. Features a long reach monitor arm to accommodate users of different heights.
No need for table-top kiosks and touchscreens to occupy valuable table space. Save space with Innovative’s 7020 under-table monitor mount. The long-reach 7020 monitor arm enables the screen to quickly be moved to a comfortable viewing height and angle, and then stows when not in use. The longer arm and ergonomic design perfectly accommodates users of various heights.

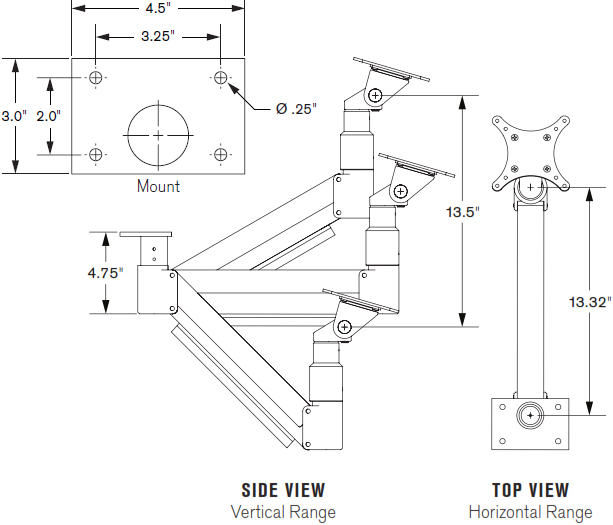

Technical Drawing
Technical Specifications
| Color | 104 - Vista Black |
| Vertical Range | 13.5" |
| Horizontal Range | 13.32" |
| Rotation | 360 degrees at two joints |
| Monitor Tilt | 200 degrees |
| Monitor Pivot | Landscape to Portrait |
| Monitor Compatibility | VESA MIS-D, 100/75, C compliant |
| Cable Management | Cables are clipped beneath arm |
| Mounting Options | Under Table or Under Cabinet |
| Weight Capacity | 7 - 18 lbs |
Features
Monitor arm mounts from the underside of the table or counter
Mount features intuitive, effortless monitor movement
Easily rotates 360 degrees at two joints
Tilt screen up to 200 degrees
Arm mount offers vertical adjustment range of 13.5"
Arm extends up to 13.3"
Conveniently tuck out of the way when monitor is note in use
Cable management keeps cables out of view
Product Options/Accessories
| Model | 7020 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 7020 |
| Color | 104 - Vista Black |
| Monitor Weight | 7 to 18 lbs |
| Rotation | 360 degree |
| Tilt | 200 degree |
| Mounting Pattern | VESA MIS-D, 100/75, C compliant |
| Mounting Options | Under Table or Under Cabinet |
| Monitor Arm Types | 1 Monitor |
| Extension | Up to 13.3 |
| Height Adjustment | 13.5 |
| Pivot | Landscape to portrait |
