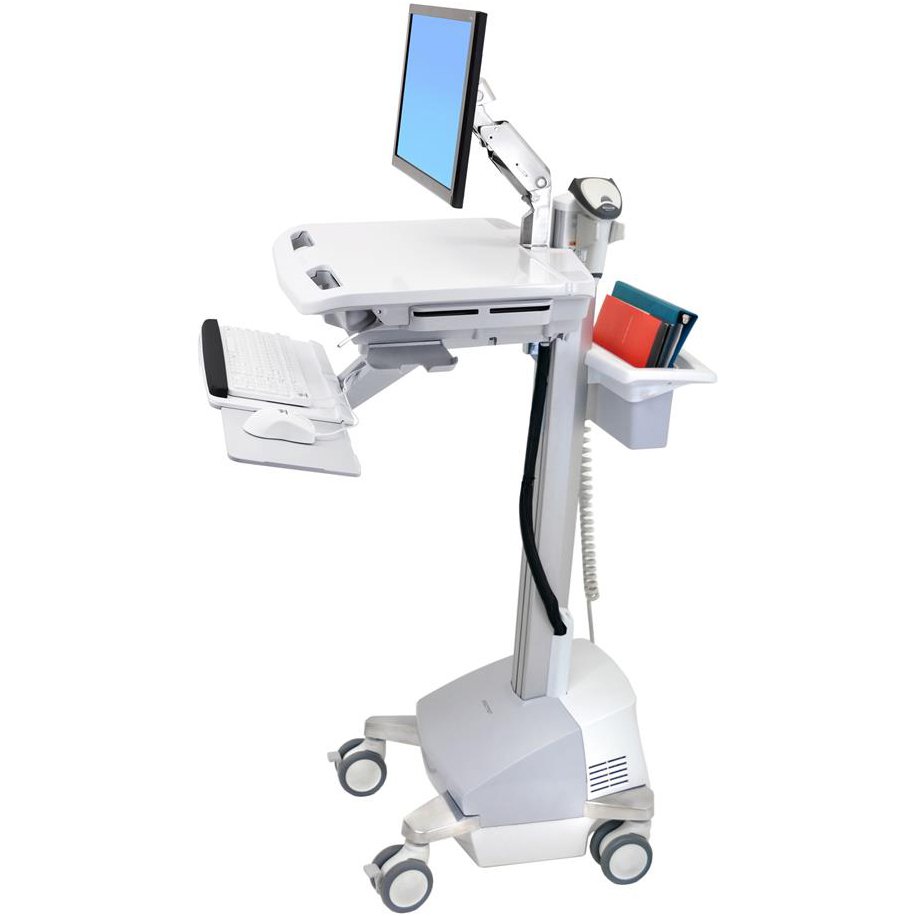

Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered

Product ID 17053
Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered

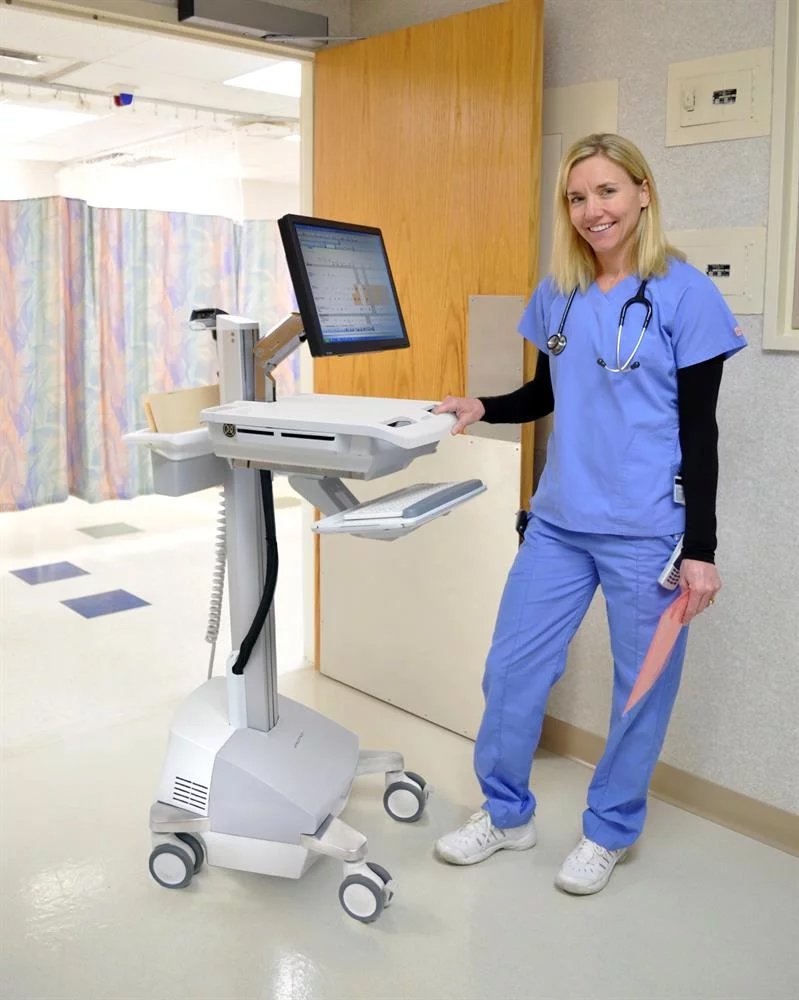

Inused image
Inused image
Brake

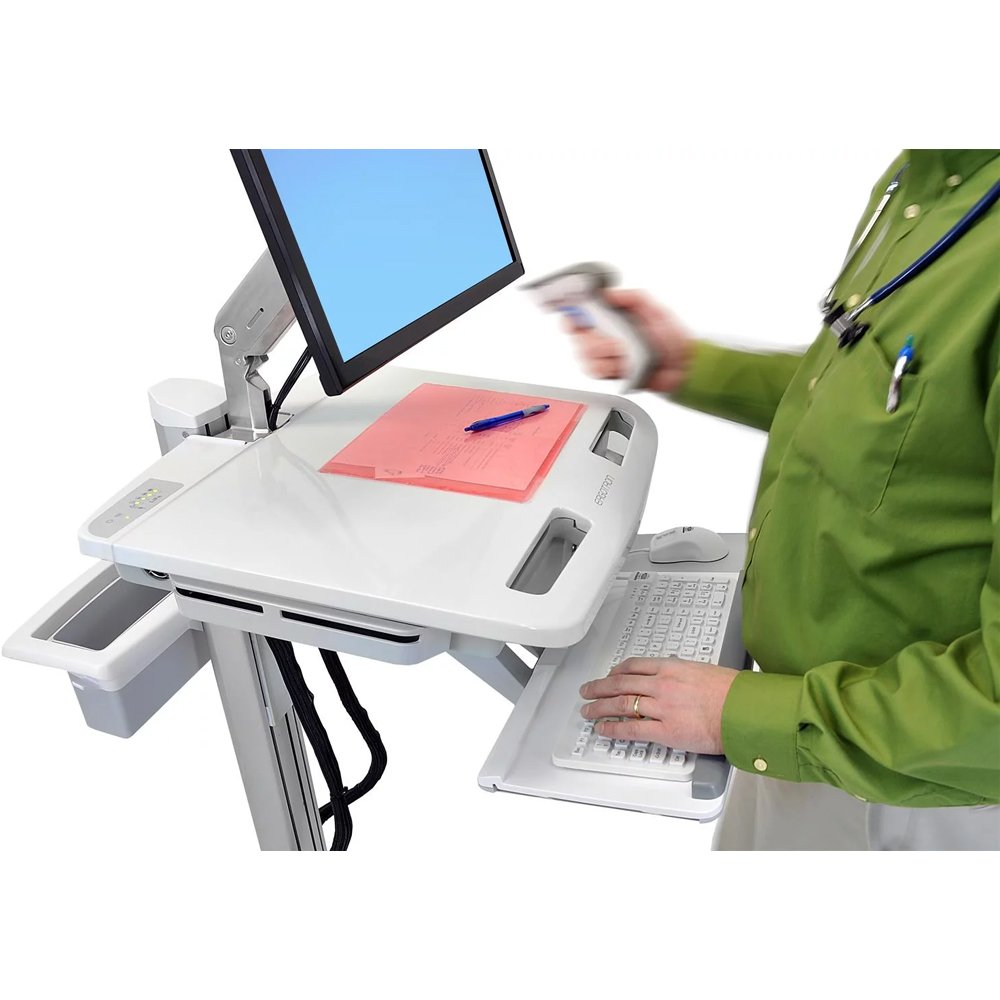

In use scanner

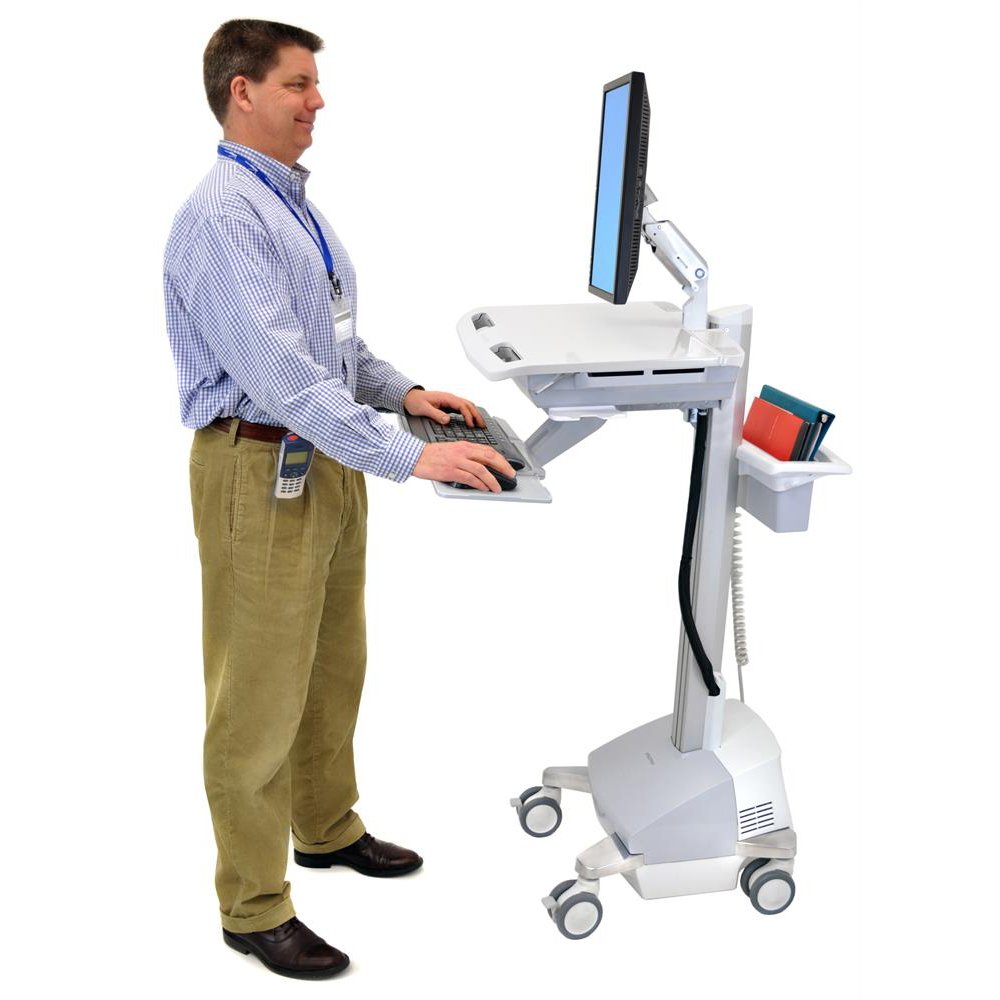

Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered
Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered

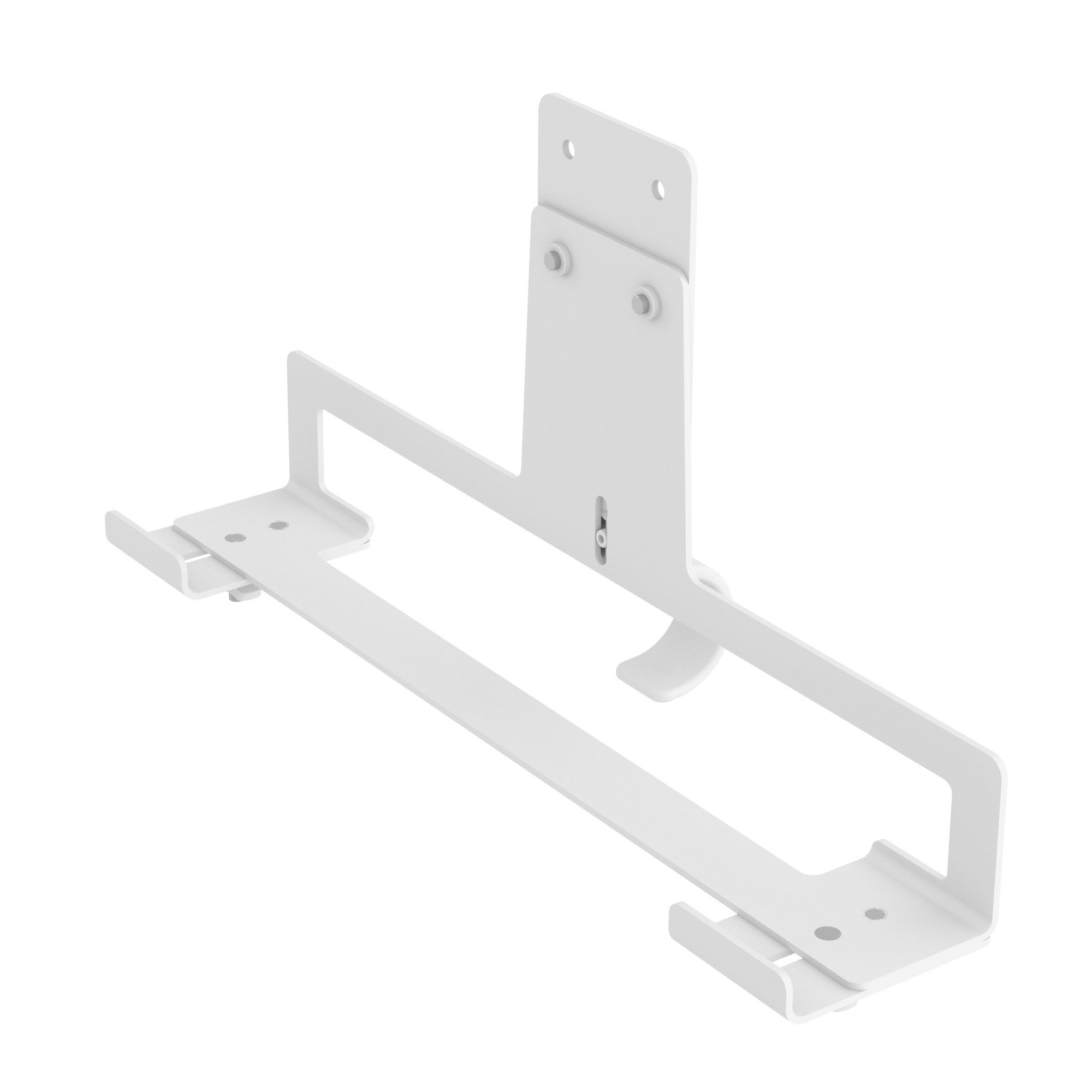

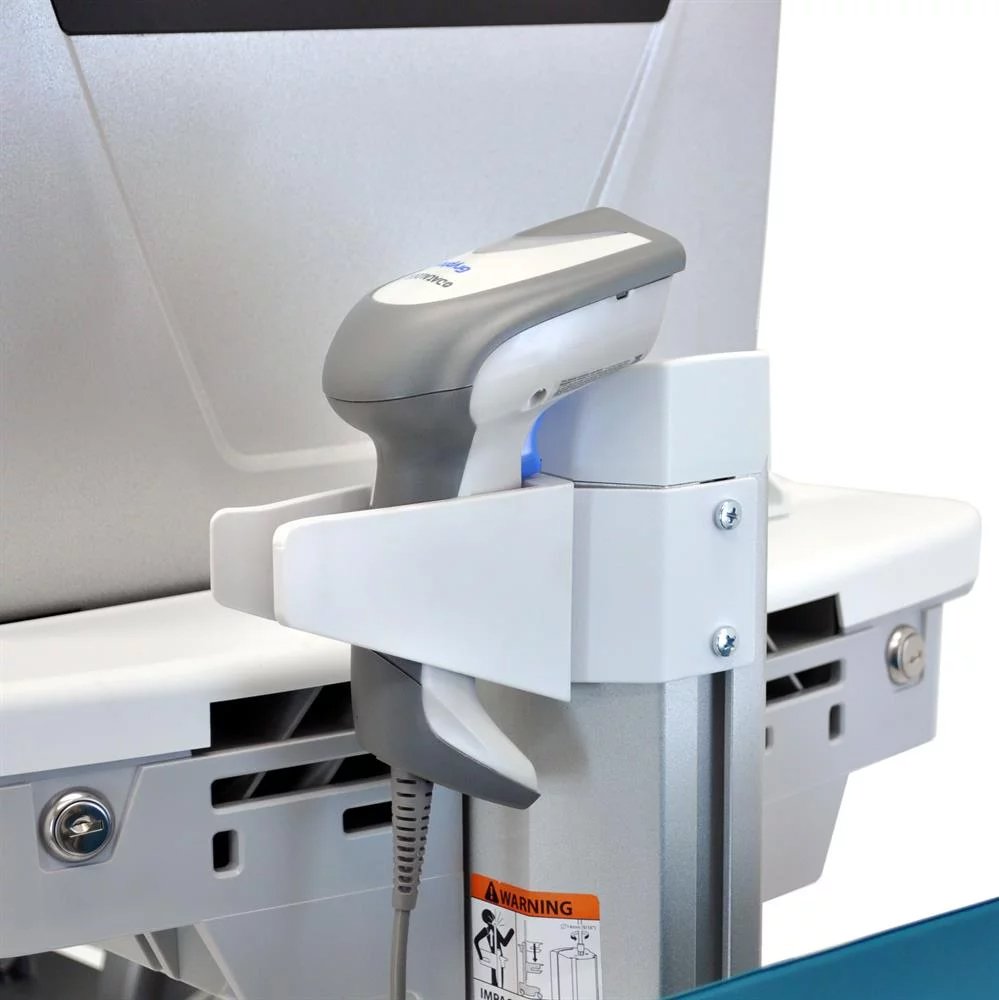

Scanner holder bracket

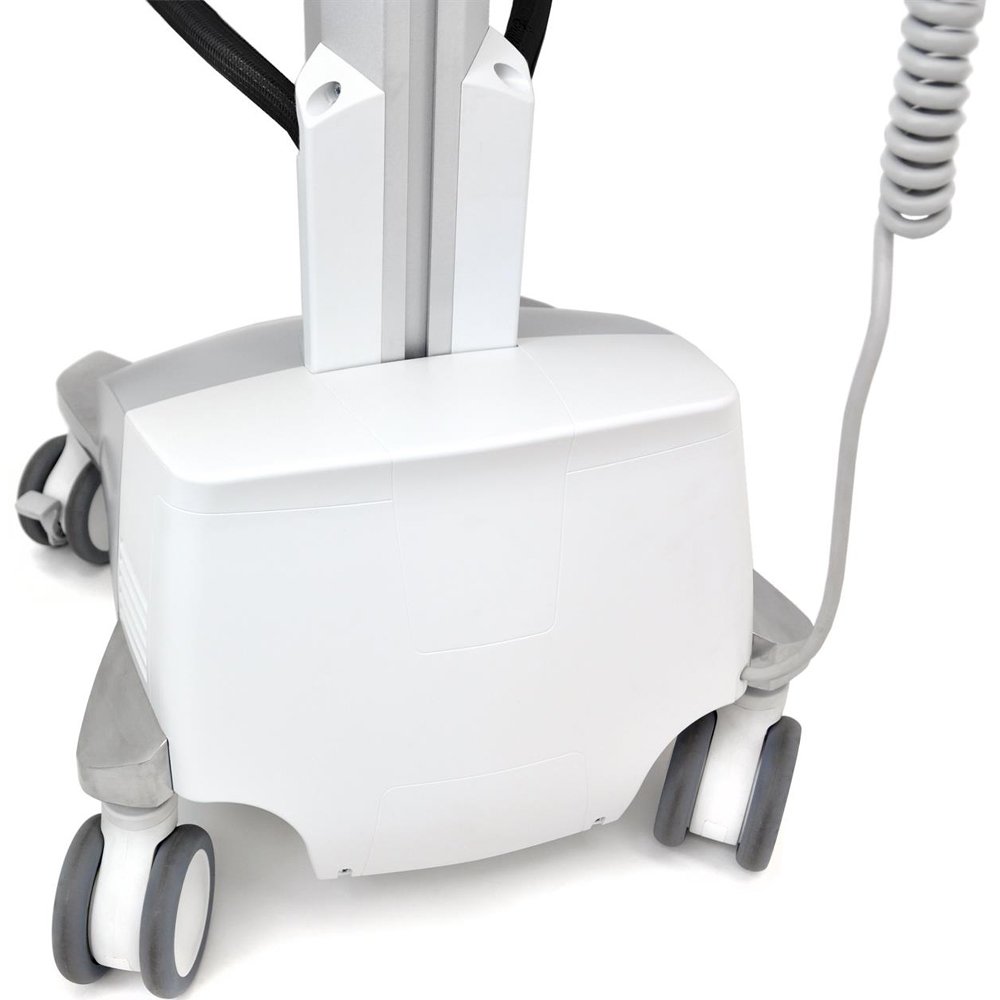

Rear base

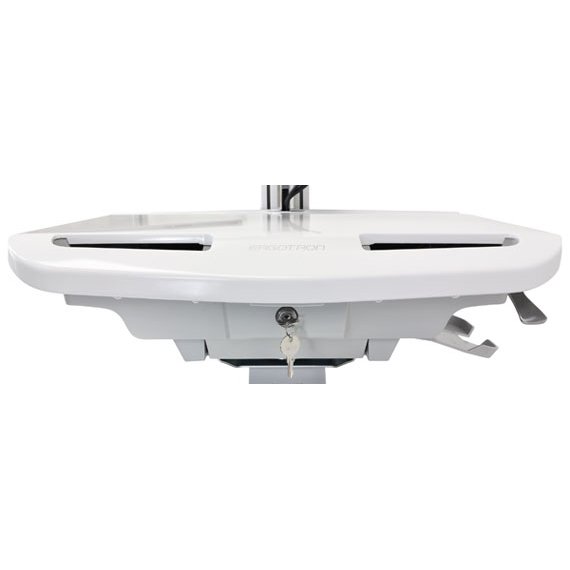

Lock
Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered
Inused image
Inused image
Brake
In use scanner
Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered
Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered
Scanner holder bracket
Rear base
Lock

Description

Stay productive and on the go with our certified power system. Ergotron SV42-6201-1 innovative, truly ergonomic and easy-to-maneuver healthcare cart features sit-to-stand height adjustment, independent screen positioning and an adjustable back-tilt keyboard tray.

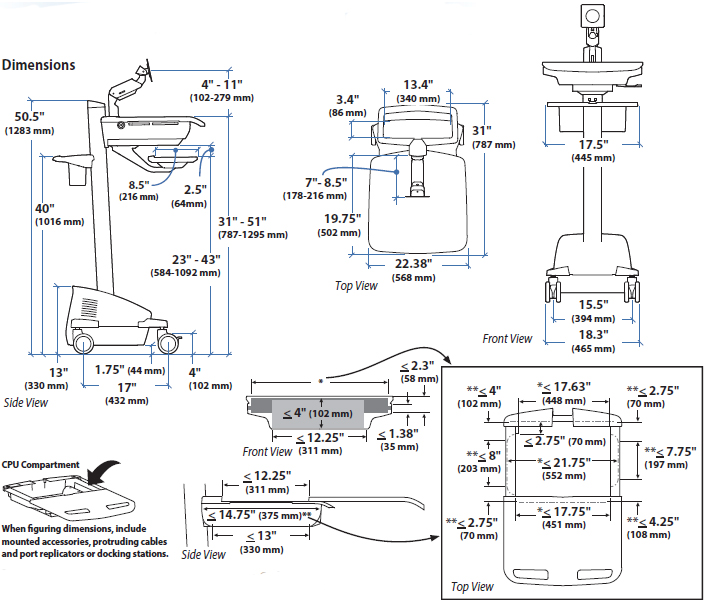

Technical Drawing

Technical Drawing for Ergotron SV42-6201-1 StyleView Cart with LCD Arm, SLA Powered

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 35 lbs

15.9 kg

27"

68.6 cm

65° 180° 360° MIS-D

Product Information

Part Numbers
  • North America = SV42-6201-1
  • Europe = SV42-6201-2
  • United Kingdom/Ireland = SV42-6201-3
  • Japan = SV42-6201-6
  • Saudi Arabia (UK standard) = SV42-6201-7
  • Saudi Arabia (EU standard) = SV42-6201-8
  • Switzerland = SV42-6201-C
Description StyleView LCD Cart, SLA Powered, Arm (no drawers)
TAA (Trade Agreements Act) compliant
Includes
  • LCD arm, worksurface

  • CPU lock

  • Secure CPU compartment

  • Four-port USB hub

  • Scanner holder bracket

  • Mouse holder

  • Wrist rest

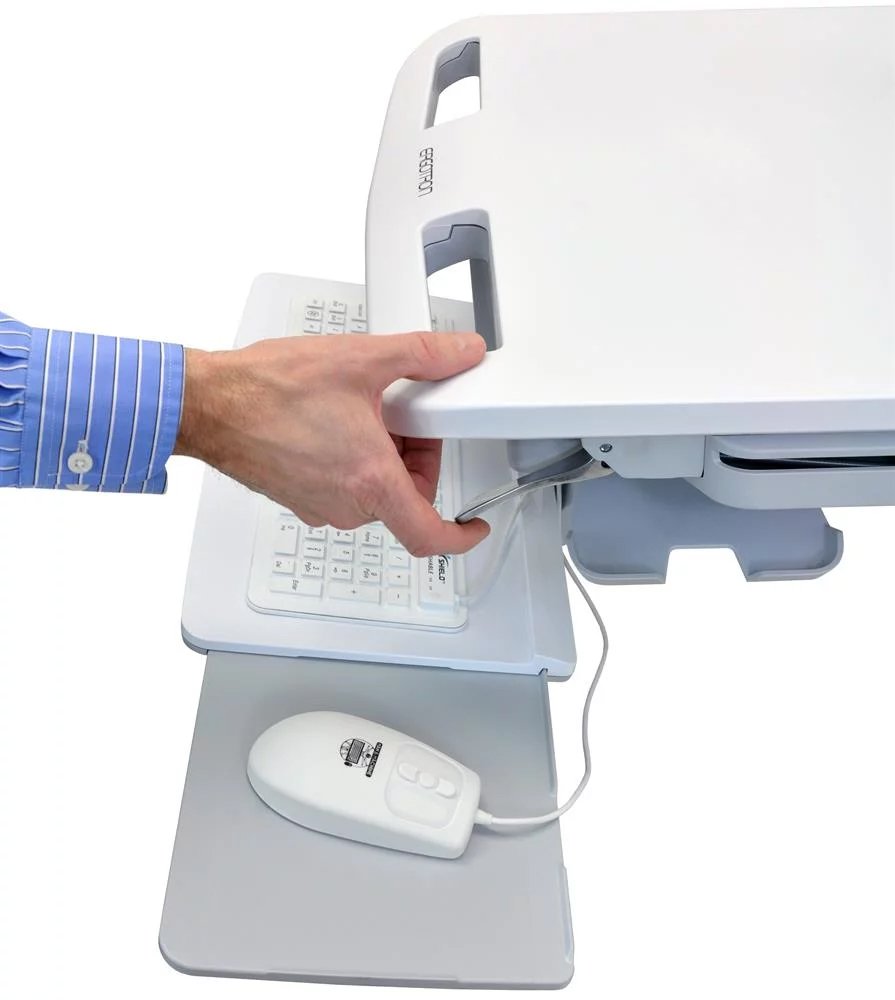

  • Back-tilt keyboard tray

  • Left/right mouse tray

  • Keyboard lights

  • Rear handle

  • Storage basket

  • Cable storage

  • Four casters (lockable, 1 tracking function)

  • Two-battery 66 Ah power system

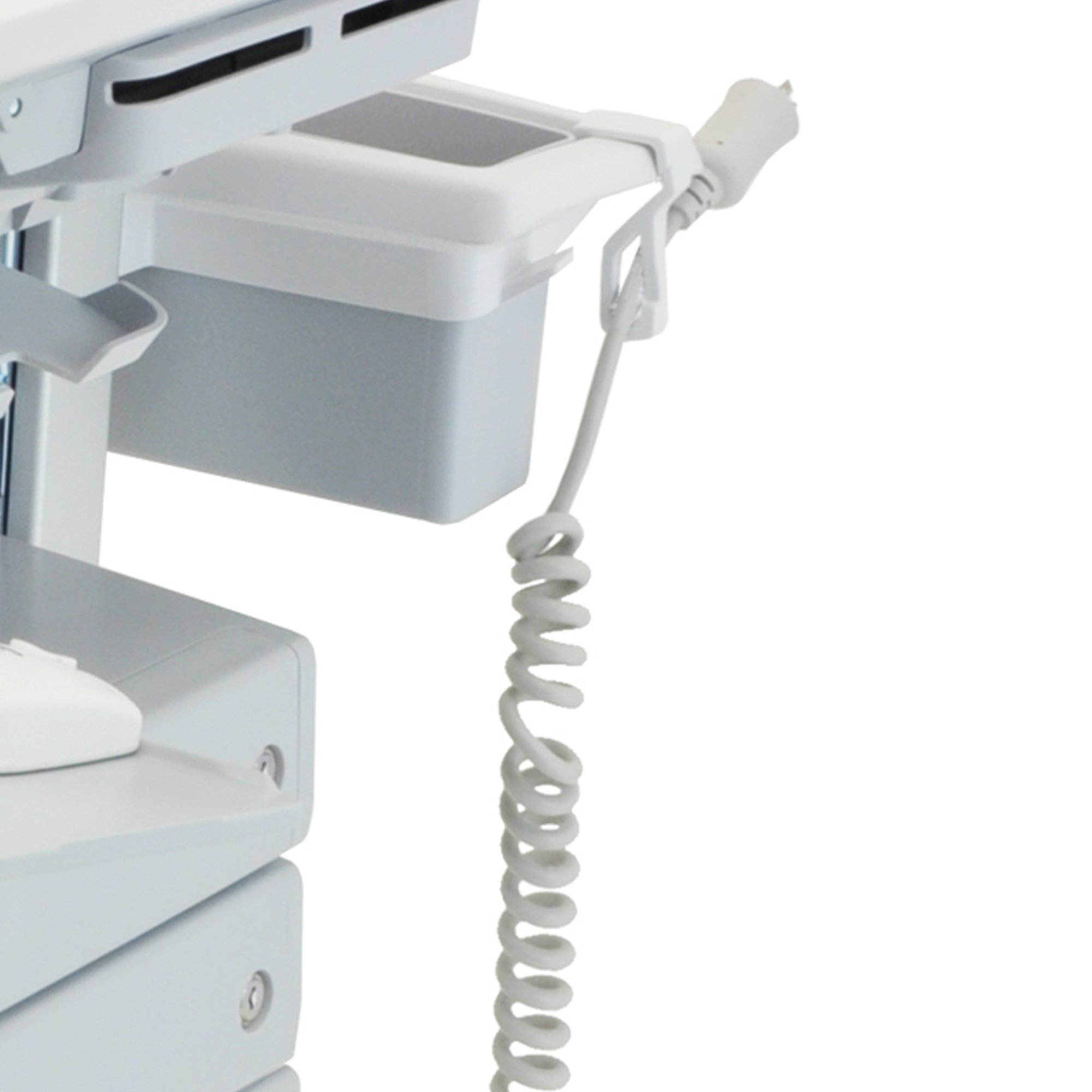

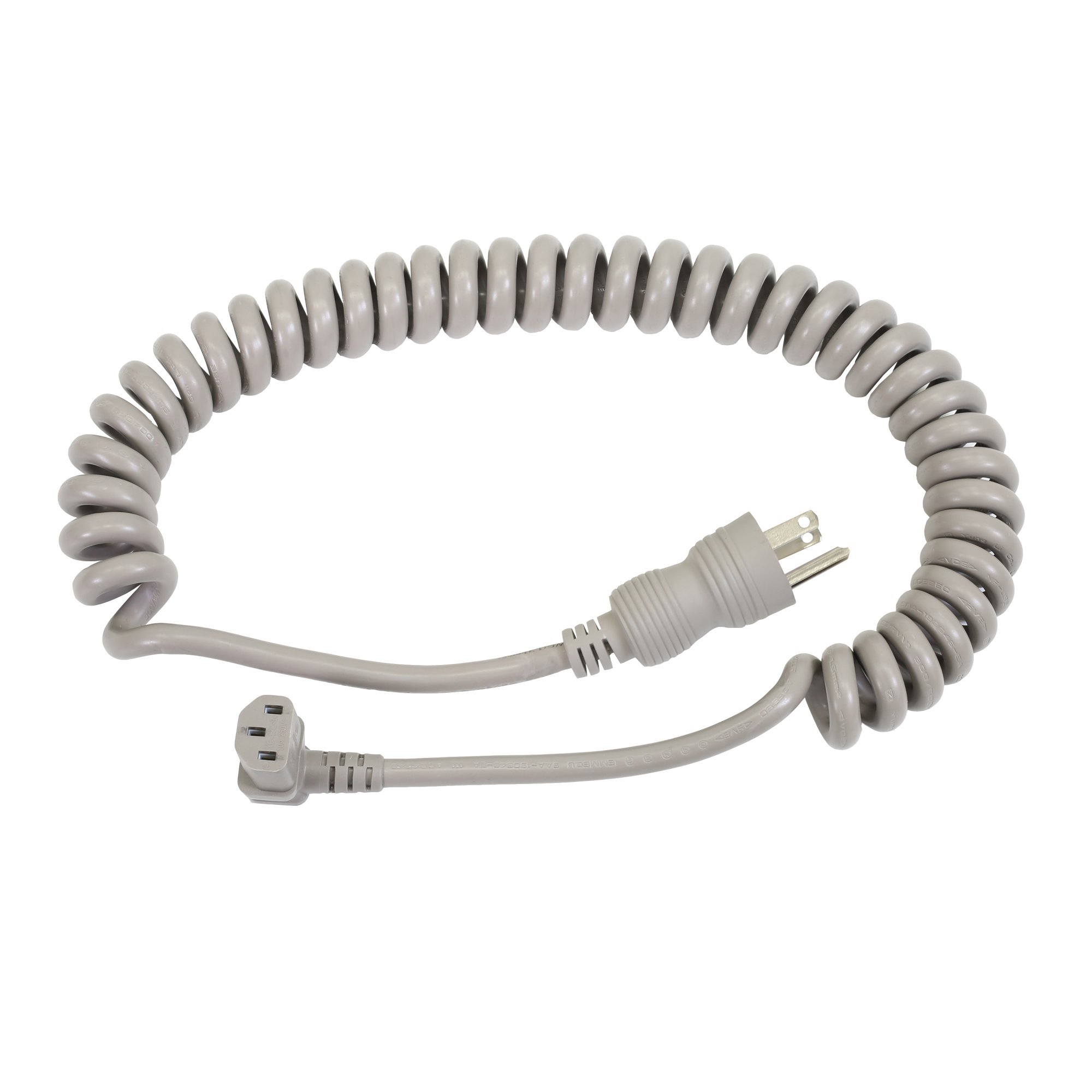

  • 10-foot (3 m) coiled cord

  • Three AC outlets

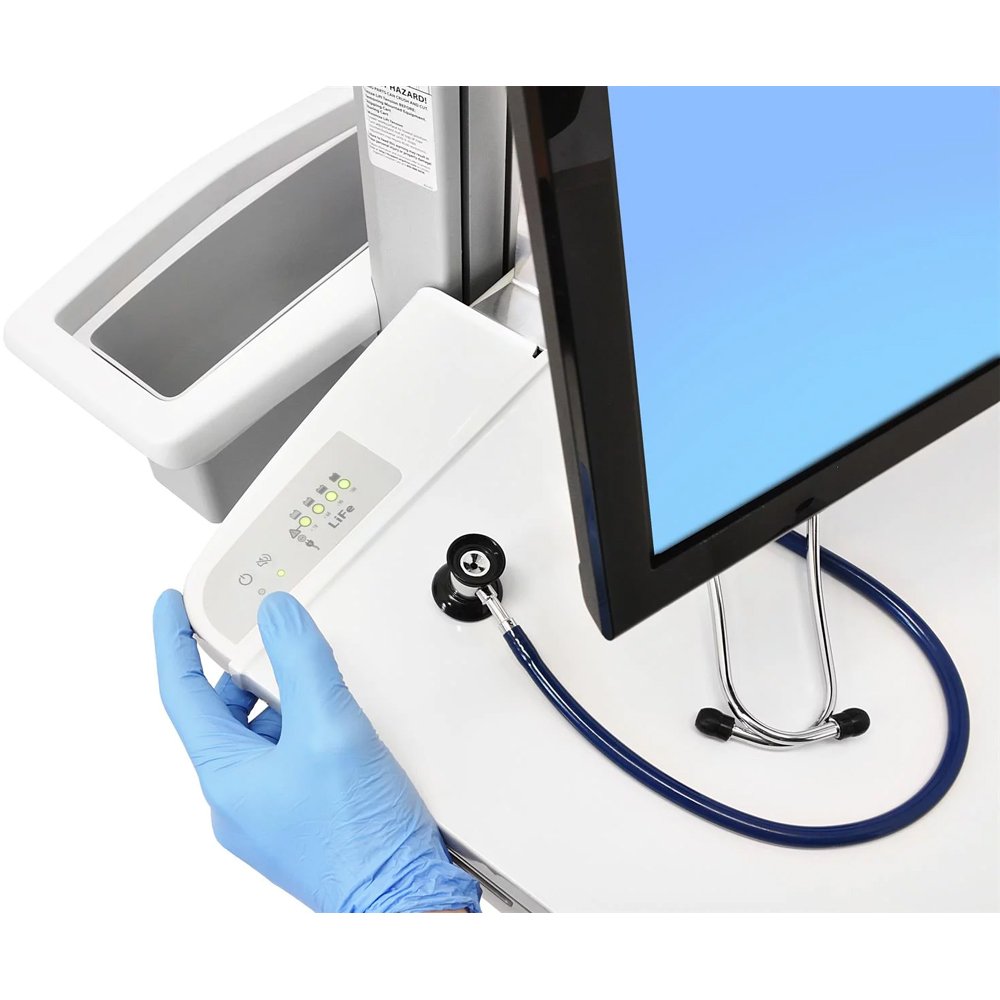

  • Power system user interface

Total Maximum Load on Height Adjustment Assembly 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)
Note If the combined LCD and CPU weight is greater than 27 lbs (12.3 kg) then the CPU must be mounted to the rear of the cart using the Universal CPU Holder accessory (ordered separately)
LCD and Worksurface LCD and worksurface adjust 20" (51 cm) in tandem; LCD Arm adjusts 7" (17 cm) independently; maximum LCD height adjustment = 27" (68 cm)
Monitor Up/Down Tilt +60°/-5°
Portrait Screen Orientation Portrait screen orientation may be incompatible with widescreen displays > 19"
True Ergonomics
  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity

  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position

  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters, height adjustment, LCD tilt and pan all require just a touch

  • Actual cart weight is 129 lbs (58.5 kg), making system relocation easy

  • Arm adjusts screen down low to the worksurface for people wearing bifocals or using a tablet PC

Safe
  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits

  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator)

  • Power system complies with EMI limits of FCC Part 15 Class A

  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved cleanability

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant

  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control

  • Large smooth worksurface; easy-to-clean design promotes infection control

  • Lockable, ventilated enclosed storage for closed notebook, thin client or CPU. Keys and locks are heavy-duty

  • Front-locking casters

  • CPU lock provided inside the storage compartment for additional security

  • Designed to meet guidelines established by the American National Standards Institute for computer use

Service
  • StyleLink SKY compatible: A cloud-based service that facilitates easy and remote management of your cart fleet

  • Covered by Global Service Program - 24/7 coverage

All the Details Covered
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off

  • Button for LED lights is located conveniently on worksurface

  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time

  • Pre-routed cables provide quicker integration with equipment

  • Universal mounting slot for accessories and equipment

  • A unique cable management system conceals and organizes cords, making cleaning easy

  • Ships fully assembled and is easily accessible from container

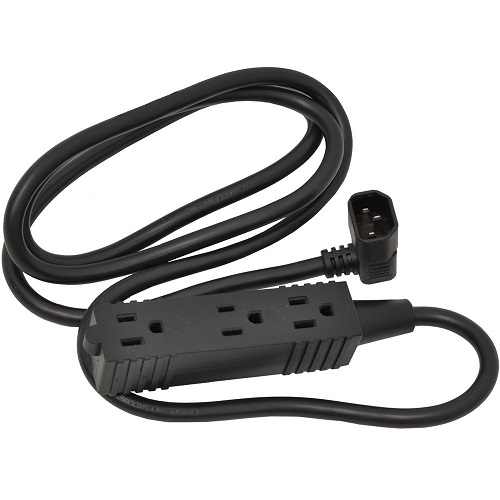

  • Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts)

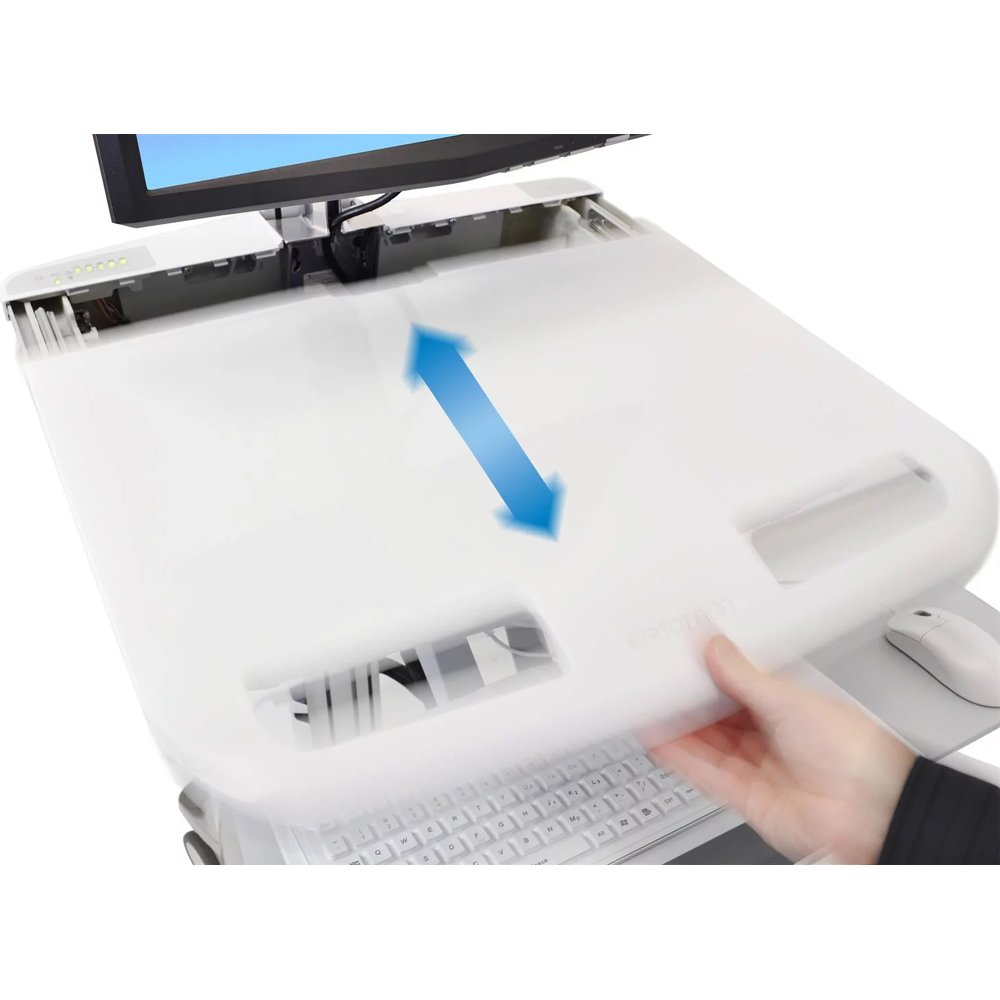

  • Quick, easy access to CPU storage compartment: One-hand operation of secure latch with slide-out worksurface ensures easy access. Security cable in compartment deters CPU theft

  • Four-port USB hub

  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability

Compatibility and Dimensions
  • Open-architecture design accommodates multiple configurations, closed notebooks with monitor (even widescreen with up to 17.3" diagonal size), CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Storage compartment for closed notebook, thin client or CPU: 17.75"W x 14.75"D x 4"H (45 x 37.5 x 10.1 cm); larger computers can mount to rear of cart with Universal CPU Holder accessory (ordered separately)

  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)

  • Worksurface Dimensions: 22.4"W x 19.75"D (567 x 502 mm)

  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

  • VAC:
    SV42-6201-1 = 120V/60Hz
    SV42-6201-2 = 230V/50Hz
    SV42-6201-3 = 230V/50Hz
    SV42-6201-6 = 100V/50Hz
    SV42-6201-C = 230V/50Hz

  • Grounded Plug:
    SV42-6201-1 = NEMA 5-15P Hospital Grade
    SV42-6201-2 = European CEE 7
    SV42-6201-3 = UK BS 1363
    SV42-6201-6 = JIS 8303
    SV42-6201-C = SEV 1011

  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics

Recommendation It is recommended that a discharge test be conducted when cart is first purchased to determine runtime with computer equipment configured on the cart. Change batteries when instructed by StyleLink battery management software. If StyleLink is not used, it is strongly recommended a monthly discharge test be conducted to determine runtime loss. If runtime is less than 50% of original, batteries must be changed
Shipping Dimensions 56.5"H x 34"W x 24.5"D (144 x 86 x 62 cm)
Shipping Weight 162 lbs (73.5 kg); actual cart weight = 129 lbs (58.5 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module

Benefits

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients

  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity

  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas

  • Open-architecture design accommodates multiple configurations: closed notebooks with monitor, CPU and monitor, thin clients, tablets, all-in-one computers and future hardware upgrades

  • Surfaces are treated with antimicrobial for product protection

  • LCD and keyboard pan side-to-side for closer access while interacting with clients; arm also reaches low for people wearing bifocals or using a tablet PC

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits

  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment

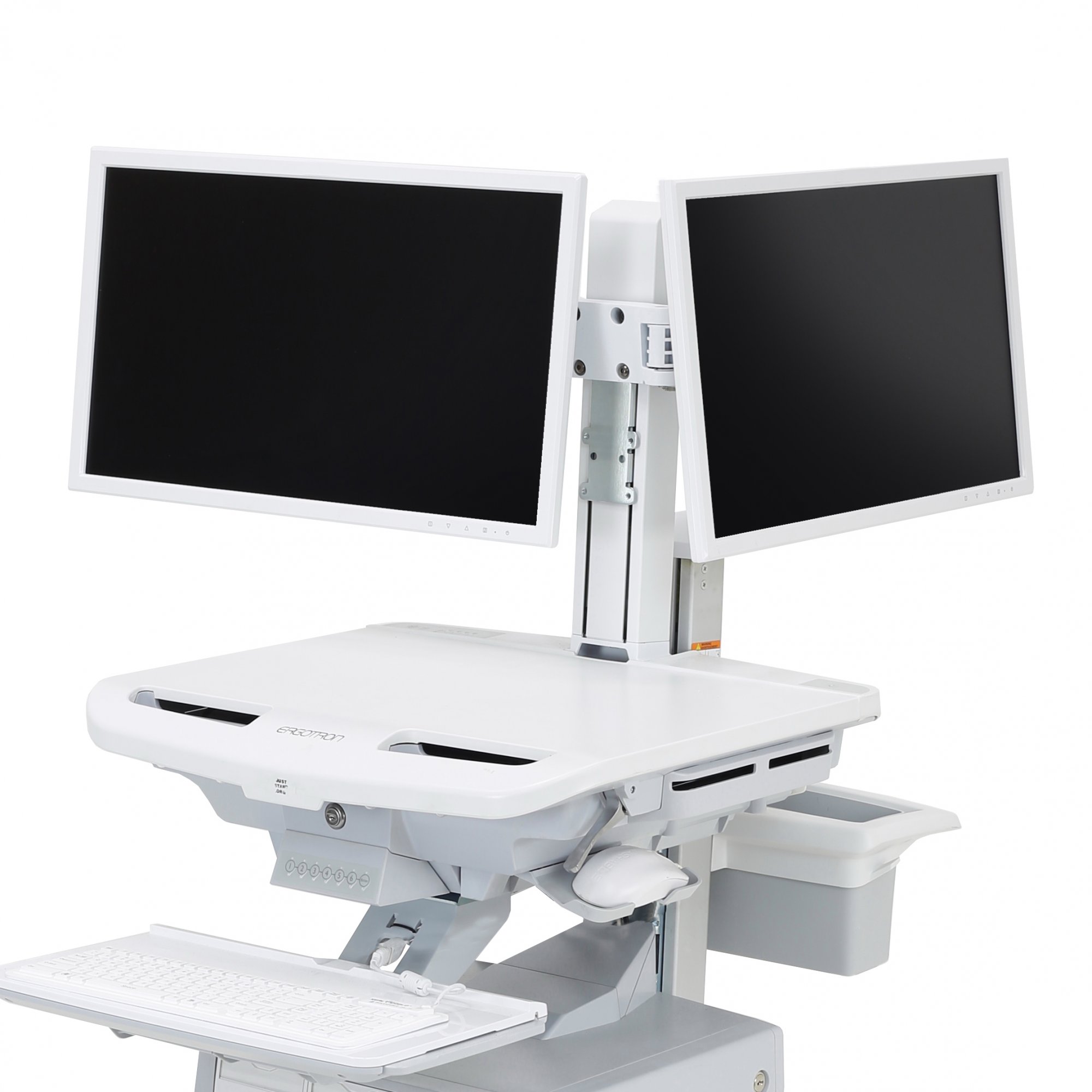

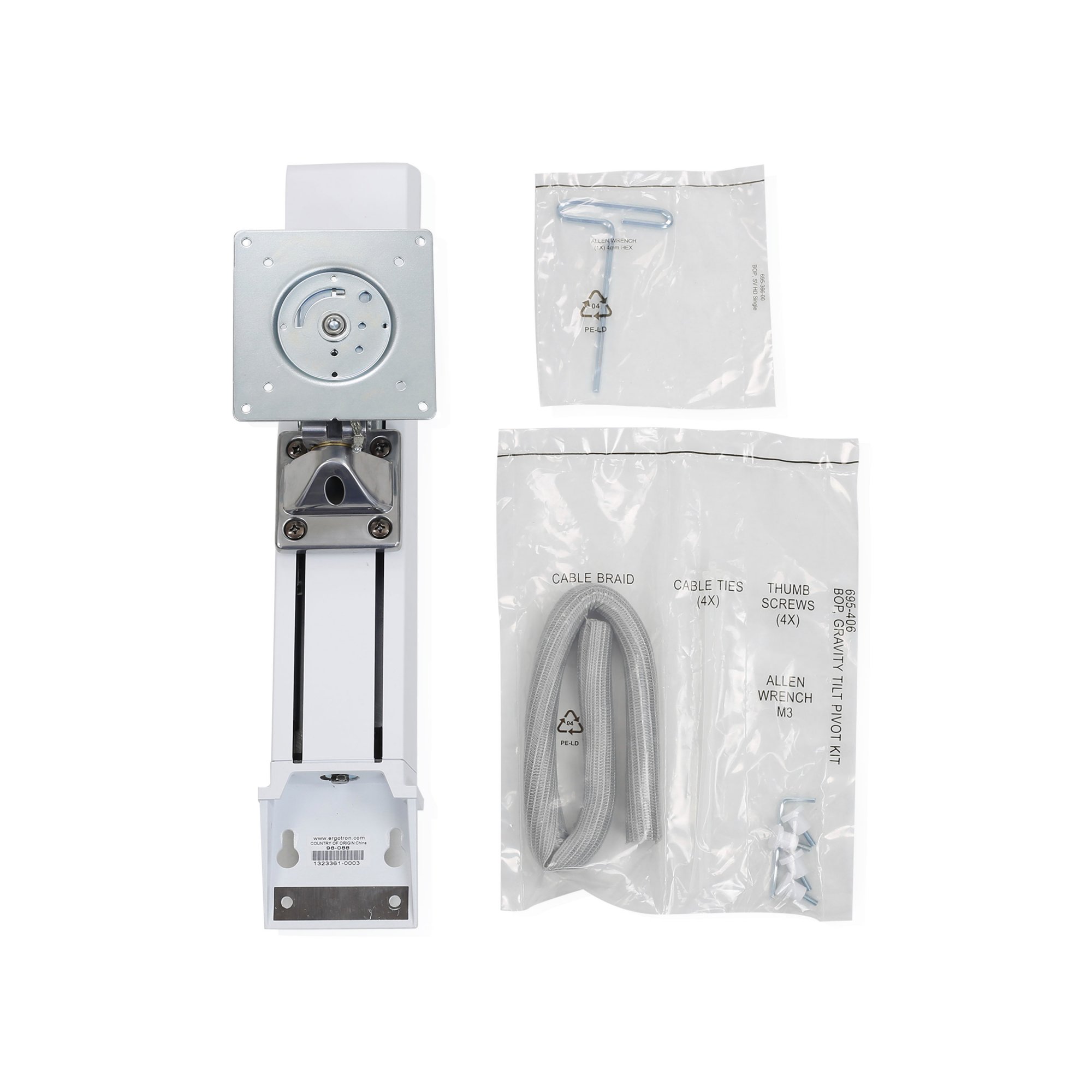

Product Options/Accessories

Model SV42-6201-1
Manufacturer Ergotron
Part Number SV42-6201-1
UPC 698833022759
Weight lb(s)
Color White, Grey and Polished Aluminum
Screen Size 24"-30" in
Weight Capacity 35 lbs (15.9 kg). This is the sum of the following components: LCD arm = 5–14 lbs (2.3–6.4 kg); worksurface and keyboard tray ≤ 8 lbs (3.6 kg); CPU compartment ≤ 13 lbs (5.9 kg)
Lift (68.6 cm) 27 in
Pan 180 degree
Rotation 360 degree
VESA VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Tilt +60 degree/-5 degree
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22.4"W x 19.75"D (567 x 502 mm)
Shipping Dimensions 56.5"H x 34"W x 24.5"D (144 x 86 x 62 cm)
Shipping Weight 162 lbs (73.5 kg)
Cart Weight 129 lbs (58.5 kg)
Warranty Five (5) years for cart’s mechanical components, two (2) years on power module
Product Type LCD Monitor
Product Type Tablet
Power Type SLA
Display Type 1 Monitor
Lift Technology Constant Force
TAA Compliant Yes
