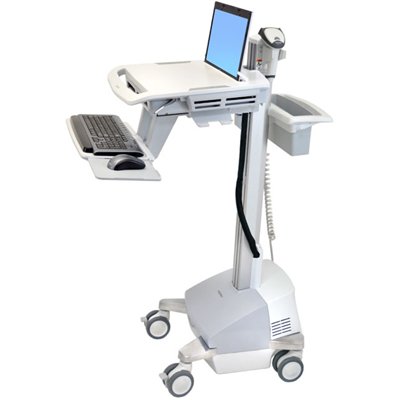

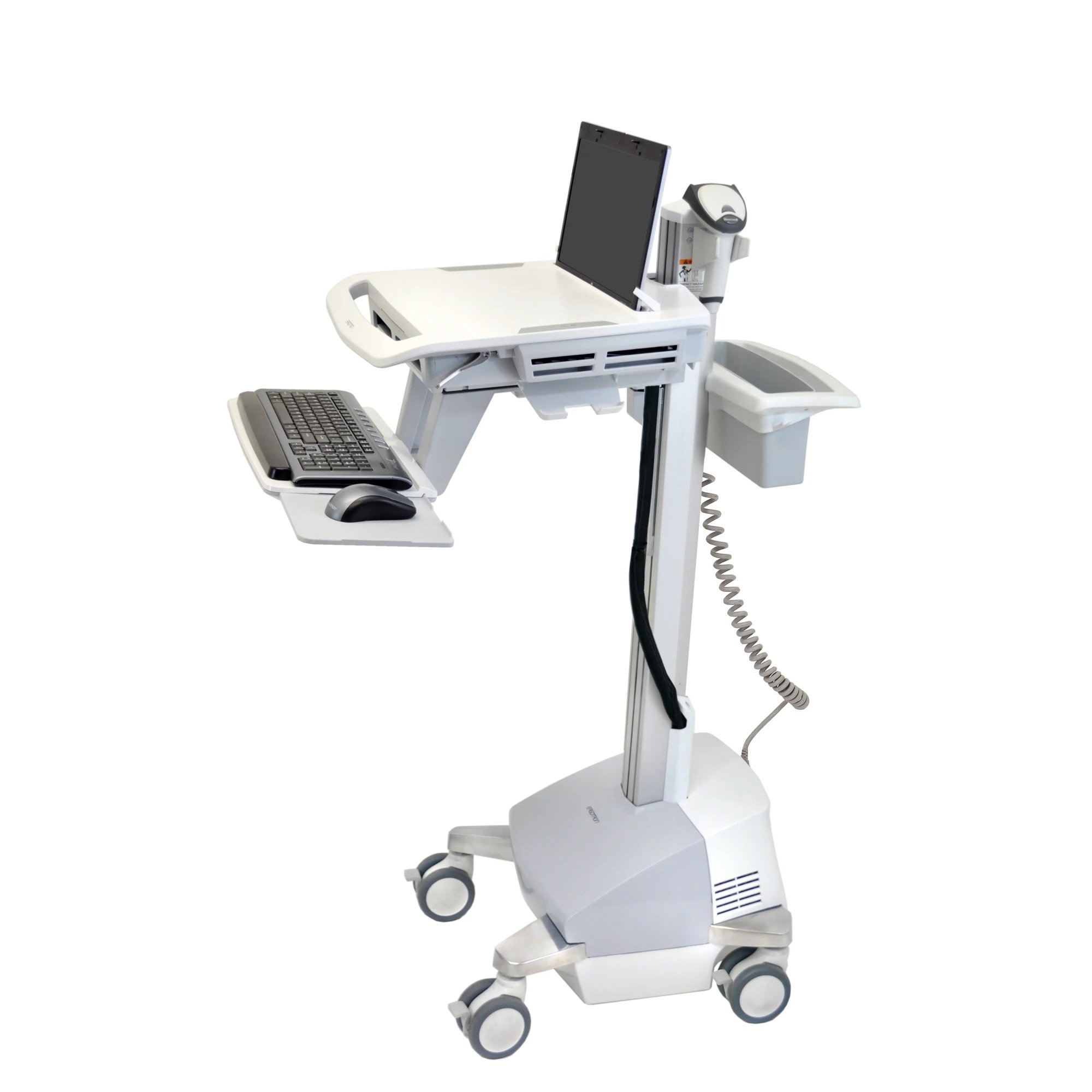

Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered

Product ID 17052
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron StyleView: Fit for Every Body
Ergotron's Statement on FDA Advisory Letter
Impressions of StyleView: Your Work. Your Way.
Ergotron StyleView: Your cart. Your way.
Tester Guy Meets StyleView
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron SV42-6101-1 StyleView Laptop Cart, SLA Powered
Ergotron StyleView: Fit for Every Body
Ergotron's Statement on FDA Advisory Letter
Impressions of StyleView: Your Work. Your Way.
Ergotron StyleView: Your cart. Your way.
Tester Guy Meets StyleView



Description

Stay productive and on the go with our certified power system. Ergotron SV42-6101-1, previously sold as SV42-42402, is an ergonomic healthcare cart with sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

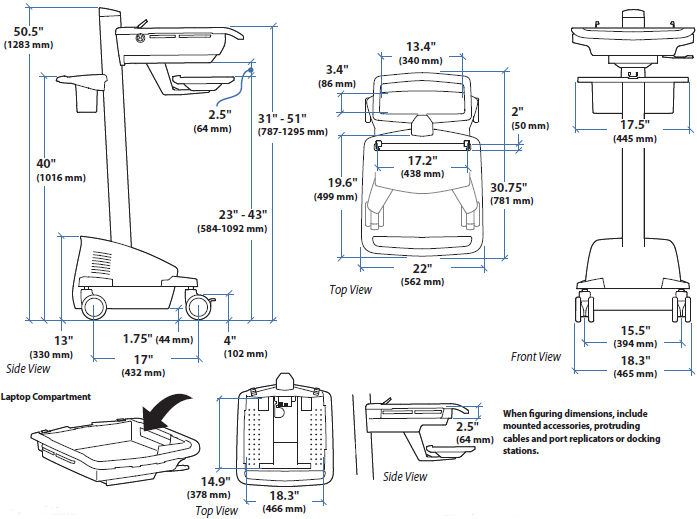

Technical Drawing

Technical Drawing of Ergotron SV42-6101-1 StyleView EMR Laptop Cart, SLA Powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 18 lbs

8 kg

20"

51 cm

- - - -



Product Information

Part Number:

North America = SV42-6101-1; Europe = SV42-6101-2; United Kingdom/Ireland = SV42-6101-3; Hong Kong/Malaysia/Singapore = SV42-6101-3; Australia/New Zealand = SV42-6101-4; China = SV42-6101-5; Japan = SV42-6101-6 Saudi Arabia (UK standard) = SV42-6101-7; Saudi Arabia (EU standard) = SV42-6101-8

Description:

StyleView EMR Laptop Cart, SLA Powered (white, grey and polished aluminum)

Includes:

  • Worksurface
  • Secure laptop compartment
  • Four-port USB hub

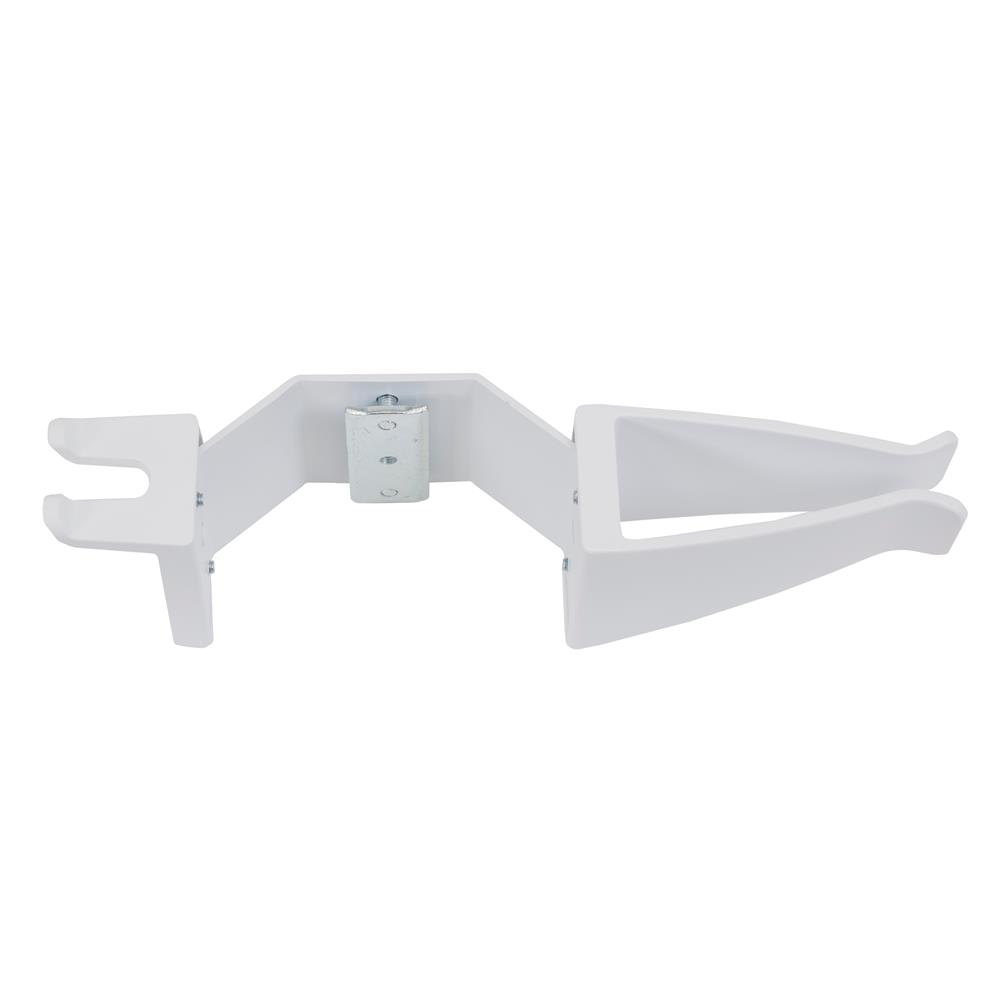

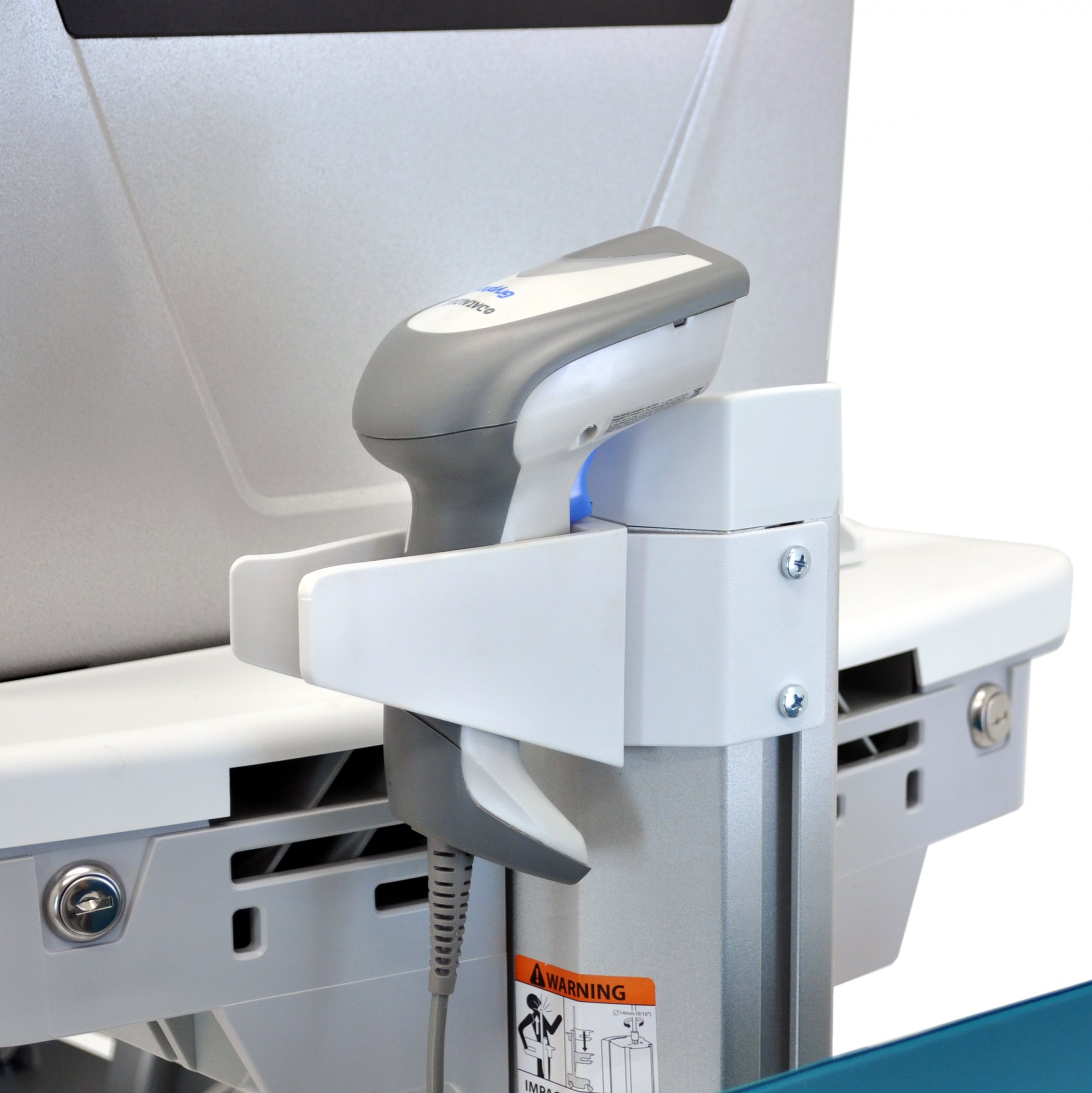

  • Scanner holder bracket
  • Mouse holder
  • Wrist rest
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Rear handle
  • Storage basket
  • Cable storage

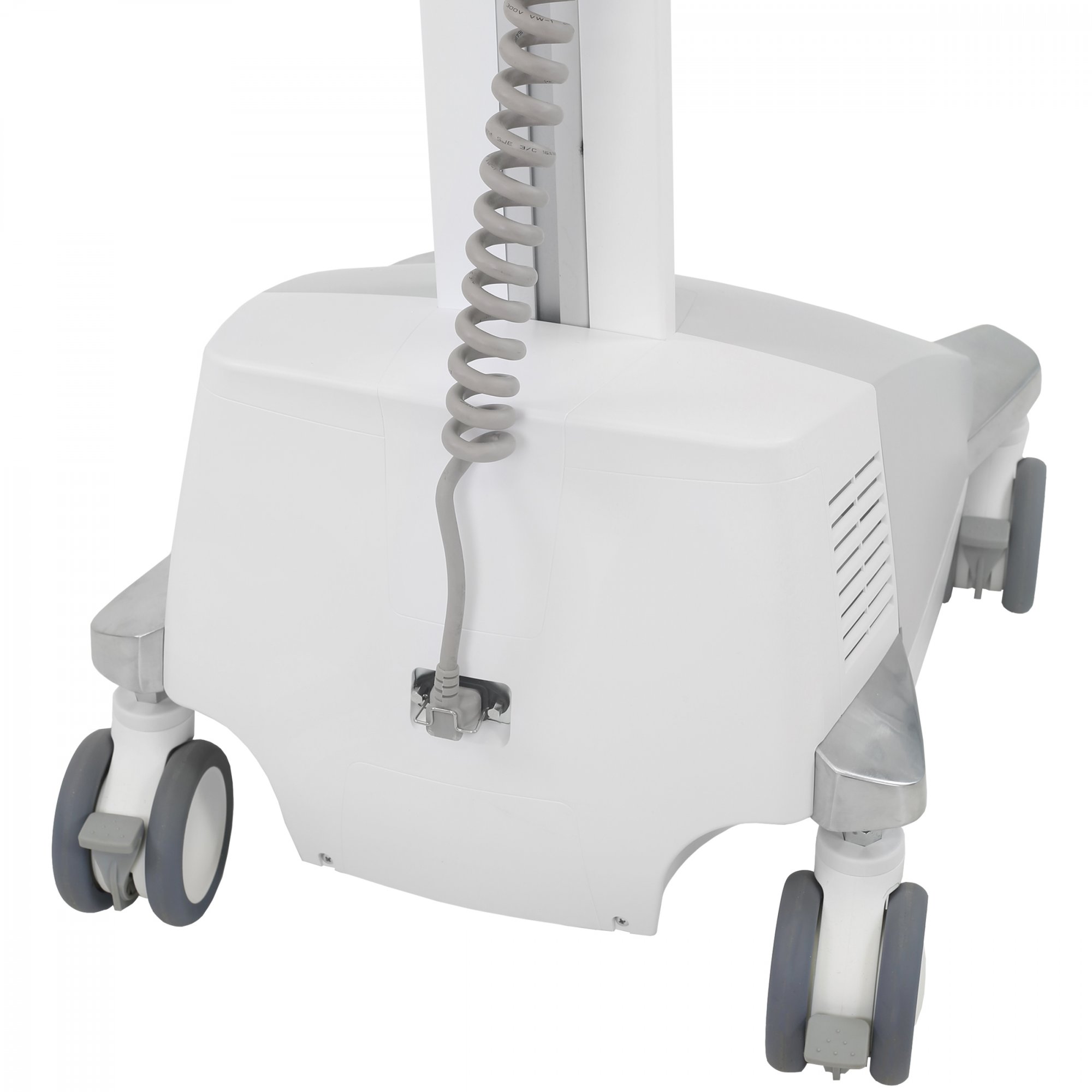

  • Four casters (two locking)
  • Two-battery 66 Ah power system
  • 10-foot (3 m) coiled cord
  • Three AC outlets
  • Power system user interface
  • StyleLink software

Maximum Laptop Size:

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg)

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch.
  • Actual cart weight is just 125 lbs (57 kg), making system relocation easy.

Safe:

  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.
  • Power System User Interface integrated conveniently on the worksurface (includes visual and audible battery status indicator).
  • Power system complies with EMI limits of FCC Part 15 Class A.
  • Surfaces are treated with antimicrobial for product protection; handles are smooth and continuous for improved clean ability.
  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.
  • Front-locking casters.
  • CPU lock provided inside the storage compartment for additional security.
  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Includes FREE StyleLink with enterprise capabilities - Install, access and manage your StyleView power systems from a remote location across WAN, LAN, or VPN. StyleLink’s three-part software package maximizes your IT tech-support time by giving you real-time centralized control over carts across campus, the city, country or the world.
  • Covered by Global Service Program - 24/7 coverage.
All the Details Covered:
  • Four amber LEDs provide light over keyboard tray; includes 15-minute auto shut-off.
  • Button for LED lights is now located conveniently on worksurface.
  • Easy access to components for field replacement and serviceability: keyboard LEDs, PC boards (including the user interface). Easier, faster upkeep and service means less down time.

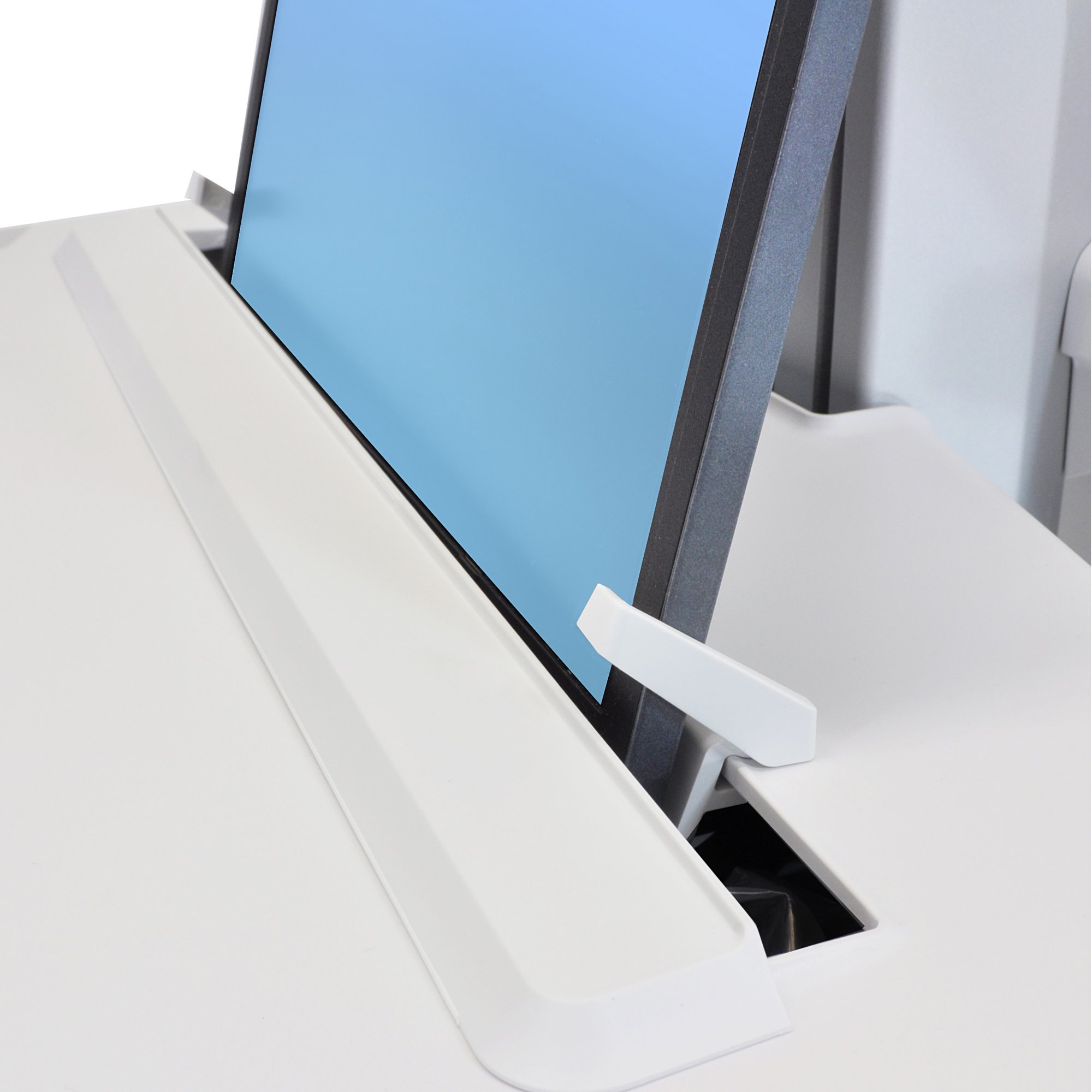

  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time.
  • Pre-routed cables provide quicker integration with equipment.
  • TAA (Trade Agreements Act) compliant.
  • Universal mounting slot for accessories and equipment.
  • A unique cable management system conceals and organizes cords, making cleaning easy.
  • Ships fully assembled and is easily accessible from container.

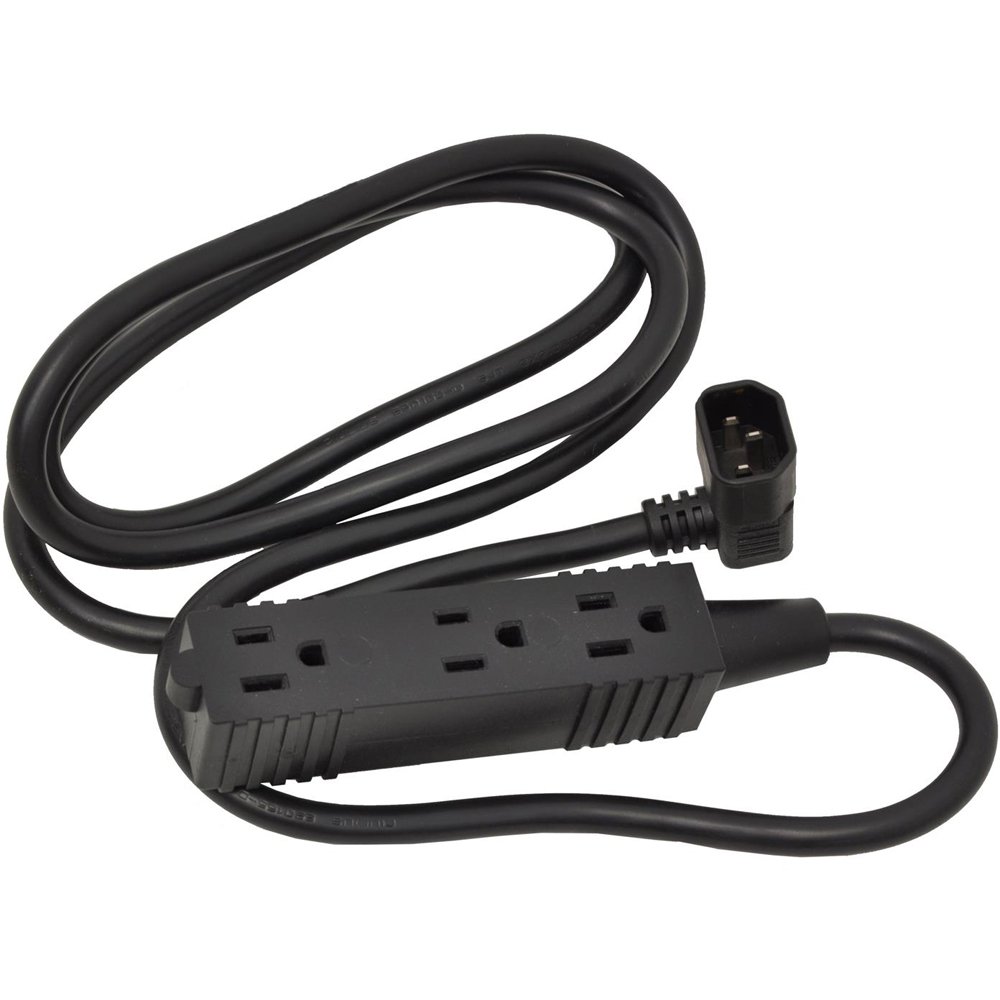

  • Three-receptacle power strip located in the CPU storage compartment (North American carts) or in the base (EMEA & APAC carts).
  • Four-port USB hub.
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability.

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.
  • Compact Wheel-to-Wheel Base Dimensions: 15.5" x 17" (394 x 432 mm)
  • Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)
  • VAC: SV42-6101-1 = 120V/60Hz; SV42-6101-2, SV42-6101-3, SV42-6101-4 = 230V/50Hz.
  • Grounded Plug: SV42-6101-1 = NEMA 5-15P Hospital Grade; SV42-6101-2 = European CEE 7; SV42-6101-3 = UK BS 1363 SV42-6101-4 = AS/NZS 3112 Note: In Switzerland, a customer-supplied adaptor is required.
  • 66 Ah Power System with two (2) 33 Ah, 12 V DC, Sealed Lead Acid (SLA), Absorbed Glass Mat (AGM), valve-regulated batteries with supporting electronics.

Shipping Dimensions:

24.5"W x 34"D x 56"H (62 x 87 x 142 cm)

Shipping Weight:

159 lbs (72 kg); actual cart weight = 126 lbs (57.2 kg)

Warranty:

Five (5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty with use of StyleLink software and six- (6-) month warranty against manufacturer’s defects.



Benefits

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.
  • Surfaces are treated with antimicrobial for product protection.
  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.
  • Dependable fifth-generation power system with easy to replace batteries. For patient and caregiver safety the full cart and power system are certified to UL/EN/IEC 60601-1 and CAN/CSA C22.2 No.601.1 M90, as well as NFPA leakage current limits.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.
Model SV42-6101-1
Manufacturer Ergotron
Part Number SV42-6101-1
UPC 698833022919
Weight lb(s)
Color White, Grey and Polished Aluminum
Screen Size 17"-23" in
Weight Capacity 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg)
Lift (51 cm) 20 in
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Compact Wheel to Wheel Base Dimensions 15.5" x 17" (394 x 432 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 24.5"W x 34"D x 56"H (62 x 87 x 142 cm)
Shipping Weight 159 lbs (72 kg); actual cart weight = 126 lbs (57.2 kg)
Warranty Five (5) years for cart, two (2) years on all power supply components by Ergotron; battery carries limited one- (1-) year performance warranty with use of StyleLink software and six- (6-) month warranty against manufacturer’s defects
Product Type Laptop
Power Type SLA
Display Type Laptop
Lift Technology Constant Force
TAA Compliant No
