$1,363.00

Ergotron SV40-6100-0 StyleView® Laptop Cart

Product ID 17046
Ergotron SV40-6100-0 StyleView® Laptop Cart
Ergotron SV40-6100-0 StyleView® Laptop Cart
Ergotron SV40-6100-0 StyleView® Laptop Cart
Ergotron SV40-6100-0 StyleView® Laptop Cart
Ergotron SV40-6100-0 StyleView® Laptop Cart
Ergotron SV40-6100-0 StyleView® Laptop Cart



Description

Ergotron SV40-6100-0 is an ergonomic, lightweight laptop cart designed for healthcare industry. This easy-to-move healthcare cart features sit-to-stand height adjustment and an adjustable back-tilt keyboard tray.

The small base of the laptop cart makes the cart ideal for tight areas and the smooth casters makes travelling easily across carpet and hard surface floors.

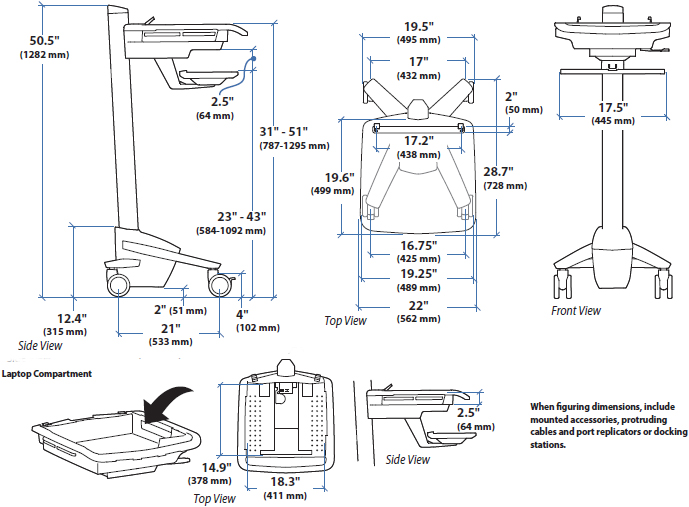

Technical Drawing

Technical Drawing of Ergotron SV40-6100-0 StyleView EMR Laptop Cart, non-powered



Technical Specifications

LCD size

Capacity

Lift

Tilt

Pan

Rotation

VESA

LCD Size

Capacity

Lift

Tilt

Pan

Rotation

VESA

Up to 17.3"

Up to 18 lbs

8 kg

20"

51 cm

- - - -



Product Information

Part Number:

SV40-6100-0

Description:

StyleView EMR Laptop Cart, non-powered, SV40 (white, grey and polished aluminum)

Includes:

  • Worksurface
  • Secure laptop compartment
  • Mouse holder
  • Wrist rest
  • Scanner holder
  • Back-tilt keyboard tray
  • Left/right mouse tray
  • Cable storage
  • Four casters (two locking)

Maximum Laptop Size:

17"W x 14.75"D x 2"H (432 x 375 x 51 mm)

Weight Capacity:

Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg).

Laptop and Worksurface:

Adjust 20" (51 cm) in tandem

True Ergonomics:

  • Ergonomic back-tilt keyboard tray with left or right mouse tray ensures wrists remain in a neutral position during data entry - avoid repetitive-stress injuries while increasing comfort and productivity.
  • Designed for users 5'0" to 6'1" (152 to 185 cm) tall and for prolonged sitting or standing applications. The exceptional height adjustment range means shorter and taller users can work comfortably and productively in a seated as well as standing position.
  • Patented CF lift-and-pivot motion technology minimizes forces required to adjust cart position: Casters and height adjustment require just a touch.
  • Actual cart weight is just 50 lbs (22.7 kg), making system relocation easy.

Safe:

  • Environmentally clean: RoHS, REACH, WEEE and EU (94/62/EC) packaging compliant.
  • Tested to UL/EN/IEC specifications for enhanced patient safety.
  • Durable, easy-to-clean exterior composed of aluminum, high-grade plastic and zinc-plated steel promotes infection control.
  • One-piece worksurface with no seams; easy-to-clean design promotes infection control.
  • Lockable, ventilated enclosed storage for open laptop. Keys and locks are heavy-duty.
  • Front-locking casters.
  • Designed to meet guidelines established by the American National Standards Institute for computer use.

Service:

  • Covered by Global Service Program - 24/7 coverage.
All the Details Covered:
  • Notebook screen holders: Prevents the notebook screen from vibration for less damage to hinges over time.
  • Universal mounting slot for accessories and equipment.
  • A unique cable management system conceals and organizes cords, making cleaning easy.
  • Ships fully assembled and is easily accessible from container.
  • Four (4) ultra-smooth gliding casters for extremely easy push/pull mobility; two locking casters ensure lock-in-place stability .

Compatibility and Dimensions:

  • Open-architecture design accommodates most laptops - even widescreen with up to 17.3" diagonal size - easing future hardware deployments and upgrades.
  • Compact Wheel-to-Wheel Base Dimensions: 17" x 21" (430 x 533 mm)
  • Worksurface Dimensions: 22"W x 19.6"D (562 x 498 mm)

Shipping Dimensions:

31"H x 21"W x 52"D (79 x 54 x 133 cm)

Shipping Weight:

77 lbs (35 kg); actual cart weight = 50 lbs (22.7 kg)

Warranty:

Five (5) years



Benefits

  • Effortlessly maneuver the cart to the point of need - StyleView quickly responds to caregivers’ touch and enables nurses to focus on their patients.
  • Truly ergonomic design accommodates the largest range of nurses and other caregivers; designed for sitting or standing with single-motion fluid adjustment - helps promote caregiver wellness and productivity.
  • StyleView’s small footprint, with ultra-smooth gliding casters, travels easily across crowded carpet or hard surface floors and is perfect for space constrained areas.
  • Open-architecture design accommodates most laptops - even widescreen - easing future hardware deployments and upgrades.
  • Passes Ergotron’s 10,000-cycle motion test, which ensures a minimum of five years trouble-free sit-to-stand height adjustment.
Model SV40-6100-0
Manufacturer Ergotron
Part Number SV40-6100-0
UPC 698833022742
Weight lb(s)
Color White, Grey and Polished Aluminum
Screen Size 17"-23" in
Weight Capacity Total maximum load on height-adjustment assembly = 18 lbs (8 kg). This is the sum of the following components: worksurface ≤ 5 lbs (2.3 kg); keyboard tray ≤ 3 lbs (1.4 kg); and laptop compartment ≤ 10 lbs (4.5 kg)
Lift (51 cm) 20 in
Maximum Laptop Size 17"W x 14.75"D x 2"H (432 x 375 x 51 mm)
Compact Wheel to Wheel Base Dimensions 17" x 21" (430 x 533 mm)
Worksurface Dimensions 22"W x 19.6"D (562 x 498 mm)
Shipping Dimensions 31"H x 21"W x 52"D (79 x 54 x 133 cm)
Shipping Weight 77 lbs (35 kg); actual cart weight = 50 lbs (22.7 kg)
Warranty Five (5) years
Product Type Laptop
Power Type Non-powered
Display Type Laptop
Lift Technology Constant Force
TAA Compliant No
