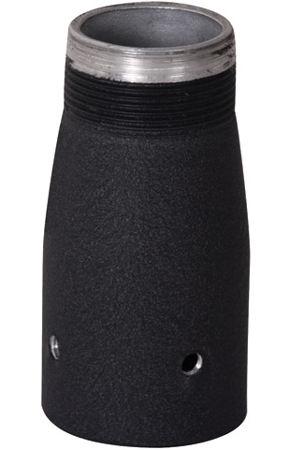

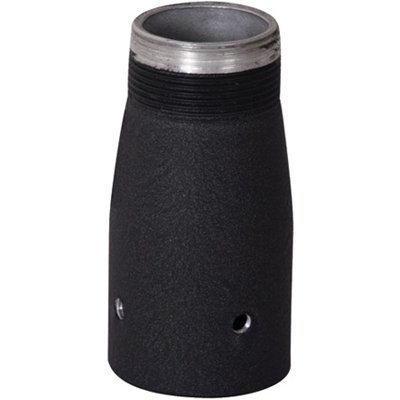

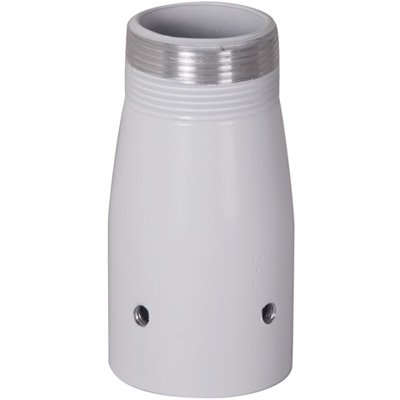

Chief CMS261 or CMS261W Column Cut-Off Adapter
Description
Chief CMS261 accessory attaches to Chief extension columns that have been cut to length.

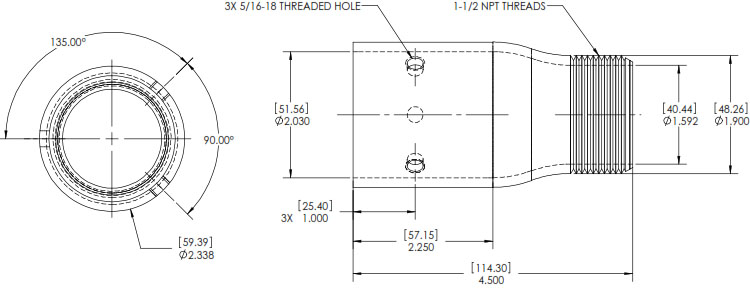

Technical Drawing
Specifications
|
Color |
Black, White |
|
Overall Dimensions (H x W x D) |
4.5" x 2.3" x 2.3" (114 x 59 x 59 mm) |
|
Shipping Weight |
0.80 lbs |
|
Weight Capacity |
500 lbs (226.8 kg) |
Features
Bolt-on coupler to add 1.5" NPT threads to a Chief extension column that has been cut to a shorter length
2" (51mm) height added to installation
Set screws and bolts included for security and stability
Product Options/Accessories
| Model | CMS261, CMS261W |
| Manufacturer | Chief Mounts |
| Part Number | CMS261, CMS261W |
| UPC | 841872145853 |
| Color | Black, White |
| Overall Dimensions | 4.5" x 2.3" x 2.3" (114 x 59 x 59 mm) |
| Weight Capacity | 500 lbs (226.8 kg) |
| Shipping Weight | 0.80 lbs |
