Chief PACCC2 Center Channel Speaker Adapter (46-65")
Description

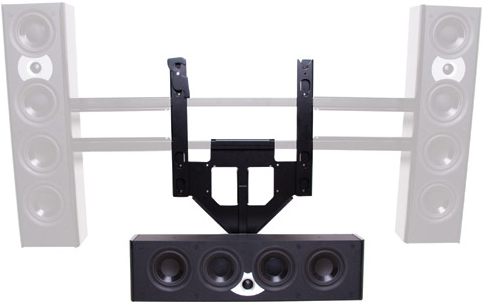

Chief PACCC2 allows easy integration of center channel speakers with Chief flat panel mounting solutions.

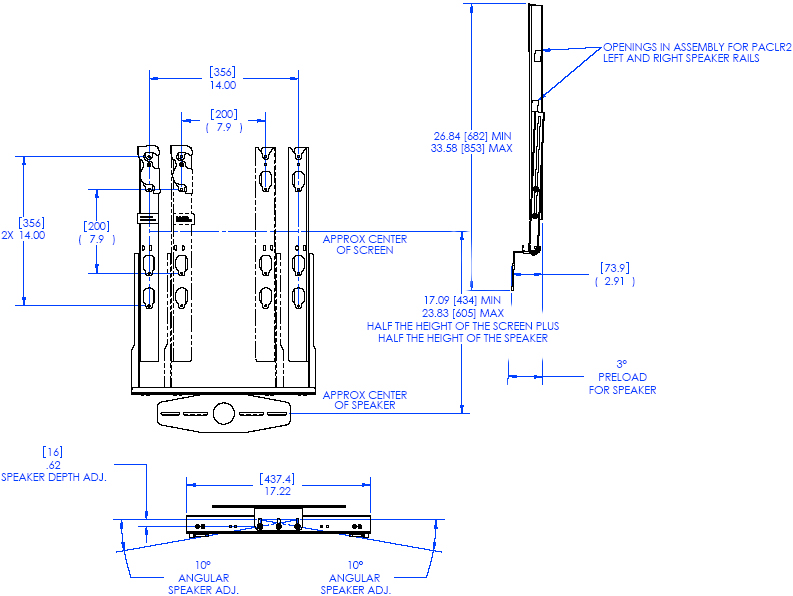

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
35 lbs (15.9kg) |
|
Notes |
TAA Compliant |
|
Overall Dimensions (H x W x D) |
26.8" x 17.2" x 2.9" (682 x 437 x 74mm) |
|
Shipping Weight |
9.20 lbs |
|
TV Height Range |
17.09 - 23.83" (434 - 605mm) from center of TV to center of speaker |
|
Typical Screen Sizes |
46 - 65" |
Features
- Comes mostly assembled for faster installation
- Provides up to 5" (127 mm) height adjustment to accommodate varied speaker heights
- Fore/aft adjustment to level speaker with front of flat panel
- Height adjustment of 3.25" (83 mm) to level speakers
- TAA Compliant
- Compatible with: PNR, PDR, PIW, PWR, MIW, MWR, MWH, PCS, MCS, PFC, PF1, MFC, MF1, FSRV & FTRV
Product Options/Accessories
| Model | PACCC2 |
| Manufacturer | Chief Mounts |
| Part Number | PACCC2 |
| UPC | 841872147291 |
| Color | Black |
| Weight Capacity | 35 lbs (15.9kg) |
| Overall Dimensions | 26.8" x 17.2" x 2.9" (682 x 437 x 74mm) |
| Shipping Weight | 9.20 lbs |
| TV Height Range | 17.09 - 23.83" (434 - 605mm) from center of TV to center of speaker |
| Screen Size | 46 - 65 in |
