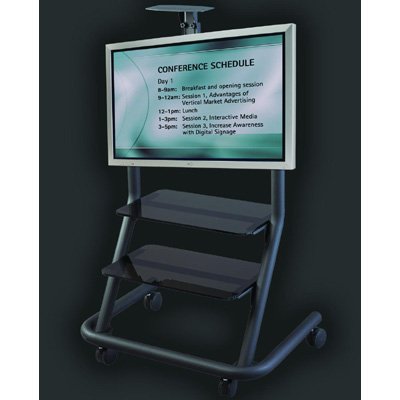

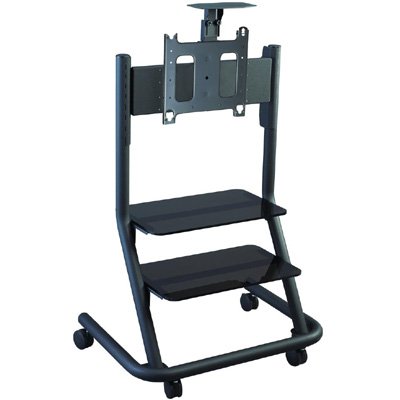

Chief PPCKU Video Conferencing and Presenters Cart (42"-61")
More shipping >
Description
Chief PPCKU mount is designed specifically for presentations to provide mobile video conferencing and a streamlined solution.
Technical Drawing
Specifications
|
Center of Display to Floor/Table Range |
47.68 - 55.68" (1211 - 1414mm) |
|
Color |
Black |
|
Manual Height Adjustment |
8" |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
64.6" x 42.4" x 29.8" (1642 x 1076 x 756mm) |
|
Shipping Weight |
145.00 lbs |
|
Solution Type |
Universal |
|
Typical Screen Sizes |
42 - 61" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Presenter-friendly base reduces trip hazards
- Adjustable display height
- Integrated cable management
- Includes four 4" swivel casters, two with total-lock brakes
- Exclusive Q-Latch Mounting System secures the flat panel display with a lockable latch
- Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
- PAC140 Q-Clamp Accessory included
Product Options/Accessories
Frequently Asked Questions
The PPC is for a single display of up to 65". The PPD is used for 2 side by side 42" displays.
Yes. Cabling from equipment on the optional shelves to the display can be routed through the side uprights.
Four sets of shelf mounting holes at 6" intervals.
Yes, the casters are removable. Order the PTCLF accessory, which includes a set of four heavy-duty 3" diameter leveling feet.
Only for non-universal versions, find the make and model of your Large Flat Panel Display in the cross-reference chart.
| Model | PPCKU |
| Manufacturer | Chief Mounts |
| Part Number | PPCKU |
| UPC | 841872098395 |
| Center of Display to Floor/Table Range | 47.68 - 55.68" (1211 - 1414mm) |
| Color | Black |
| Manual Height Adjustment | 8" |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 64.6" x 42.4" x 29.8" (1642 x 1076 x 756mm) |
| Shipping Weight | 145.00 lbs |
| Monitor Size | 42 - 61" |
| Weight Capacity | 200 lbs (90.7kg) |
| Mounting Options | Cart |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
