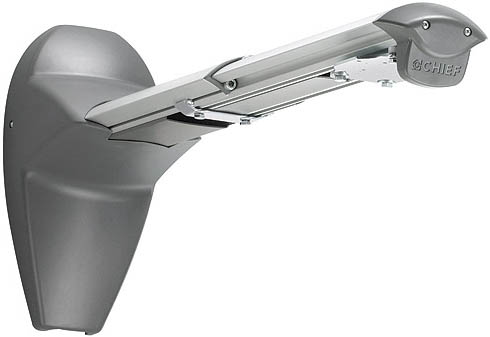

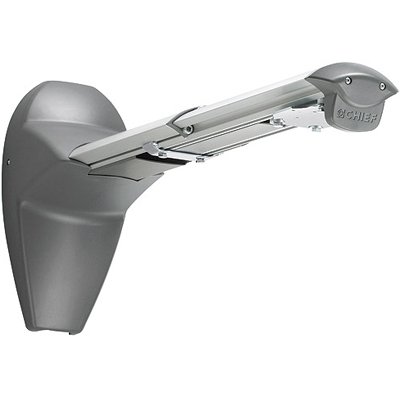

Chief WM120S Medium Short Throw Wall Mount (Single Stud)
Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately).
Description
Chief WM120S provides ideal placement and alignment for short throw and ultra short throw projector mounting on a single stud.
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts (must order mount separately).
- Also supports wall-mounted long-throw projectors.

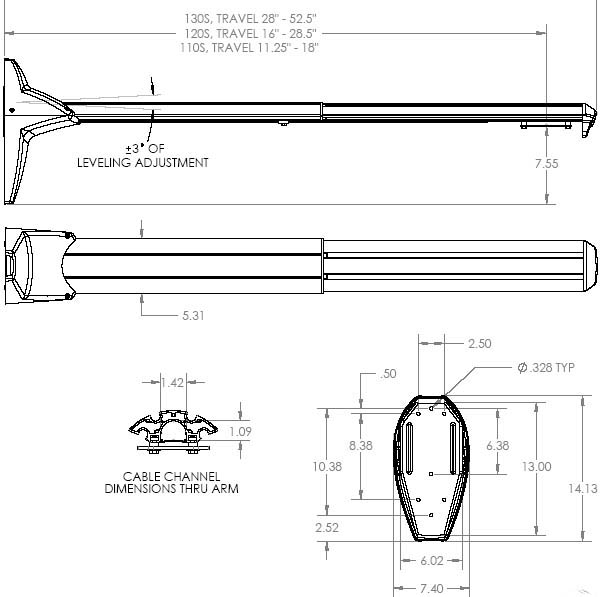

Technical Drawing
Specifications
|
Adjustments |
|
|
Certifications |
UL Listed |
|
Color |
Silver |
|
Extension |
16.0" - 29" |
|
Overall Dimensions (H x W x D) |
14.2" x 7.3" x 34.2" (360 x 185 x 869 mm) |
|
Shipping Weight |
19.15 lbs |
|
Weight Capacity |
50 lbs (22.7 kg) |
Features
- Fast installation with innovative quick-connect system
- Industry-first micro height and leveling adjustment
- Extension from wall, 16-28.50" (406-724 mm)
- Precision image alignment with micro roll, pitch and yaw (using the RPA Elite mounts)
- Integrated cable management system conceals and protects cables for a clean finish
- Multiple levels of security, including All-Points locking hardware, and four projector mount keyed locking options (A/B/C/D)
- Compatible with the RPA, RPA Elite, RPA Mini and RPA Elite Mini Series projector mounts
- Includes short throw arm only, projector mount must be ordered separately
- Includes hardware for wood stud, steel stud and concrete wall construction
| Model | WM120S |
| Manufacturer | Chief Mounts |
| Part Number | WM120S |
| UPC | 841872122854 |
| Mounting Options | Short Throw |
| Color | Silver |
| Roll | 0 degree |
| Pitch | 3 degree |
| Yaw | 0 degree |
| Extension | 16.0" - 29" |
| Overall Dimensions | 14.2" x 7.3" x 34.2" (360 x 185 x 869 mm) |
| Shipping Weight | 19.15 lbs |
| Weight Capacity | 50 lbs (22.6 kg) |
