Chief MPWVB Medium Flat Panel Swing Arm Wall Mount- 8" Extension

Product ID 16791
Chief MPWVB Medium Flat Panel Swing Arm Wall Mount- 8" Extension

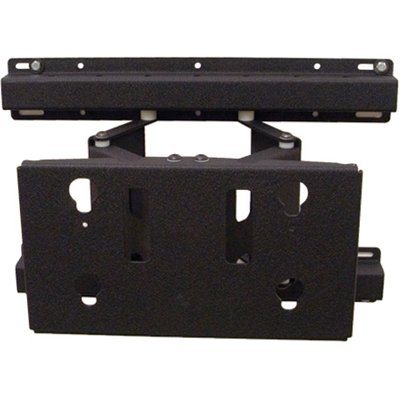

Front view
Chief MPWVB Medium Flat Panel Swing Arm Wall Mount- 8" Extension
Chief MPWVB Medium Flat Panel Swing Arm Wall Mount- 8" Extension
Front view
Chief MPWVB Medium Flat Panel Swing Arm Wall Mount- 8" Extension
Shipping:
$12.98

More shipping >

Our Price:
Qty:

Description

Chief MPWVB swing arm wall display mount provides ultra smooth extension for flat panel displays and monitors, and remains low profile in the home position.



Technical Drawing

Technical Drawing of Chief MPWVB Medium (30-55") Swing Arm Wall Mount



Specifications

Color

Black

Lateral Shift

4.5" (114.3mm)

Maximum Extension

8.75" (222.3mm)

Minimum Depth

1.5" (38.1mm)

Mounting Pattern Compatibility (Universal Versions)

100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm

Notes

Depth and Extension do not include interface bracket (adds 0.5 - 1.5")

Orientation

Landscape, Portrait

Overall Dimensions (H x W x D)

18.0" x 23.6" x 3.4" (457 x 600 x 87mm)

Shipping Weight

32.25 lbs

Solution Type

Universal

Typical Screen Sizes

30 - 55"

Wall Stud Compatibility (inches)

16"

Weight Capacity

100 lbs (45.4kg)



Features

  • Smooth extension up to 8.75" (222 mm) to achieve ideal viewing angle
  • Ultra low-profile in the home position, only 1.5" (38 mm) deep
  • Provides up to 45º of swivel in either direction (depending on screen size)
  • Locable in home position to prevent articulation (pin included)
  • Installs on 16" center studs
  • Integrated lateral shift allows repositioning of the mount right or left after installation for ultimate positioning flexibility
  • Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
Model MPWVB
Manufacturer Chief Mounts
Part Number MPWVB
UPC 841872114644
Color Black
Lateral Shift 4.5" (114.3 mm)
Maximum Extension 8.75" (222.3 mm)
Minimum Depth 1.5" (38.1 mm)
Mounting Pattern 100 x 100mm, 200 x 100mm, 200 x 200mm, 400 x 200mm
Overall Dimensions 18.0" x 23.6" x 3.4" (457 x 600 x 87 mm)
Screen Size 30 - 55 in
Wall Stud 16"
Weight Capacity 100 lbs (45.4 kg)
Shipping Weight 32.25 lbs
Mounting Options Wall
