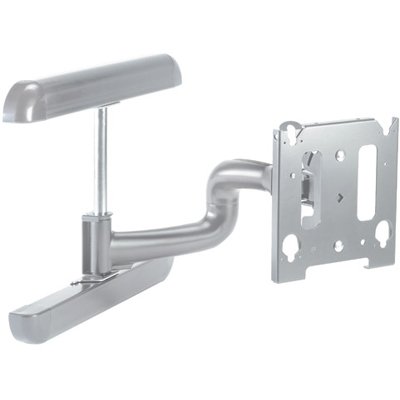

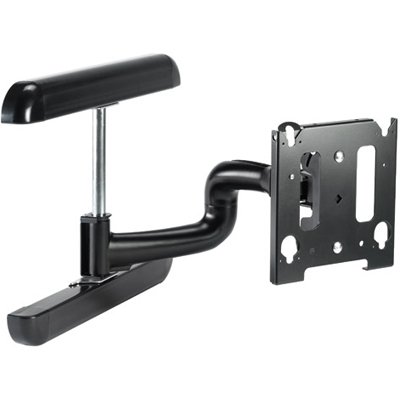

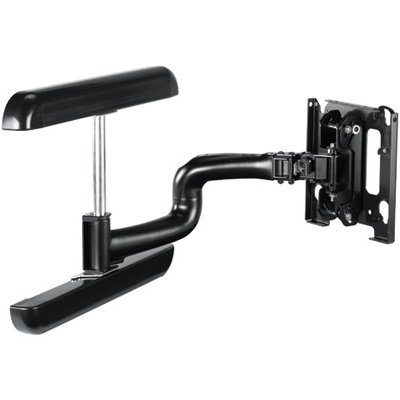

Chief MWR6000 Medium Swing Arm Wall Mount (without interface)
More shipping >
Description
Chief MWR6000 provides extended viewing angles for flat panel displays. Standard display mounts are for 16" on center wood stud walls. Additional versions available for metal studs and in-wall applications.

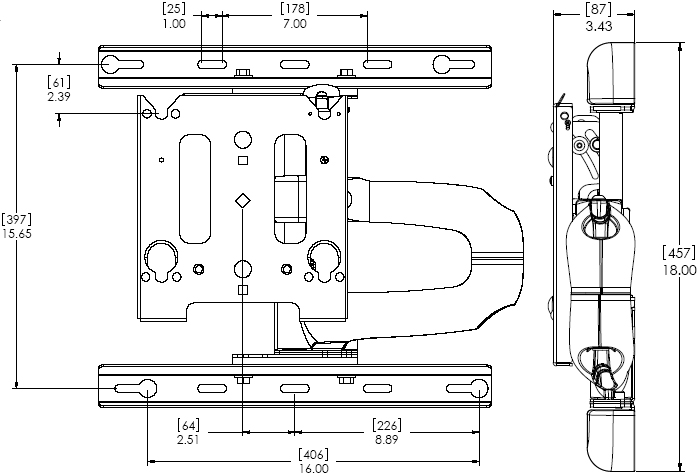

Technical Drawing
Specifications
|
Color |
Black |
|
Lateral Shift |
12" (304.8mm) |
|
Maximum Extension |
24.88" (632.mm), does not include interface bracket (adds 0.5 - 1.5") |
|
Minimum Depth |
3.38" (85.9mm), does not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
18.0" x 23.6" x 3.4" (457 x 600 x 86mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
38.00 lbs |
|
Solution Type |
Custom |
|
Tilt |
+ 5°, - 15° |
|
Typical Screen Sizes |
30 - 55" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Provides full extension while remaining low profile in the home position
- Centris Technolgoy provides fingertip tilt adjustments
- CableTrac System provides a fast and effective way to route cables
- Swivel up to 90° left or right (depending upon screen size)
- Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
- Mounting guides provided for a hassle-free installation
- Q-Latch Mounting System secures flat panel to mount with a latching flag
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
Product Options/Accessories
Frequently Asked Questions
The MWR provides 16" center stud mounting. The MWH is single stud mounting only.
Yes. Simply order the MWRV and get a VESA universal solution that encompasses 100 x 100, 200 x 100, 200 x 200, 300 x 200 and 400 x 200 mm patterns. See ordering steps to order a custom solution.
| Model | MWR6000 |
| Manufacturer | Chief Mounts |
| Part Number | MWR6000 |
| UPC | 841872051857 |
| Color | Black |
| Lateral Shift | 12" (304.8mm) |
| Maximum Extension | 24.88" (632.mm) |
| Minimum Depth | 3.38" (85.9mm) |
| Overall Dimensions | 18.0" x 23.6" x 3.4" (457 x 600 x 86mm) |
| Tilt | + 5, - 15 degree |
| Screen Size | 30 - 55 in |
| Wall Stud | 16" |
| Weight Capacity | 125 lbs (56.7kg) |
| Shipping Weight | 38.00 lbs |
| Mounting Options | Wall |
