Innovative 9189 Height Adjustable POS Through Counter Mount
The 9189 pole can pass through a counter with a grommet hole.
Description
Retail environments require retail-ready solutions. Our adjustable
through-counter POS mount features easy height adjustment, attractive
appearance, internal cable management and durable construction - all at
an appealing price point.
Innovative
9189-12 enables monitor height to be adjusted between 7" and 12".
9189-24 enables monitor height to be adjusted between 7" and 24".

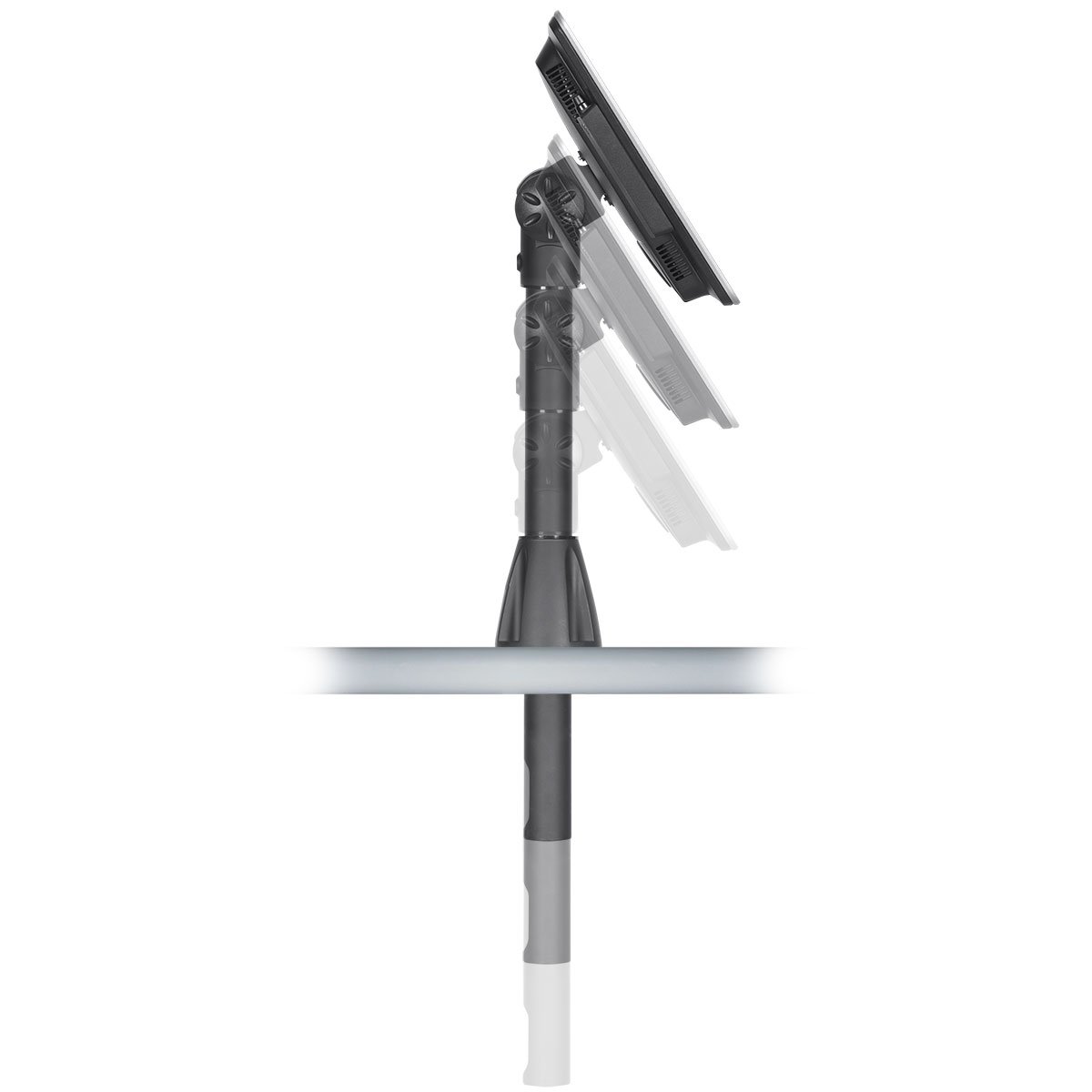

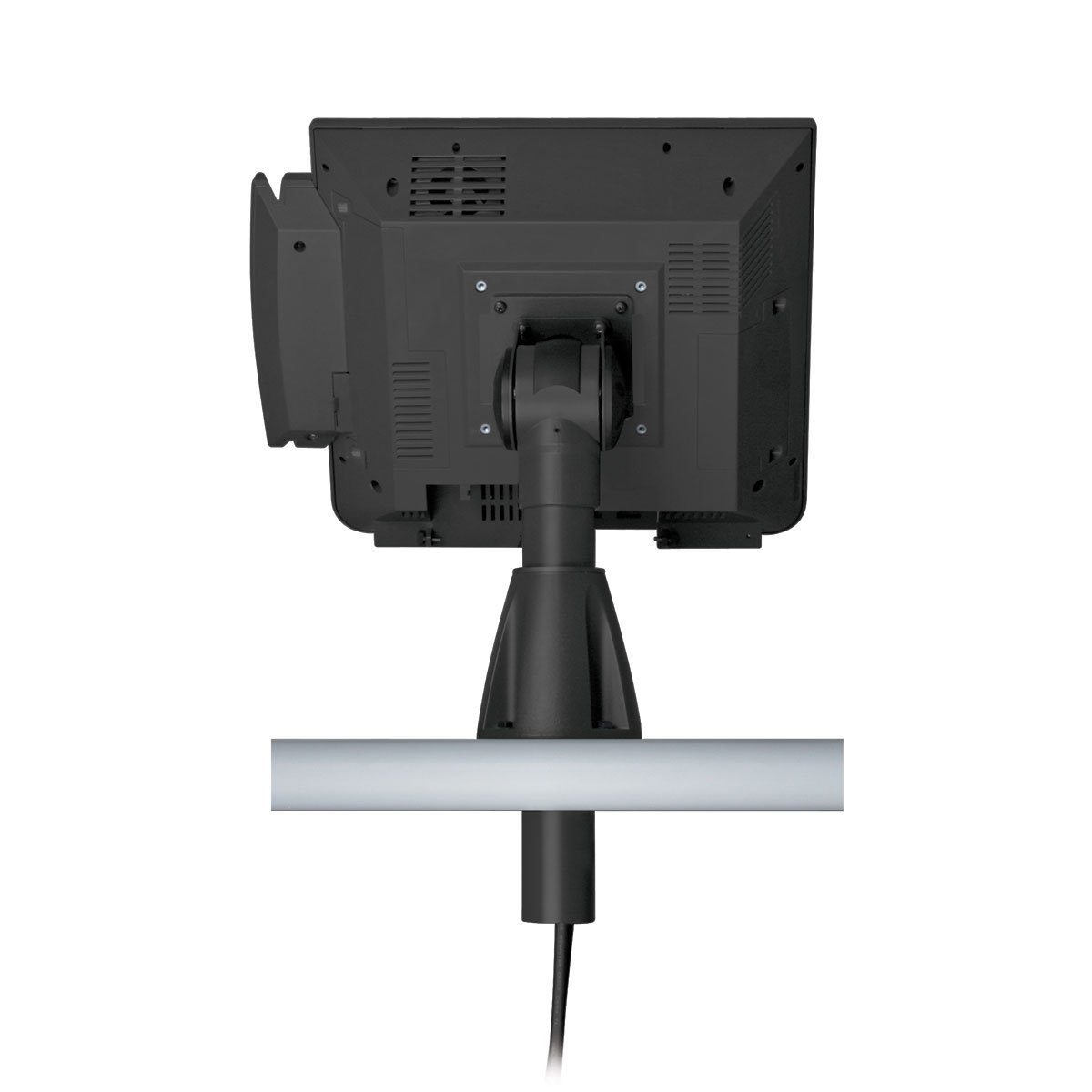

This mount is designed to pass through a hole in the counter, allowing
cables to exit below the counter. This keeps cables entirely out of view

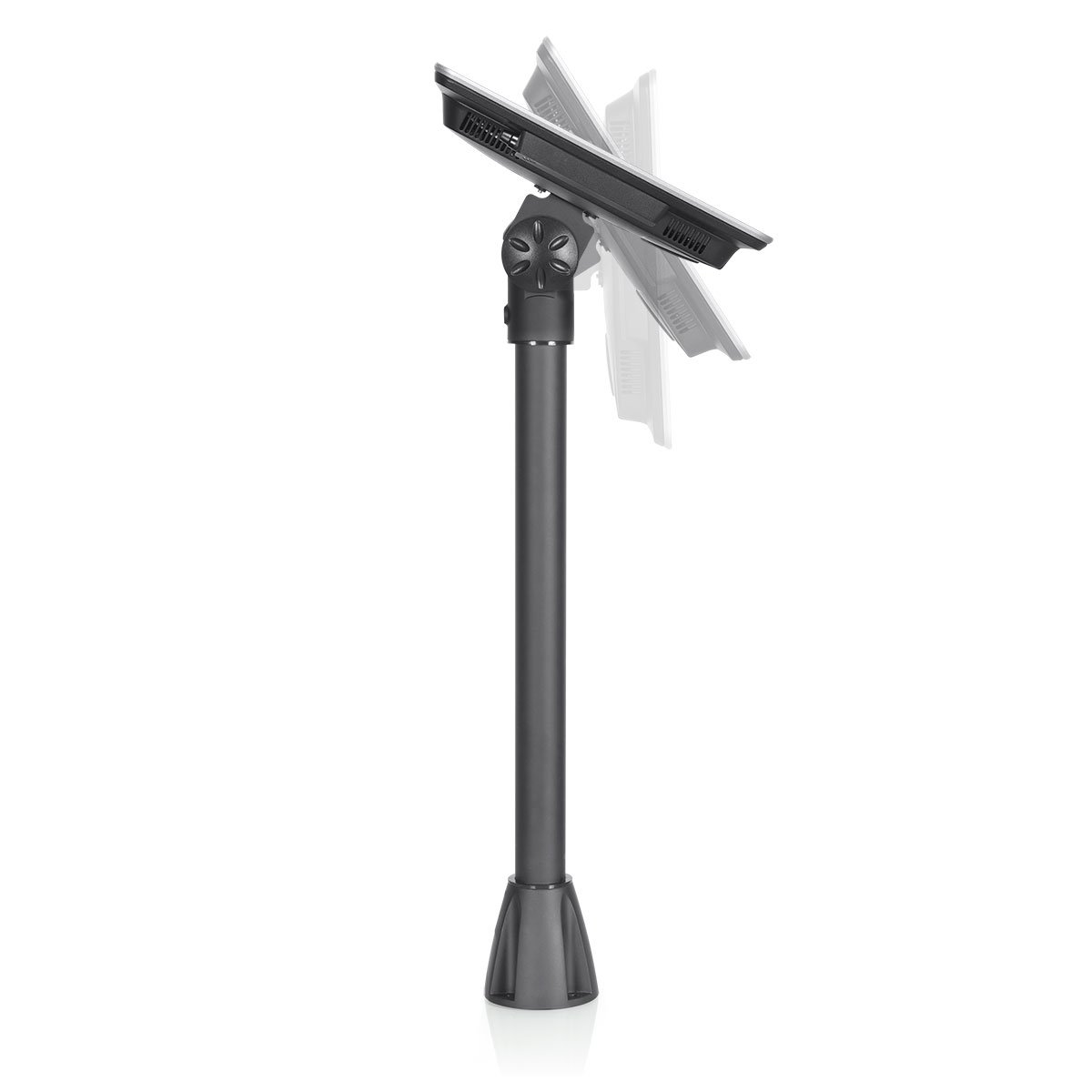

(and out of harm's way). The monitor may be pivoted or turned to suit
the user's needs (or may be locked in position if you don't wish to
allow adjustment). Height is adjusted via a set screw in the mount.

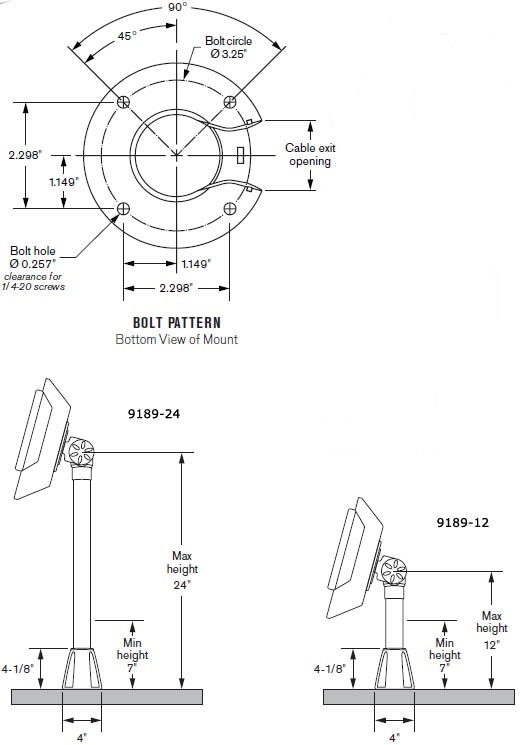

Technical Drawing
Technical Specifications
| Color | 162 - Dark Grey |
| Height Range |
|
| Grommet Hole | 1-13/16" minimum grommet hole is needed for pole to pass through counter. (2-3/8" standard grommet hole is also compatible) |
| VESA Compatibility | VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options |
| Monitor Weight | Up to 25 lbs |
Features

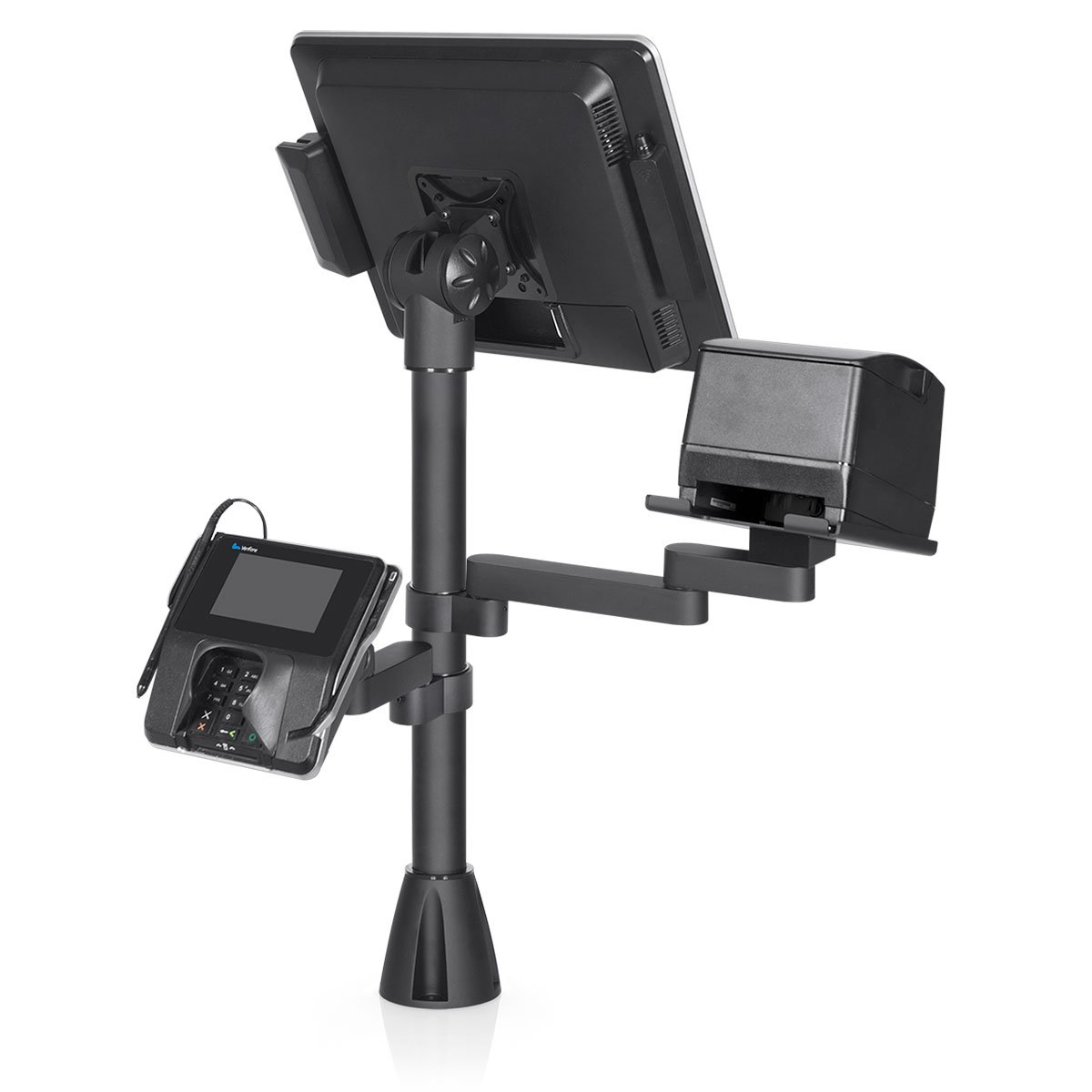

Supports monitors, signature capture devices, kiosks and more
Tube passes through counter
Quickly adjust monitor height from 7 to 12" or 7 to 24" above counter
Pivot and turn monitor - lock monitor in place if desired
Internal cable routing - cables pass through counter, remaining out of view
Durable construction stands up to retail use and abuse
Fast setup
Supports monitors up to 25 lbs
VESA-monitor compatible - 75mm & 100mm VESA adapters included. Please call for non-VESA options
Product Options/Accessories
| Model | 9189 |
| Manufacturer | Innovative LCD Arms |
| Part Number | 9189 |
| Number of Monitors | 1 Monitor |
| Height Range | 7 |
| Weight Capacity | Up to 25 lbs |
| Color | 104 - Vista Black |
| VESA | 75 & 100mm, adapter included |
| Dimensions | Base: Ø 4 |
| Warranty | 10 Years |
