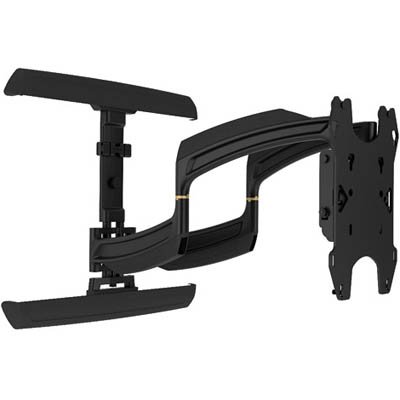

Chief TS325TU Medium THINSTALL Dual Swing Arm Wall Mount
More shipping >
Description
Chief TS325TU is a lightweight, low-profile full-motion wall display mount for TVs 26-52". Easily installs with one person by mounting the top rail and sliding on the assembly.
In-wall installation available when TA500 purchased with mount.

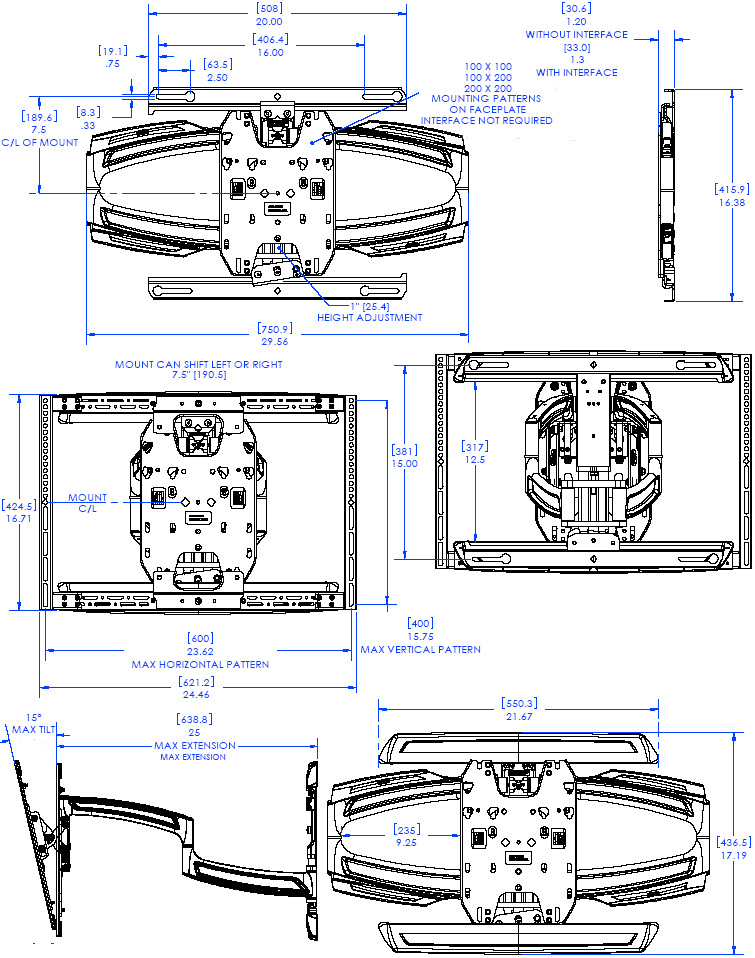

Technical Drawing
Specifications
|
Certifications |
UL Listed |
|
Color |
Black |
|
Lateral Shift |
16" (406 mm) |
|
Manual Height Adjustment |
1" |
|
Maximum Extension |
25.7" (652.8mm) |
|
Maximum Screen Thickness |
5" (127mm) |
|
Minimum Depth |
1.8" (46 mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 600 x 400mm |
|
Orientation |
Landscape |
|
Overall Dimensions (H x W x D) |
17.2" x 29.5" x 1.8" (437 x 749 x 46mm) |
|
Pivot (numerical value) |
±90° (depending on screen width) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
31.30 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 0°, - 15° |
|
Typical Screen Sizes |
26 - 52" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
75 lbs (34.kg) |
Features

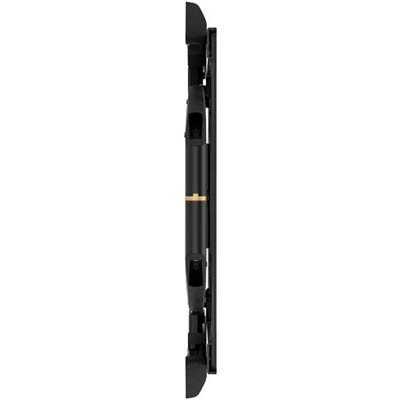

- Ultra Low Profile Sleek design collapses to 1.8" (46 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
- Extends - up to 25" (635 mm) Full extension maximizes viewing potential
- Centris low-profile tilt - Provides up to 15° of effortless fingertip tilt to achieve optimal viewing angles
- Centerless Lateral Shift - Post-installation lateral shift allows up to 16"(406 mm) of adjustment for limitless centering capability
- Integrated Cable Management - Enclosed, tool-free cable covers and a wideopen wall plate make it easy to route power and signal cables, and connect to the wall for a seamless installation
- Post Installation Height Adjustment - A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
Product Options/Accessories
Frequently Asked Questions
| Model | TS325TU |
| Manufacturer | Chief Mounts |
| Part Number | TS325TU |
| UPC | 841872151120 |
| Color | Black |
| Lateral Shift | 16" (406.4mm) |
| Manual Height Adjustment | 1" |
| Maximum Extension | 25.7" (652.8mm) |
| Maximum Screen Thickness | 5" (127mm) |
| Minimum Depth | 1.8" (46 mm) |
| Mounting Pattern | 100 x 100mm - 600 x 400mm |
| Overall Dimensions | 17.2" x 29.5" x 1.8" (437 x 749 x 46mm) |
| Pivot | ±90° (depending on screen width) |
| Tilt | + 0 degree, - 15 degree |
| Screen Size | 30 - 52 in |
| Wall Stud | 16" |
| Weight Capacity | 75 lbs (34.kg) |
| Shipping Weight | 31.30 lbs |
| Mounting Options | Wall |
