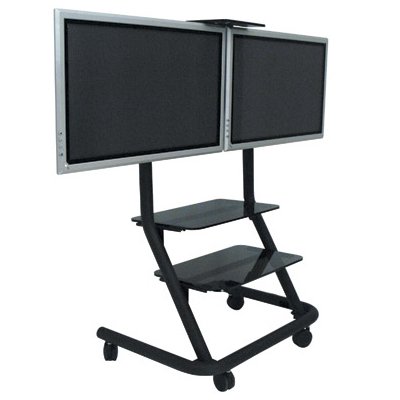

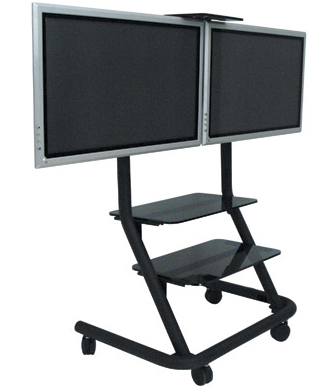

Chief PPD2000 Dual Display Video Conferencing & Presenters Cart
PAS100 and PAC150 Shelves shown with this below image are not included with PPD2000, they must be ordered separately. Additional PSB2243 Custom Interface Bracket required.
Description
Chief PPD2000 mount is designed specifically for presentations requiring two side-by-side screens.
Perfect for business applications
Shelf accessory must be ordered separately, PAS100 and PAC150 accessory shelves shown

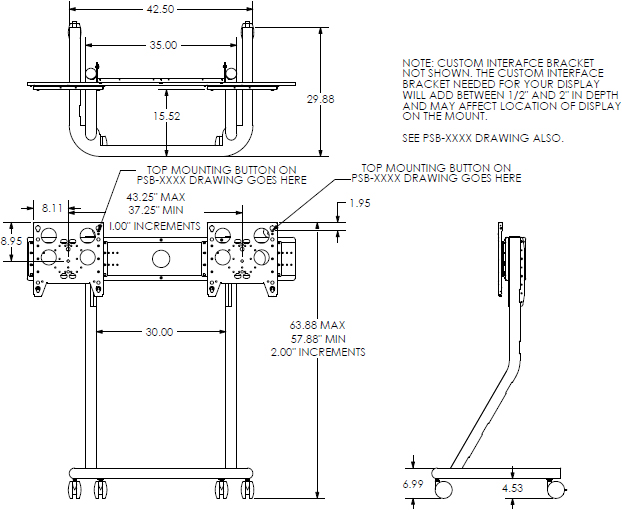

Technical Drawing

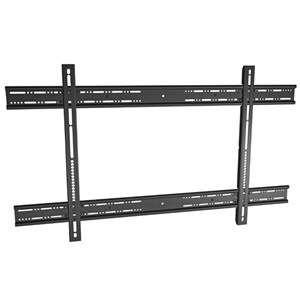

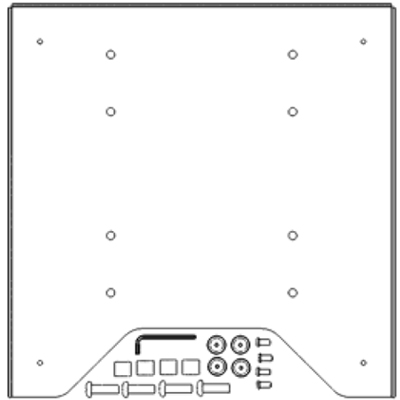

PSB-2243
Specifications
|
Center of Display to Floor/Table Range |
48.93 - 54.93" (1243 - 1395mm) |
|
Color |
Black |
|
Manual Height Adjustment |
6" |
|
Notes |
Must order universal or custom PSB interfaces (qty 2) separately |
|
Number of Monitors |
2 |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
63.9" x 42.4" x 29.8" (1623 x 1076 x 756mm) |
|
Screen Array Configuration |
2 x 1 |
|
Shipping Weight |
134.00 lbs |
|
Tilt |
+ 0°, - 8° |
|
TV Width Range |
37.25 - 43.25" (946 - 1099mm) |
|
Typical Screen Sizes |
37 - 42" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Presenter-friendly base helps reduce trip hazards
- Adjustable display height for increased flexibility
- Integrated cable management for a clean installation
- Includes four 4" swivel casters, two with total-lock brakes
- Exclusive Q-Latch Mounting System secures the display with a lockable latch
- Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
- Cart accommodates two 42" large flat panel TVs
- PAC140 Q-Clamp Accessory included
Product Options/Accessories
Frequently Asked Questions
The PPC is for a single display up to 61". The PPD is used for two side-by-side 42" displays.
Yes. Cabling from equipment on the optional shelves to the display can be routed through the side uprights.
The PPD includes four sets of shelf mounting holes at 6" intervals.
Yes, the casters are removable. Order the PTCLF accessory, which includes a set of four heavy-duty 3" diameter leveling feet.
Yes, find the make and model of your displays in the cross-reference chart.
| Model | PPD2000 |
| Manufacturer | Chief Mounts |
| Part Number | PPD2000 |
| UPC | 841872013442 |
| Center of Display to Floor/Table Range | 48.93 - 54.93" (1243 - 1395mm) |
| Color | Black |
| Manual Height Adjustment | 6" |
| Overall Dimensions | 63.9" x 42.4" x 29.8" (1623 x 1076 x 756mm) |
| Tilt | + 0, - 8 degree |
| TV Width Range | 37.25 - 43.25" (946 - 1099mm) |
| Screen Size | 37 - 42 in |
| Weight Capacity | 200 lbs (90.7kg) |
| Shipping Weight | 134.00 lbs |
| Mounting Options | Cart |
