Chief PNRIW2000B Large In-Wall Swing Arm Mount - 22" Extension
Additional PSB2243 Custom Interface Bracket required. Must order PAC501 In-Wall Accessory separately.
Description

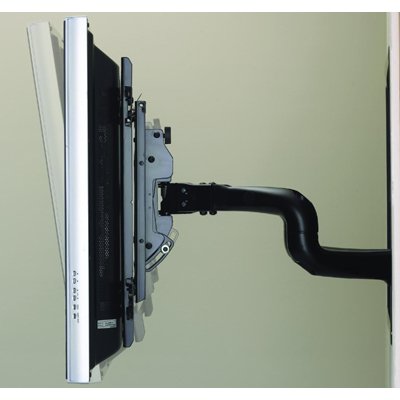

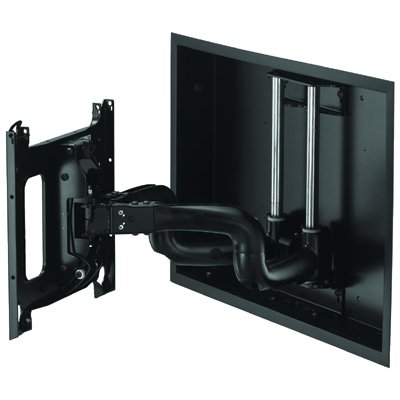

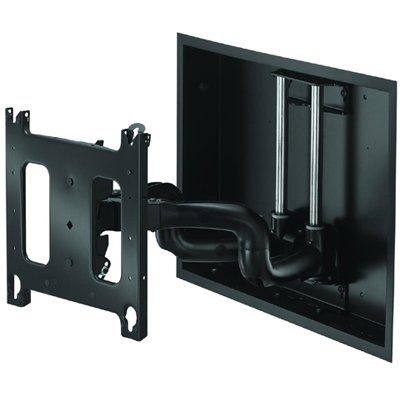

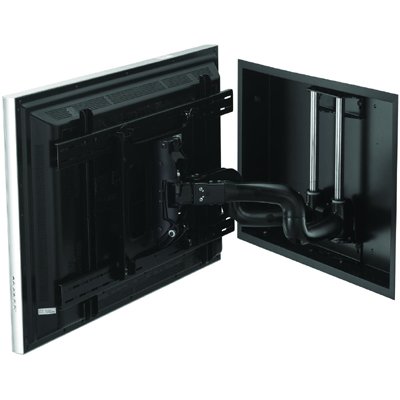

Chief PNRIW is a dual arm in-wall swing arm mount designed to create a low-profile installation.
Must order a PAC501 In-Wall Accessory AND a PSB bracket (See the mountfinder to get the model specific PSB bracket you will need)
Technical Drawing
PSB2243
Specifications
|
Certifications |
UL Listed |
|
Color |
Black |
|
Maximum Extension |
22" (558.8mm) |
|
Minimum Depth |
0.6" (15.2mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Notes |
Must order PAC501B In-Wall Box separately |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
20.0" x 30.0" x 4.5" (508 x 762 x 114mm) |
|
Pivot (numerical value) |
+/- 76.5° (depending on screen width) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
50.25 lbs |
|

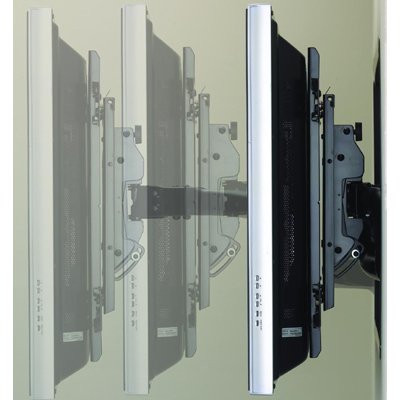

Tilt |
+ 2° , - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Ships fully assembled to save on installation time

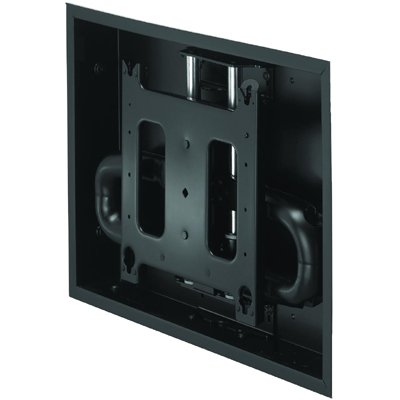

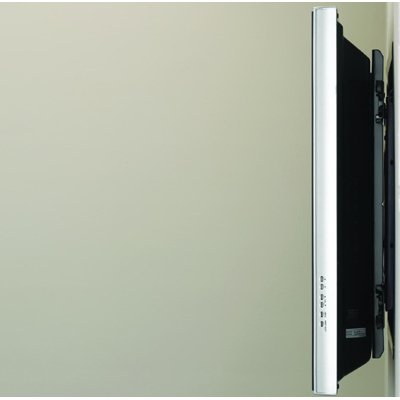

- Easily installs into PAC501 to create an ultra low profile installation
- Extends over 22" (569 mm) for viewing from any angle
- NOTE: Must order PAC501 In-Wall Accessory separately
Product Options/Accessories
| Model | PNRIW2000B |
| Manufacturer | Chief Mounts |
| Part Number | PNRIW2000B |
| UPC | 841872109220 |
| Color | Black |
| Maximum Extension | 22" (558.8mm) |
| Minimum Depth | 0.6" (15.2mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 20.0" x 30.0" x 4.5" (508 x 762 x 114mm) |
| Tilt | + 2 degree, - 15 degree |
| Wall Stud | 16" |
| Weight Capacity | 200 lbs (90.7kg) |
| Mounting Options | In-Wall |
| Pivot | +/- 76.5° (depending on screen width) |
| Shipping Weight | 50.25 lbs |
| Monitor Size | 42 - 71" |
