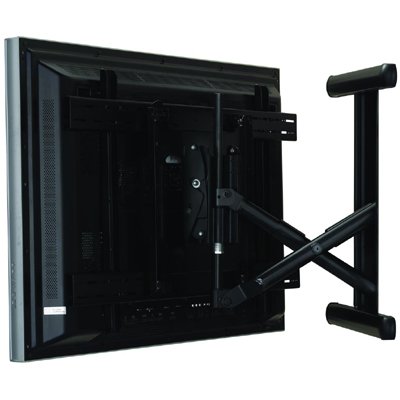

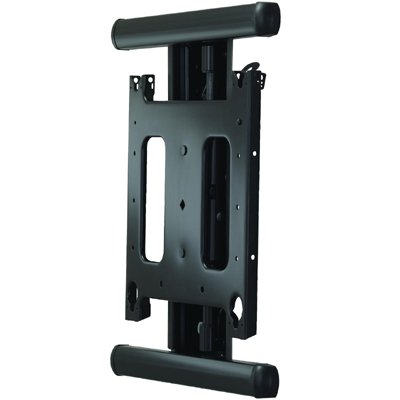

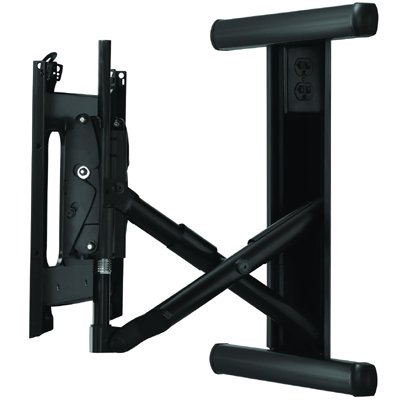

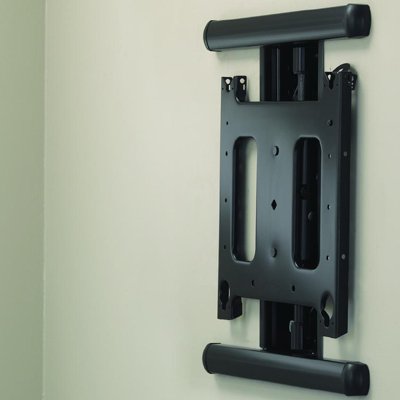

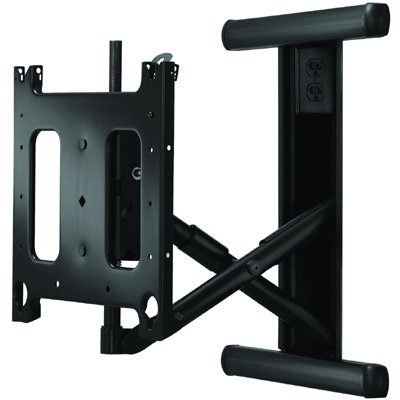

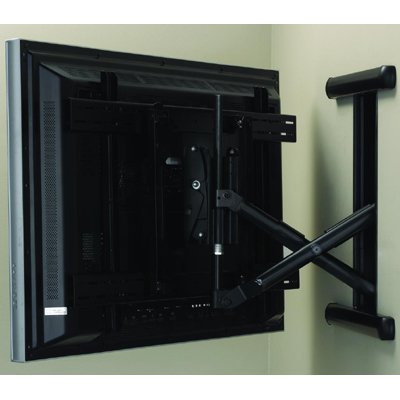

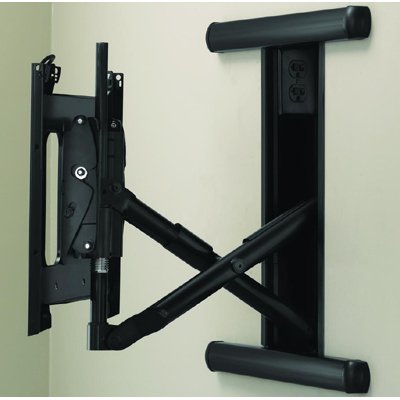

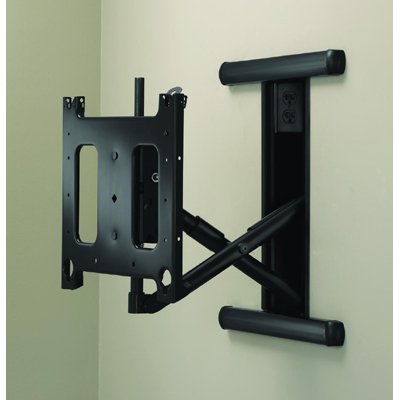

Chief PIWRF2000B Large In-Wall Swing Arm Mount - 15" Extension
Additional PSB2243 Custom Interface Bracket required.
Description

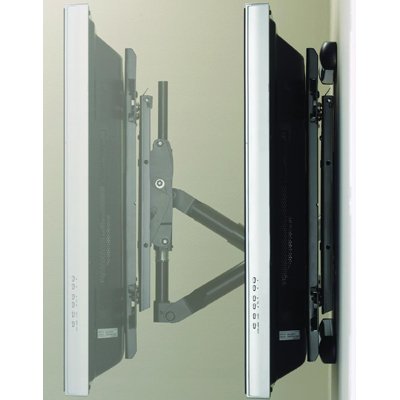

Create a low-profile installation when mounting a flat screen display with articulation.
Technical Drawing
PSB2243
Specifications
|
Color |
Black |
|
Lateral Shift |
5" (127.mm) |
|
Manual Height Adjustment |
1" |
|
Maximum Extension |
15" (381.mm) |
|
Minimum Depth |
1.7" (43.2mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Notes |
Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
22.8" x 20.4" x 5.5" (580 x 518 x 141mm) |
|
Pivot (numerical value) |
+/- 40.3°(depending on screen width) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
52.25 lbs |
|
Tilt |
+ 2° , - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Limitless centering on the wall between 16" center studs without cutting studs

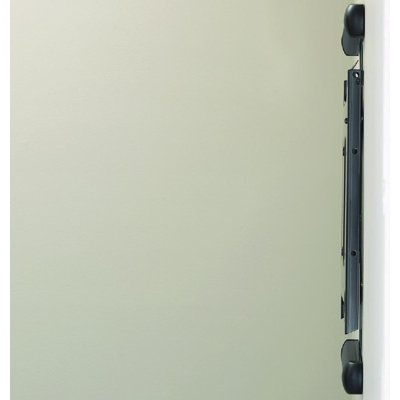

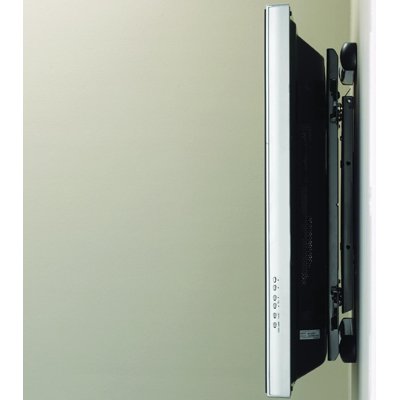

- Low profile design ensures the mount remains concealed behind the flat panel

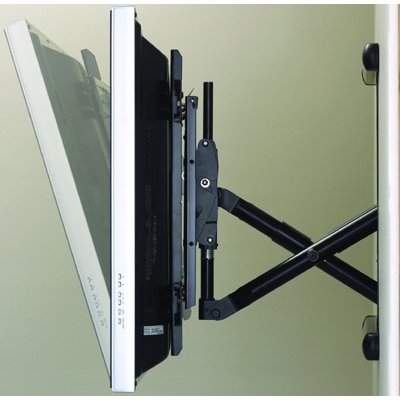

- Centris Technology uses the center of gravity to achieve smooth, fingertip tilt
- ClickConnect Technology provides an audible click to confirm the flat panel is locked in place
- Easy connect/disconnect with no tools needed
- Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management
Product Options/Accessories
| Model | PIWRF2000B |
| Manufacturer | Chief Mounts |
| Part Number | PIWRF2000B |
| UPC | 841872110660 |
| Color | Black |
| Lateral Shift | 5" (127.mm) |
| Manual Height Adjustment | 1" |
| Maximum Extension | 15" (381.mm) |
| Minimum Depth | 1.7" (43.2mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 22.8" x 20.4" x 5.5" (580 x 518 x 141mm) |
| Tilt | + 2 degree, - 15 degree |
| Wall Stud | 16" |
| Weight Capacity | 200 lbs (90.7kg) |
| Mounting Options | In-Wall |
| Monitor Size | 42 - 71" |
| Shipping Weight | 52.25 lbs |
| Pivot | +/- 40.3°(depending on screen width) |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
