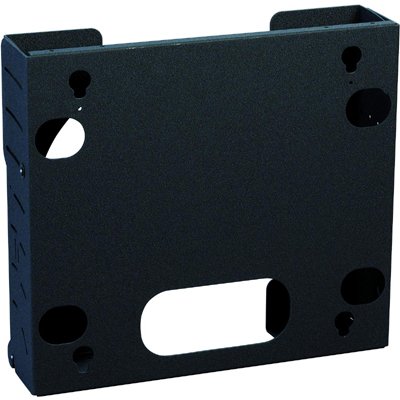

Chief PWC2000 Large Tilt Mount, CPU Storage (without interface)
Additional PSB2243 Custom Interface Bracket required.
Description
Chief PWC2000 is an all-in-one tilt wall mounting solution that's ideal for digital signage applications.

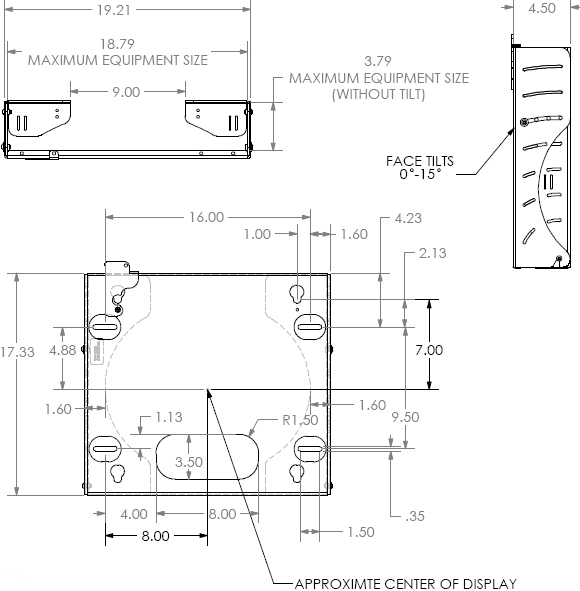

Technical Drawing
PSB2243
Specifications
|
Color |
Black |
|
Lateral Shift |
1.5" (38.1mm) |
|
Max Equip Size (H X W X D) |
20" x 18.79" x 3.79" (508 x 477 x 96 mm) |
|
Maximum Screen Thickness |
6" |
|
Minimum Depth |
4.5" (114.3mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
17.3" x 19.2" x 4.5" (439 x 488 x 114mm) |
|
Shipping Weight |
22.00 lbs |
|
Tilt |
+ 0°, - 15° |
|
Typical Screen Sizes |
42 - 71" |
|
Note |
Steel stud mounting possible with series PAC115 and using 2 studs only |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Complete solution designed to easily integrate a media player into a flat panel installation
- Provides lockable tilt at 0, 5, 10 and 15º
- Q-Latch Mounting System provides lockable latch for increased security
- Integrated lateral shift up to 0.75" left or right of 16" center stud system
- Screen can be installed in portrait or landscape orientation ( PAC400 or MAC400 accessory can be used to rotate without removing the screen)
| Model | PWC2000 |
| Manufacturer | Chief Mounts |
| Part Number | PWC2000 |
| UPC | 841872091136 |
| Color | Black |
| Maximum Screen Thickness | 6" |
| Lateral Shift | 1.5" (38.1mm) |
| Minimum Depth | 4.5" (114.3mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 17.3" x 19.2" x 4.5" (439 x 488 x 114mm) |
| Tilt | + 0 degree, - 15 degree |
| Screen Size | 42 - 71 in |
| Wall Stud | 16" |
| Weight Capacity | 200 lbs (90.7kg) |
| Max Equipment Size (H X W X D) | 20" x 18.79" x 3.79" (508 x 477 x 96 mm) |
| Mounting Options | Wall |
| Shipping Weight | 22.00 lbs |
