$1,041.00

Ergotron Sit-Stand Cart 24-215-085 WorkFit-C, Single LD Monitor

Product ID 16675
Ergotron Sit-Stand Cart 24-215-085 WorkFit-C, Single LD Monitor

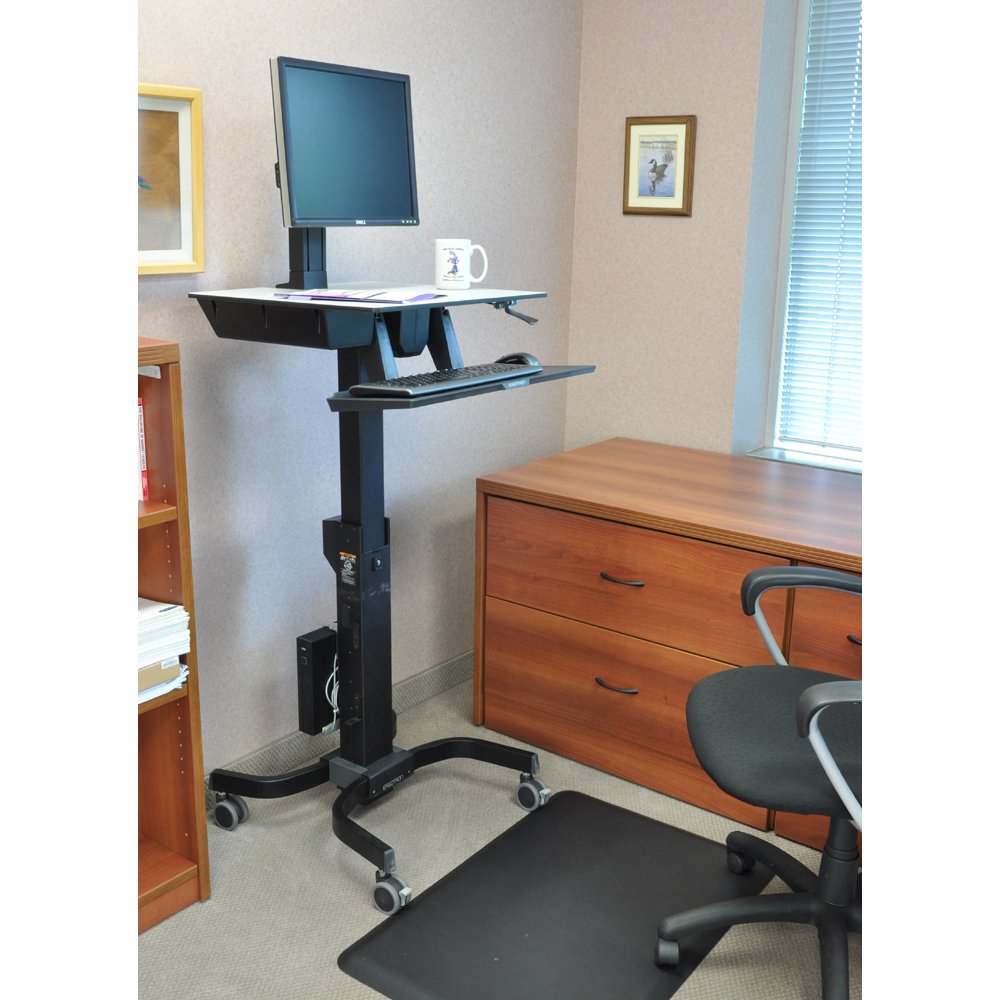

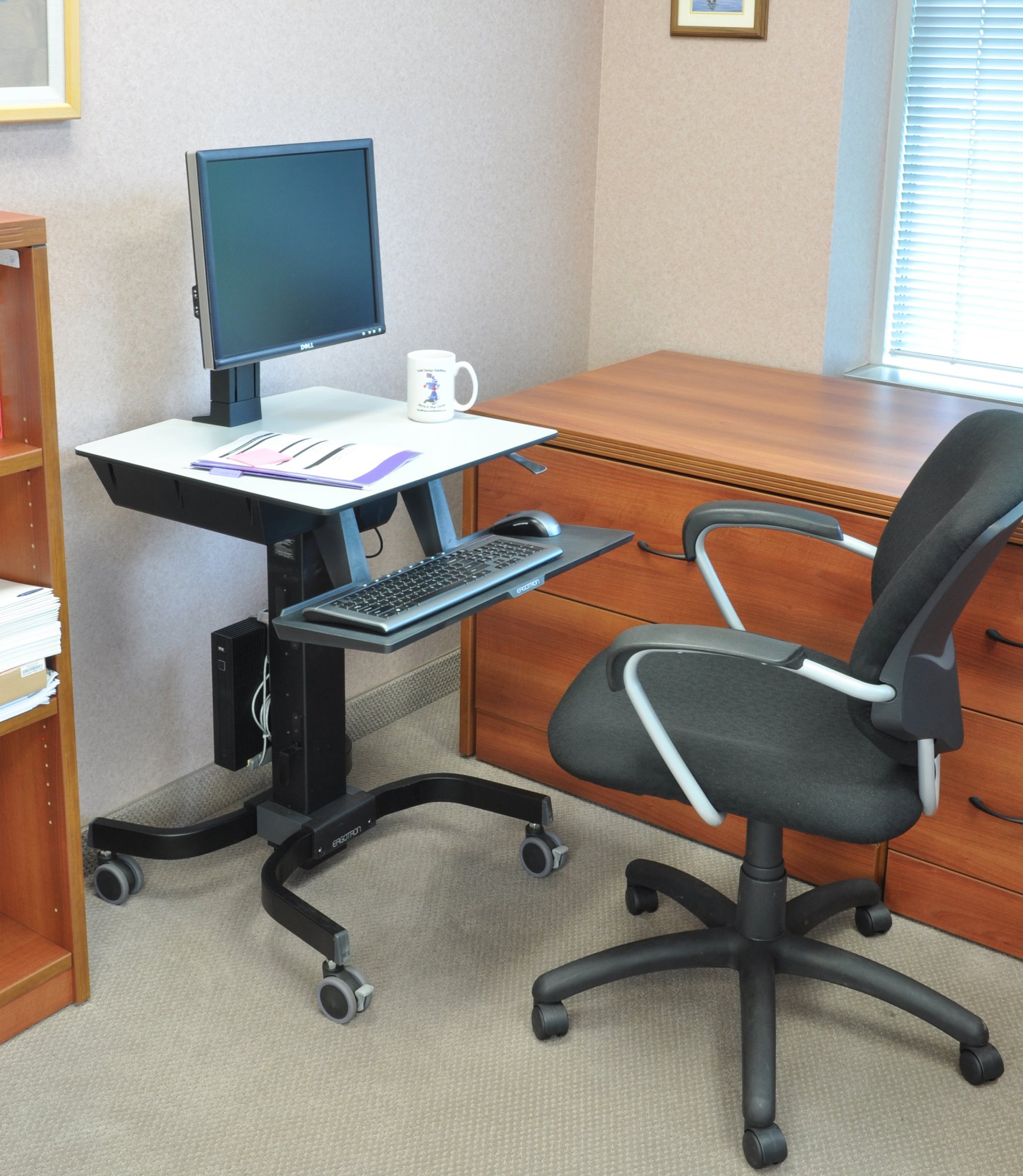

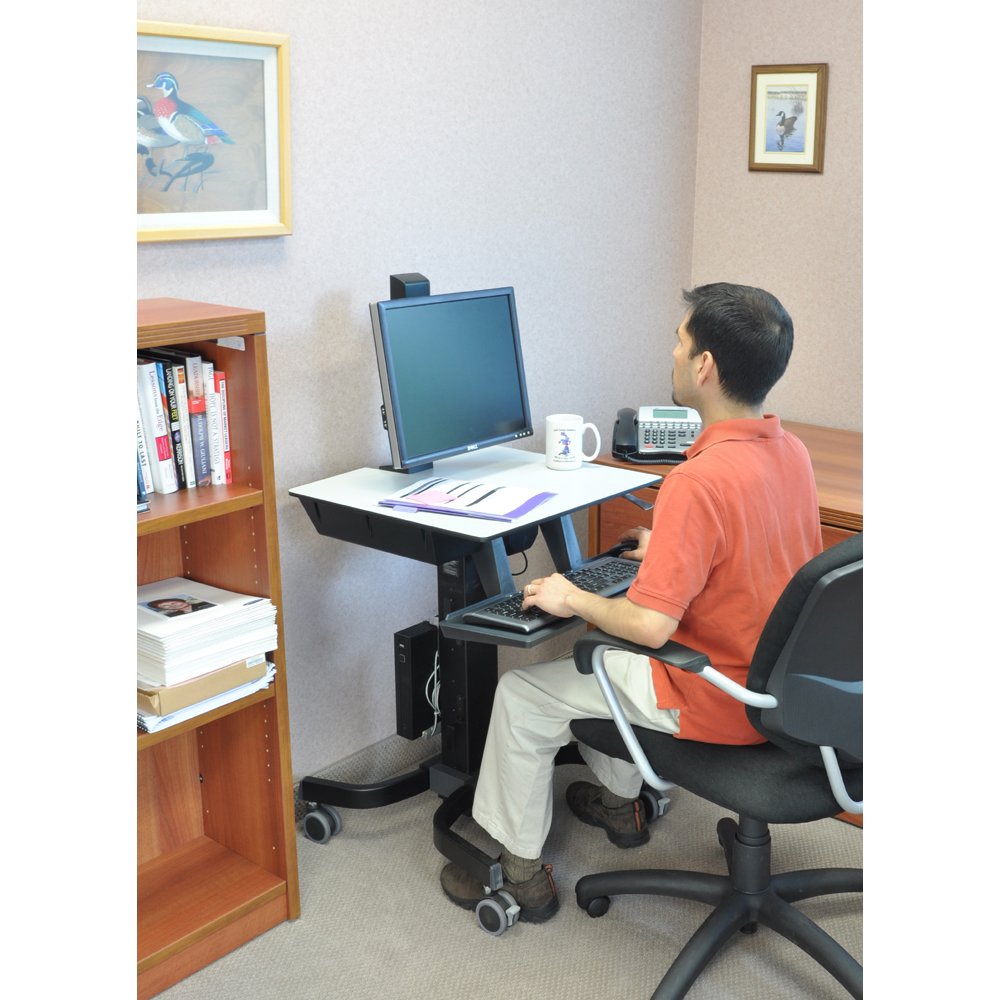

Sit and work at office with ergotron 24-215-085 WorkFit-C

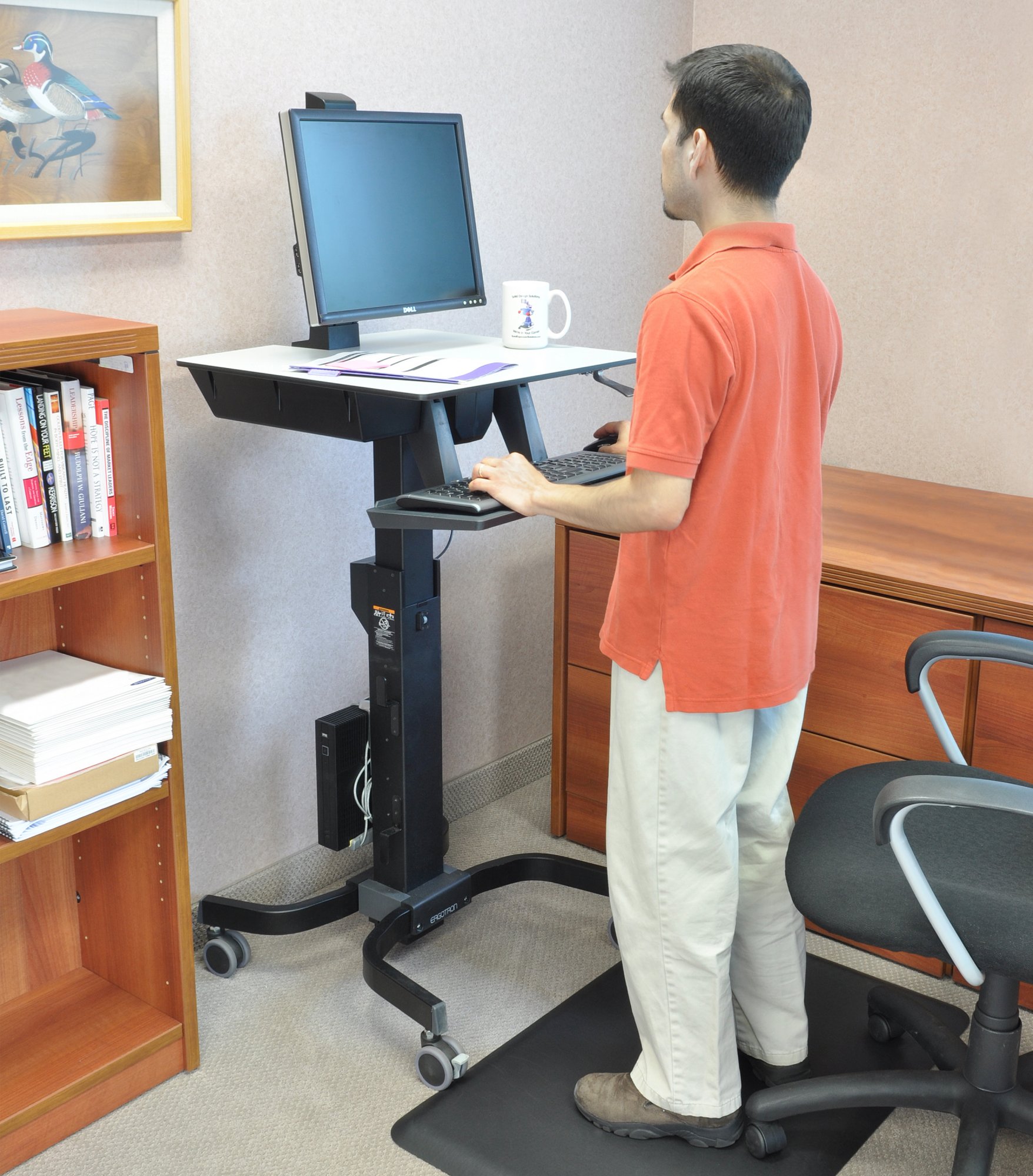

Stand and work at office with ergotron 24-215-085 WorkFit-C

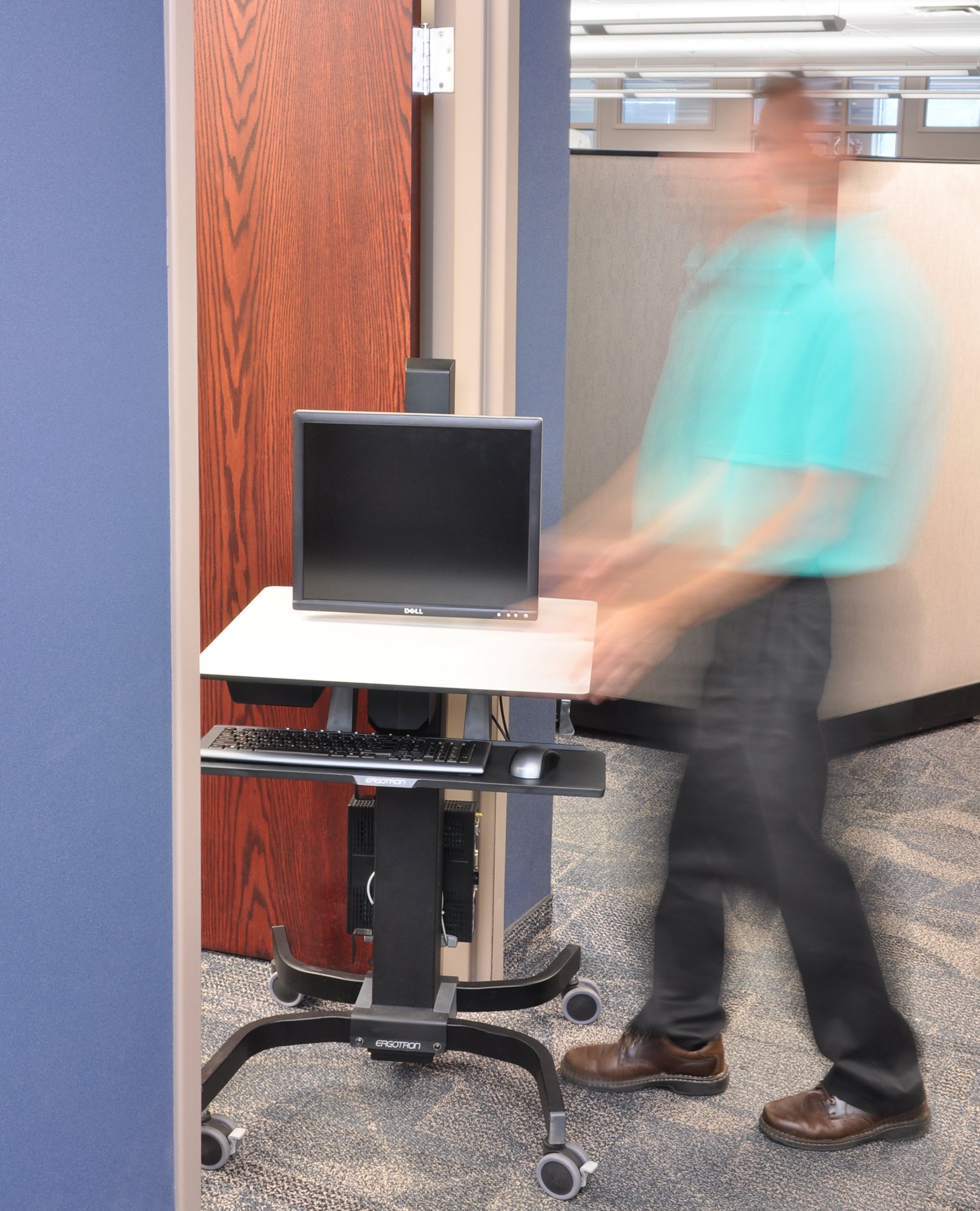

Moving
Technical drawing
Stand and work at office with ergotron 24-215-085 WorkFit-C
Sit and work at office with ergotron 24-215-085 WorkFit-C

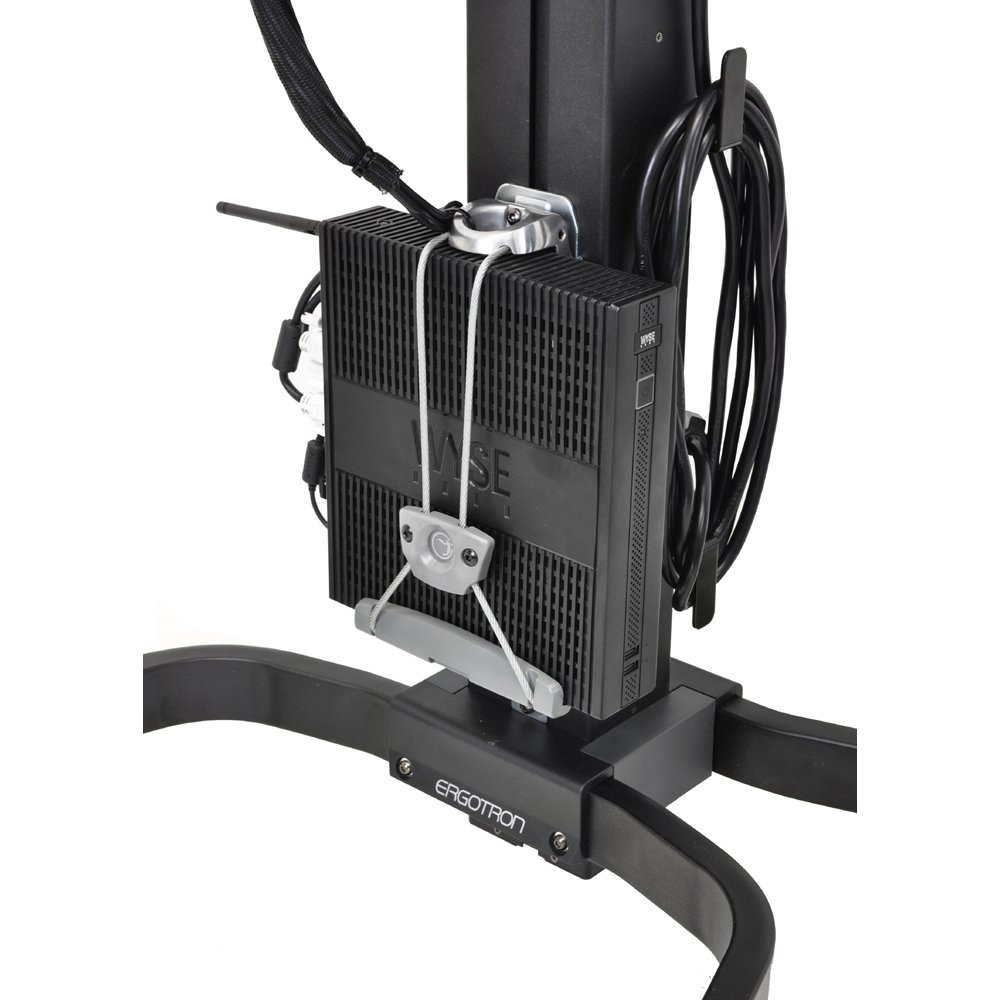

CPU Holder of Ergotron 24-215-085 WorkFit-C

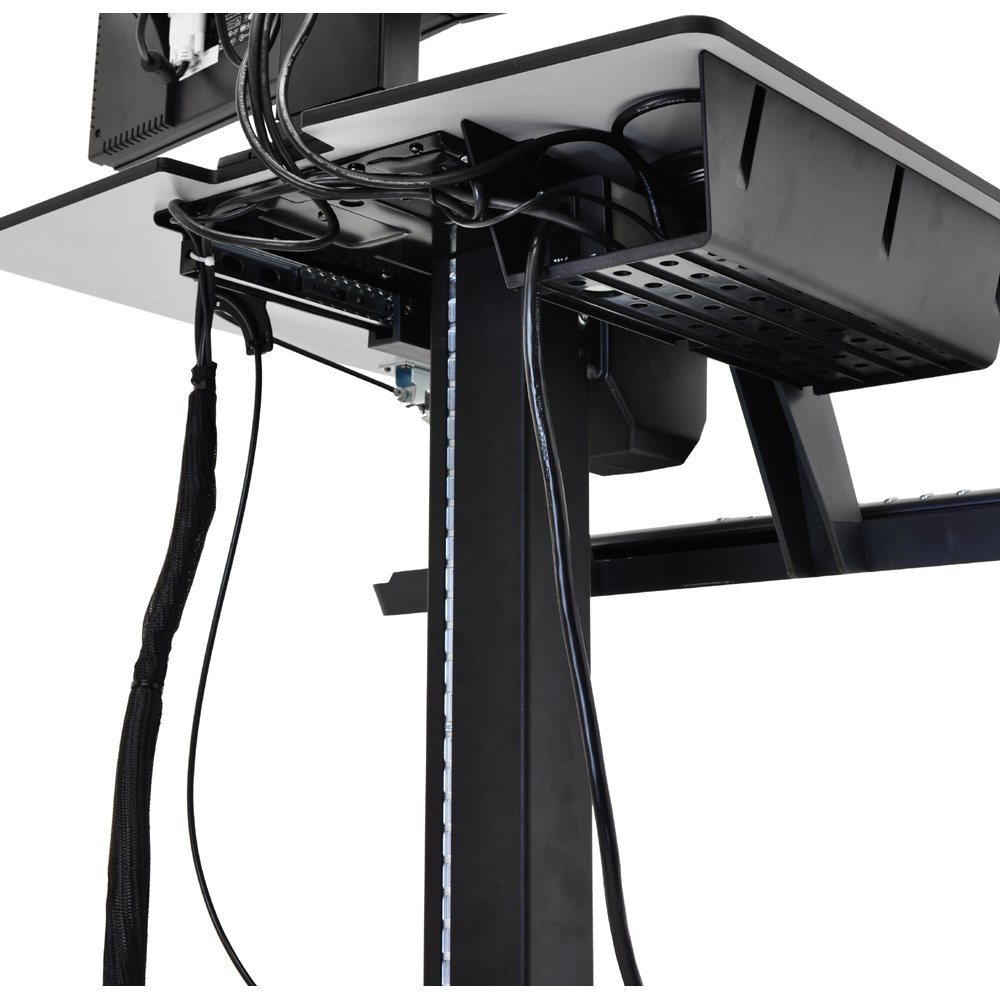

Cable management box of Ergotron 24-215-085
Ergotron Sit-Stand Cart 24-215-085 WorkFit-C, Single LD Monitor
Sit and work at office with ergotron 24-215-085 WorkFit-C
Stand and work at office with ergotron 24-215-085 WorkFit-C
Moving
Technical drawing
Stand and work at office with ergotron 24-215-085 WorkFit-C
Sit and work at office with ergotron 24-215-085 WorkFit-C
CPU Holder of Ergotron 24-215-085 WorkFit-C
Cable management box of Ergotron 24-215-085

Animation of Ergotron 24-271-926 WorkFit-D, Sit-Stand Desk

Description

Ergotron 24-215-085 is a computer cart that lets you sit or stand while working. Ideal for space-constrained office or home office, this cart can replace a desk and still provide sit-stand capability as well as desktop space. This workstation's large worksurface and height adjustable keyboard tray keyboard tray make working for long hours comfortable. Built-in mobility in the form of casters is an added benefit.

A built-in CPU holder and a cable management box along with an integrated brake system, that locks and releases for height adjustment make this a complete workstation.

This innovative computer cart doubles as an adjustable standing desk platform. Stay energized and productive while you compute - move from a sitting to a standing position whenever you want. The large worksurface, back-tilt keyboard tray and independently adjustable monitor stand make computing comfortable for prolonged periods.

Counterbalanced adjustment points allow instantaneous, tool-free re-positioning while you work. Additional features include 25" (63 cm) total height adjustment, a small footprint and advanced cable management. An integrated brake secures table in place and with just a touch and releases for height adjustment.

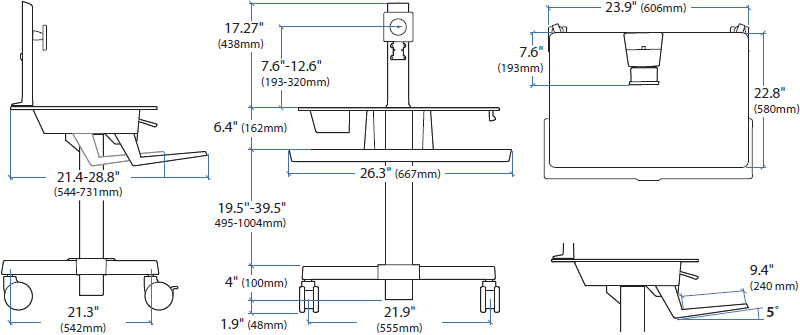

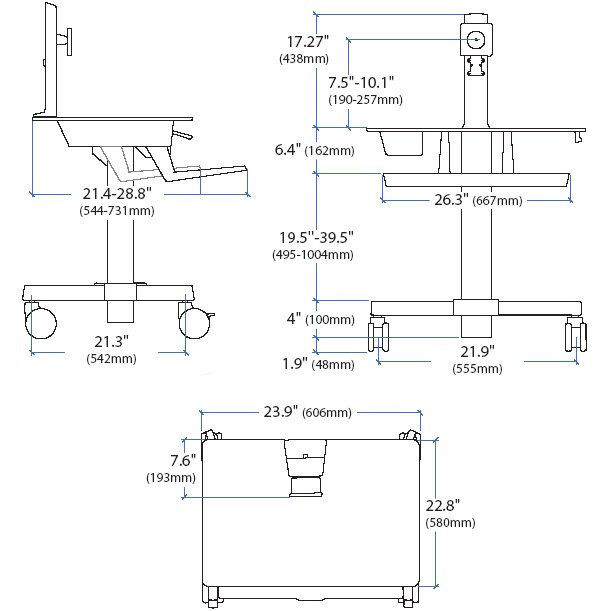

Technical Drawing

Technical Drawing for Ergotron 24-215-085 WorkFit-C, Single LD Sit-Stand Workstation

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
Up to 24"

Up to 24.9 lbs

11.3 kg

25"

63.5 cm

30° - 360° MIS-D

Product Information

Part Number 24-215-085
Description WorkFit-C Sit-Stand Workstation for Single LCD Monitor, LD, with Mobile Cart Base (black/grey)
Includes
  • Cart

  • LCD pivot

  • Integrated worksurface

  • Large stowable keyboard tray

  • Cable storage box

  • CPU holder

  • Four dual casters (two locking)

  • Hand-brake system

Weight Capacity Maximum load on height-adjustment assembly = 24.9 lbs (11.3 kg). Includes weight of display and keyboard in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 6–16 lbs (2.7–7.3 kg)
Lift Range LCD/keyboard/worksurface adjust 20" (51 cm) in tandem; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (63 cm)
Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
CPUs Attach safely to rear of cart with CPU Holder. Accommodates CPUs from 9.4"H x 2.6"D to 15.75"H x 8.5"D (24 x 6.5 cm to 40 x 22 cm)
CPU Holder Capacity 40 lbs (18 kg)
Keyboard Tray 26.3" x 9.4" (67 x 24 cm). Stowable under worksurface. Includes 5° back-tilt to ensure wrists remain in a neutral position during data entry
Large Worksurface 24"W x 23"D (61 x 58 cm)
Cable Management Box Interior dimensions = 13.4"W x 5.1"D x 3.4"H (34.1 x 12.8 x 8.6 cm)
Wheel-to-Wheel Base Dimensions 25"W x 22"D (63.5 x 56 cm)
Notebook Tray Can be configured to hold a laptop instead of a monitor: also order accessory Notebook Tray (50-193-200)
Washington State Analysis A Washington State analysis of case studies related to office ergonomics showed a median productivity increase of 12% following an ergonomic intervention. New studies from the Office Ergonomics Research Committee (OERC) suggest that employees who are provided with well-designed ergonomic furniture and are trained to use it see an average productivity increase of 18%
Shipping Dimensions 36.5" x 32.25" x 28.25" (93 x 82 x 72 cm)
Shipping Weight 91 lbs (41.3 kg)
Warranty Five (5) years

Benefits

For Computer Users

  • On-demand sit-stand workstation - improve your energy and productivity by standing or sitting as you work, and then switch positions whenever you choose. This work style encourages healthy movement throughout the day

  • Promote fitness and comfort as you compute, reducing potential back and neck pain by adding movement into your work routine in a truly ergonomic workstation

  • Easily and simultaneously lift keyboard and LCD screen to proper height for unsurpassed ergonomic comfort

  • Patented Constant Force lift technology provides fluid, one-touch adjustments of the keyboard and monitor positions for personalized computing

  • Mobile configuration brings flexibility into the workspace. Easily moves through small doorways and over thresholds for collaborative meetings

  • Burn more calories by choosing to stand for periods of your work-day; periodic standing also promotes greater bone density and better sleep at night

  • Telescoping lift engine provides height adjustability without blocking the line of sight


For IT and Facilities Staff

  • IT deployment friendly - set aside several fully equipped WorkFit-Cs for temporary workers, unassigned workstations (aka hoteling or hot desking) or telecommuter work pods; roll to the place of need (easily stored and ready to roll)

  • Modify existing office spaces or cubes by simply removing a section of worksurface and rolling in the sit-to-stand WorkFit, without the cost of expensive professional installers

  • Safe and neat routing of cables through the expansive cable management storage area

  • Flexible, open-architecture design is scalable for future computer equipment

  • Takes less time to retrofit existing stations or repurpose for changing workforce, reduces facility spend

  • Quick and easy assembly

  • Durable, easy-to-clean exterior composed of phenolic, high-grade plastic and powder coated painted steel

  • Cable Management Box provides storage area for one standard six-outlet power strip, two power bricks, and the associated cables


For HR/Risk Management and Company Cost Savings

  • Manage the cost of healthcare premiums by promoting wellness in the daily work routine

  • Provide standing work platforms for employees without having to buy expensive height-adjustable chairs

  • Comfortable computing offers provable ROI on investment - healthcare costs associated with unhealthy computing and missed time are reduced while productivity increases

  • WorkFit supports healthy neck and back conditions. According to the 2007 OE Medicine Journal, back and neck pain are cited as the most costly conditions affecting employees

  • Studies in office ergonomics show productivity increases 12%–18% following an ergonomic intervention where employees are provided with well-designed ergonomic furniture

Model 24-215-085
Manufacturer Ergotron
Part Number 24-215-085
UPC 698833015959
Weight Capacity Maximum load on height-adjustment assembly = 24.9 lbs (11.3 kg). Includes weight of display and keyboard in addition to contents on Worksurface and in Cable Storage Box. LCD pivot capacity = 6–16 lbs (2.7–7.3 kg)
Monitor Size Up to 24"
Lift (63 cm) 25 in
Tilt 30 degree
Mounting Pattern VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
Shipping Weight 91 lbs (41.3 kg)
Shipping Dimensions 36.5" x 32.25" x 28.25" (93 x 82 x 72 cm)
Warranty Five (5) years
Color Black/grey
Rotation 360 degree
Compact Wheel to Wheel Base Dimensions 25"W x 22"D (63.5 x 56 cm)
CPU Dimension Accommodates CPUs from 9.4"H x 2.6"D to 15.75"H x 8.5"D (24 x 6.5 cm to 40 x 22 cm)
CPU Holder Capacity 40 lbs (18 kg)
Keyboard Tray Dimensions 26.3" x 9.4" (67 x 24 cm)
Worksurface Dimensions 24"W x 23"D (61 x 58 cm)
Cable Management Box Interior dimensions = 13.4"W x 5.1"D x 3.4"H (34.1 x 12.8 x 8.6 cm)
Desk Type Cart
Product Type Laptop
Product Type LCD Monitor
Product Type Tablet
