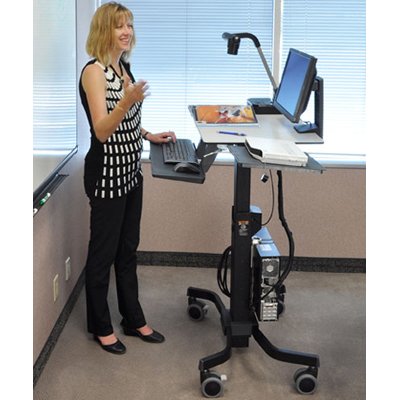

Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with LCD Kit and CPU Holder (sold separately)

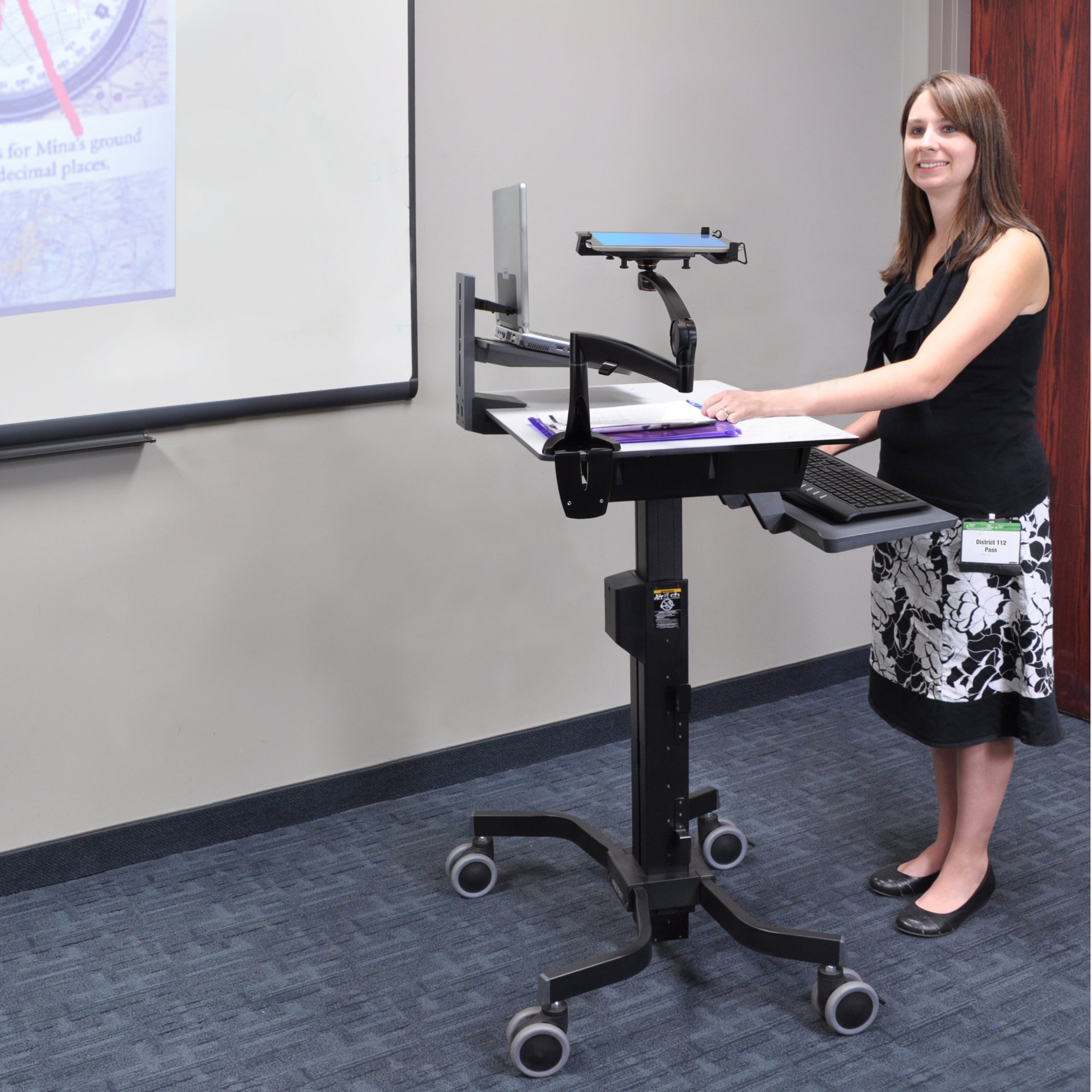

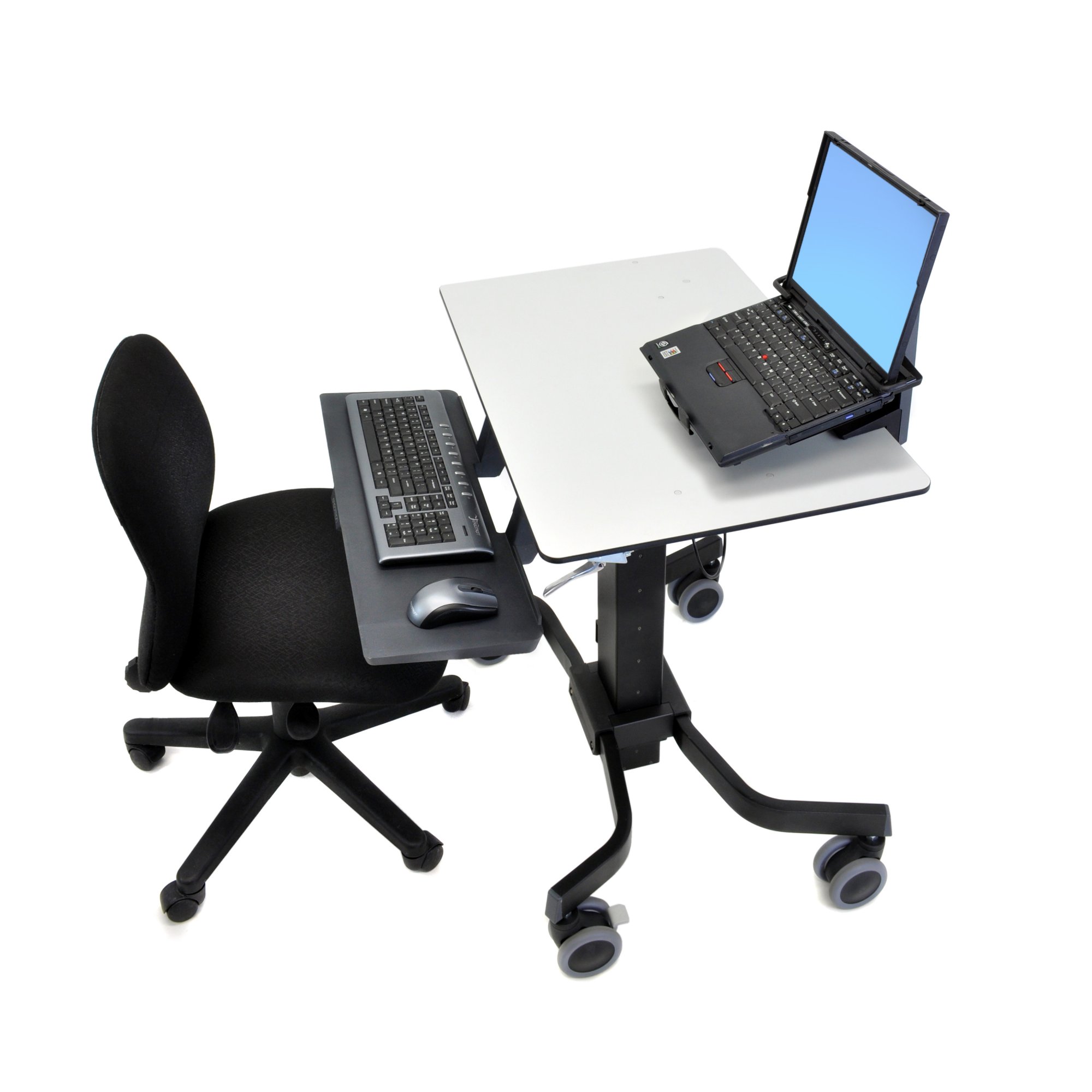

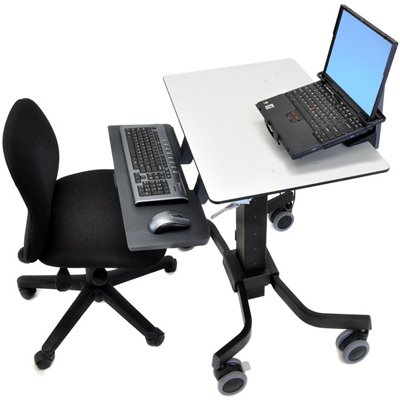

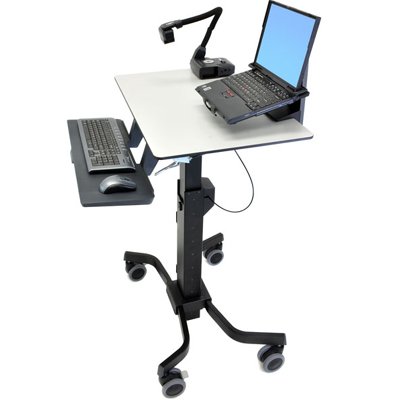

Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with Laptop Kit (sold separately)

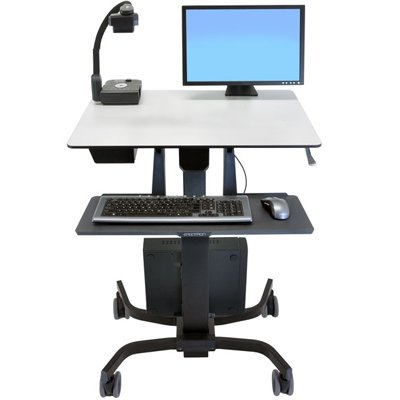

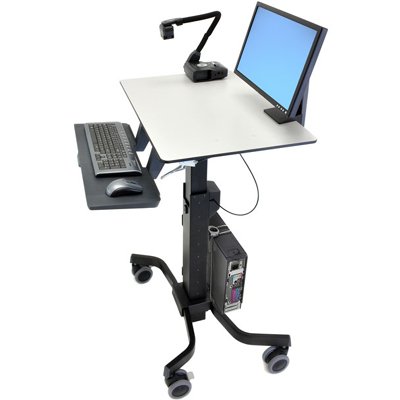

Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with LCD Kit and CPU Holder (sold separately)

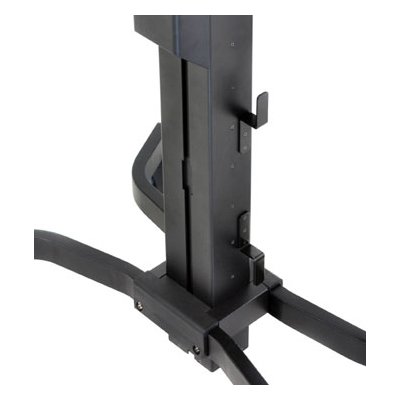

Cable

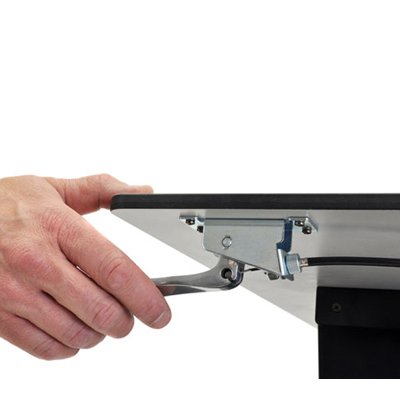

Brake

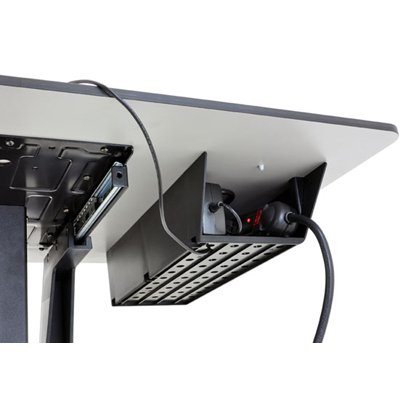

Cable Box
Inused image
Inused image

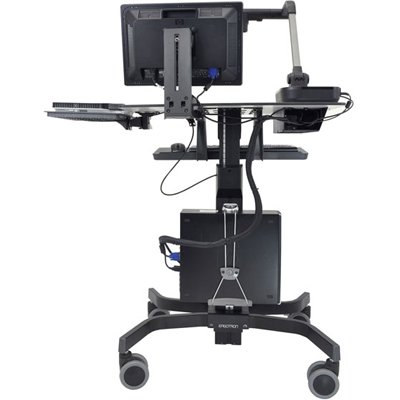

Rear view
Inused image
Ergotron Classroom Cart 24-220-055 TeachWell Digital
Ergotron Classroom Cart 24-220-055 TeachWell Digital
Ergotron Classroom Cart 24-220-055 TeachWell Digital
Ergotron Classroom Cart 24-220-055 TeachWell Digital
Ergotron Classroom Cart 24-220-055 TeachWell Digital
Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with LCD Kit and CPU Holder (sold separately)
Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with Laptop Kit (sold separately)
Ergotron 24-220-055 TeachWell Mobile Digital Workspace MDW with LCD Kit and CPU Holder (sold separately)
Cable
Brake
Cable Box
Inused image
Inused image
Rear view
Inused image

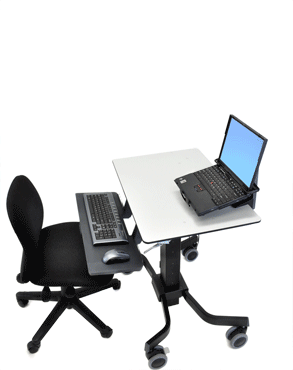

Animation for Ergotron 24-220-055 TeachWell Digital Classroom Cart

Description

Ergotron 24-220-055 compact A/V hub consolidates all your technology tools onto a single mobile classroom cart: laptop or LCD/CPU, keyboard and mouse, portable document camera, projection device and more. Un-tether from a desk or podium and move wherever needed to deliver a collaborative curriculum.

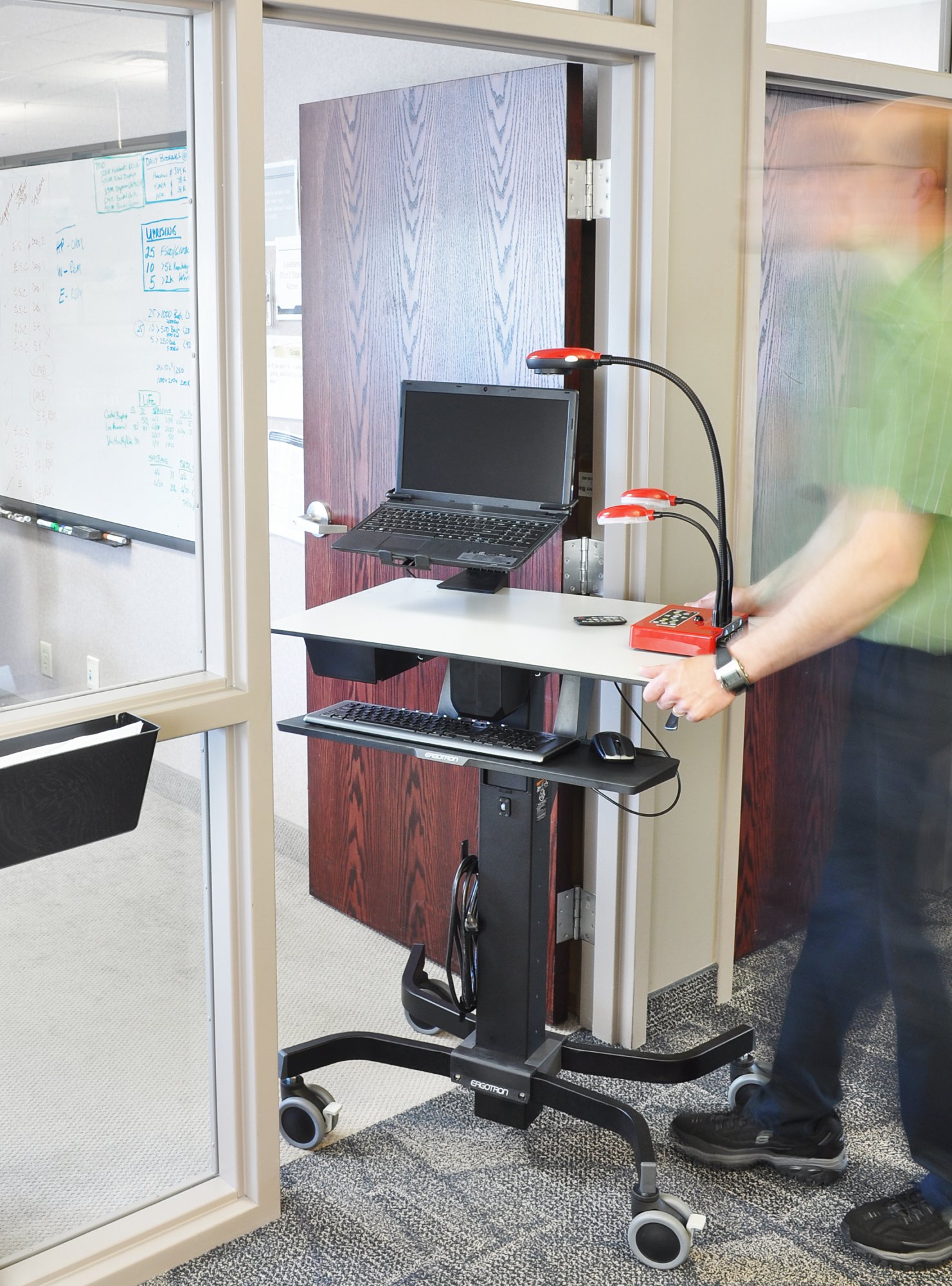

TeachWell easily rolls through aisles, doors and cramped media areas, while its height-adjustable, sit-stand desk platform moves the keyboard, display and worksurface in one simple motion. Change from a sitting to a standing position as you work whenever you want.

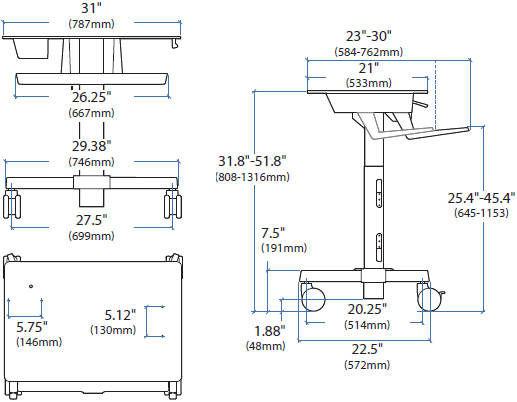

Technical Drawing

Technical Drawing for Ergotron 24-220-055 TeachWell Digital Classroom Cart

Technical Specifications

LCD size Capacity Lift Tilt Pan Rotation VESA
Screen Capacity Lift Tilt Pan Rotation VESA
-

Up to 38.5 lbs

17.5 kg

20"

50.8 cm

- - - -

Product Information

Part Number 24-220-055
Description TeachWell Mobile Digital Workspace (MDW) (graphite grey)
Includes
  • Cart

  • Integrated phenolic worksurface

  • Seamless keyboard/mousing tray

  • Cable management box

  • Cable winding brackets

  • Four dual casters (two locking)

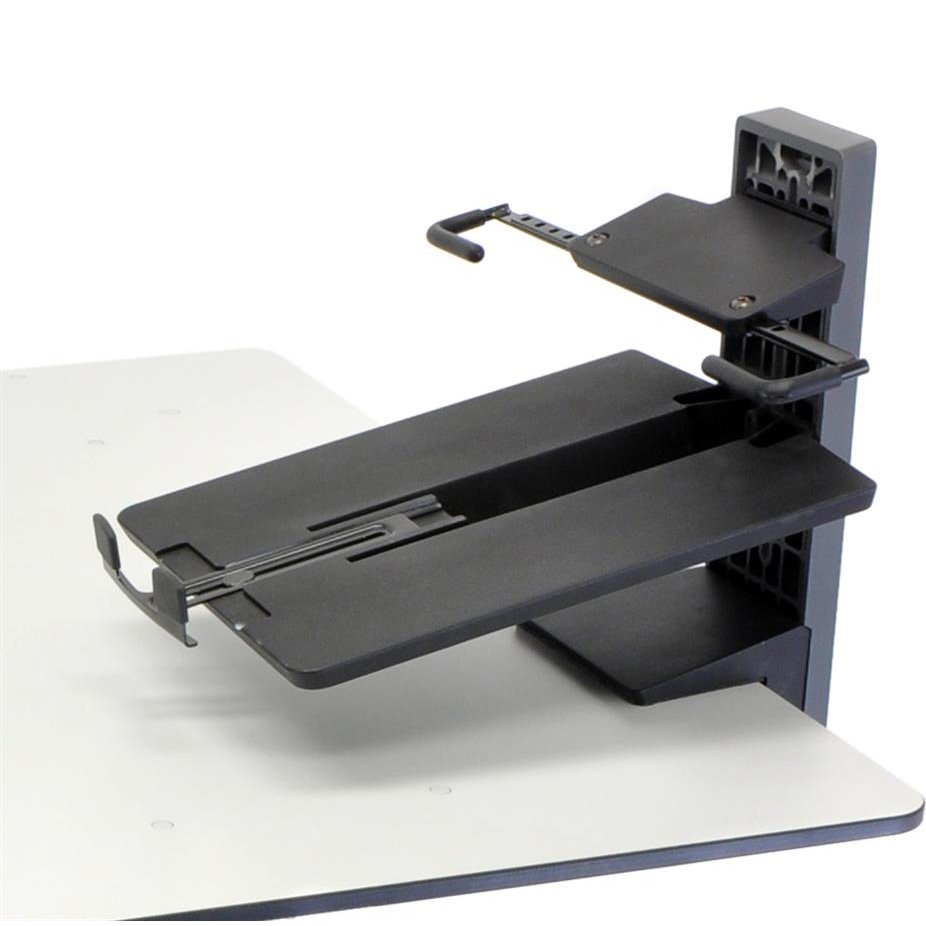

Recommended Accessories TeachWell MDW Laptop Kit 97-585, TeachWell MDW LCD Kit 97-586 (includes Universal CPU holder), TeachWell MDW Projector Shelf 97-598-055
Maximum Load on Height-Adjustment Assembly 38.5 lbs (17.5 kg). When LCD Kit or Laptop Kit is added, this capacity is reduced by 4 lbs (1.6 kg); when Projector Shelf is added, this capacity is reduced by 3.5 lbs (1.6 kg). For example, when a Kit and Shelf are added, the capacity of the cart’s height-adjustment assembly = 31 lbs (14.1 kg)
Lift Range Worksurface/keyboard tray adjusts 20" (51 cm) in tandem. Worksurface height adjustment range: 31.8"–51.8" (80.8–131.6 cm)
Product Dimensions 31"W x 24.1"D x 31.8" to 51.8"H (78.7 x 61.2 x 80.8 to 130.6 cm)
Product Weight 54 lbs (24.5 kg)
Large Worksurface 31"W x 21"D (78.7 x 53.3 cm). Allows space for document camera with viewing area, as well as for books, notes or a writing surface. Constructed of durable phenolic material
Worksurface Includes mounting holes to securely fasten document camera. Contact Ergotron for detailed information about compatible document camera models. Alternatively, an Apple iPad or similar tablet can be used as a document camera when combined with the Neo-Flex Tablet Arm (45-306-101), which easily clamps to the edge of the worksurface
Keyboard Tray 26.3"W x 9.4"D (66.8 x 24.0 cm). Stowable under worksurface. Includes 5° back-tilt to ensure wrists remain in a neutral position during data entry
Cable Management Box, Interior Dimensions 13.4" W x 5.1" D x 3.4" H (34.1 x 12.8 x 8.6 cm)
Wheel-to-Wheel Base Dimensions 28.9" W x 21.0" D (73 x 53 cm)
Accommodates CPUs from 9.4" H x 2.6" D to 13.25" H x 8.5" D (24 x 7 cm to 38 x 22 cm) when optional CPU Holder is deployed
Shipping Dimensions 37.2" x 36.8" x 28.7" (94.5 x 93.5 x 73.0 cm)
Shipping Weight 90 lbs (40.8 kg)
Warranty Five (5) years

Benefits

Flexible solutions that facilitate collaboration

  • Take the headache out of integrating new media and technology into the curriculum by consolidating all the technology tools needed on one small platform

  • Accommodates laptops, tablet PCs, Apple iPad, LCD/CPUs, All-in-One CPUs, portable document cameras/visualisers, DVD players and wireless extenders of choice

  • Works with on-board projectors or remote displays and projection devices

  • Allows for one-hand adjustments of the most popular portable document cameras/visualisers

  • Open architecture platform allows you to truly manage the intersection of IT and AV; cart is scalable for future computer equipment advancements and upgrades

  • Organized technology hub keeps all your teaching materials accessible throughout the class; dual purpose design facilitates the convergence of desk and podium to un-clutter your classroom

  • Optimized footprint utilization in the classroom and reduces total infrastructure investment

  • Eliminate podium, secondary instructor desk and AV cart by organizing and combining them into one efficient and cost-effective hub

  • More collaboration and more engagement in the classroom: Brings your computer up close for one-on-one discussions, or acts as an adjustable podium for student presentations

  • Easily moves through aisles, around desks, over thresholds or through small doorways; ideal for collaborative learning and for shared resources across multiple rooms


Dependable Technology

  • Patented Constant Force technology provides fluid adjustments of keyboard and laptop positions for personalized computing or viewing; work standing or sitting

  • Telescoping lift engine provides height adjustability without blocking the line of sight to the students

  • Cable Management Box provides storage area for one standard six-outlet power strip, two power bricks, and the associated cables

  • Durable, easy-to-clean exterior composed of phenolic, high-grade plastic and powder coated painted steel

  • Four gliding dual casters move smoothly across carpet or flooring; lockable front casters hold unit in place as teaching style requires

  • Offers sit-stand computing capability with proper computing ergonomics for comfortable instruction throughout the day

  • Optional security module - a secure stash spot for teaching tools and personal effects. Also doubles as a shelf for inkjet printers, DVD players, or other equipment

  • Ships fully assembled for quick integration into classroom settings

  • Designed to meet UL standards

Model 24-220-055
Manufacturer Ergotron
Part Number 24-220-055
UPC 698833016444
Color Graphite grey
Weight Capacity 38.5 lbs (17.5 kg). When LCD Kit or Laptop Kit is added, this capacity is reduced by 4 lbs (1.6 kg); when Projector Shelf is added, this capacity is reduced by 3.5 lbs (1.6 kg). For example, when a Kit and Shelf are added, the capacity = 31 lbs (14.1 kg)
Lift (51 cm) 20 in
Dimensions 31"W x 24.1"D x 31.8" to 51.8"H (78.7 x 61.2 x 80.8 to 130.6 cm)
Weight 54 lbs (24.5 kg)
Worksurface Dimensions 31"W x 21"D (78.7 x 53.3 cm)
Keyboard Tray Dimensions 26.3"W x 9.4"D (66.8 x 24.0 cm)
Cable Management Box Interior dimensions = 13.4"W x 5.1"D x 3.4"H (34.1 x 12.8 x 8.6 cm)
Compact Wheel to Wheel Base Dimensions 28.9"W x 21.0"D (73 x 53 cm)
CPU Dimension Accommodates CPUs from 9.4"H x 2.6"D to 13.25"H x 8.5"D (24 x 7 cm to 38 x 22 cm) when optional CPU Holder is deployed
Shipping Dimensions 37.2" x 36.8" x 28.7" (94.5 x 93.5 x 73.0 cm)
Shipping Weight 90 lbs (40.8 kg)
Warranty Five (5) years
Mounting Options Cart
Product Type Laptop
Product Type LCD Monitor
Product Type Tablet
