Humanscale Element 790 Task Light

Product ID 16543
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light

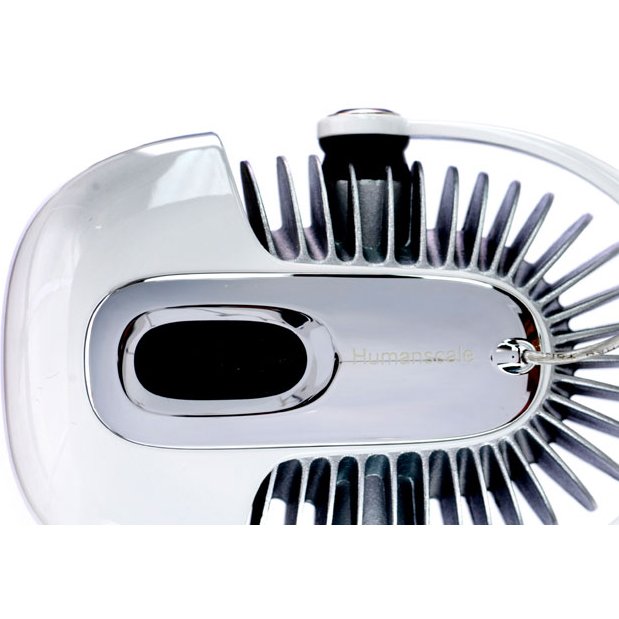

Top view

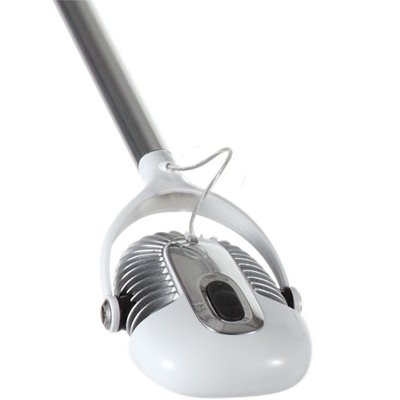

Top view

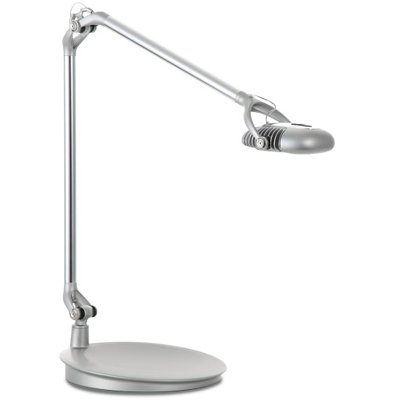

Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light Silver

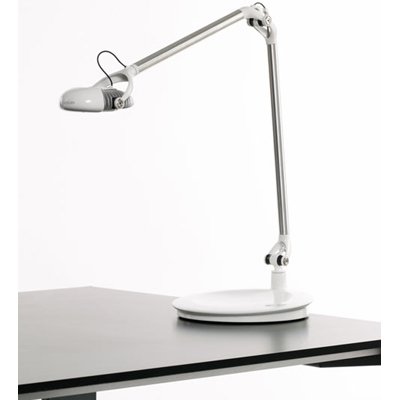

Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White

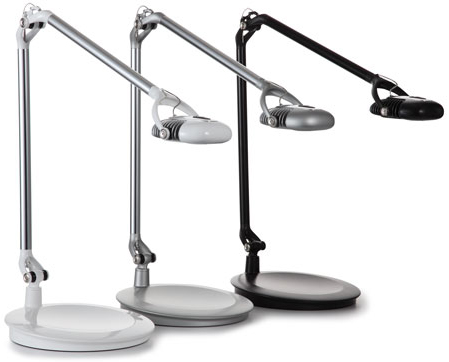

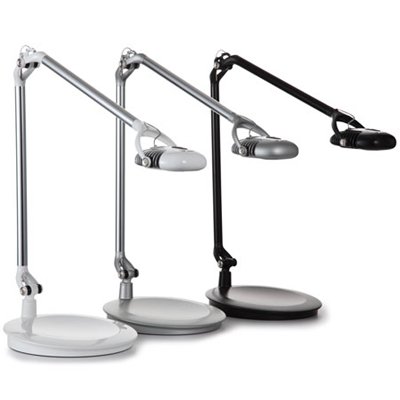

Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer is available in three colors white, silver and black

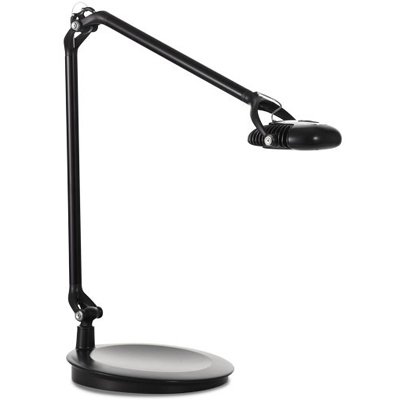

Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light Silver

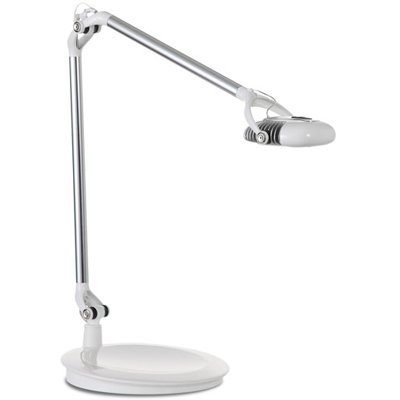

Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White
Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White

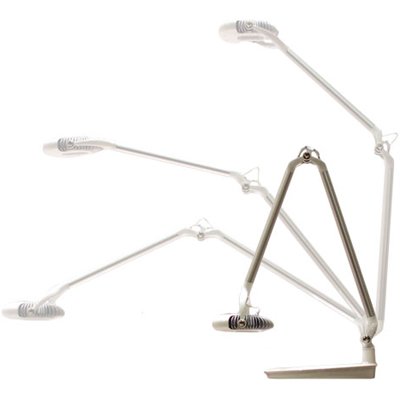

Movement of Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light with Dimmer

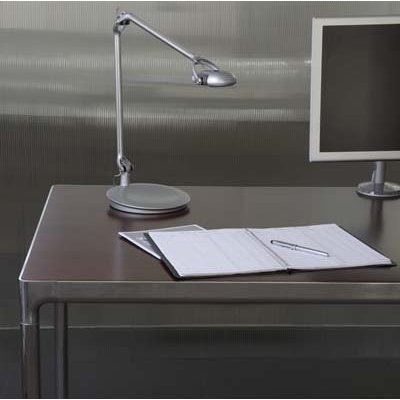

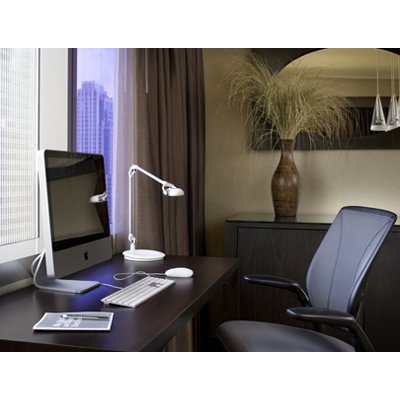

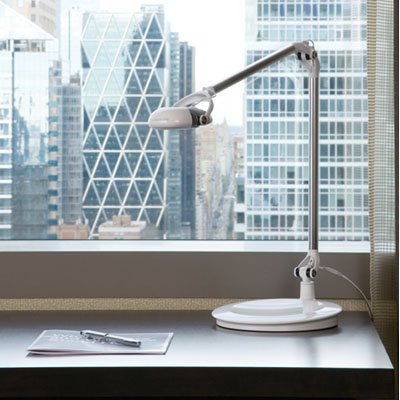

Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light in Desk

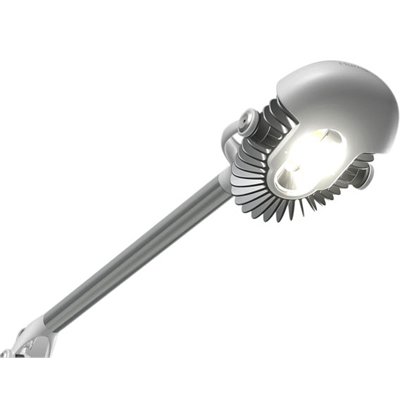

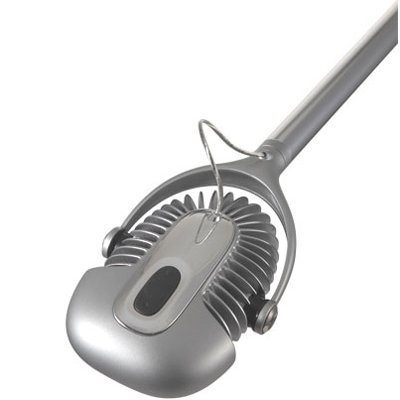

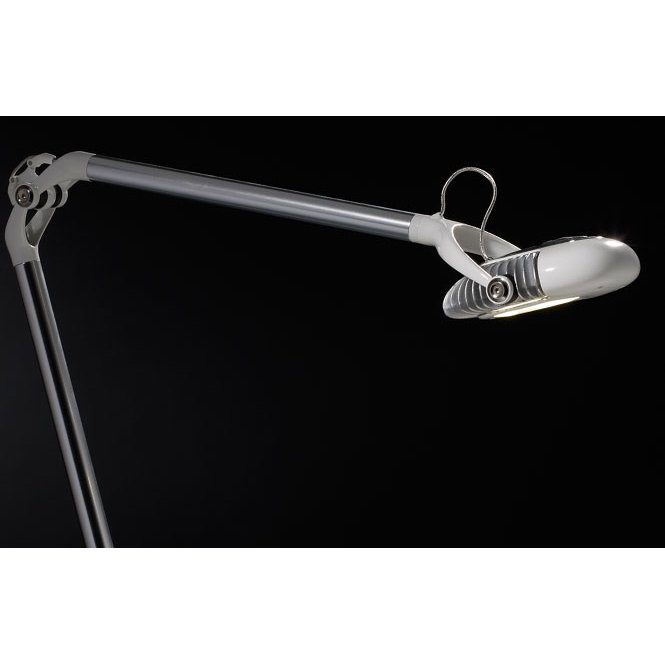

Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light Zoom

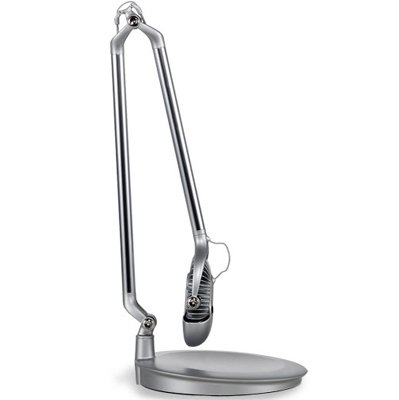

Folded image of Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light with Dimmer
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light
Humanscale Element 790 Task Light
Top view
Top view
Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light Silver
Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White
Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer is available in three colors white, silver and black
Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light Silver
Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White
Installation of Humanscale Element 790 - 7 Watt Hi-Output MCX LED Light with Dimmer Ergonomic Task Light White
Movement of Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light with Dimmer
Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light in Desk
Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light Zoom
Folded image of Humanscale Element 790 Hi-Output 5 Watt MCX LED Task Light with Dimmer

Description

Humanscale Element 790 task light is Humanscale’s response to the need for intelligent workspace lighting. Intuitive and flexible, the Element 790 combines high performance ergonomic design with 360 degrees of adjustability and unprecedented functionality in LED task lamps. A revolutionary task light, the Element 790 delivers the equivalent of light from a 90W incandescent using less than 7W of power.

Featuring advanced MCX LED Technology, the Element 790 light provides exceptional performance in a classic, award winning design. The Element 790's innovative ergonomic design and high-performance illumination with a seven-level dimmer for enhanced user control and energy savings.

Design Story - The Humanscale Design Studio developed the Element 790 as a revolutionary task light for the modern work environment. The first task light series to employ groundbreaking MCX LED Technology, the team sought to build advanced lighting solutions with beautiful, heat-dispersing designs for a unique, modern aesthetic.



Technical Drawing

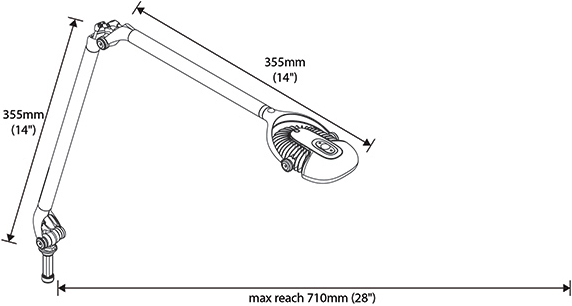

Technical drawing for Humanscale Element 790 Task Light



Features

  • Focused Illumination - Providing high performance in an adjustable LED task light, the Element 790 uses a single light source that casts just one shadow. Through the use of MCX LED Technology, the the light produces a large footprint of neutral light (3500K) and superb color quality (CRI 85).

  • Innovative Efficiency - Element 790 feature a unique, heat sink design to maximize light output and increase the light’s usable life. An internal counterbalance provides effortless, one-touch positioning for comfort and complete ease of use.
  • Endless Adjustability - Element 790 comes in a variety of finishes, with 20 mounting options available to tailor it to any work environment. Element 790 is also dimmable to allow for optimal light settings. A universal power supply and interchangeable plug options accommodate global power outlets.

  • Intuitive dimmer switch controls 7 levels of adjustable illumination for extra energy savings and control



Specifications

Finish Options

Silver, White with Silver accents, Black

Power Consumption

5 watts (0.5 watts in lowest setting)

Color Temperature

3500K

Lifespan

Up to 50,000 hours (L70)

Certification

ETL, CB certified

Compliant

RoHS/WEEE compliant

Maximum Reach

710 mm (28")

Working Height

455 mm (18")

Rotation and Tilt

  • 360° swivel from base
  • 135° front-to-back head tilt
  • 90° side-to-side head rotation

LED Credits

May contribute to valuable LEED credits

Warranty

10 year, 24/7





Option 1: Color



Element 790 is available in Arctic White (high-gloss), Silver (semi-matte) and Jet Black (semi-matte).

Humanscale Element 790 ED Hi-Output 7 Watt MCX LED Task Light with Dimmer





Option 2: Mount Style

C Clamp Mount

C Clamp - For grommet or edge mount. Fits surfaces up to 2" thick and grommet holes 2" or more in diameter

G Clamp with Grommet Cover

G Clamp with Grommet Cover - For grommet holes 2"-3.25" in diameter

B Element Desktop Base

B Element Desktop Base - 8" diameter





Humanscale LED Task Light Comparison

Element 790

Element Vision

Element Disc

Horizon

Light Output (Lumens)

250

215

315

320

Light Quality (CRI)

85

88

83

80

Energy Consumption (Watts)

5

7

7

9

Efficiency (Lumens/Watt)

50

31

45

36

Color Temperature

3500K

3000K

3000K

3000K

Dimming

Yes

Yes

Yes

Yes

PIR Motion Detector

No

Yes

Yes

No

Colors

S, B, W

S, B, W

S, W

S, B, W

Mount Options

20

20

20

Preliminary Data

Base Only





Product Options/Accessories

Model Element 790
Manufacturer Humanscale
Part Number Element 790 ED
Mounting Options Desk Mounts
Color Silver, White with Silver accents, Black
Power Consumption 5 watts (0.5 watts in lowest setting)
Color Temperature 3500K
Lifespan Up to 50,000 hours (L70)
Maximum Reach 28"
Height Working Height: 18
Swivel 360° from base
Tilt 135 degree
Rotation 90 degree
Warranty 10 year, 24/7
