Chief PPCU F Video Conferencing and Presenters Cart (42-61")

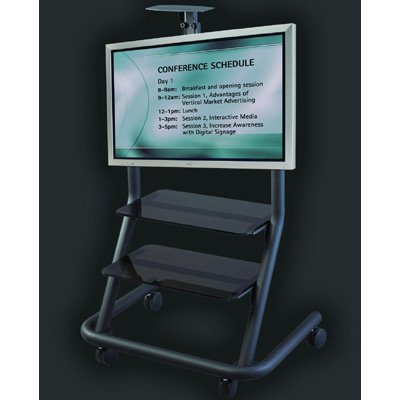

Video Conferencing and Presenters Cart for 42" to 61" Displays. PAS100 Accessory Shelf shown with this below image is not included with PPCU. Shelf accessory must be ordered separately.
More shipping >
Description

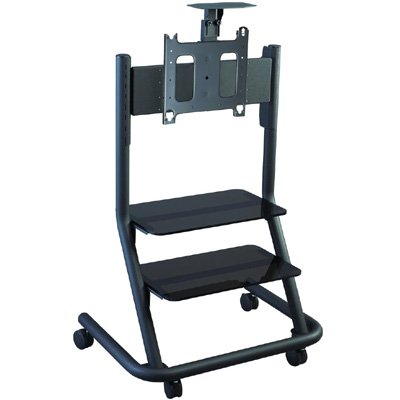

Chief PPCU mount is designed specifically for presentations to provide mobile video conferencing and a streamlined solution.
Shelf accessory must be ordered separately, PAS100 Accessory Shelf shown
Camera shelf must also be ordered separately. Please see Accessories tab for model numbers
Technical Drawing
PSBU
Specifications
|
Center of Display to Floor/Table Range |
47.68 - 55.68" (1211 - 1414mm) |
|
Color |
Black |
|
Manual Height Adjustment |
8" |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
64.6" x 42.4" x 29.8" (1642 x 1076 x 756mm) |
|
Shipping Weight |
111.00 lbs |
|
Solution Type |
Universal |
|
Typical Screen Sizes |
42 - 61" |
|
Weight Capacity |
200 lbs (90.7kg) |
Features
- Presenter-friendly base reduces trip hazards
- Adjustable display height
- Integrated cable management
- Includes four 4" swivel casters, two with total-lock brakes
- Exclusive Q-Latch Mounting System secures the flat panel display with a lockable latch
- Screen can be installed in portrait or landscape orientation ( PAC400 accessory can be used to rotate without removing the screen)
- PAC140 Q-Clamp Accessory included
Product Options/Accessories
Frequently Asked Questions
The PPC is for a single display of up to 65". The PPD is used for 2 side by side 42" displays.
Yes. Cabling from equipment on the optional shelves to the display can be routed through the side uprights.
Four sets of shelf mounting holes at 6" intervals.
Yes, the casters are removable. Order the PTCLF accessory, which includes a set of four heavy-duty 3" diameter leveling feet.
Only for non-universal versions, find the make and model of your Large Flat Panel Display in the cross-reference chart.
| Model | PPCU |
| Manufacturer | Chief Mounts |
| Part Number | PPCU |
| UPC | 841872098388 |
| Center of Display to Floor/Table Range | 47.68 - 55.68" (1211 - 1414mm) |
| Color | Black |
| Manual Height Adjustment | 8" |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 64.6" x 42.4" x 29.8" (1642 x 1076 x 756mm) |
| Shipping Weight | 111.00 lbs |
| Monitor Size | 42 - 61" |
| Weight Capacity | 200 lbs (90.7kg) |
| Mounting Options | Cart |
