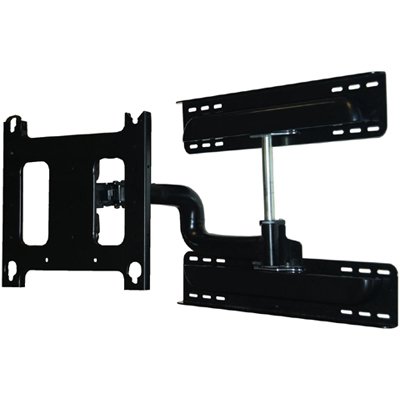

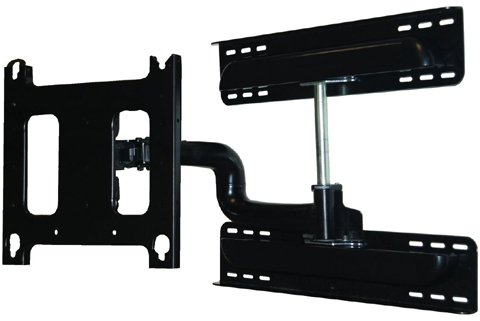

Chief PWRSKUB Large Steel Stud Wall Mount- 25" Extension
Steel Stud Full Swing Arm Wall Mount for 42" to 65" Displays
More shipping >
Description
Chief PWRSK safely integrates swing arm mounting technology into steel stud installations.

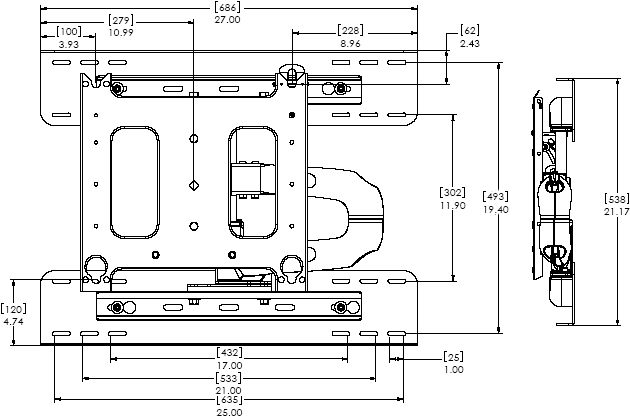

Technical Drawing
Specifications
|
Color |
Black |
|
Lateral Shift |
12" (304.8mm) |
|
Maximum Extension |
24.88" (632.mm) |
|
Minimum Depth |
3.38" (85.9mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
200 x 200mm - 862 x 517mm |
|
Notes |
Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
21.2" x 27.0" x 3.5" (538 x 686 x 89mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
62.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 5°, - 15° |
|
Typical Screen Sizes |
37 - 55" |
|
Wall Stud Compatibility (inches) |
Metal Studs, 16", 24" |
|
Weight Capacity |
100 lbs (45.4kg) |
Features
- Fully assembled PWR arm with steel stud wall extensions
- Q-Latch Mounting System secures the flat panel to the mount with a latching flag
- All mounting hardware included
- Mounts to 16"/20"/24" on-center steel stud systems
- Centris fingertip tilt control
- Integrated cable management for a clean installation
- Extends 25" from the wall for maximum viewing flexibility
Product Options/Accessories
| Model | PWRSKUB |
| Manufacturer | Chief Mounts |
| Part Number | PWRSKUB |
| UPC | 841872104058 |
| Color | Black |
| Lateral Shift | 12" (304.8mm) |
| Maximum Extension | 24.88" (632.mm) |
| Minimum Depth | 3.38" (85.9mm) |
| Mounting Pattern | 200 x 200mm - 862 x 517mm |
| Overall Dimensions | 21.2" x 27.0" x 3.5" (538 x 686 x 89mm) |
| Shipping Weight | 62.00 lbs |
| Tilt | + 5, - 15 degree |
| Monitor Size | 37 - 55" |
| Wall Stud | Metal Studs, 16", 24" |
| Weight Capacity | 100 lbs (45.4kg) |
| Mounting Options | Wall |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
