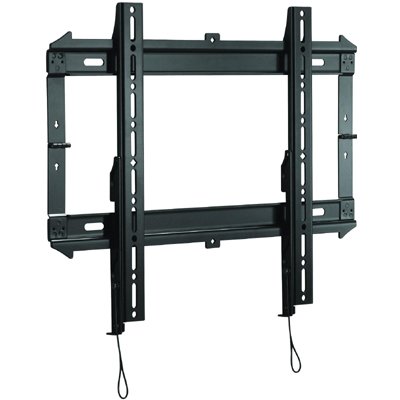

Chief RMF2 Low Profile Medium Hinged Fixed Wall Mount
Description
Chief RMF2 fixed wall display mount features a unique hinged design and low-profile depth.

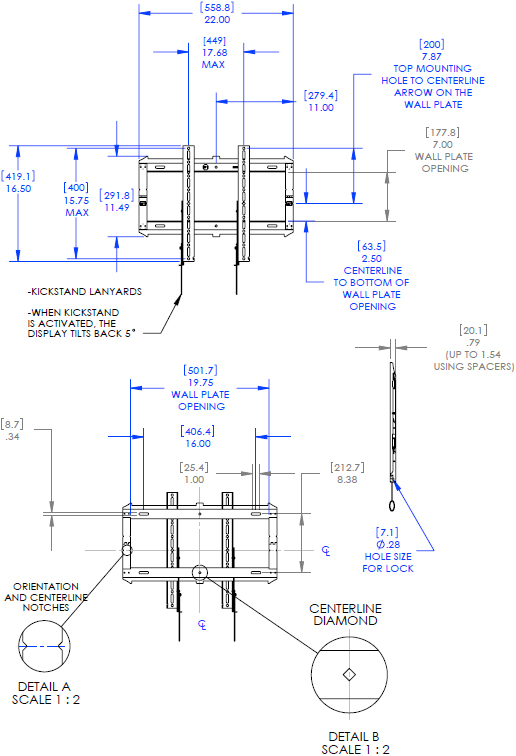

Technical Drawing
Specifications
| Certifications | TÜV Certified, UL Listed |
| Color | Black |
| Lateral Shift | Depends on mounting pattern of screen |
| Minimum Depth | 0.79" (20.1mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm - 445 x 400mm |
| Overall Dimensions (H x W x D) | 16.5" x 22.0" x 0.8" (419 x 559 x 20mm) |
| Shipping Weight | 11.25 lbs (5.1 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape, Portrait |
Features
Hinged design reduces packaging material
Wide open wall plate allows for easy cable routing and connection
GlideLock with Kickstand secures TV to wall plate without tools and includes kickstand for easy cable connection
Optional storage box provides a clean installation (PAC522, PAC521P)
| Model | RMF2 |
| Manufacturer | Chief Mounts |
| Part Number | RMF2 |
| UPC | 841872141077 |
| Color | Black |
| Minimum Depth | 0.79" (20.1mm) |
| Mounting Pattern | 100 x 100mm - 445 x 400mm |
| Overall Dimensions | 16.5" x 22.0" x 0.8" (419 x 559 x 20mm) |
| Shipping Weight | 11.25 lbs (5.1 kg) |
| Monitor Size | 32 - 65" |
| Wall Stud | 16" (406 mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Mounting Options | Fixed Wall |
| Orientation | Landscape, Portrait |
