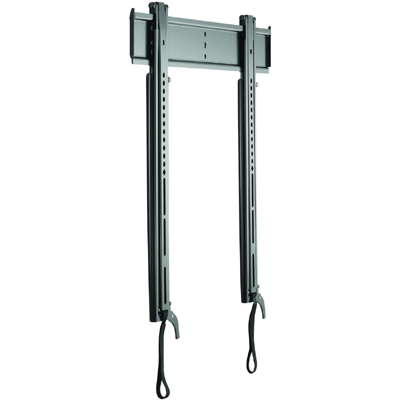

Chief MSTU Medium Thinstall Ultra-Thin Fixed Wall Display Mount
Due to the low-profile design, it is recommended using an in-wall accessory box PAC525 to assist in outlet installation.
Description
Chief MSTU is the industry's first medium-sized ultra-thin flat panel wall display mount at less than the width of a penny.

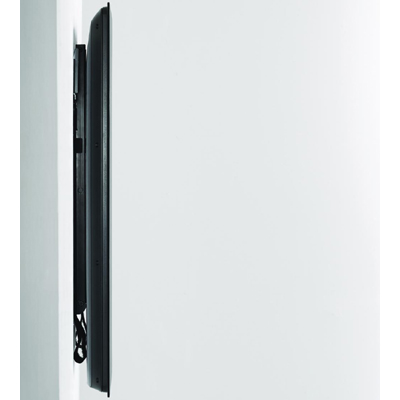

- Low-profile design compliments the new ultra-thin flat panel TVs

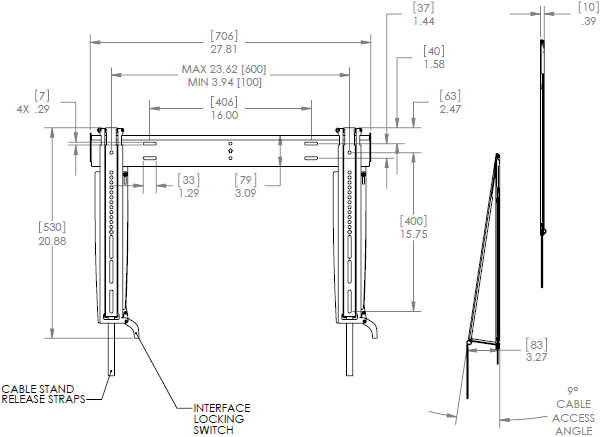

Technical Drawing
Specifications
| Certifications | UL Listed |
| Color | Black |
| Lateral Shift | Depends on mounting pattern of screen |
| Minimum Depth | 0.39" (9.9mm) |
| Mounting Pattern Compatibility (Universal Versions) | 100 x 100mm - 600 x 400mm |
| Overall Dimensions (H x W x D) | 20.9" x 27.8" x 0.4" (530 x 706 x 10mm) |
| Shipping Weight | 9.65 lbs (4.38 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | 16" (406 mm) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
Less than the width of a penny
GlideLock provides tool-less latching for faster installation
Provides lateral shift for increased flexibility

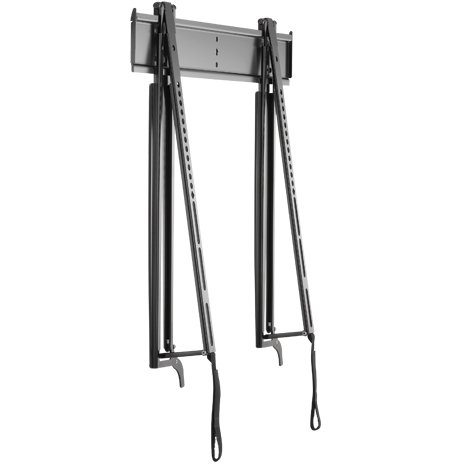

Features a cable stand and bottom pullout for cable access

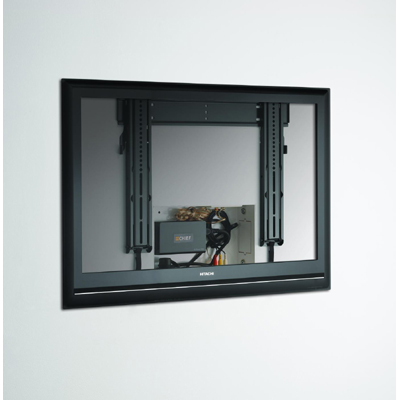

Open wall plates allows for easy electrical placement
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
Product Options/Accessories
| Model | MSTU |
| Manufacturer | Chief Mounts |
| Part Number | MSTU |
| UPC | 841872117249 |
| Color | Black |
| Minimum Depth | 0.39" (9.9mm) |
| Mounting Pattern | 100 x 100mm - 600 x 400mm |
| Overall Dimensions | 20.9" x 27.8" x 0.4" (530 x 706 x 10mm) |
| Shipping Weight | 9.65 lbs (4.38 kg) |
| Monitor Size | 32 - 65" |
| Wall Stud | 16" (406 mm) |
| Weight Capacity | 125 lbs (56.7kg) |
| Orientation | Landscape |
| Mounting Options | Fixed Wall |
