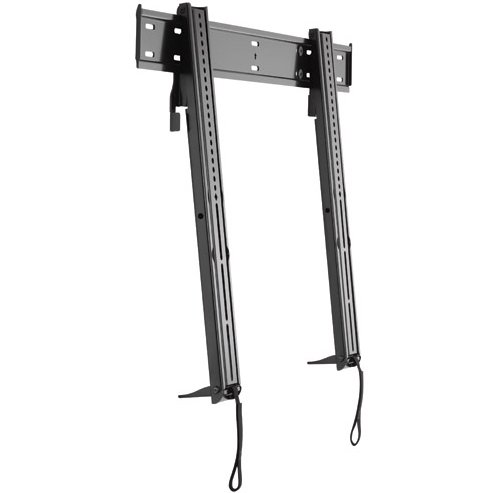

Chief LTTU Large Thinstall Ultra-Thin Tilt Wall Mount (32-65")
Due to the low-profile design, it is recommended using an in-wall accessory box PAC525 to assist in outlet installation.
Description
One of the worlds thinnest universal tilt wall mount.

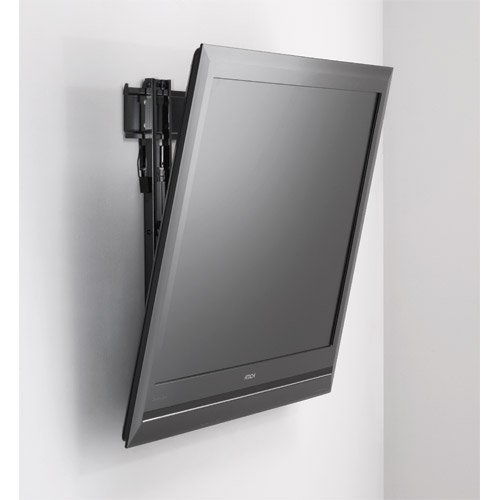

Low-profile design complements the new ultra-thin flat panel TVs
Only compatible with new ultra-thin TVs 2" (51 mm) deep or less

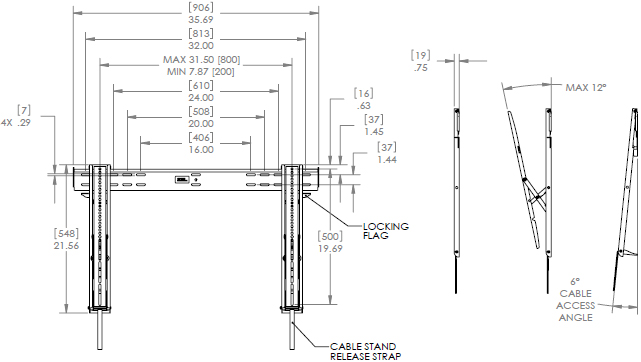

Technical Drawing
Specifications
| Certifications | UL Listed |
| Color | Black |
| Lateral Shift | Depends on mounting pattern of screen |
| Maximum Screen Thickness | 2" (51 mm) |
| Minimum Depth | 0.75" (19.1mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 800 x 500mm |
| Number of Monitors | 1 |
| Shipping Weight | 14.9 lbs (6.76 kg) |
| Solution Type | Universal |
| Tilt | + 0°, - 12° |
| Typical Screen Sizes | 32 - 65" |
| Wall Stud Compatibility In | 16", 20", 24" |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Landscape |
Features
Designed specifically for and only compatible with new ultra-thin TVs 2" (51 mm) deep or less
Ultra low-profile design compliments ultra-thin flat panel TVs

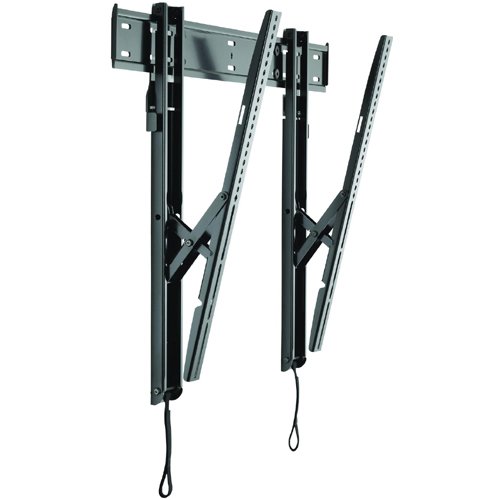

Provides 12° of smooth, fingertip tilt
GlideLock provides tool-less latching for faster installation
Consists of one-piece steel bracket with two tilting interfaces
Each interface includes a sliding flag for increased security
Features a cable stand and bottom pullout for cable access
Provides lateral shift for increased flexibility
Can be installed in landscape mode only
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
Product Options/Accessories
| Model | LTTU |
| Manufacturer | Chief Mounts |
| Part Number | LTTU |
| UPC | 841872117218 |
| Color | Black |
| Maximum Screen Thickness | 2" (51 mm) |
| Minimum Depth | 0.75" (19.1mm) |
| Mounting Pattern | 200 x 200mm - 800 x 500mm |
| Overall Dimensions | 21.6" x 35.7" x 0.8" (548 x 907 x 19mm) |
| Shipping Weight | 14.9 lbs (6.76 kg) |
| Tilt | + 0, - 12 degree |
| Monitor Size | 32 - 65" |
| Wall Stud | 16", 20", 24" |
| Weight Capacity | 100 lbs (45.4 kg) |
| Orientation | Landscape |
| Number of Monitors | 1 Monitor |
| Mounting Options | Wall |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
