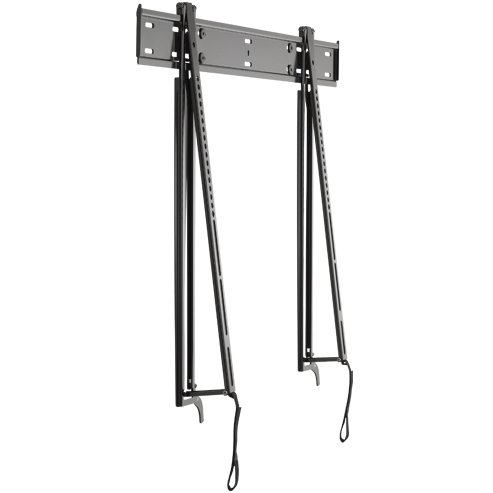

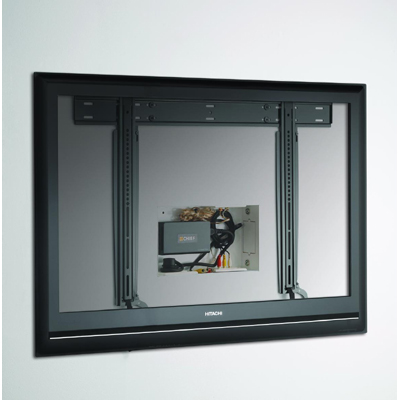

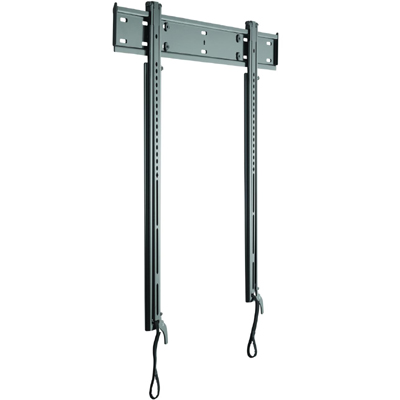

Chief LSTU Large Thinstall Ultra-Thin Fixed Wall Display Mount
Due to the low-profile design, it is recommended using an in-wall accessory box PAC525 to assist in outlet installation.
More shipping >
Description
The industry's first large ultra-thin flat panel wall display mount at less than the width of a penny. Landscape Only
- Low-profile design compliments the new ultra-thin flat panel TVs

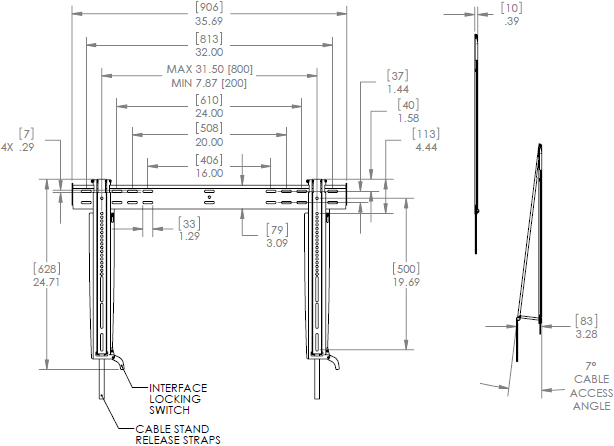

Technical Drawing
Specifications
| Certifications | UL Listed |
| Color | Black |
| Lateral Shift | Depends on mounting pattern of screen |
| Minimum Depth | 0.39" (9.9mm) |
| Mounting Pattern Compatibility (Universal Versions) | 200 x 200mm - 800 x 500mm |
| Overall Dimensions (H x W x D) | 24.7" x 35.7" x 0.4" (628 x 907 x 10mm) |
| Shipping Weight | 11.5 lbs (5.22 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 42 - 86" |
| Wall Stud Compatibility In | 16", 20", 24" |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
Features
Less than the width of a penny
GlideLock provides tool-less latching for faster installation
Provides lateral shift for increased flexibility
Features a cable stand and bottom pullout for cable access
Open wall plates allows for easy electrical placement
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
Product Options/Accessories
Frequently Asked Questions
| Model | LSTU |
| Manufacturer | Chief Mounts |
| Part Number | LSTU |
| UPC | 841872117225 |
| Color | Black |
| Minimum Depth | 0.39" (9.9mm) |
| Mounting Pattern | 200 x 200mm - 800 x 500mm |
| Overall Dimensions | 24.7" x 35.7" x 0.4" (628 x 907 x 10mm) |
| Shipping Weight | 11.5 lbs (5.22 kg) |
| Monitor Size | 42 - 86" |
| Wall Stud | 16", 20", 24" |
| Weight Capacity | 125 lbs (56.7 kg) |
| Orientation | Landscape |
| Mounting Options | Fixed Wall |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
