Chief MWRIW Series Medium In-Wall Swing Arm Mount- 22" Extension
Additional MSB6015 or MSB6243 custom Interface Bracket required for MWRIW6000B. Must order the PAC501B In-Wall Accessory separately.
Related Products
|
Part Number |
Description |
|
MWRIWUB |
Black Universal In-Wall Swing Arm Wall Mount for 30 to 50" Displays |
|
MWRIW6000B |
Black Flat Panel In-Wall Swing Arm Wall Mount for 30 to 50" Displays |
Description

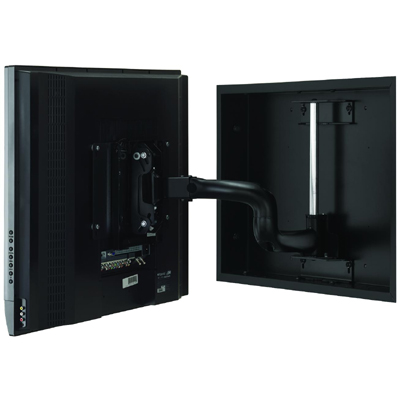

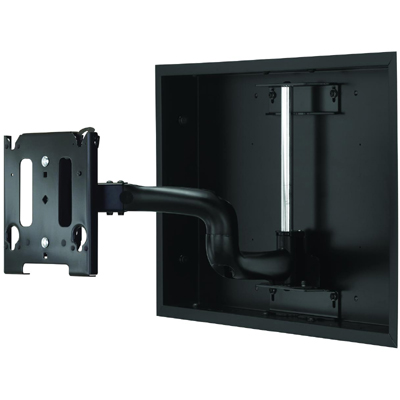

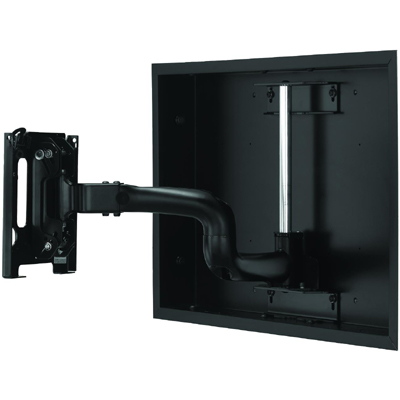

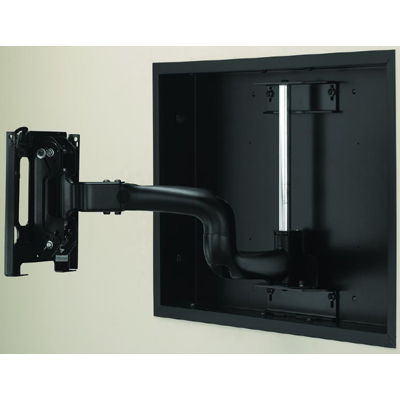

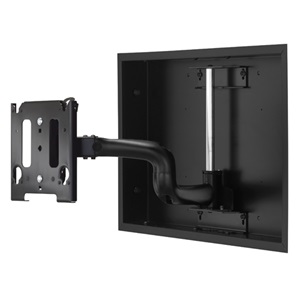

Chief MWRIW is an in-wall swing arm designed to create a low-profile installation.
Must order the PAC501B In-Wall Accessory separately

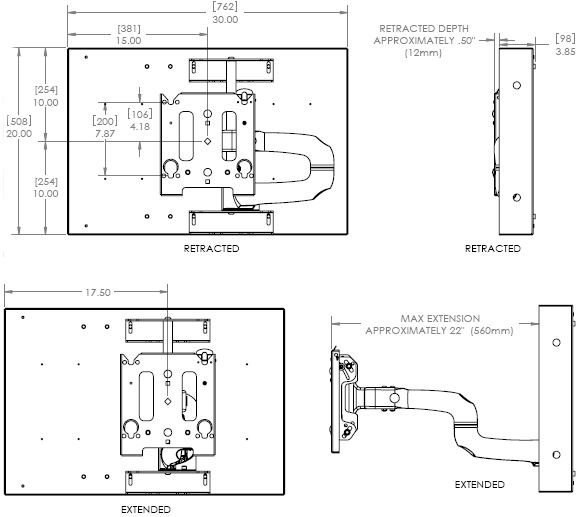

Technical Drawing
MSB-6015
Specifications
|
Color |
Black |
|
Maximum Extension |
22" (558.8mm) |
|
Minimum Depth |
0.5" (12.7mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
MWRIWUB: 100 x 100mm - 709 x 431mm |
|
Notes |
Requires PAC501B. PACHFK1 available. Depth and Extension do no include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
20.0" x 30.0" x 4.5" (508 x 762 x 114mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
MWRIW6000B: 31.35 lbs, MWRIWUB: 41.10 lbs |
|

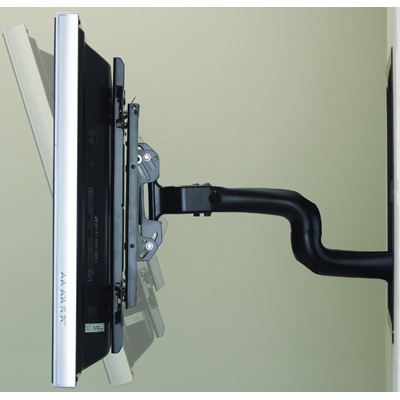

Tilt |
+ 2°, - 15° |
|
Typical Screen Sizes |
30 - 55" |
|
Wall Stud Compatibility (inches) |
16" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Ships fully assembled to save on installation time
- Easily installs into PAC501B to create an ultra low profile installation

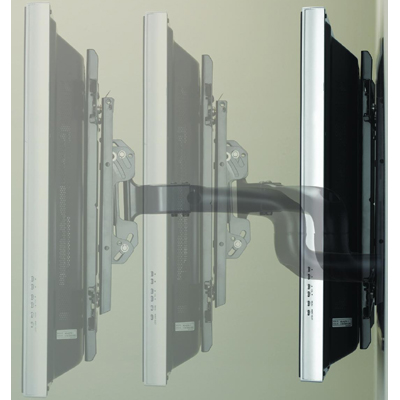

- Extends over 22" (569 mm) for viewing from any angle
- NOTE: Must order PAC501B In-Wall Accessory separately. MWRIWUB ships with MSBUB universal interface bracket. MWRIW6000B requires MSB interface separately
Product Options/Accessories
| Model | MWRIWUB, MWRIW6000B |
| Manufacturer | Chief Mounts |
| Part Number | MWRIWUB or MWRIW6000B |
| UPC | 841872109251 |
| Weight | lb(s) |
| Mounting Options | In-Wall |
| Color | Black |
| Maximum Extension | 22" (558.8mm) |
| Minimum Depth | 0.5" (12.7mm) |
| Overall Dimensions | 20.0" x 30.0" x 4.5" (508 x 762 x 114mm) |
| Shipping Weight | MWRIW6000B: 31.35 lbs, MWRIWUB: 41.10 lbs |
| Tilt | + 2, - 15 degree |
| Monitor Size | 30 - 55" |
| Wall Stud | 16" |
| Weight Capacity | 125 lbs (56.7kg) |
| Mounting Pattern | MWRIWUB: 100 x 100mm - 709 x 431mm |
