Chief MF16000 Medium Display Floor Stand (without interface)
Additional MSB6015 or MSB6243 Custom Interface Bracket required.
More shipping >
Related Products
|
Part Number |
Description |
|
MF16000B |
Black Flat Panel Single Display Floor Stand for 30 to 55" Displays |
|
MF16000S |
Silver Single Display Floor TV Stand for 30 to 55" Flat Panel Displays |
Description

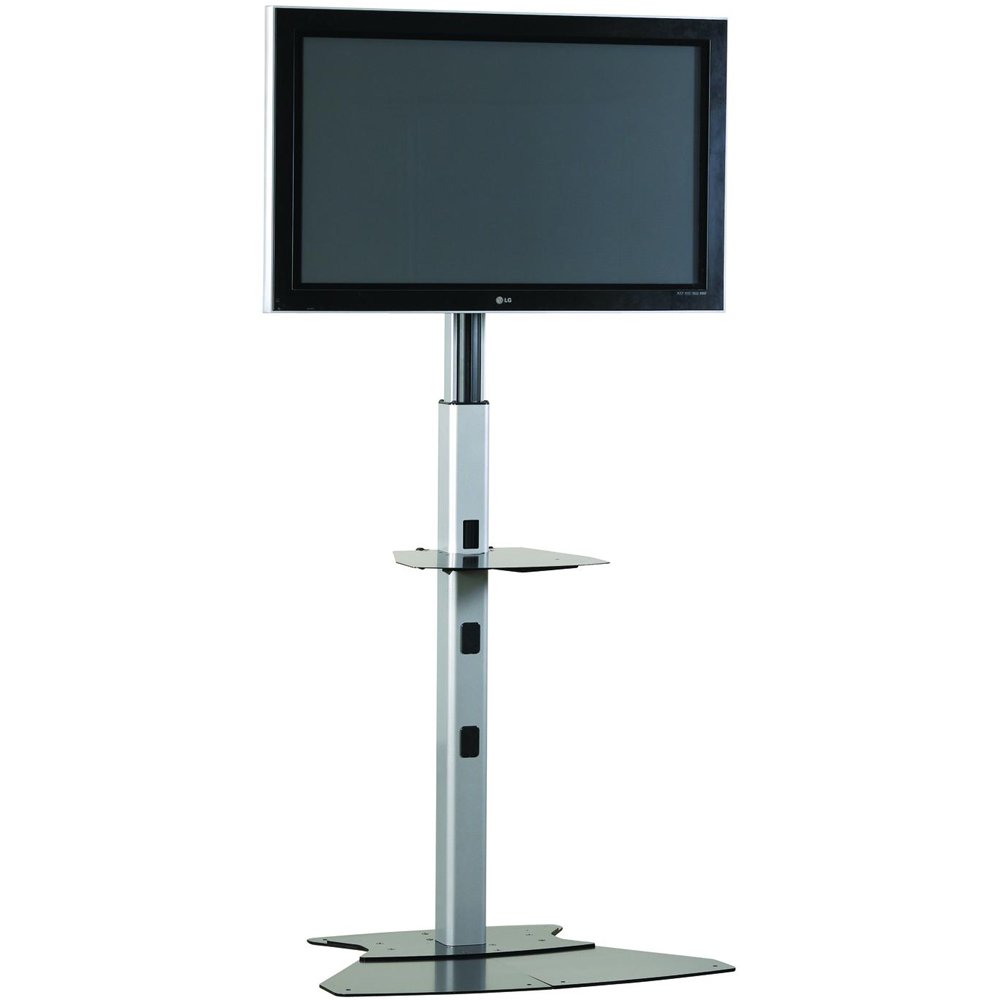

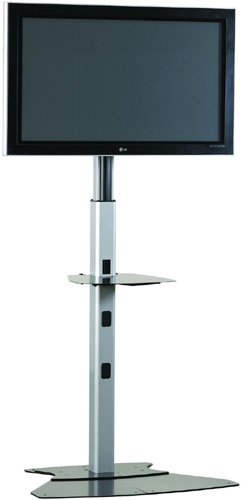

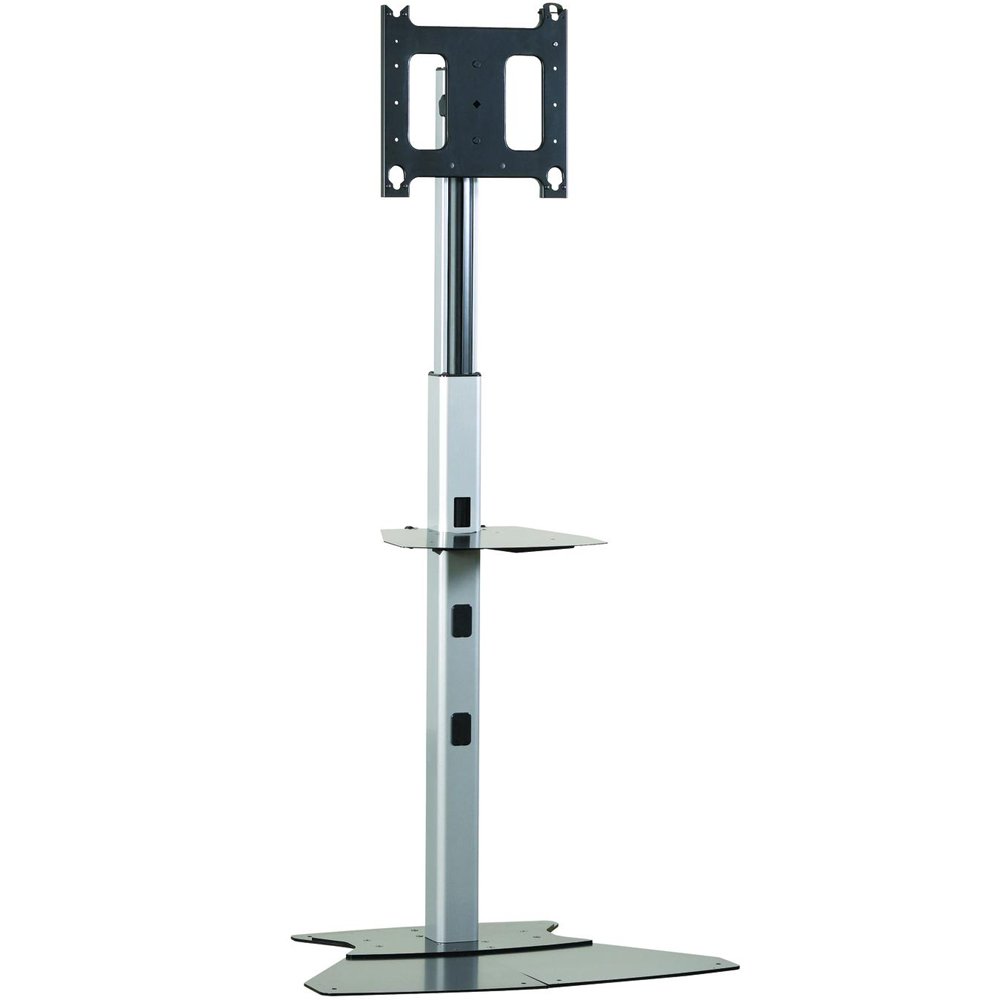

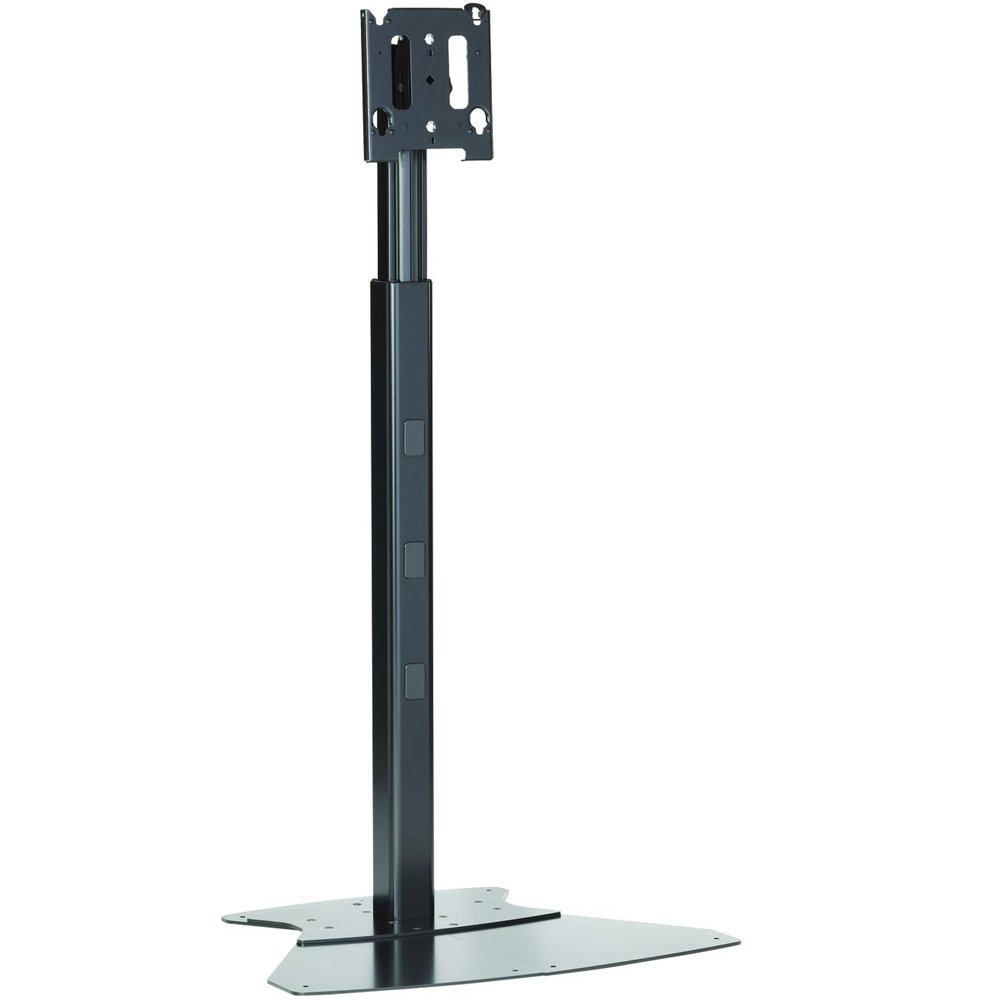

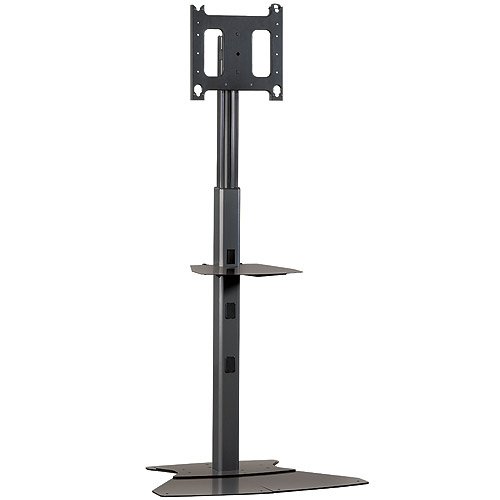

Chief MF16000 is a solid, low-profile solution for mounting a flat panel on a floor AV stand.
Ideal for digital signage and corporate presentations
MF1UB and MF1US ship with a universal interface bracket
MF16000B and MF162000S require an MSB interface to be purchased separately
PAC710 height-adjustable accessory shelf shown is sold separately
Technical Drawing
MSB-6015
Specifications
|
Center of Display to Floor/Table Range |
50.75 - 84.75" (1289 - 2153mm) |
|
Color |
Black, Silver |
|
Manual Height Adjustment |
34" |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 709 x 431mm |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
91.6" x 36.0" x 30.0" (2327 x 914 x 762mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
137.00 lbs |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
30 - 55" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Centris Technology provides effortless, fingertip tilt
- Screen angle stays set in place until you decide to re-adjust

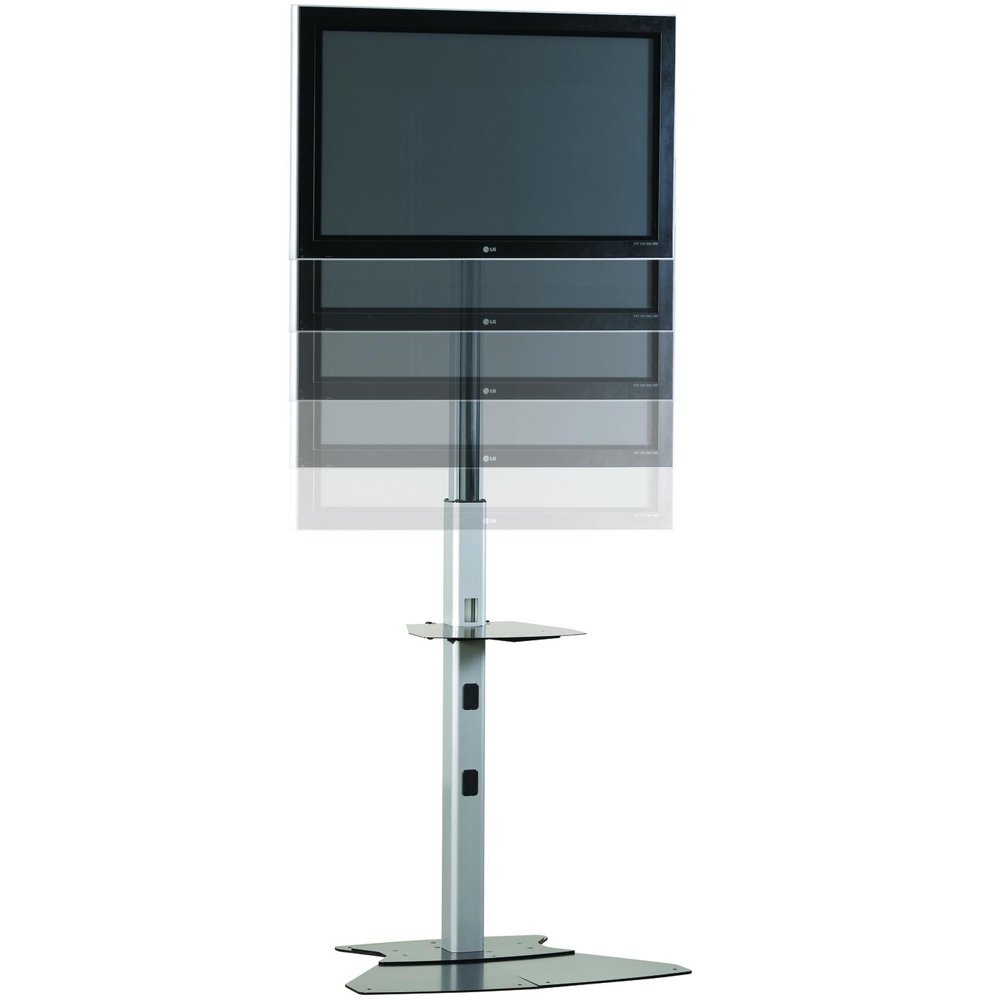

- Provides telescoping height adjustment (2" increments) without tools
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect without tools
- Includes integrated security with the addition of a padlock
- Screen can be installed in portrait or landscape orientation (MAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
- Flat, angled base makes corner positioning easy
Product Options/Accessories
Frequently Asked Questions
Yes. Up to three PAC710 height-adjustable shelves can be used with the floor stand (must be ordered separately).
No. The PAC700 travel case is designed specifically for the Chief mobile carts and does not correctly support the floor stands.
The MF1UB & MF1US both ship with a universal interface bracket, please see MountFinder to ensure your screen is compatible. The MF16000B and MF16000S require an MSB interface bracket to be purchased separately. Please see MountFinder to find the correct MSB interface bracket for your screen.
| Model | MF16000B, MF16000S |
| Manufacturer | Chief Mounts |
| Part Number | MF16000B or MF16000S |
| UPC | 841872105833 |
| Weight | lb(s) |
| Center of Display to Floor/Table Range | 50.75 - 84.75" (1289 - 2153mm) |
| Color | Black, Silver |
| Manual Height Adjustment | 34" |
| Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Overall Dimensions | 91.6" x 36.0" x 30.0" (2327 x 914 x 762mm) |
| Shipping Weight | 137.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 30 - 55" |
| Weight Capacity | 125 lbs (56.7kg) |
| Mounting Options | Floor Stand |
