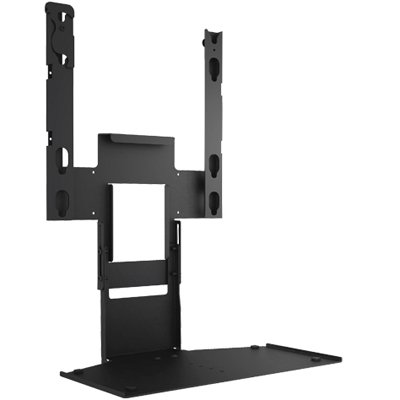

Chief PACCS1 Large Shelf Accessory
Description
Use Chief PACCS1 to install AV components below a flat panel when using Chief Swing Arm and Ceiling mounts. Designed to accommodate Chief's 200mm x 200mm and 14" x 14" Q-latch mounting systems.

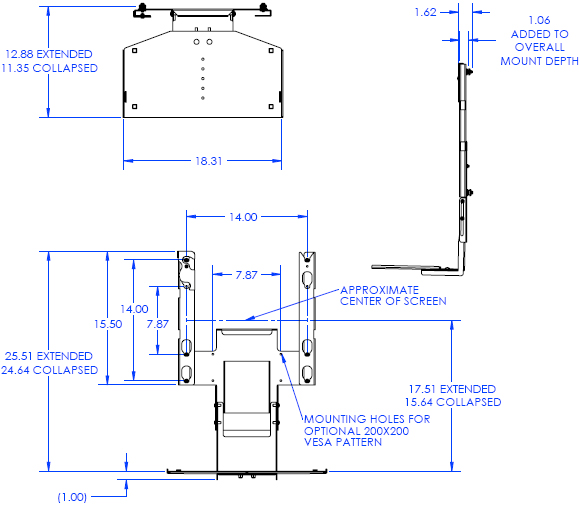

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
15 lbs (6.8kg) |
|
Notes |
TAA Compliant |
|
Overall Dimensions (H x W x D) |
25.6" x 18.3" x 12.9" (651 x 465 x 327mm) |
|
Shipping Weight |
16.60 lbs |
|
TV Height Range |
15.6" - 17.5" (396 mm - 445 mm) from center of TV to shelf |
Features
- Install any AV component below the flat panel
- Vertical and extension adjustments to fit most component and flat panel combinations.
- Compatible with any Chief medium and large swing arm or ceiling mounts using the 200mm x 200mm and 14" x 14" Q-latch mounting system
- Slots provide the room to strap components to the shelf for safety using the PAC103 accessory
- Can be used with PACLR1 speaker accessory
- TAA Compliant
Product Options/Accessories
| Model | PACCS1 |
| Manufacturer | Chief Mounts |
| Part Number | PACCS1 |
| UPC | 841872144153 |
| Color | Black |
| Weight Capacity | 15 lbs (6.8kg) |
| Overall Dimensions | 25.6" x 18.3" x 12.9" (651 x 465 x 327mm) |
| Shipping Weight | 16.60 lbs |
| TV Height Range | 15.6" - 17.5" (396 mm - 445 mm) from center of TV to shelf |
