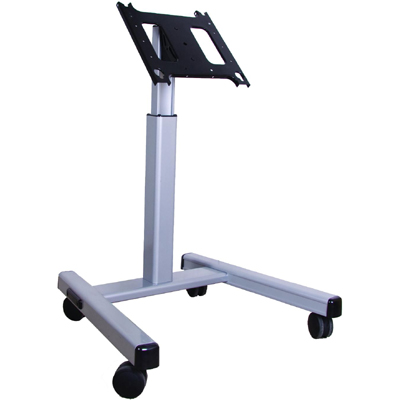

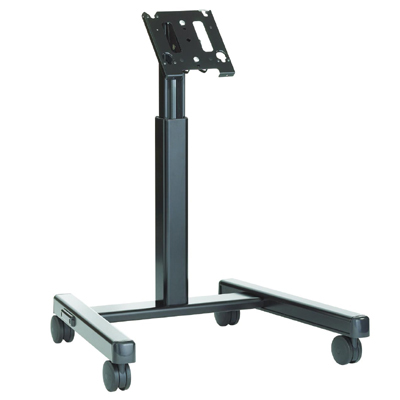

Chief MFM6000 Medium Confidence Monitor Cart (without interface)
Additional MSB6015 or MSB6243 Custom Interface Bracket required.
Related Products
|
Part Number |
Description |
|
MFM6000B |
Black Flat Panel Confidence Monitor Mobile Cart for 30 to 55" Displays |
|
MFM6000S |
Silver Confidence Monitor Mobile Computer Cart for 30 to 55" Displays |
Description
Chief MFM6000 is a lightweight mobile cart with a collapsible design that is perfect for interactive touchscreens and confidence monitors.
Offers 3-4' of height adjustment

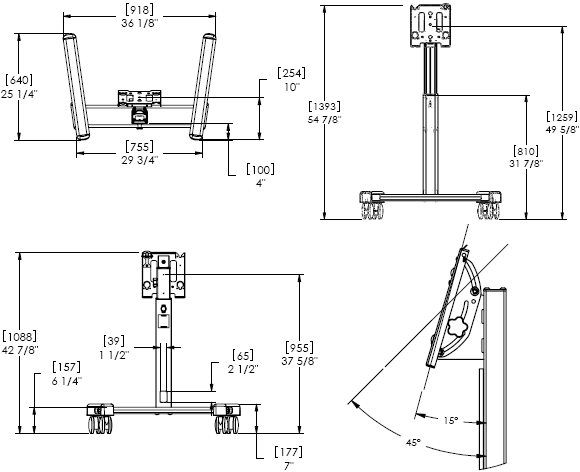

Technical Drawing
MSB-6015
Specifications
|
Center of Display to Floor/Table Range |
37.63 - 49.63" (956 - 1261mm) |
|
Color |
Black, Silver |
|
Manual Height Adjustment |
12" |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 709 x 431mm |
|
Notes |
TAA Compliant |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
54.9" x 36.1" x 25.2" (1394 x 917 x 640mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
47.45 lbs |
|
Tilt |
+ 45°, + 15° |
|
Typical Screen Sizes |
30 - 55" |
|
Weight Capacity |
125 lbs (56.7kg) |
Features
- Centris Technology provides effortless, fingertip tilt
- Screen angle stays set in place until you decide to re-adjust
- Provides telescoping height adjustment without tools
- ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
- Offers quick connect/disconnect with no tools necessary
- Includes integrated security with the addition of a padlock
- Screen can be installed in portrait or landscape orientation ( MAC400 accessory can be used to rotate without removing the screen)
- Integrated cable management with flexible covers to hide cables out of sight for a fast, clean installation
- Lockable rear wheels provide added stability
- Compact, angled base makes corner positioning easy
- TAA Compliant
| Model | MFM6000B, MFM6000S |
| Manufacturer | Chief Mounts |
| Part Number | MFM6000B or MFM6000S |
| UPC | 841872107875 |
| Weight | lb(s) |
| Center of Display to Floor/Table Range | 37.63 - 49.63" (956 - 1261mm) |
| Color | Black, Silver |
| Manual Height Adjustment | 12" |
| Mounting Pattern | 100 x 100mm - 709 x 431mm |
| Overall Dimensions | 54.9" x 36.1" x 25.2" (1394 x 917 x 640mm) |
| Shipping Weight | 47.45 lbs |
| Tilt | + 45, + 15 degree |
| Monitor Size | 30 - 55" |
| Weight Capacity | 125 lbs (56.7kg) |
| Mounting Options | Cart |
