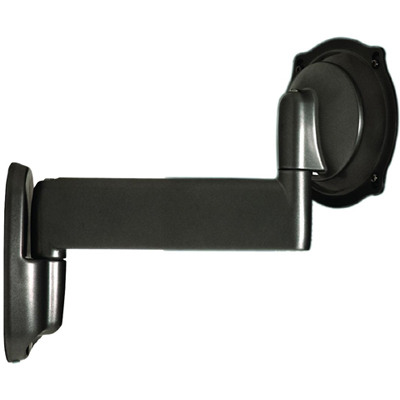

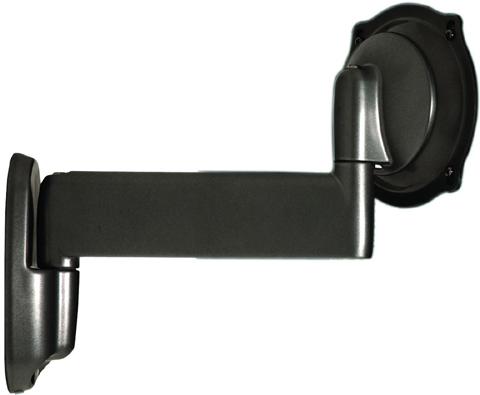

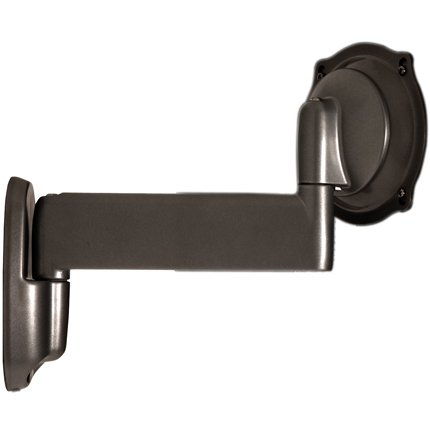

Chief JWS210B and JWS210S Single Arm Wall Mount - 12" Extension
BACK ORDER TILL 03-11-2022
Related Products
|
Part Number |
Description |
|
JWS210B |
Black Flat Panel Single Swing Arm Wall Mount for 26 to 45 inch Displays |
|
JWS210S |
Silver Single Swing Arm Wall Mount for 26 to 45 inch Flat Panel Displays |
|
JWSVB |
Black Universal Flat Panel Single Swing Arm Wall Mount for 26-45" Displays |
|
JWSVS |
Silver Universal Flat Panel Single Swing Arm Wall Mount for 26-45" Displays |
|
JWSUB |
Black Universal Single Swing Arm Wall Mount for 26-45" Flat Panel Displays |
|
JWSUS |
Silver Swing LCD Arm Wall Mount for 26 to 45 inch Flat Panel Displays |
Description
Chief JWS Series single arm wall display mount provides a broad range of motion for viewing medium flat panel displays and monitors from multiple angles.
Ergonomic solution for the home or office providing excellent adjustability
Folds in close to the wall for a low-profile appearance

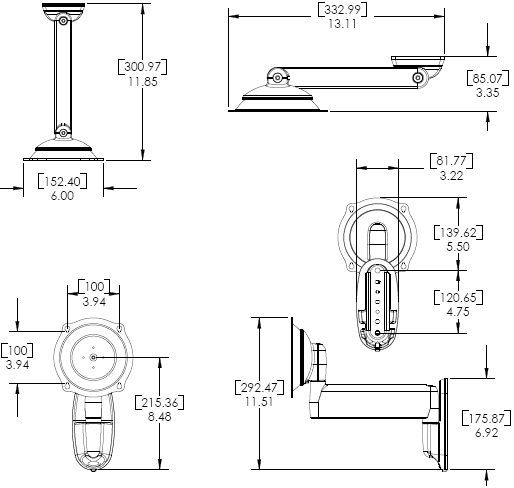

Technical Drawing
Specifications
|
Color |
Black, Silver |
|
Maximum Extension |
11.88" (301.8mm) |
|
Minimum Depth |
3.38" (85.9mm) |
|
Mounting Pattern Compatibility (Universal Versions) |
100 x 100mm - 400 x 400mm |
|
Notes |
Depth and Extension do not include interface bracket (adds 0.5 - 1.5") |
|
Orientation |
Landscape, Portrait |
|
Overall Dimensions (H x W x D) |
11.5" x 13.1" x 3.4" (292 x 334 x 86mm) |
|
Post-Installation Leveling (Roll) |
Yes |
|
Shipping Weight |
JWS210: 12.00 lbs, JWSU: 13.70 lbs, JWSV: 16.00 lbs |
|
Solution Type |
Universal |
|
Tilt |
+ 15°, - 15° |
|
Typical Screen Sizes |
26 - 45" |
|
Wall Stud Compatibility (inches) |
Single Stud |
|
Weight Capacity |
75 lbs (34.kg) |
Features
- Centris Fingertip Tilt provides smooth tilt adjustment in all directions
- Gravity-centered tilt self-adjusts to securely hold different display weights
- Teardrop hole pattern makes mounting the screen quick and easy
- Portrait and landscape screen installation
- Smooth extension to achieve ideal viewing angle
- Independently adjustable tension at pivot points for customized control
- Quick, easy cable management
- Sleek, attractive design hides all hardware
- Ships assembled
- Universal models available for VESA 100 x 100 mm up to 400 x 400mm mounting patterns
- MSB interface bracket can be purchased separately for non-VESA compatible screens
Product Options/Accessories
Frequently Asked Questions
Chief designs custom interface brackets for non-VESA screens. Simply order the correct MSB bracket using the Cross Reference.
| Model | JWS Series |
| Manufacturer | Chief Mounts |
| Part Number | JWS Series |
| UPC | 841872114361 |
| Weight | lb(s) |
| Color | Black, Silver |
| Maximum Extension | 11.88" (301.8mm) |
| Minimum Depth | 3.38" (85.9mm) |
| Mounting Pattern | 100 x 100mm - 400 x 400mm |
| Overall Dimensions | 11.5" x 13.1" x 3.4" (292 x 334 x 86mm) |
| Shipping Weight | JWS210: 12.00 lbs, JWSU: 13.70 lbs, JWSV: 16.00 lbs |
| Tilt | + 15, - 15 degree |
| Monitor Size | 26 - 45" |
| Weight Capacity | 75 lbs (34.kg) |
| Mounting Options | Wall |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
