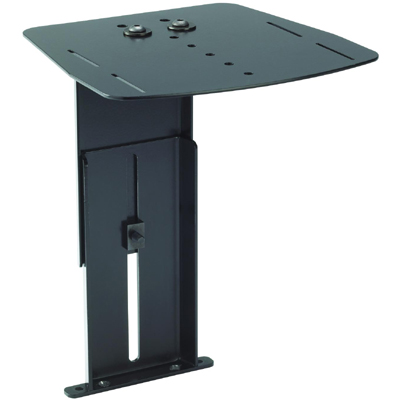

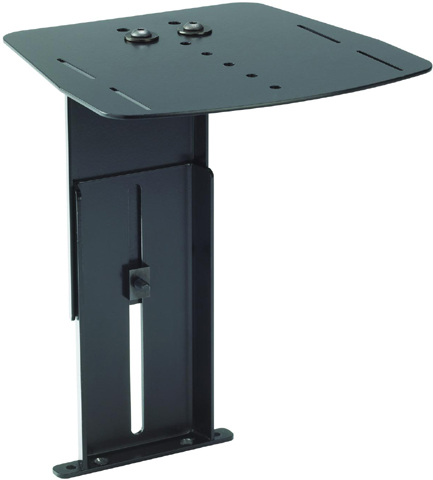

Chief PAC715 Video Conferencing 9" Camera Shelf
Description
Chief PAC715 supports a video conferencing camera above or below the display. Camera shelf provides support for installing a camera above the display using both the 14 x 14" (P-series) and 200 x 200 mm (M - Series) Q-Latch systems, or below the display using the 14 x14" system.

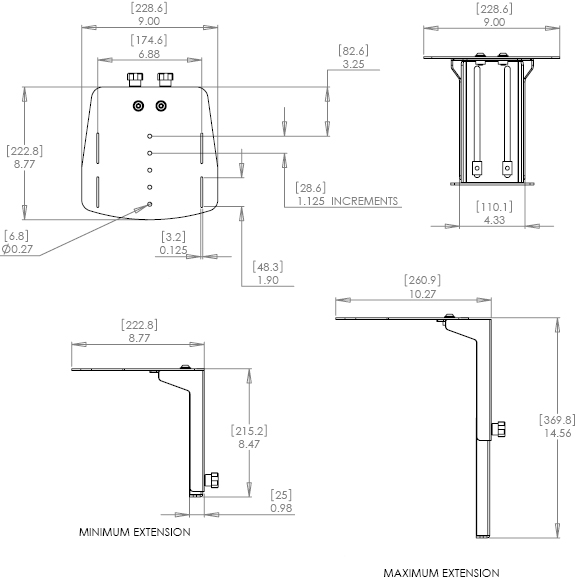

Technical Drawing
Specifications
|
Color |
Black |
|
Equipment Weight Capacity |
10 lbs (4.5kg) |
|
Manual Height Adjustment |
6.1" |
|
Maximum Extension |
2.5" (63.5mm) |
|
Notes |
Maximum Screen Heights are: 41.2 with P series products, 38.5 with M series products |
|
Overall Dimensions (H x W x D) |
8.5" x 9.0" x 8.8" (215 x 229 x 223mm) |
|
Shipping Weight |
8.35 lbs |
|
TV Height Range |
15 - 41.5" (381 - 1054mm) |
|
Undefined |
TAA Compliant |
Features
- Great for boardrooms and other video conferencing applications
- Compatible with all Chief carts and stands, swing arm mounts and ceiling mounts that use a 14 x 14" or 200 x 200 mm Q-Latch system
- Camera shelf provides support for installing a camera above the display using both the 14 x 14" (P-Series) and 200 x 200 mm (M-series) Q-Latch systems, or below the display using the 14 x14" system.
- TAA Compliant
- If you would like to place the camera below the display using the 200 x 200 mm Q-Latch system, use PACCS1 Large Shelf Accessory
Product Options/Accessories
| Model | PAC715 |
| Manufacturer | Chief Mounts |
| Part Number | PAC715 |
| UPC | 841872122182 |
| Color | Black |
| Weight Capacity | 10 lbs (4.5kg) |
| Manual Height Adjustment | 6.1" |
| Maximum Extension | 2.5" (63.5mm) |
| Overall Dimensions | 8.5" x 9.0" x 8.8" (215 x 229 x 223mm) |
| Shipping Weight | 8.35 lbs |
| TV Height Range | 15 - 41.5" (381 - 1054mm) |
Customer reviews
- 1 stars 0
- 2 stars 0
- 3 stars 0
- 4 stars 0
- 5 stars 0
Warranty
With the exception of electrical products, Chief warrants its products to be free of defects in material and workmanship for 10 years. All warranties are in effect beginning the date the product was invoiced by Chief. Electrical mechanisms (such as lift products) have a 1-year limited warranty. All warranties are in effect for the original purchaser only. Chief disclaims liability for any modifications, improper installation and/or installations over the specified weight capacity. Chief also disclaims liability for any modifications made to electrical mechanisms, improper installation, incorrect voltage connection and/or installations over the stated weight capacity. All Electrical Mechanisms are intended for indoor use only and failure to comply will void warranty.
Chief's sole warranty obligation to the owner of its products is to repair or replace (at Chief's discretion) defective products at no charge to the original purchaser within the warranty period. The purchaser is responsible for returning the product to Chief Manufacturing via prepaid shipping. To the maximum extent permitted by applicable law, Chief disclaims any other warranties, express or implied, including warranties of fitness for a particular purpose and warranties of merchantability. Chief will not be liable for any damages whatsoever arising out of the use or inability to use Chief products, even if Chief has been advised of the possibility of such damages. Chief bears no responsibility for incidental or consequential damages. This includes, but is not limited to, any labor charges for the repair of Chief products performed by someone other than a Chief employee. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply. Chief will not be responsible for damage to Chief products caused by misuse, abuse, failure to properly package the product for return to Chief or for damage caused by carriers during shipment to or from Chief. Any repairs to Chief products required due to misuse, abuse or shipping damage or repairs of defective Chief product outside the warranty period will be performed at the current rates established by Chief for factory service.
