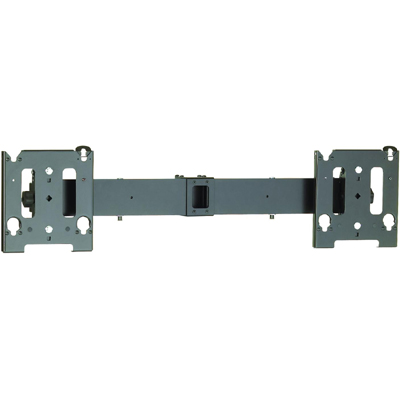

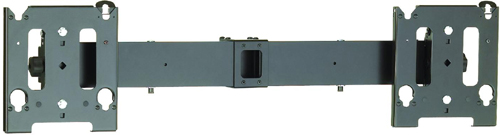

Chief MAC722 M-Series Dual Side-by-Side Display Accessory
Description
Chief MAC722 adds support for two displays side-by-side to carts and floor
stands.
Note: If you have already ordered a universal cart or stand, you only need to
order one interface bracket since these stands come with a universal interface
bracket. If you do not ordered a universal cart or stand, you will need two
interface brackets (one for each screen).

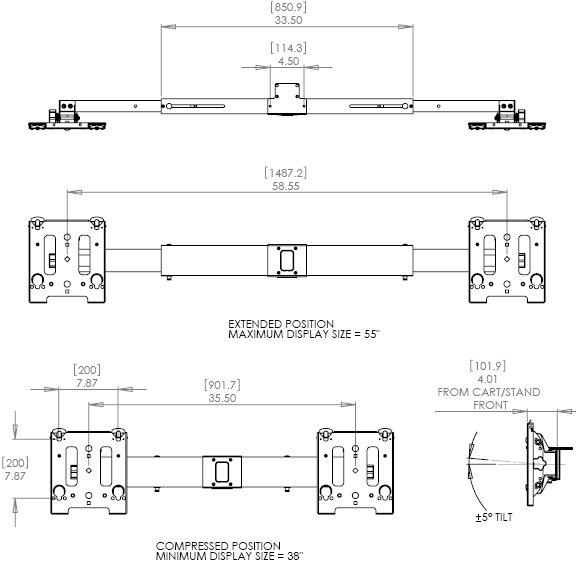

Technical Drawing
Specifications
|
Color |
Black |
|
Notes |
Weight capacity is per TV |
|
Overall Dimensions (H x W x D) |
7.9" x 23.5" x 4.0" (200 x 598 x 102mm) |
|
Shipping Weight |
30.70 lbs |
|
Tilt |
+ 15° , - 15° |
|
TV Width Range |
39.18 - 58.8" (995 - 1494mm) |
|
Weight Capacity |
63 lbs (28.3kg) |
Features
- Supports two 39.2-58.8" (99.6 - 149.4 cm) wide displays (must be same size)
Product Options/Accessories
| Model | MAC722 |
| Manufacturer | Chief Mounts |
| Part Number | MAC722 |
| UPC | 841872122632 |
| Color | Black |
| Overall Dimensions | 7.9" x 23.5" x 4.0" (200 x 598 x 102mm) |
| Shipping Weight | 30.70 lbs |
| Tilt | + 15 degree, - 15 degree |
| TV Width Range | 39.18 - 58.8" (995 - 1494mm) |
| Weight Capacity | 63 lbs (28.3kg) |
